1. Description

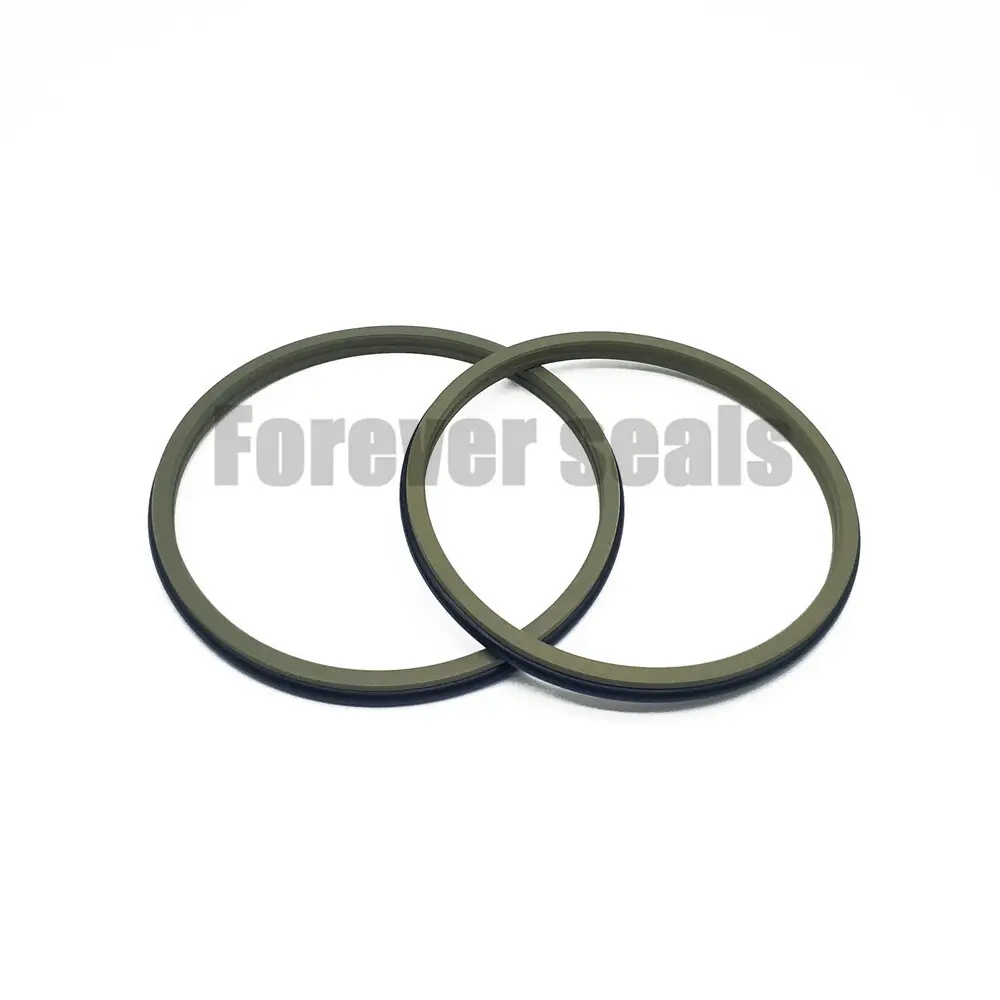

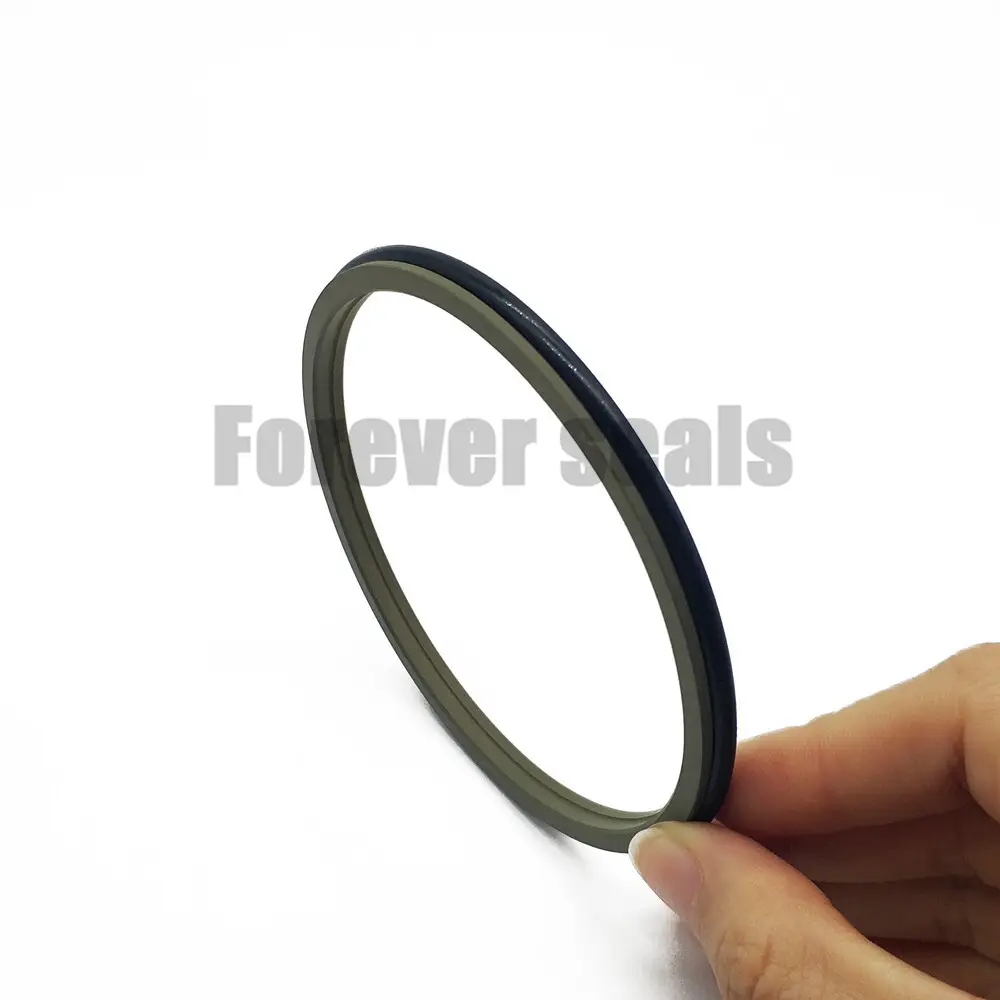

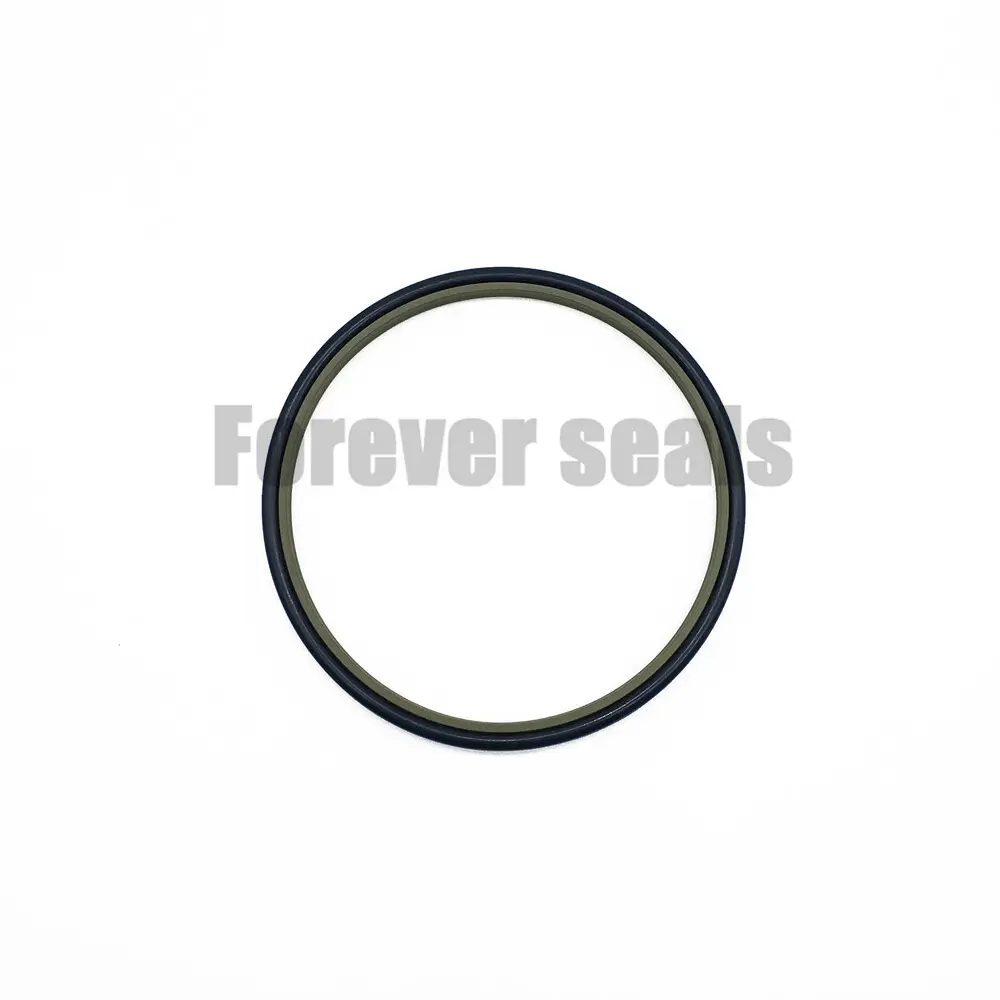

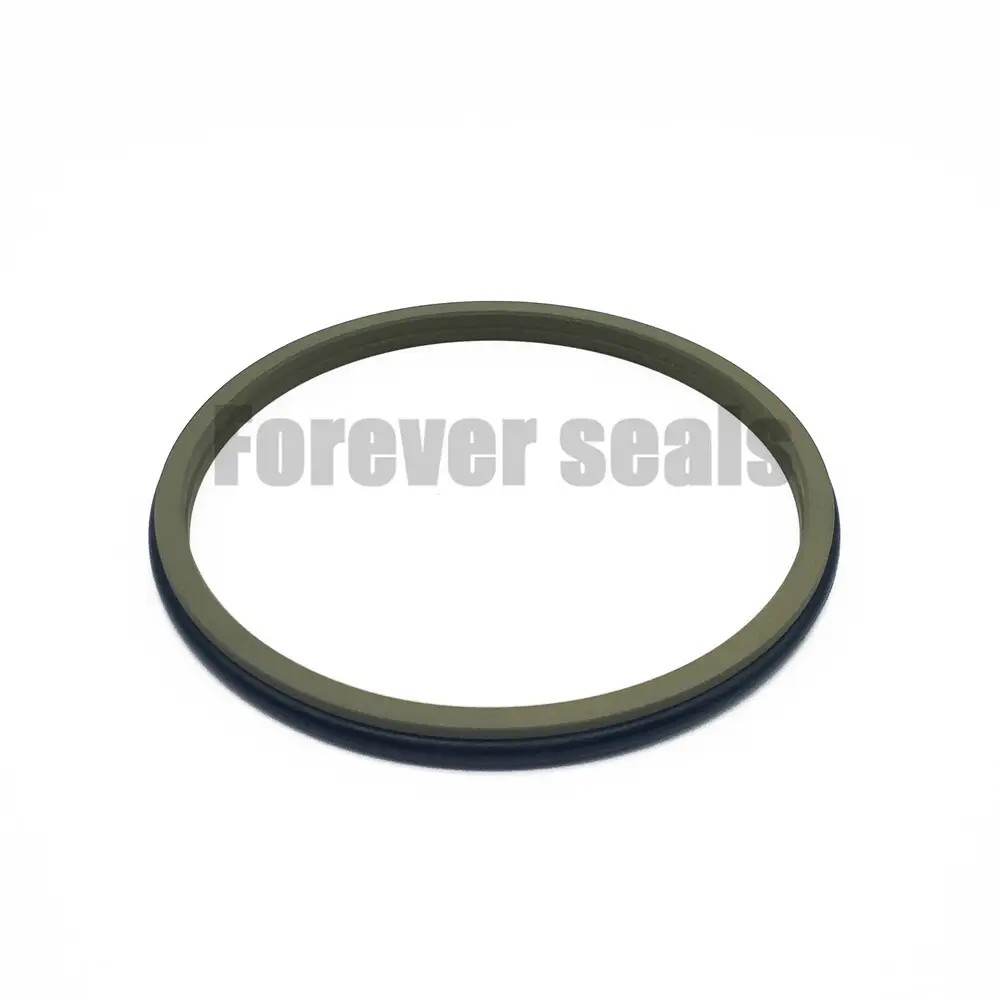

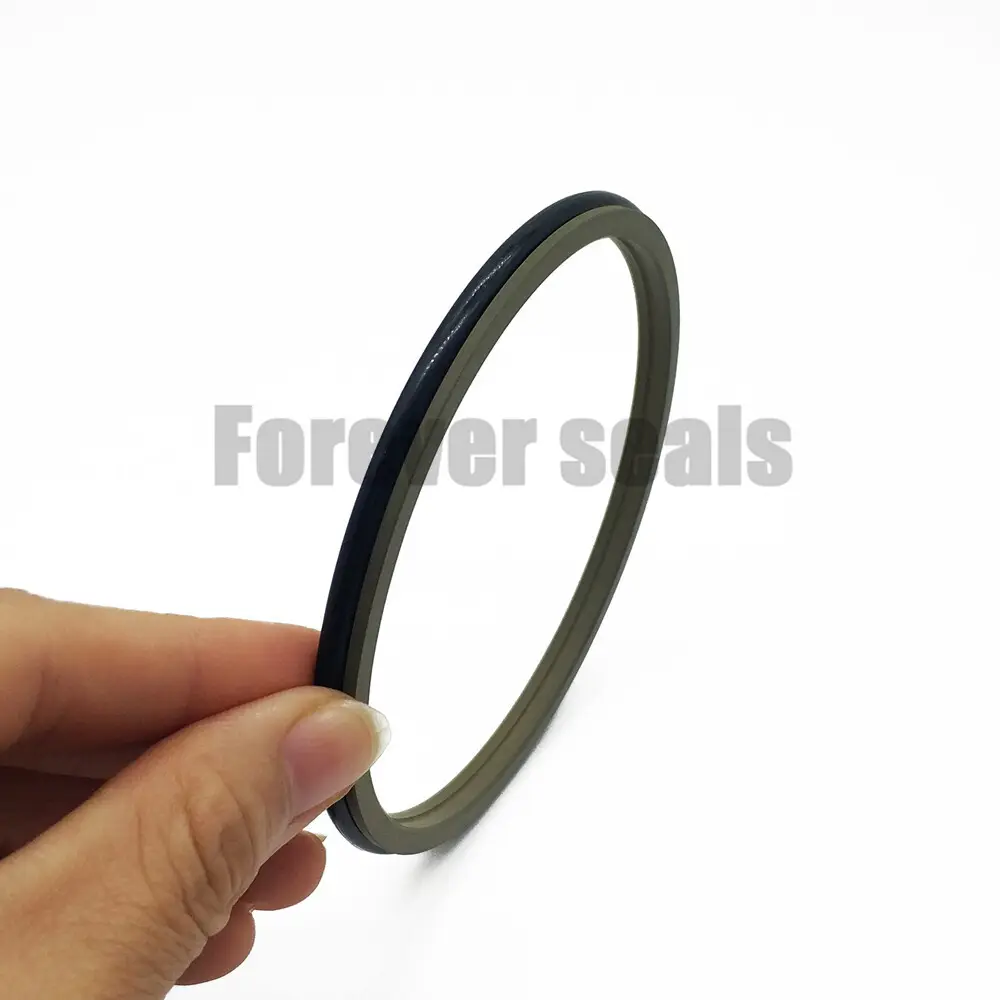

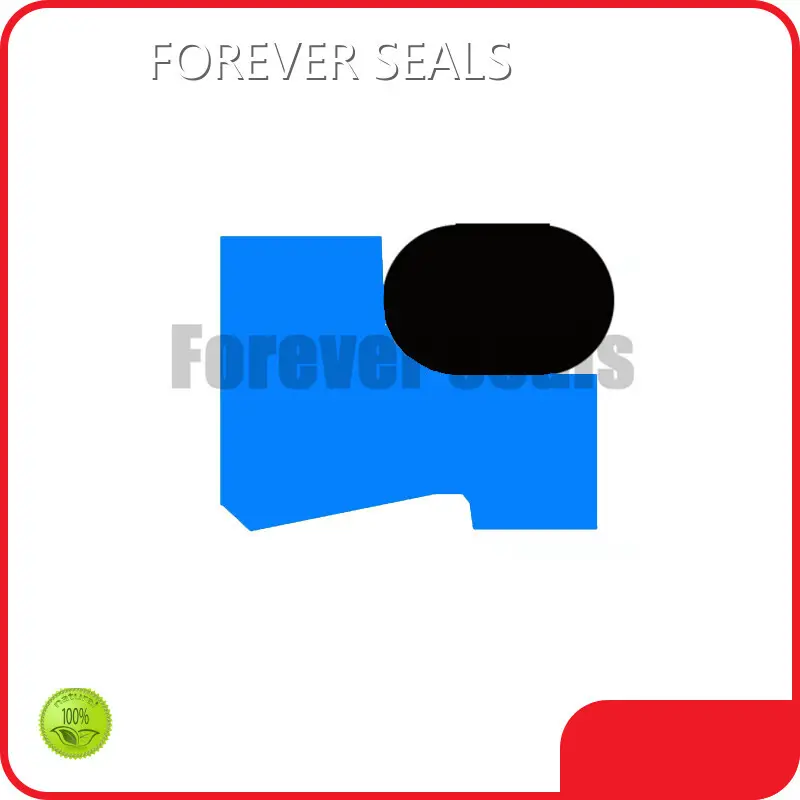

Wiper seal GSZ2 of Forever Seals is suitable for cold and dusty environments and high frequency reciprocating motion. Mainly used in hydraulic and pneumatic devices, servo systems, chemical and food equipment. Excellent sliding performance, no stick-slip behavior, no viscosity, compensate for the distortion of the piston rod and plunger, compatibility with hydraulic media is very good, the remaining oil film adhered to the surface of the piston rod can be effectively blocked from the inside.
2. Installation Recommendation
3. Installation dimensions - Standard recommendations
Rod Diameter
Groove Diameter
Groove Width
Diameter
Step Width
O-Ring Cross-Section
dN f8/h9
D H9
L +0.2
D3 H11
a min
d2
4.0-11.9
dN+4.8
3.7
d+1.5
2.0
1.78
12.0-64.9
dN+6.8
5
d+1.5
2.0
2.62
65.0-250.9
dN+8.8
6
d+1.5
3.0
3.53
251.0-420.9
dN+12.2
8.4
d+2.0
4.0
5.33
421.0-650.9
dN+16.0
11
d+2.0
4.0
7.00
651.0-999.9
dN+20.0
14
d+2.5
5.0
8.40
≥1000.0
dN+20.0
14
d+2.5
5.0
8.40
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3 - 1600mm |
- |
-30℃ +200℃ |
5 m/s |
hydraulic oil, flame retardant liquid, water and others |
Company Advantages
· FOREVER SEALS wiper ring seal is specifically designed to meet the needs of customers, featuring innovation and functionality.
· The product is tested on numerous quality parameters before supplying to patrons
· Under reasonable management, the service team of FOREVER SEALS has been working orderly to provide the best service.
Company Features
· Over the years, FOREVER SEALS TECHNOLOGY.,LIMITED has developed to be world-renowned for the excellent wiper ring seal.
· With abundant technical strength, FOREVER SEALS is really competitive in wiper ring seal industry.
· We have defined our mission. To be a professional company of choice through continuous goal alignment of all stakeholders – clients, partners, employees, shareholders, and society. Inquiry!
Application of the Product
FOREVER SEALS's wiper ring seal is widely used in many industries.
FOREVER SEALS has been engaged in the production of SEALS,O-RINGS for many years and has accumulated rich industry experience. Based on that, we could provide comprehensive and excellent solutions according to actual situations and the needs of different customers.
