Product details of the spring loaded seals


Product Introduction

The diligent detective work is performed on the detail of FOREVER SEALS spring loaded seals. FOREVER SEALS offers this product with various practical functions. Warm and meticulous customer service is included in FOREVER SEALS TECHNOLOGY.,LIMITED's business philosophy.

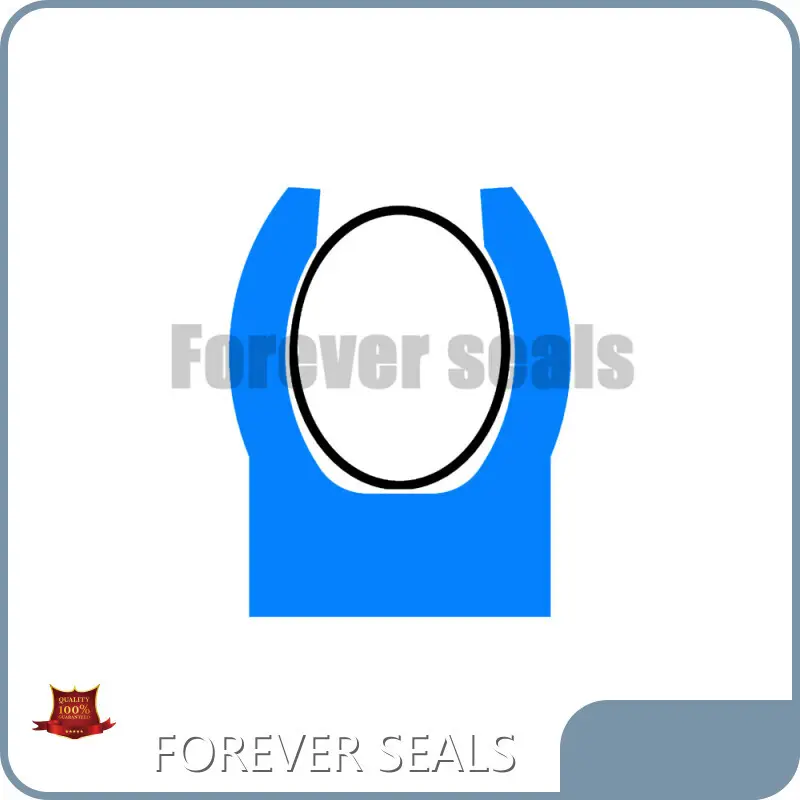

1. Description

External face spring energized seals is the standard seal for axial (face) applications. It has a high spring loading, which gives excellent sealing integrity at low pressure and is available for both internal and external pressure.

The heavy helical spring in DVL makes it the best choice for vacuum, gas and low temperature flange sealing applications.

2. Installation Recommendations

Spring Loaded Seals Spring Energized Seals Wholesale - FOREVER SEALS 9

3. Technical Data

Operating pressure: Maximum static load: 60 MPa / 8,702 psi Maximum dynamic load: 20 MPa / 2,900 psi (207 MPa / 30,000 psi with Back-up Ring) Speed: Static to slow rotating or pivoting movements Operating temperature: -150 °C to +200 °C / -238 °F to +392 °F Media compatibility: Virtually all fluids, chemicals compatibility: and gases

4. Areas of Application

- Compressor housings - Construction equipment and plant - Chemical processing - Crude oil and natural gas installations - Cryogenic engineering - Nuclear power - Vacuum applications - Pivot joints
