Product details of the rubber seal
Quick Detail
The production level of FOREVER SEALS rubber seal is up to the international standards. The product has to undergo in-house quality assurance procedures conducted by our quality inspectors in order to ensure defect-free quality. The rubber seal developed and produced by our company can be widely used in various industries and professional fields. Developing superior rubber seal in FOREVER SEALS TECHNOLOGY.,LIMITED better guarantees the quality of customer satisfication.
Product Information
More detailed information about rubber seal will be shown below for you.
1. Description

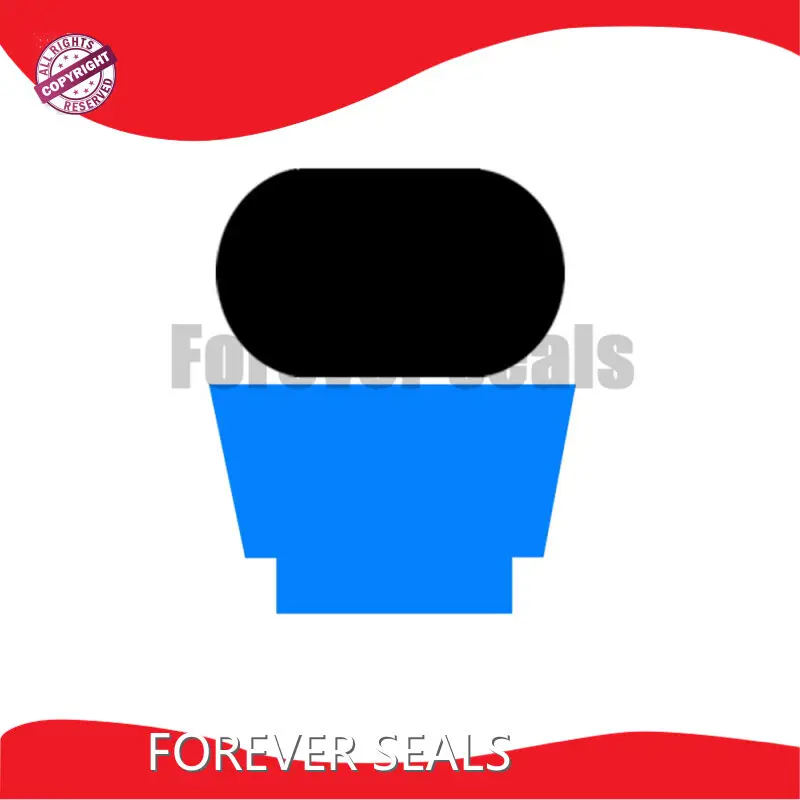

Rod T glyd ring of Forever Seals is a further technical development of the glyd ring seal which has been successfully used for decades. It is fully interchangeable with the earlier Glyd Ring seals in all new applications. Glyd Ring T meets all the market demands for a function-specific seal solution, observing economic and ecological aspects.
2. Installation Recommendation
3. Installation dimensions - Standard recommendations
|
Rod Diameter dN h9 |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
O-Ring Cross-Section |
||||
|
Standard Application |
Light Application |
Heavy Duty Application |
D1 H9 |
L1+0.2 |
R1 |
10MPa |
20MPa |
40MPa |
d2 |
|
3-7.9 |
8-18.9 |
- |
dN+4.9 |
2.2 |
0.4 |
0.3 |
0.20 |
0.15 |
1.78 |
|
8-18.9 |
19-37.9 |
- |
dN+7.3 |
3.2 |
0.6 |
0.4 |
0.25 |
0.15 |
2.62 |
|
19-37.9 |
38-199.9 |
8-18.9 |
dN+10.7 |
4.2 |
1.0 |
0.4 |
0.25 |
0.20 |
3.53 |
|
38-199.9 |
200-255.9 |
19-37.9 |
dN+15.1 |
6.3 |
1.3 |
0.5 |
0.30 |
0.20 |
5.33 |
|
200-225.9 |
256-649.9 |
38-199.9 |
dN+20.5 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
256-649.9 |
650-999.9 |
200-255.9 |
dN+24.0 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
650-999.9 |
≥1000.0 |
256-649.9 |
dN+27.3 |
9.5 |
2.5 |
0.7 |
0.50 |
0.30 |
8.40 |
|
≥1000.0 |
- |
650-999.9 |
dN+38.0 |
13.8 |
3.0 |
1.0 |
0.70 |
0.60 |
12.00 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3 - 1600mm |
0 - 60MPa |
-45℃ +200℃ |
15 m/s |
hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
|
Rod Dia. |
Groove Dia. |
Groove Width |
Order No. |
O-Ring Dimensions |
|
DN h9 |
D1 H9 |
L1+0.2 |
|
|
|
4 5 6 |
8.9 9.9 10.9 |
2.2 2.2 2.2 |
GZT4*8.9*2.2 GZT5*9.9*2.2 GZT6*10.9*2.2 |
5.6*1.8 6.7*1.8 7.65*1.78 |
|
8 8 10 |
12.9 15.3 14.9 |
2.2 3.2 2.2 |
GZT8*12.9*2.2 GZT8*15.3*3.2 GZT10*14.9*2.2 |
9.5*1.8 10.77*2.62 11.8*1.8 |
About more dimensions, you can download it through below link.
http://www.foreverseals.com/download.html
