Home      Products     Rotary seals       V seal ring VS rubber seal
  • V seal ring VS rubber seal

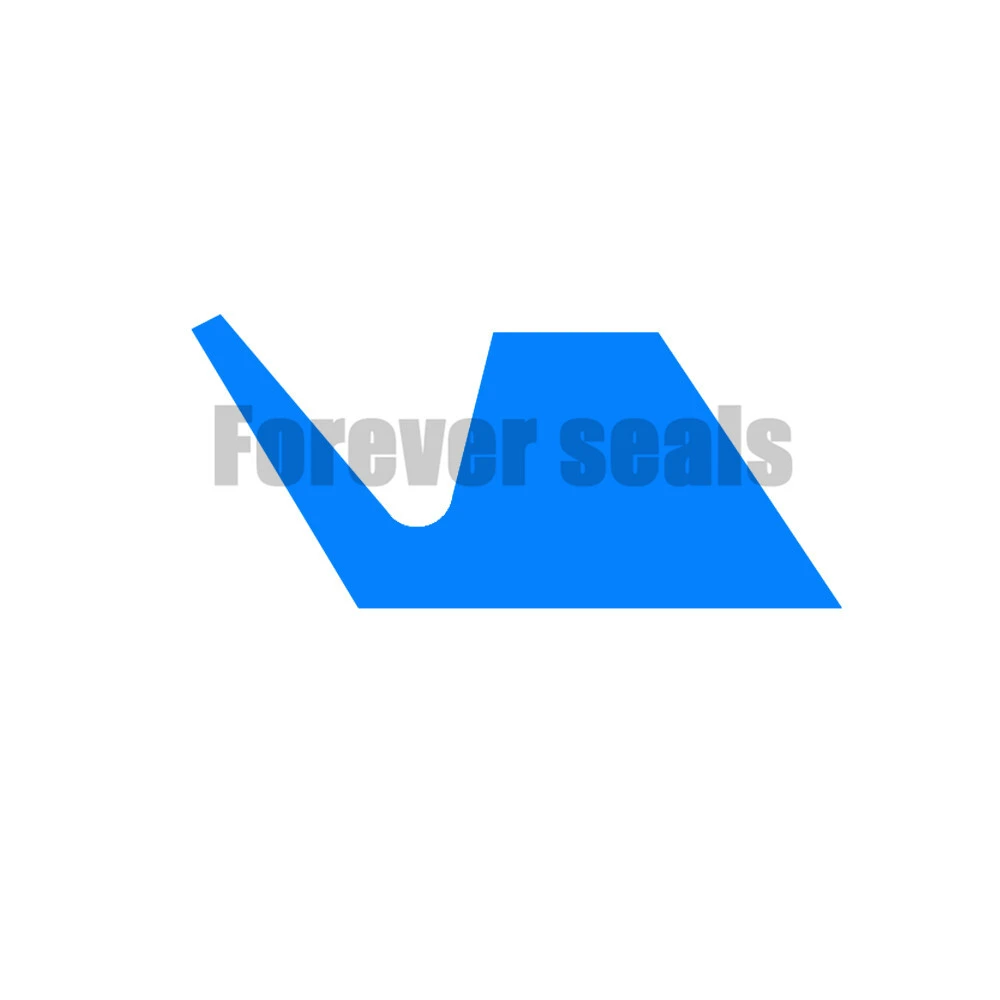

V seal ring VS rubber seal

  • Category: Rotary seals
  • Temperature: -30 - +200℃
  • Material: NBR, FKM
  • Color: balck, brown
  • Application: rotary shaft sealing
  • Product description:VS seal is a unique all-rubber seal for rotary shafts. It has been used successfully by OEMs and on the replacement market world wide in a broad range of applications. VS seal is the perfect seal to p
  • INQUIRY   EMAIL

1. Description

VS seal is a unique all-rubber seal for rotary shafts. It has been used successfully by OEMs and on the replacement market world wide in a broad range of applications. VS seal is the perfect seal to prevent the ingress of dirt, dust, water or combinations of these media while positively retaining grease. With its unique design and performance, VS seal can be used with a wide range of bearing types. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.

2. Installation Recommendation

3. Standard materials

NBR / FKM

4. Installation Dimensions

For shaft diameter d1

Inside dia.
d

Height of cross- section c

Dimen- sion
A

Free width B

Maximum
d2

Minimum
d3

Fitted width B1

Order No.

4.5 - 5.5

4

2

3.9

5.2

d1 + 1

d1 + 6

4.5 ±0.4

VS005

5.5 - 6.5

5

2

3.9

5.2

d1 + 1

d1 + 6

4.5 ±0.4

VS006

6.5 - 8.0

6

2

3.9

5.2

d1 + 1

d1 + 6

4.5 ±0.4

VS007

8.0 - 9.5

7

2

3.9

5.2

d1 + 1

d1 + 6

4.5 ±0.4

VS008

9.5 - 11.5

9

3

5.6

7.7

d1 + 1

d1 + 9

6.7 ±0.6

VS010

11.5 - 13.5

10.5

3

5.6

7.7

d1 + 1

d1 + 9

6.7 ±0.6

VS012

13.5 - 15.5

12.5

3

5.6

7.7

d1 + 1

d1 + 9

6.7 ±0.6

VS014

15.5 - 17.5

14

3

5.6

7.7

d1 + 1

d1 + 9

6.7 ±0.6

VS016

17.5 - 19

16

3

5.6

7.7

d1 + 1

d1 + 9

6.7 ±0.6

VS018

19 - 21

18

4

7.9

10.5

d1 + 2

d1 + 12

9.0 ±0.8

VS020

About more Dimensions, you can download it through below link.

http://www.foreverseals.com/download.html
