Product details of the rubber seal
Product Description
FOREVER SEALS rubber seal is entirely made of high quality raw materials with safety. Through the careful inspection of the professional QC team, FOREVER SEALS product is 100% qualified. With the development of society, our rubber seal are also manufactured to meet the higher demands of customers.
1. Description

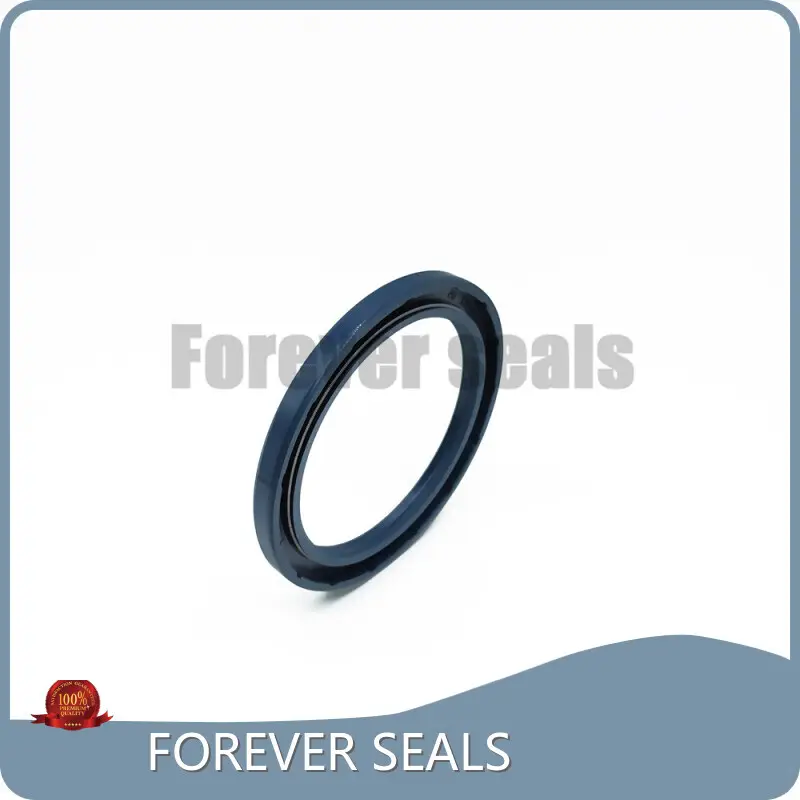

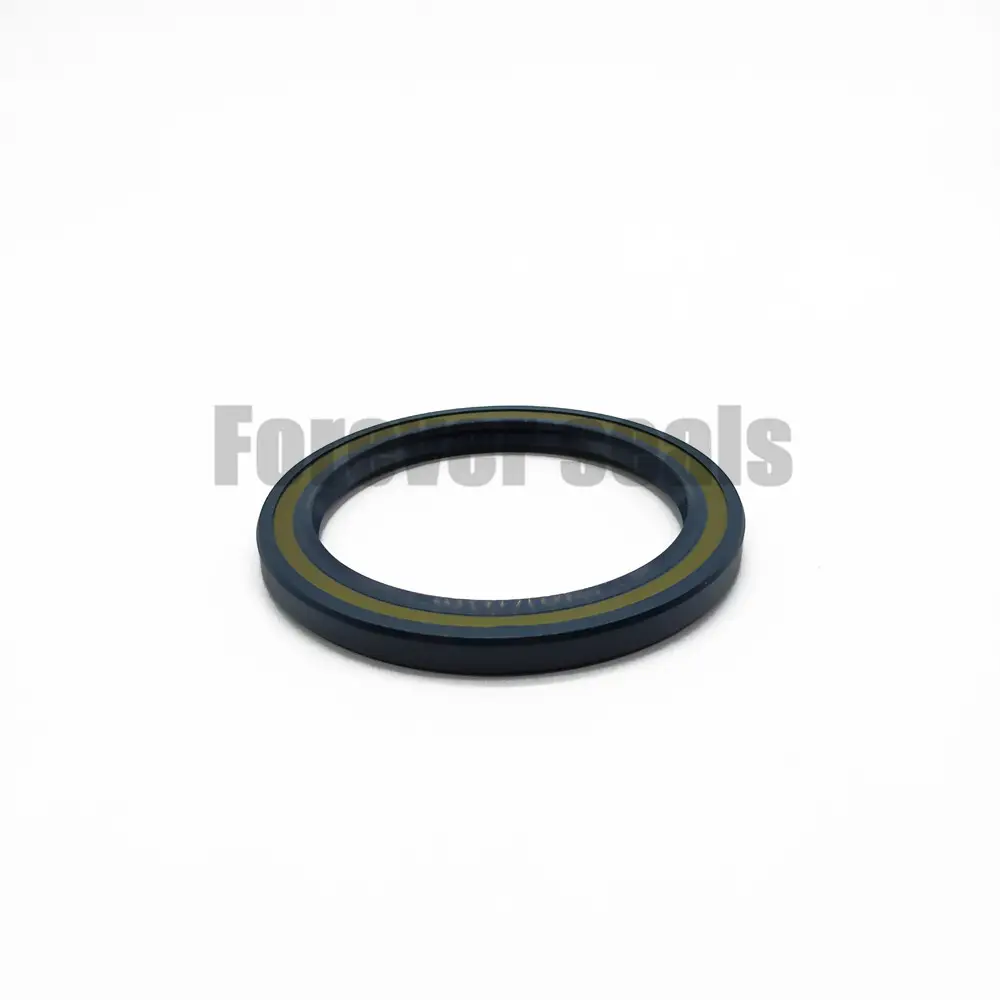

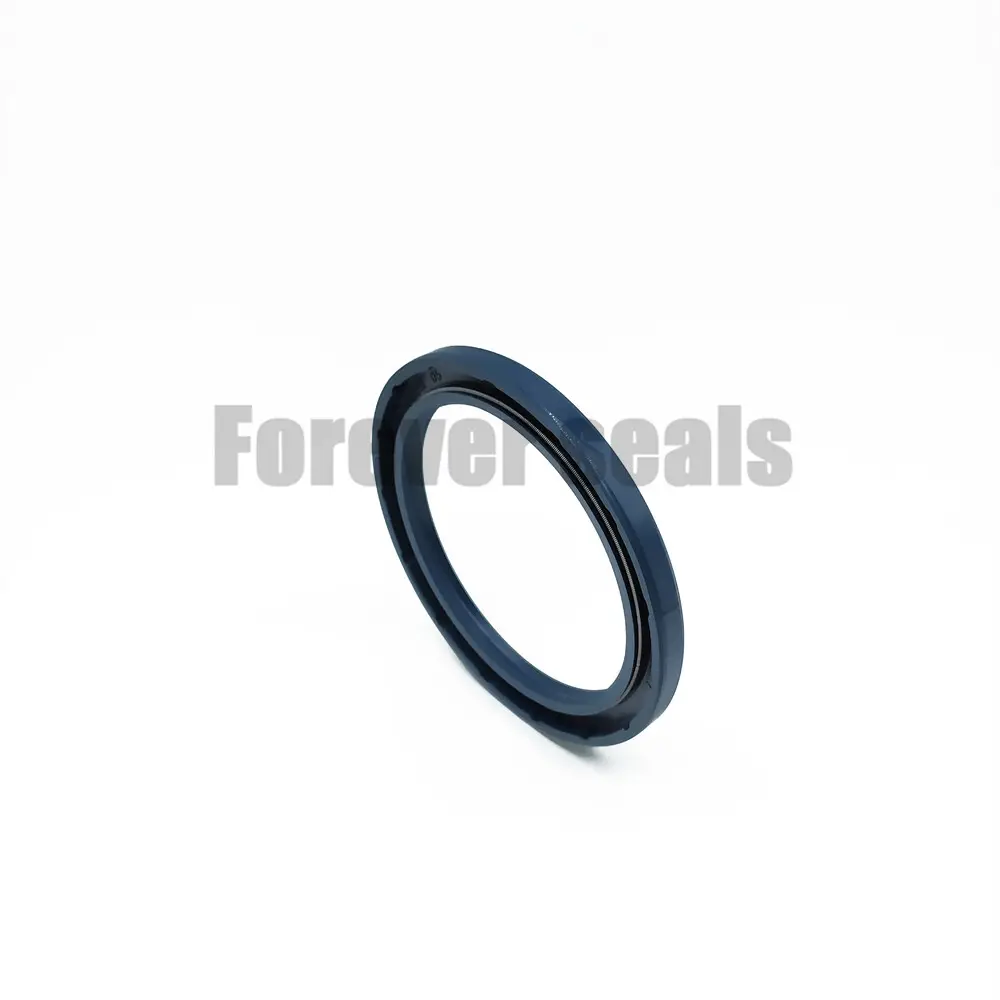

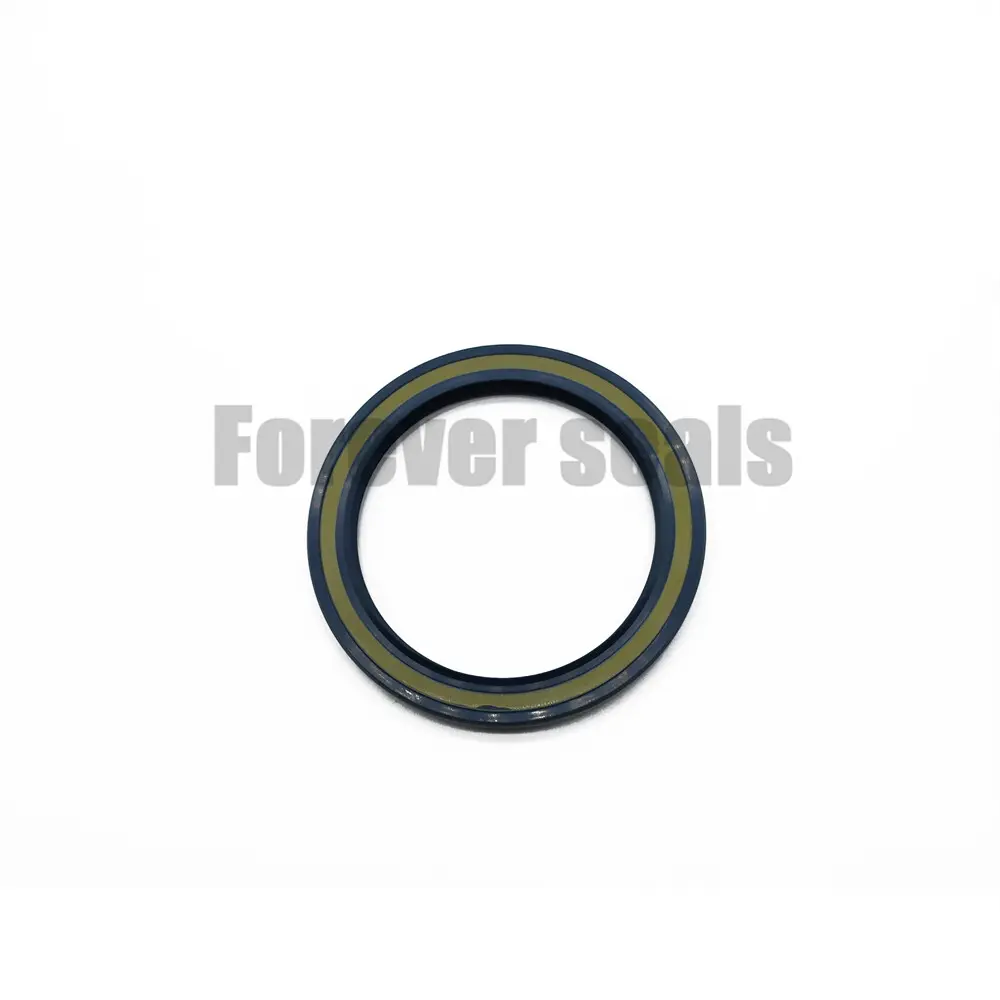

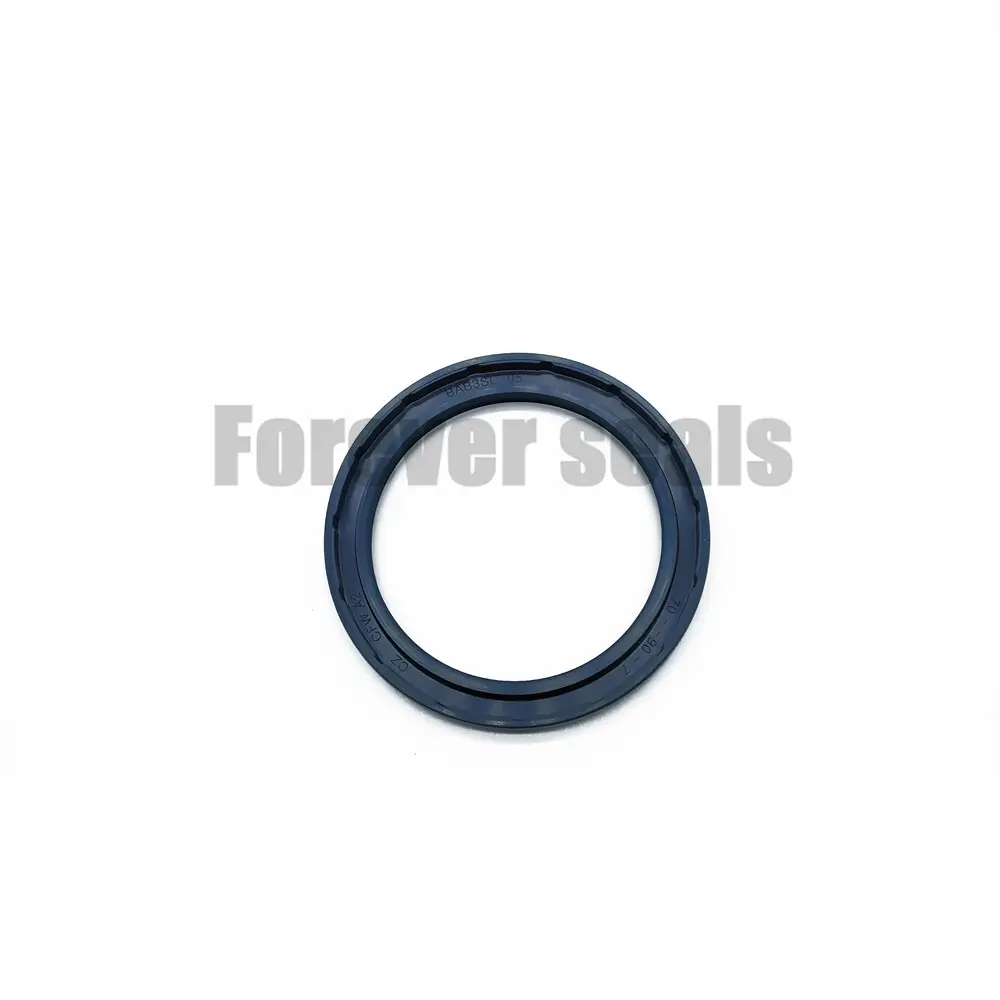

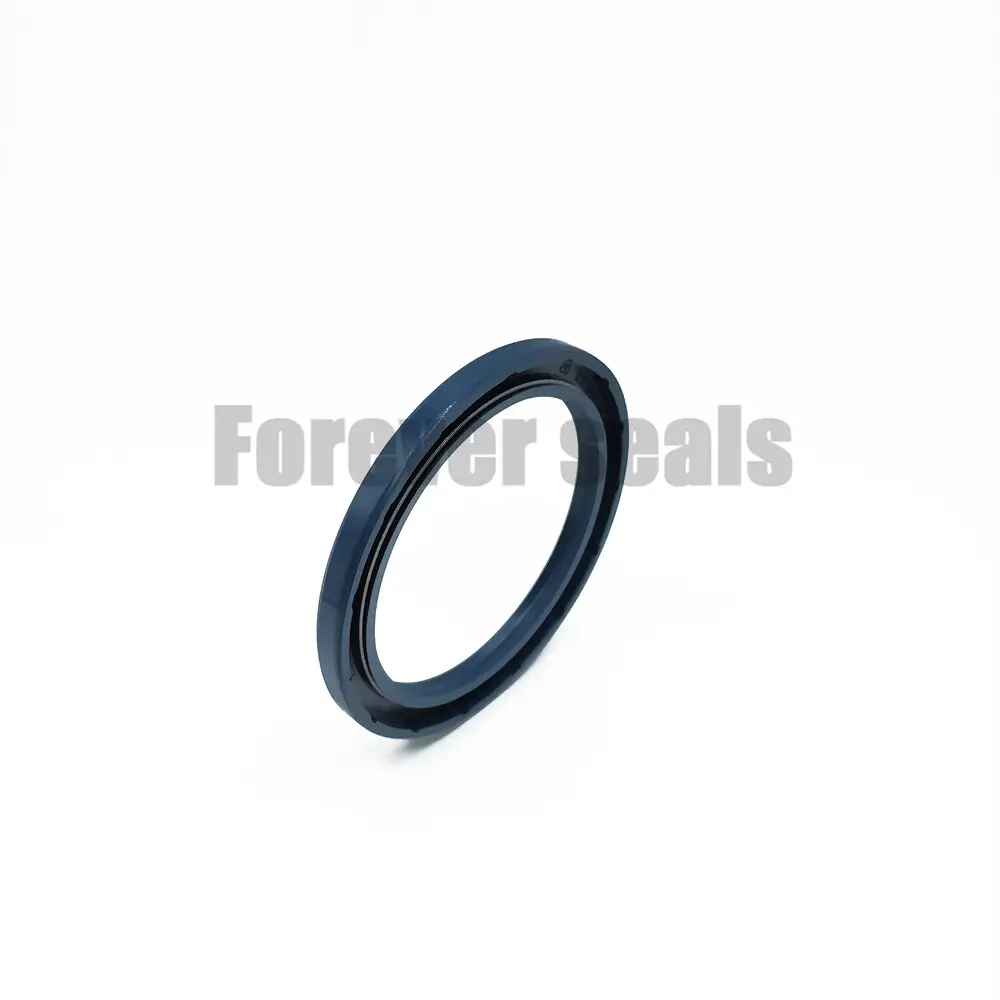

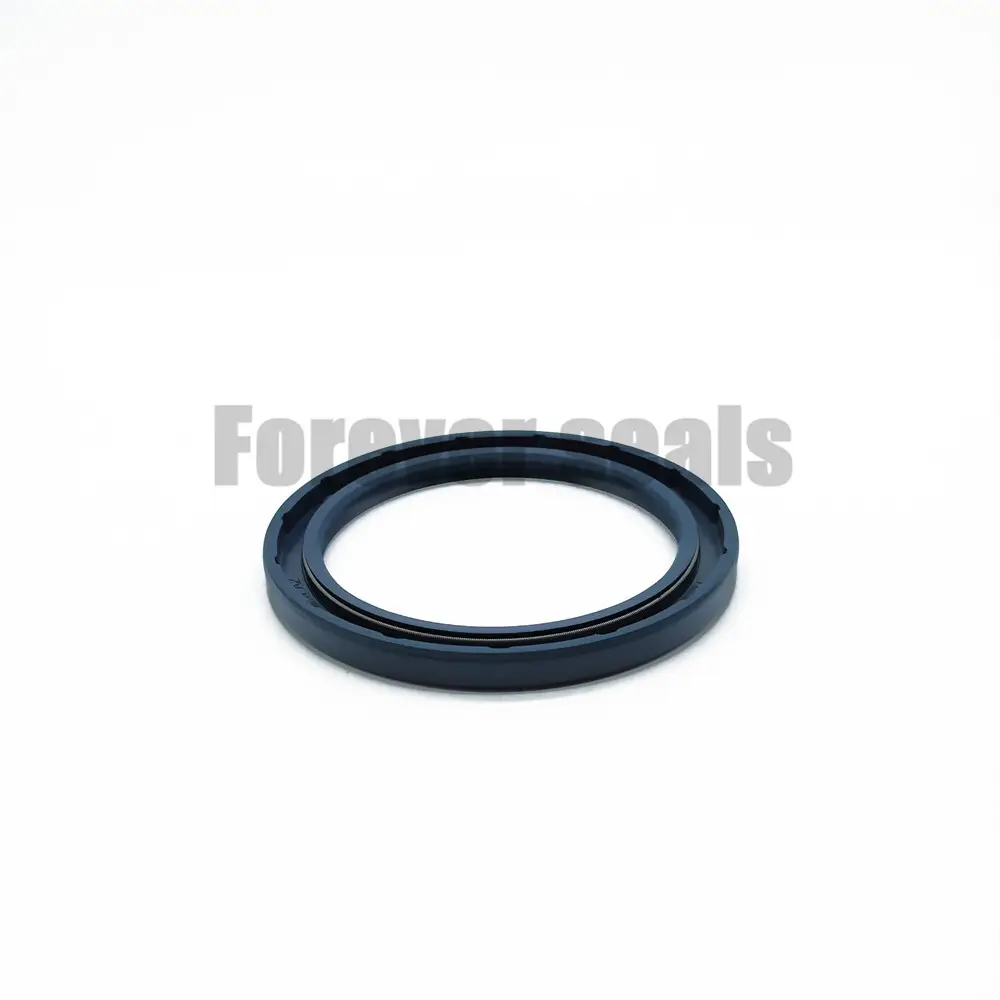

TCV is the standard oil seal which used for rotation axis. It is linked together with metal skeleton and rubber elastic layer. Mainly used for the working conditions of low pressure and high speed rotation.
2. Standard materials
FKM, NBR
3. Installation Dimensions
| Inner Diam. | Outer Diam. | Height | Order No. |
| 17 | 30 | 6 | TCV17*30*6 |
| 17.46 | 28.58 | 5.7/6.3 | TCV17.46*28.58*5.7/6.3 |
| 18 | 30 | 6 | TCV18*30*6 |
| 18 | 35 | 9 | TCV18*35*9 |
| 19 | 30 | 6 | TCV19*30*6 |
| 19 | 35 | 6 | TCV19*35*6 |
| 20 | 47 | 6 | TCV20*47*6 |
| 22 | 35 | 6 | TCV22*35*6 |
| 24 | 38 | 8 | TCV24*38*8 |
| 25 | 35 | 6 | TCV25*35*6 |
| 25 | 35 | 7 | TCV25*35*7 |
| 28 | 40 | 6 | TCV28*40*6 |
| 28.56 | 42 | 5.5 | TCV28.56*42*5.5 |
| 28.575 | 50.8 | 6.35 | TCV28.575*50.8*6.35 |
| 30 | 42 | 7 | TCV30*42*7 |
| 30 | 48 | 6 | TCV30*48*6 |
| 30 | 52 | 7 | TCV30*52*7 |
| 34.92 | 52 | 6 | TCV34.92*52*6 |
| 34.93 | 50.8 | 7.95 | TCV34.93*50.8*7.95 |
| 35 | 47 | 6 | TCV35*47*6 |
| 35 | 52 | 7 | TCV35*52*7 |
| 35 | 54 | 6/5.5 | TCV35*54*6/5.5 |
| 35 | 55 | 7 | TCV35*55*7 |
| 35 | 57 | 8 | TCV35*57*8 |
| 37 | 57 | 9 | TCV37*57*9 |
| 38.1 | 57.15 | 7.95 | TCV38.1*57.15*7.95 |
| 40 | 52 | 7 | TCV40*52*7 |
| 40 | 55 | 7 | TCV40*55*7 |
| 40 | 60 | 12 | TCV40*60*12 |
| 40 | 62 | 7 | TCV40*62*7 |
| 40 | 67 | 7 | TCV40*67*7 |
| 40 | 80 | 7 | TCV40*80*7 |
| 42 | 62 | 7 | TCV42*62*7 |
| 42 | 72 | 6.5 | TCV42*72*6.5 |
| 43.5 | 63.5 | 7 | TCV43.5*63.5*7 |
| 44.45 | 57.15 | 7.9 | TCV44.45*57.15*7.9 |
| 44.45 | 60 | 7 | TCV44.45*60*7 |
| 45 | 62 | 7 | TCV45*62*7 |
| 45 | 63 | 8 | TCV45*63*8 |
| 45 | 65 | 6 | TCV45*65*6 |
| 45 | 65 | 7 | TCV45*65*7 |
| 45 | 80 | 7 | TCV45*80*7 |
| 47 | 62 | 8 | TCV47*62*8 |
| 49.23 | 63.55 | 7.95 | TCV49.23*63.55*7.95 |
| 50 | 65 | 7 | TCV50*65*7 |
| 50 | 68 | 7 | TCV50*68*7 |
| 50 | 70 | 7 | TCV50*70*7 |
| 50 | 72 | 7 | TCV50*72*7 |
| 50 | 75 | 8 | TCV50*75*8 |
| 50 | 80 | 7 | TCV50*80*7 |
| 52 | 72 | 7/8 | TCV52*72*7/8 |
| 55 | 70 | 7 | TCV55*70*7 |
| 55 | 72 | 8 | TCV55*72*8 |
| 55 | 78 | 8 | TCV55*78*8 |
| 55 | 90 | 7 | TCV55*90*7 |
| 58 | 80 | 8 | TCV58*80*8 |
| 60 | 80 | 7 | TCV60*80*7 |
| 62 | 85 | 7 | TCV62*85*7 |
| 65 | 97 | 7.5 | TCV65*97*7.5 |
| 70 | 95 | 7 | TCV70*95*7 |
| 73 | 90 | 7/8 | TCV73*90*7/8 |
| 80 | 100 | 7 | TCV80*100*7 |
| 60 | 106 | 7 | TCV60*106*7 |
| 85 | 110 | 8 | TCV85*110*8 |
| 90 | 110 | 7 | TCV90*110*7 |
| 75 | 120 | 7 | TCV75*120*7 |
| 100 | 120 | 8 | TCV100*120*8 |
4. Product Catalog
You can download catalog through below link.
http://www.foreverseals.com/download.html
