Rod Seals Rod Piston Seal Highly Rated

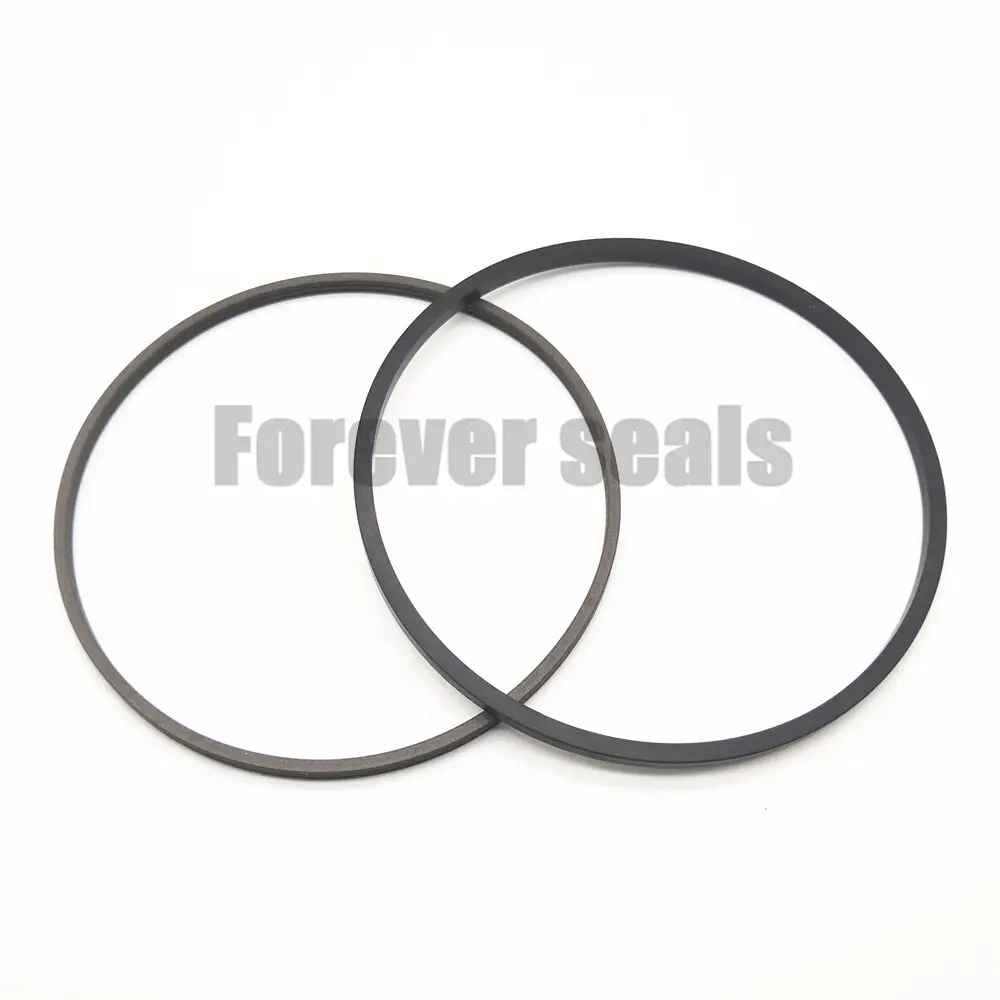

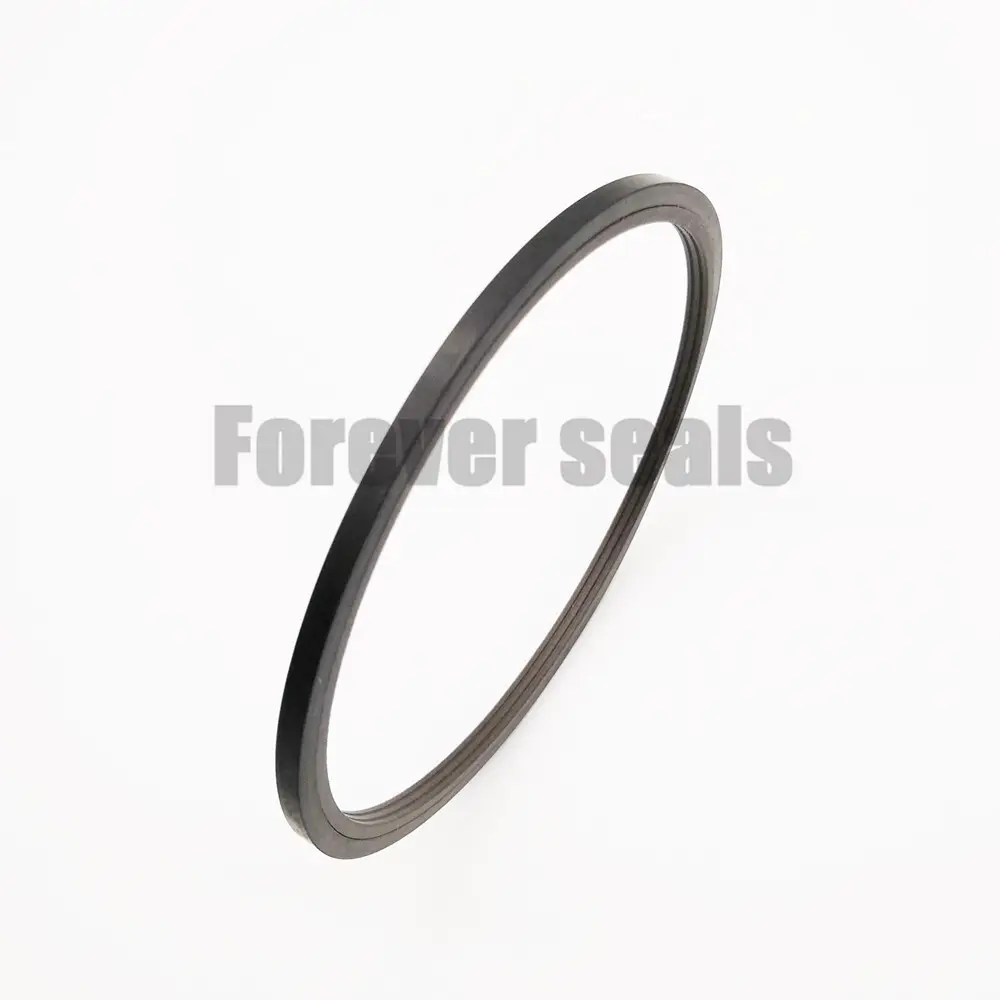

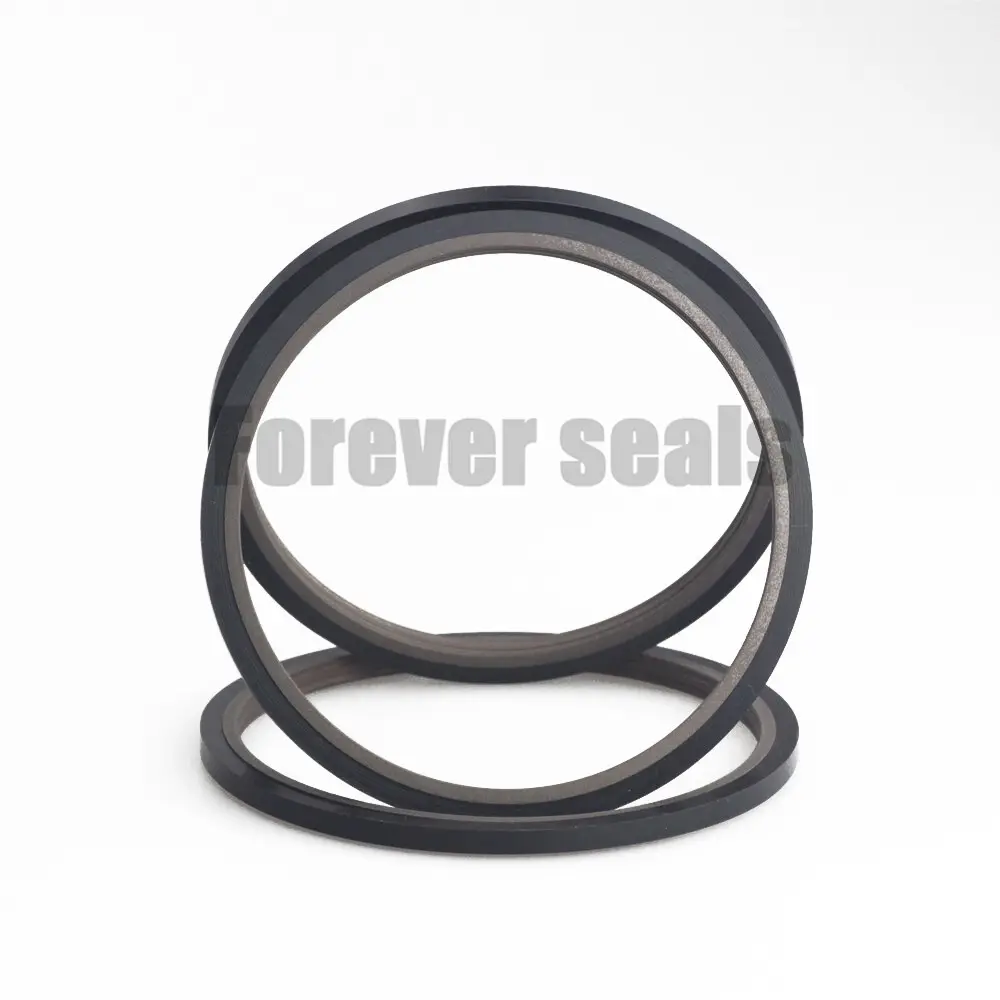

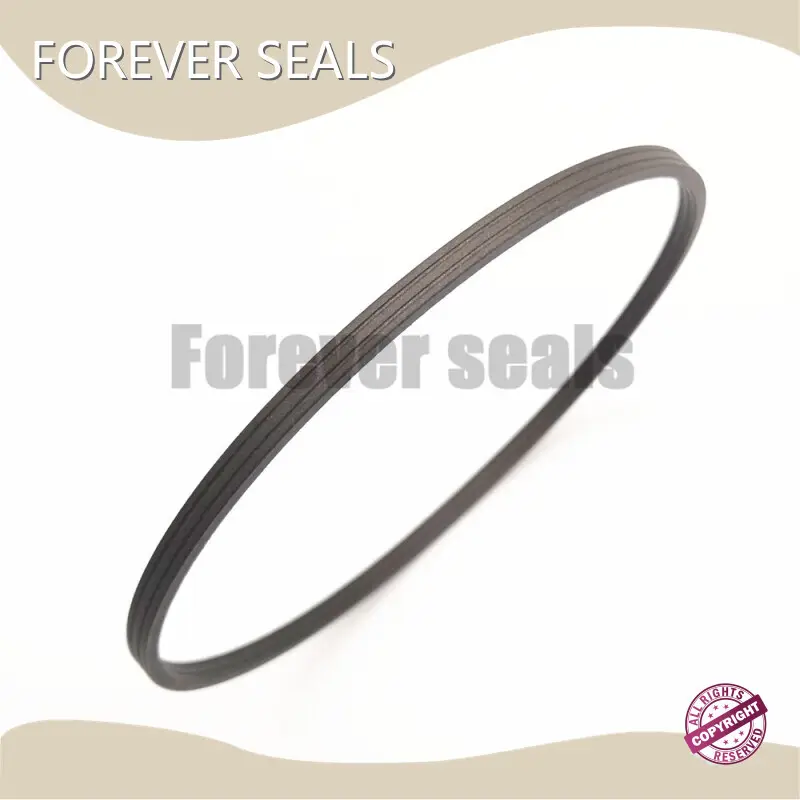

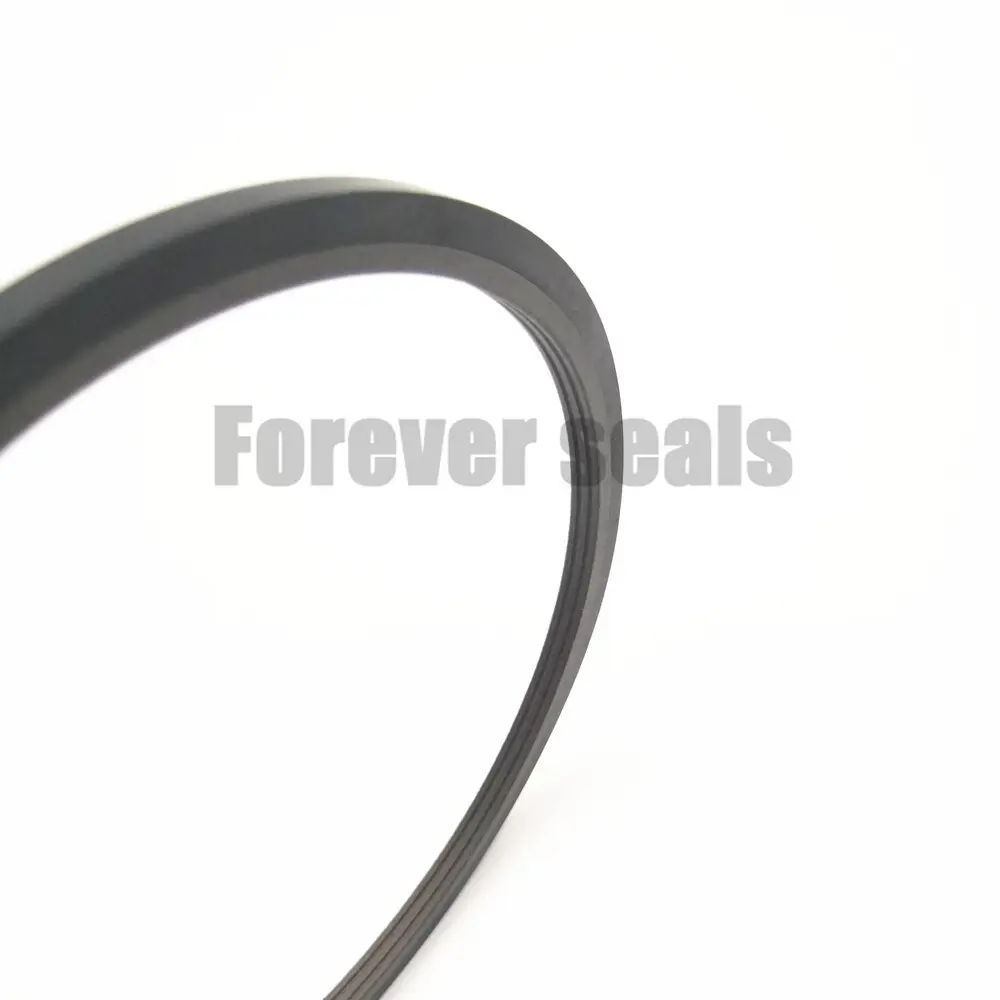

Product details of the rod piston seal
Product Information
With the aid of our devoted design experts, FOREVER SEALS rod piston seal is designed with diverse styles. Strict quality control of this product is an indispensable step during its production. Due to its significant economic return, the product has a bright future in this field.
1. Description
The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.
2. Installation Recommendation
3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
18-1600mm |
0-35MPa |
-30℃ +200℃ |
1.5 m/s |
general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil. |
5. Installation Dimensions
|
Nominal Size of Packing, and Housing dimensions |
Order No. |
|||
|
d |
D |
H |
L +0.2 |
|
|
18 20 22 |
27 29 31 |
4.3 4.3 4.3 |
4.5 4.5 4.5 |
SPN18*27*4.3 SPN20*29*4.3 SPN22*31*4.3 |
|
27 31.5 47 |
36 40.5 60 |
4.3 4.3 7.3 |
4.5 4.5 7.5 |
SPN27*36*4.3 SPN31.5*40.5*4.3 SPN47*60*7.3 |
|
53 60 65 |
66 73 78 |
7.3 7.3 7.3 |
7.5 7.5 7.5 |
SPN53*66*7.3 SPN60*73*7.3 SPN65*78*7.3 |
|
70 75 80 |
83 88 93 |
7.3 7.3 7.3 |
7.5 7.5 7.5 |
SPN70*83*7.3 SPN75*88*7.3 SPN80*93*7.3 |
|
90 100 110 |
103.4 113.4 123.4 |
7.3 7.3 7.3 |
7.5 7.5 7.5 |
SPN90*103.4*7.3 SPN100*113.4*7.3 SPN110*123.4*7.3 |
|
120 130 140 |
133.4 143.4 153.4 |
7.3 7.3 7.3 |
7.5 7.5 7.5 |
SPN120*133.4*7.3 SPN130*143.4*7.3 SPN140*153.4*7.3 |
