Professional Rubber Seal Price List
Company Advantages
· FOREVER SEALS TECHNOLOGY.,LIMITED adopts imported raw materials to achieve high-end quality.
· The rubber seal we manufacture is of easy maintaince.
· This product has received more market attention and has considerable prospects for future applications.
1. Description
Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.
2. Installation Recommendation
3. Installation Sizes
|
Rod Diameter |
Outer Diameter |
Groove Width |
Install Chamfer |
Radius |
Radial Clearance S max. |
||
|
d f8 |
D H8 |
L+0.2 |
L1 |
R1 |
10MPa |
20MPa |
40MPa |
|
50-69.9 |
d+15.0 |
7.5 |
5.0 |
0.4 |
0.5 |
0.4 |
0.3 |
|
70-149.9 |
d+20.0 |
10.1 |
6.0 |
0.4 |
0.7 |
0.5 |
0.4 |
|
200-244.9 |
d+25.0 |
12.5 |
8.5 |
0.4 |
0.8 |
0.6 |
0.5 |
|
245-519.9 |
d+30.0 |
15.0 |
10.0 |
0.8 |
0.9 |
0.7 |
0.6 |
|
520-769.9 |
d+35.0 |
17.5 |
13.0 |
1.2 |
1.0 |
0.8 |
0.7 |
|
770-1500 |
d+40.0 |
20.0 |
15.0 |
1.2 |
1.0 |
0.8 |
0.7 |

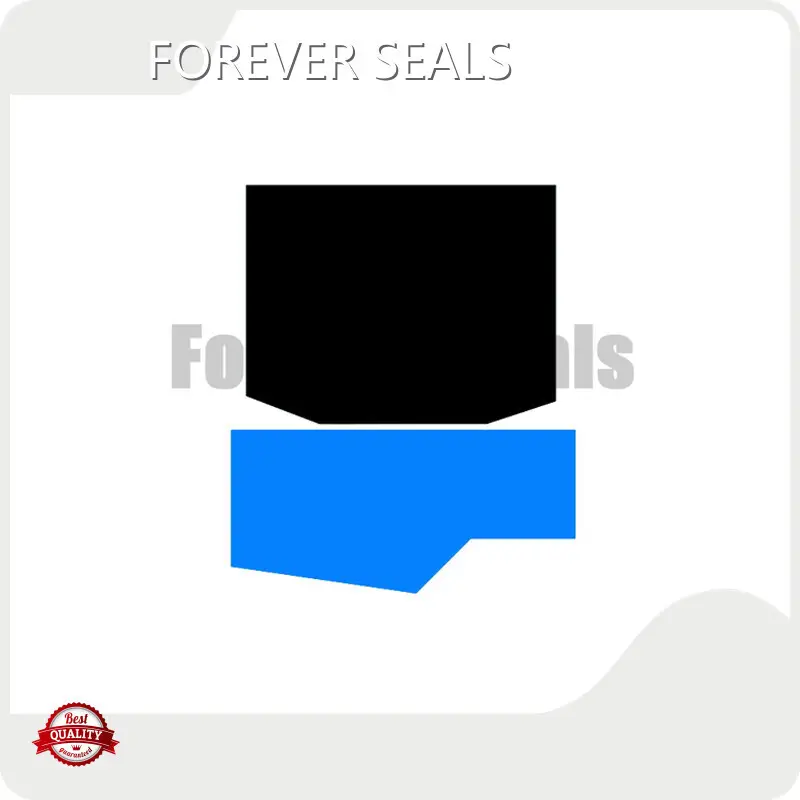

Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
50 - 1600mm |
0 - 60MPa |
-30℃ +100℃ |
5 m/s |
hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
|
Rod Dia. |
Outer Dia. |
Groove Width |
Order No. |
|
d f8 |
D H8 |
L+0.2 |
|
|
50 60 70 |
65 75 85 |
7.5 7.5 7.5 |
GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5 |
|
75 80 100 |
95 100 120 |
10 10 10 |
GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10 |
|
110 115 120 |
130 135 140 |
10 10 10 |
GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10 |
|
130 140 145 |
150 160 165 |
10 10 10 |
GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10 |
|
150 160 170 |
170 180 190 |
10 10 10 |
GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10 |
|
175 180 200 |
195 200 220 |
10 10 10 |
GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10 |
About more dimensions, you can download it through below link.
http://www.foreverseals.com/download.html
