Piston Seal Manufacturers by FOREVER SEALS
Product details of the piston seal manufacturers
Quick Overview
FOREVER SEALS piston seal manufacturers is manufactured adopting the latest technology as per the international standards. This product has undergone a strict quality management system to ensure high quality. FOREVER SEALS TECHNOLOGY.,LIMITED introduced advanced production equipment and other facilities to make sure high quality of piston seal manufacturers.
Product Information
Compared with other products in the industry, piston seal manufacturers has more obvious advantages which are reflected in the following aspects.
1. Description

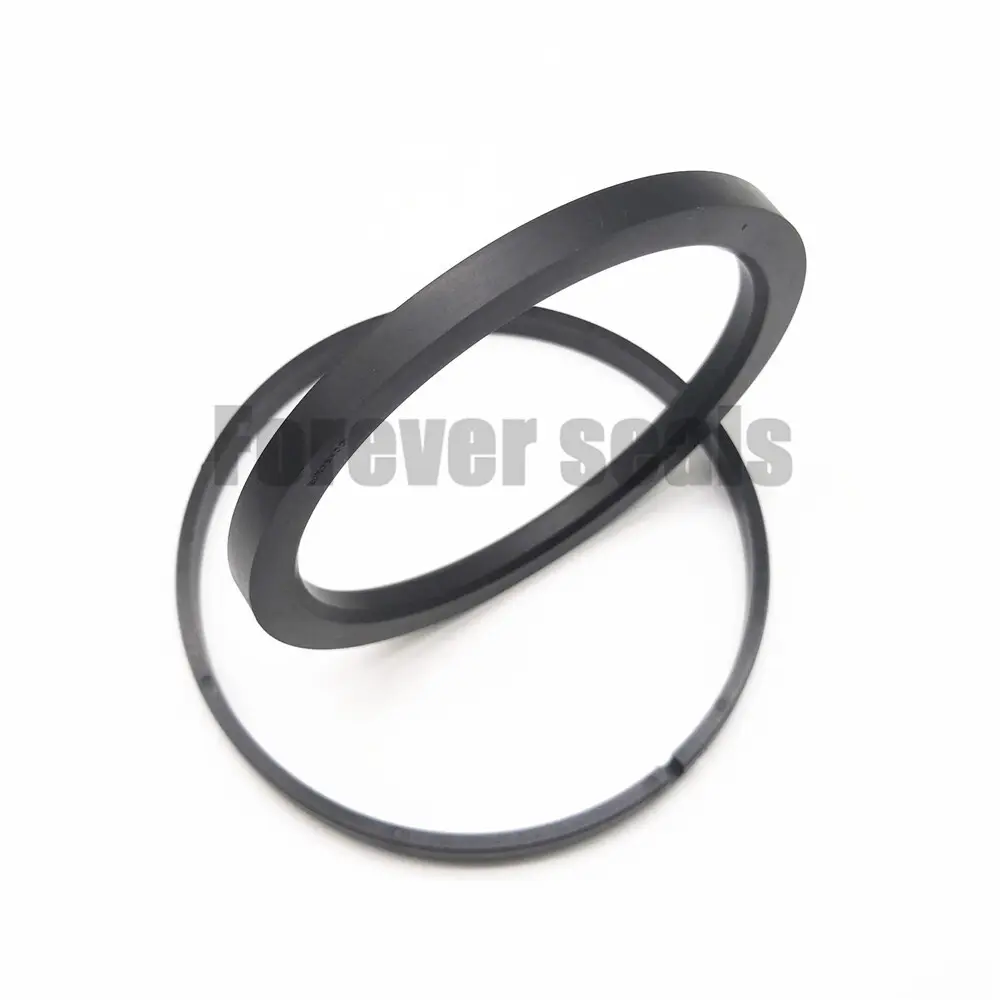

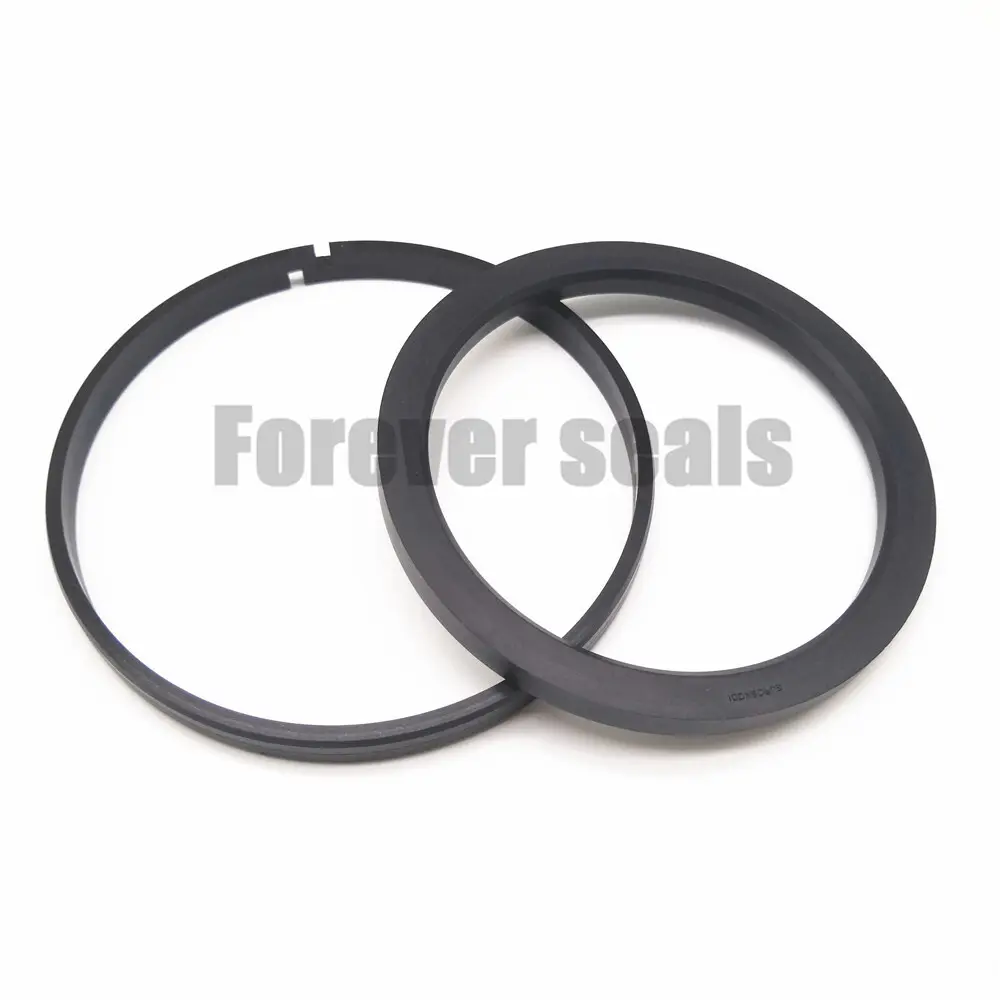

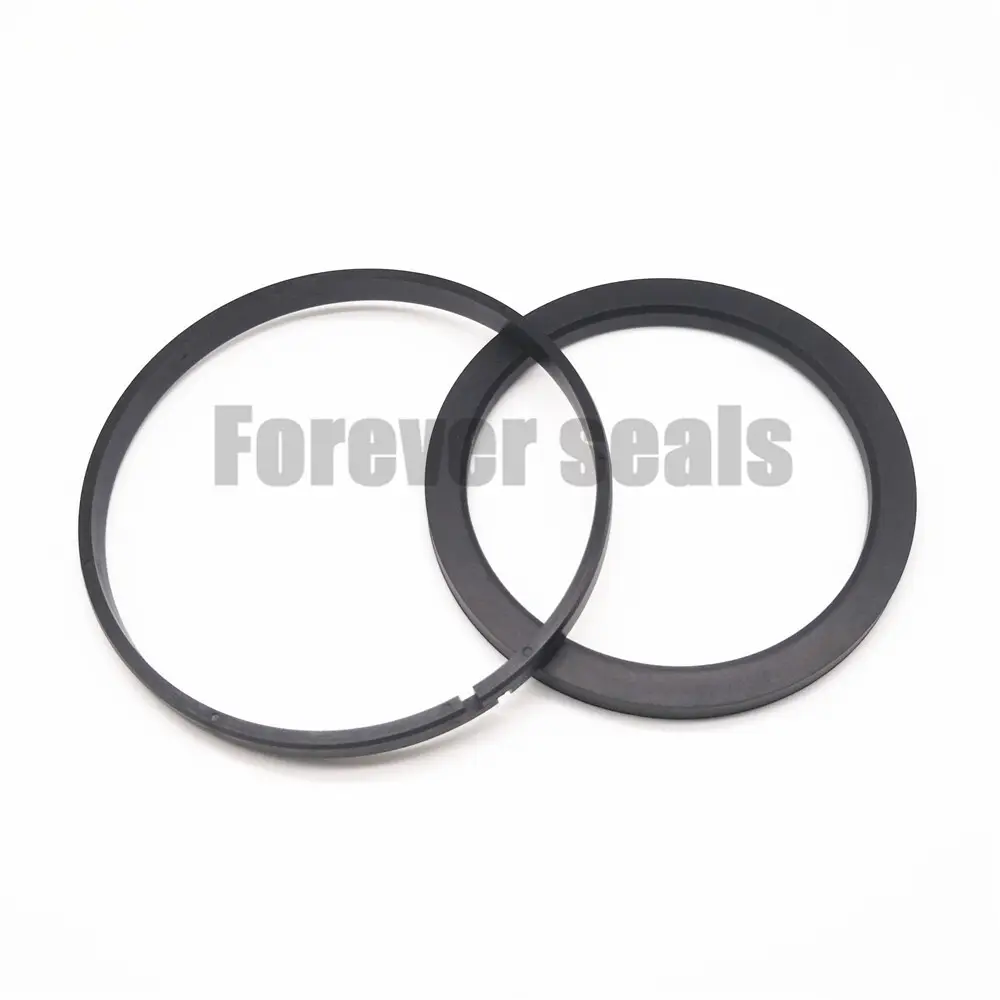

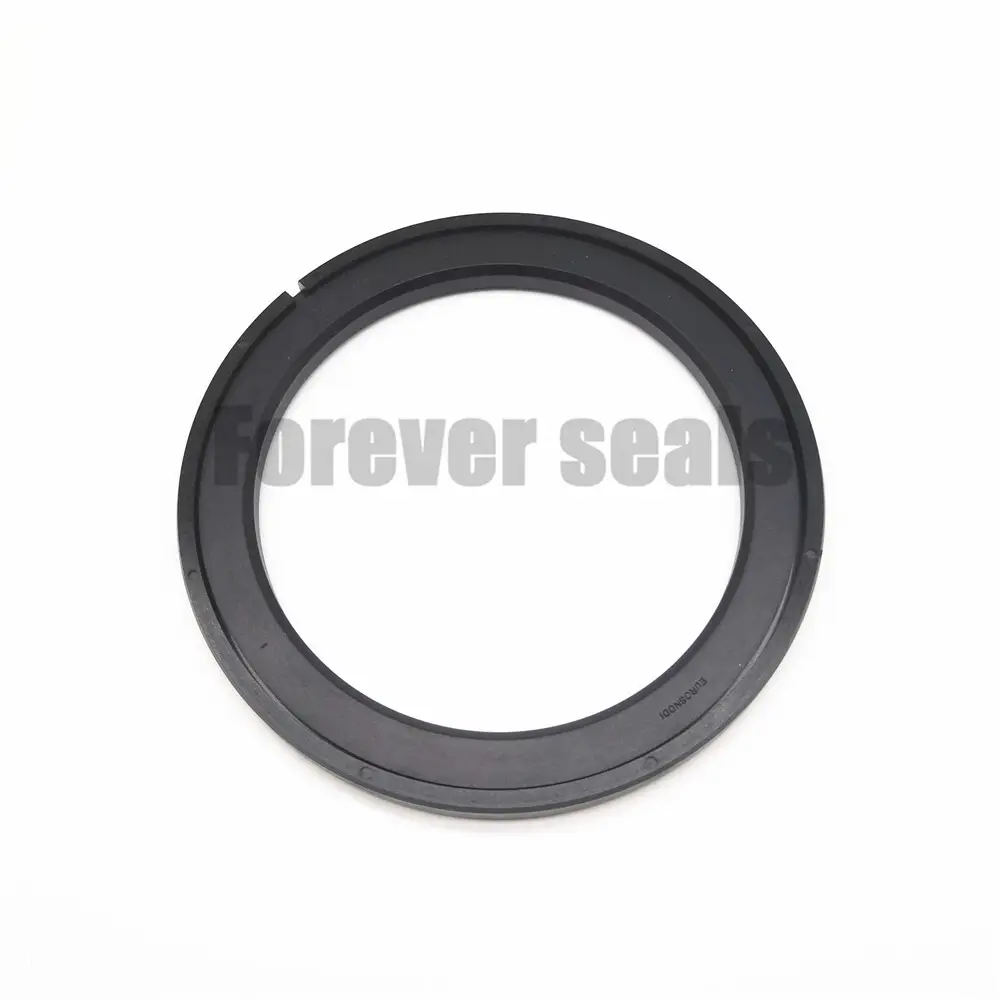

OK piston seal has extreme wear resistance, easy installation on single-part piston without assembly aids due to the split design of the sealing ring. Assembly on one-part piston is possible. Insensitive to extreme pressure peaks. Extreme high extreme pressure resistance. High pressure an large gaps due to the special compound properties of the seal ring. Dimensions according to ISO 7425-1. Short axial assembly length. Installation in closed and undercut housings. Additional sizes of machined products available on short notice.
2. Installation Recommendation
3. Installation Sizes
The installation groove must be carefully deburred and cleaned. The cylinder bore must have a leading edge chamfer. Profile OK can be snapped into closed grooves.
4. Standard materials

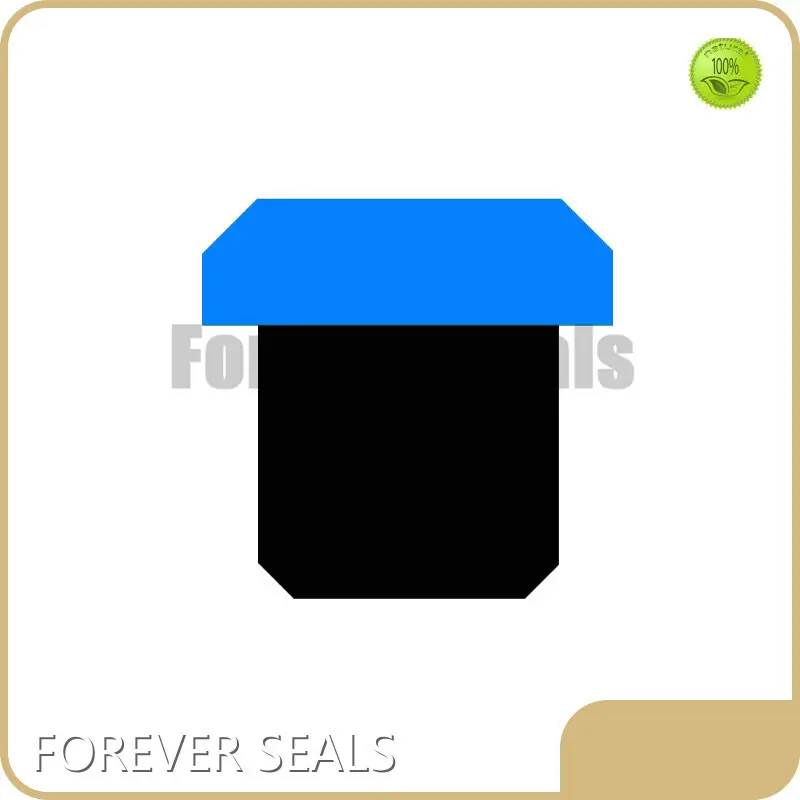

Sealing ring: filled modified thermoplast
O-ring: NBR
5. Working Conditions
|
Working Conditions |
|||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
|
25 - 480mm |
0 - 80MPa |
-30℃ +110℃ |
1 m/s |
6. Installation Dimensions
|
D1 |
d1 |
L |
Order No. |
|
25 32 40 |
16 21 26.3 |
4.2 4.2 5.8 |
OK25*16*4.2 OK32*21*4.2 OK40*26.3*5.8 |
|
40 50 50 |
29 34.5 36.3 |
4.2 6.3 5.8 |
OK40*29*4.2 OK50*34.5*6.3 OK50*36.3*5.8 |
|
50 50 55 |
37 39 44 |
8 4.2 4.2 |
OK50*37*8 OK50*39*4.2 OK55*44*4.2 |
|
60 60 63 |
41.7 49 44.7 |
7 4.2 7 |
OK60*41.7*7 OK60*49*4.2 OK63*44.7*7 |
|
63 63 70 |
47.5 52 51.7 |
6.3 4.2 7 |
OK63*47.5*6.3 OK63*52*4.2 OK70*51.7*7 |
|
70 70 75 |
54.5 59 54 |
6.3 4.2 8 |
OK70*54.5*6.3 OK70*59*4.2 OK75*54*8 |
|
75 80 80 |
59.5 59 64.5 |
6.3 8 6.3 |
OK75*59.5*6.3 OK80*59*8 OK80*64.5*6.3 |
|
85 90 90 |
64 69 74.5 |
8 8 6.3 |
OK85*64*8 OK90*69*8 OK90*74.5*6.3 |
|
95 100 100 |
74 79 84.5 |
8 8 6.3 |
OK95*74*8 OK100*79*8 OK100*84.5*6.3 |
Company Information
FOREVER SEALS TECHNOLOGY.,LIMITED, lying in is a company. We are buried in the business of SEALS,O-RINGS. FOREVER SEALS complies with the philosophy of 'credit first, quality first, service first'. Moreover, we are united, cooperative, efficient and practical and we also advocate to make progress through innovation. Our grassroots employees, middle-level cadres, professional and technical personnel, and elite leaders form a pyramid-like team to drive our moving forward with strong strength. FOREVER SEALS always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
We have been providing high quality piston seal manufacturers for a long time. We look forward to working with you.
