Product details of the oil seal manufacturer
Quick Detail
What calls for customers' attention is that our oil seal manufacturer is produced by skillful manufacture. The product is stable in quality and superior in performance. The product is sell well around the world and wins the favorable comments.
Product Information
FOREVER SEALS produces oil seal manufacturer according to national standards, and the products are of good quality. The specific details are as follows.
1. Description

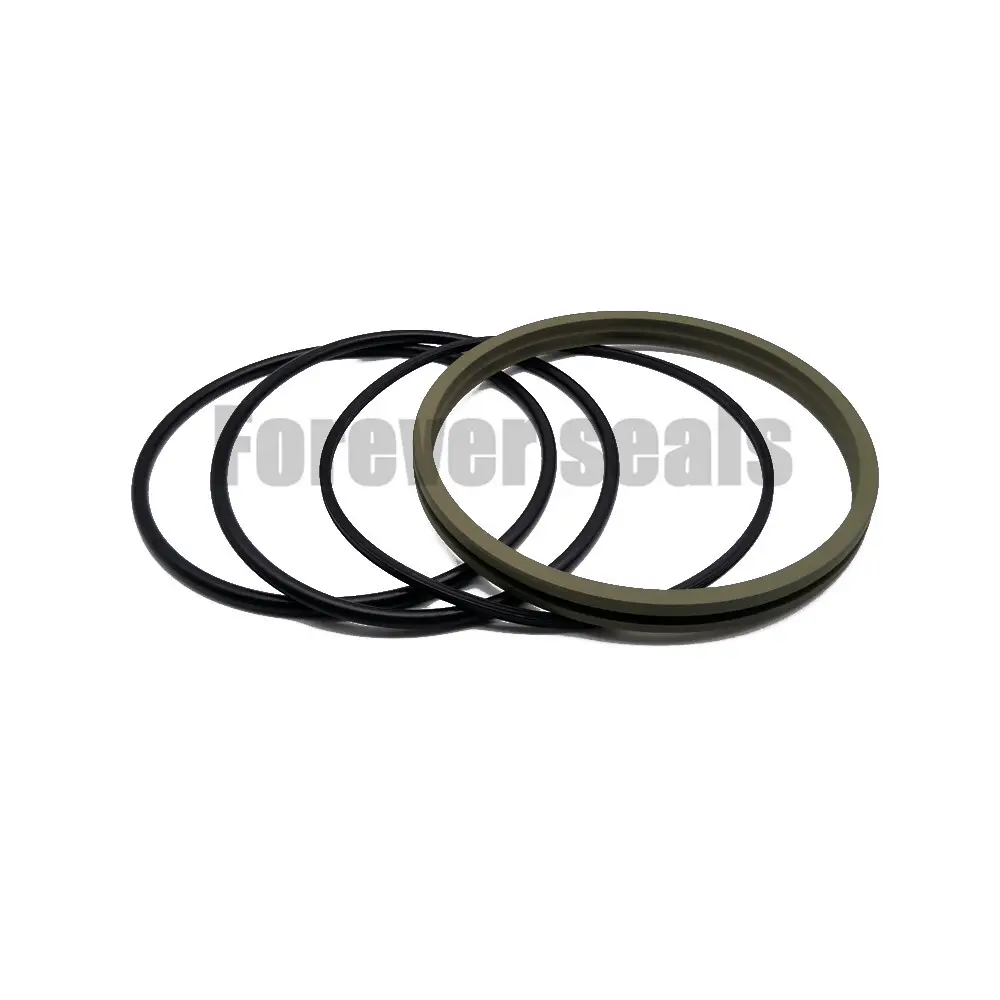

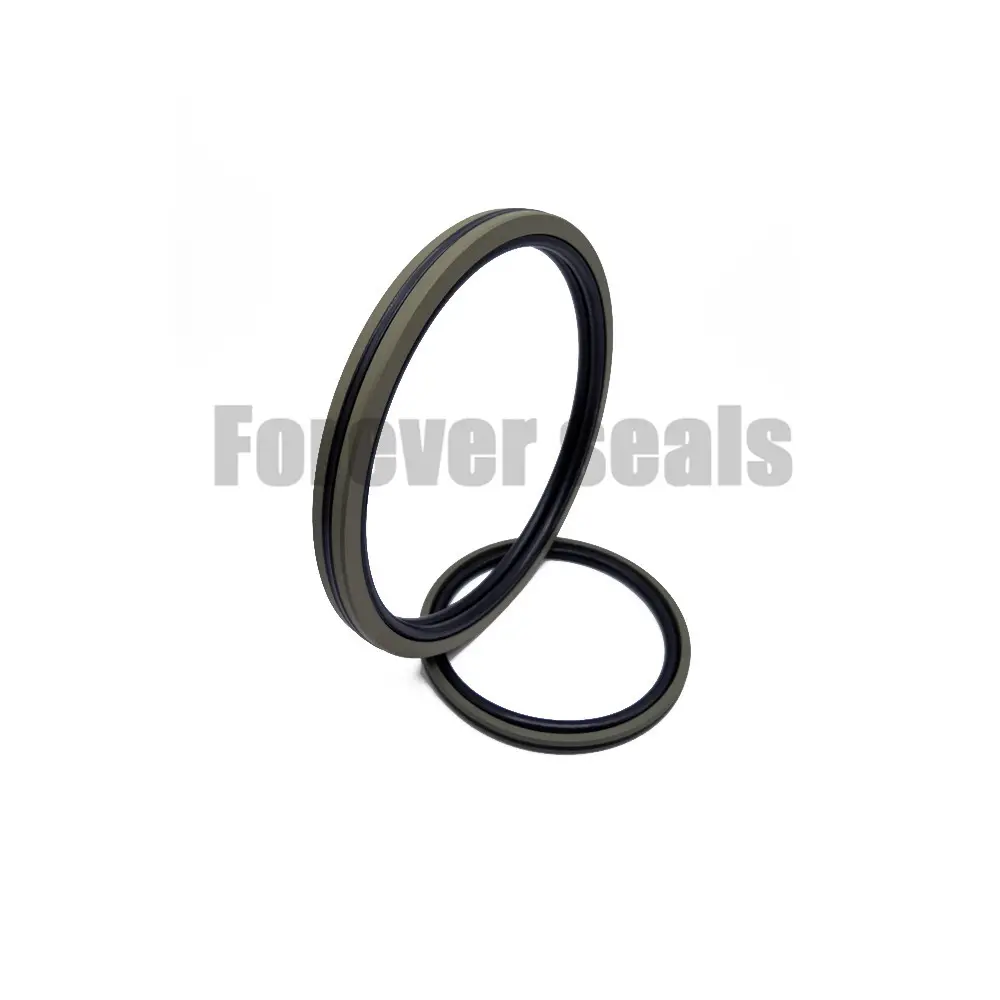

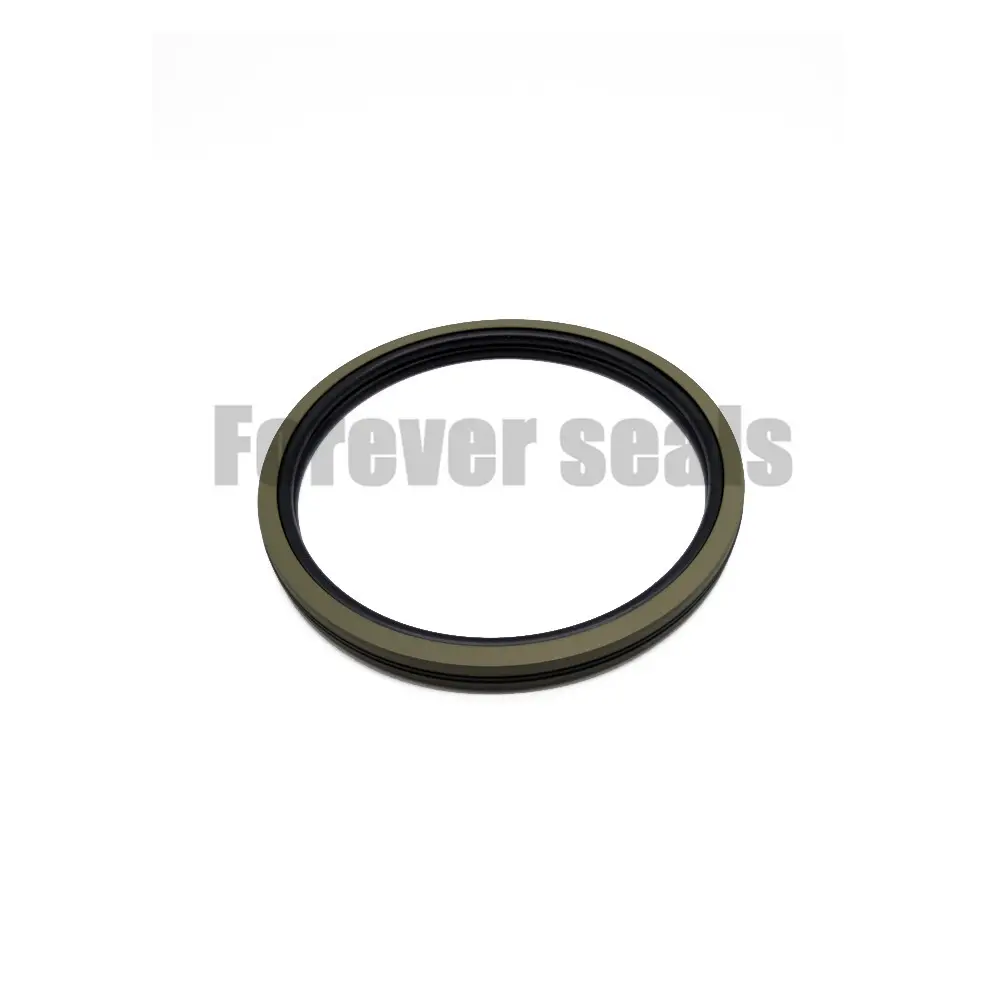

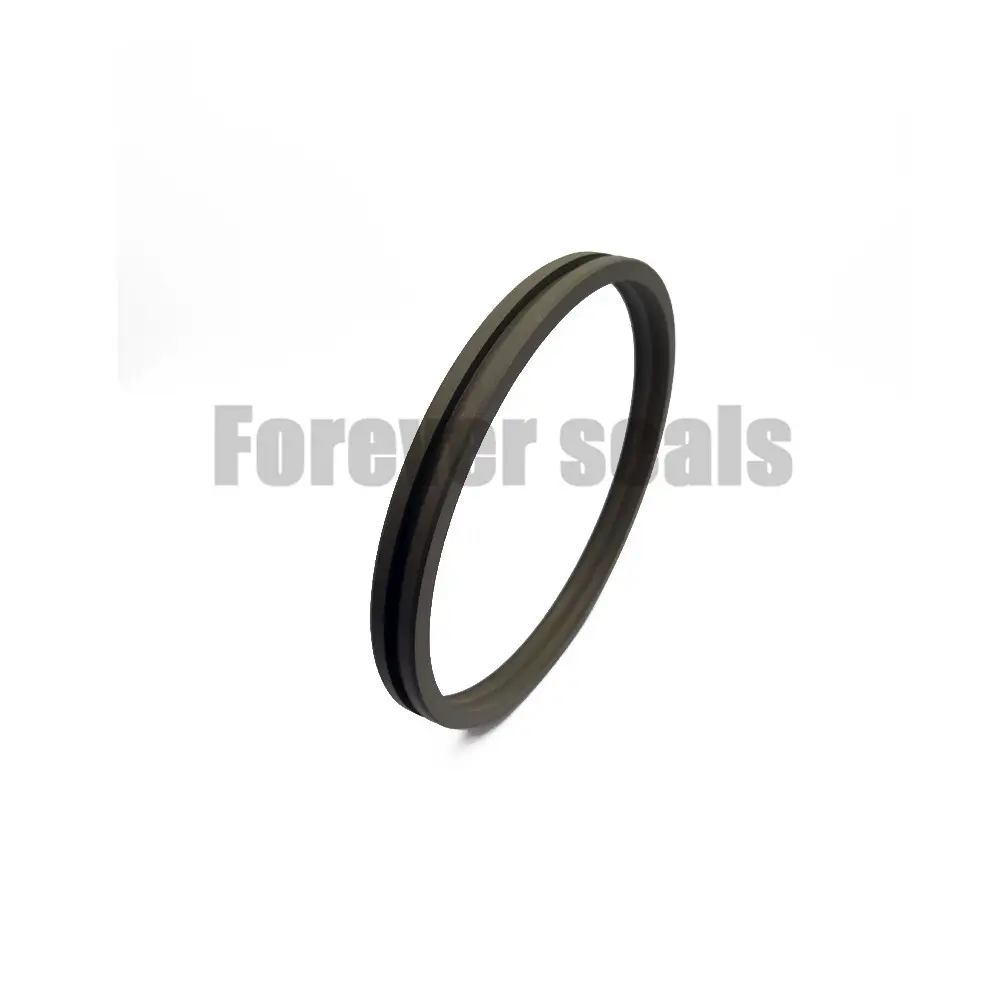

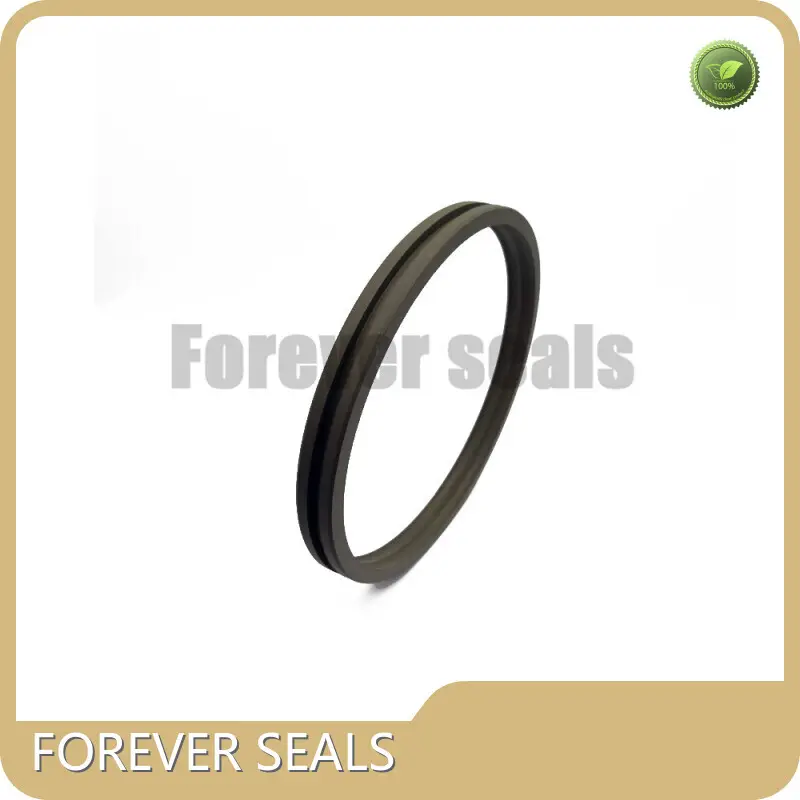

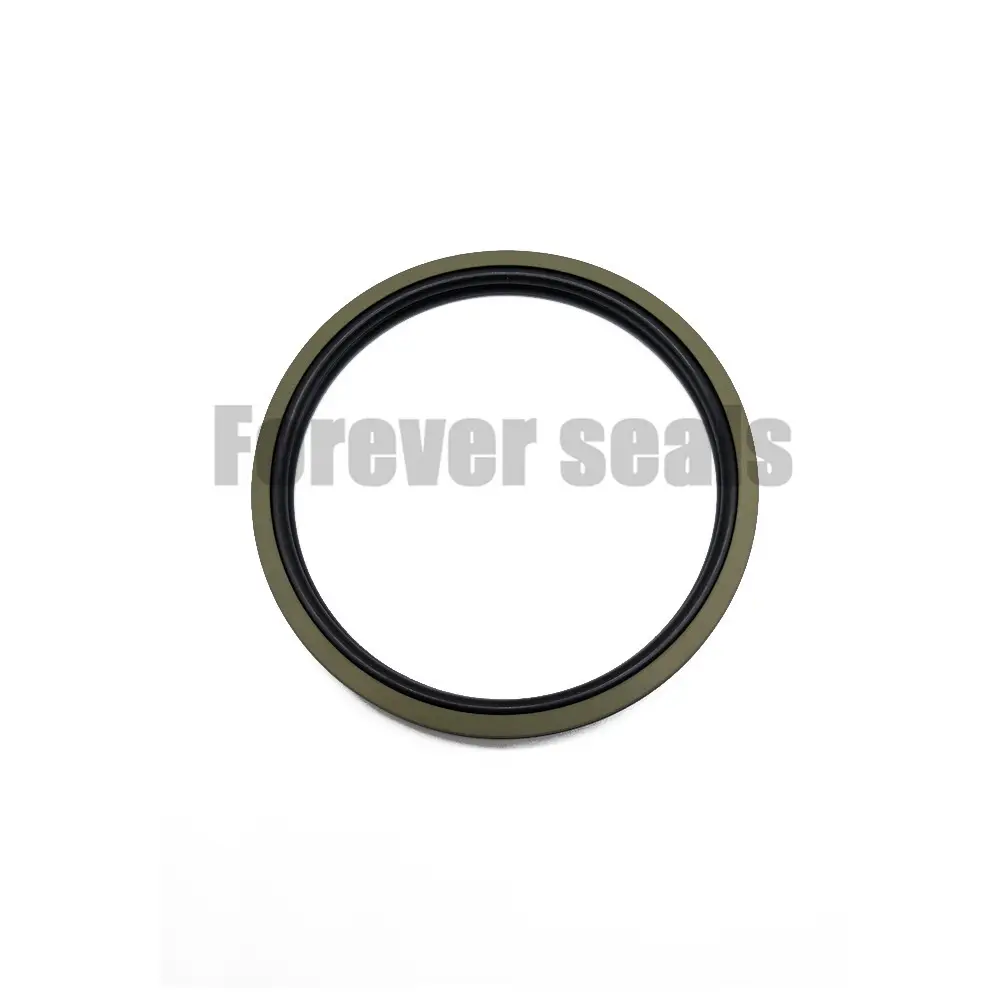

AQ seals apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.
2. Installation Recommendation
3. Installation Sizes
|
Bore Diameter DN H9 |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
O-Ring Cross Section |
X-Ring Seal Cross Section |
|||
|
Standard Application |
Light Application |
d1 h9 |
L1+0.2 |
R1 |
10MPa |
20MPa |
30MPa |
d2 |
W |
|
15 - 39.9 |
40 - 79.9 |
DN - 11.0 |
4.2 |
1.0 |
0.25 |
0.15 |
0.10 |
3.53 |
1.78 |
|
40 - 79.9 |
80 - 132.9 |
DN - 15.5 |
6.3 |
1.3 |
0.3 |
020 |
0.15 |
5.33 |
1.78 |
|
80 - 132.9 |
133 - 252.9 |
DN - 21.0 |
8.1 |
1.8 |
0.3 |
0.20 |
0.15 |
7.00 |
2.62 |
|
133 - 252.9 |
-- |
DN - 24.5 |
8.1 |
1.8 |
0.3 |
0.20 |
0.15 |
7.00 |
2.62 |
|
253 - 462.9 |
-- |
DN - 28.0 |
9.5 |
2.5 |
0.45 |
0.30 |
0.25 |
8.40 |
3.53 |
|
463 - 700 |
-- |
DN - 35.0 |
11.5 |
3.0 |
0.55 |
0.40 |
0.35 |
10.00 |
5.33 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
16 - 1600mm |
0－40MPa |
-30℃ +200℃ |
2 m/s |
hydraulic oil, flame retardant liquid, water and others |
6. Installation Dimensions
Bore Dia.
Groove Dia.
Groove Width
Order No.
O-Ring Dimension
d h9
D1 H9
L1+0.2
40
42
45
30
32
35
6.3
6.3
6.3
DAQ2-40*30*6.3
DAQ2-42*32*6.3
DAQ2-45*35*6.3
29.82*2.62
31.42*2.62
34.59*2.62
48
50
52
38
40
42
6.3
6.3
6.3
DAQ2-48*38*6.3
DAQ2-50*40*6.3
DAQ2-52*42*6.3
37.77*2.62
39.34*2.62
40.94*2.62
55
60
63
45
50
53
6.3
6.3
6.3
DAQ2-55*45*6.3
DAQ2-60*50*6.3
DAQ2-63*53*6.3
44.12*2.62
48.90*2.62
52.07*2.62
65
70
75
55
60
65
6.3
6.3
6.3
DAQ2-65*55*6.3
DAQ2-70*60*6.3
DAQ2-75*65*6.3
53.64*2.62
58.42*2.62
63.17*2.62
80
85
90
67
72
77
8.3
8.3
8.3
DAQ2-80*67*8.3
DAQ2-85*72*8.3
DAQ2-90*77*8.3
66.27*3.53
69.44*3.53
75.79*3.53
95
100
105
82
87
92
8.3
8.3
8.3
DAQ2-95*82*8.3
DAQ2-100*87*8.3
DAQ2-105*92*8.3
78.97*3.53
85.32*3.53
91.67*3.53
Company Advantages
FOREVER SEALS TECHNOLOGY.,LIMITED is a modern and market-oriented company. We are mainly engaged in the business of SEALS,O-RINGS. To provide high-quality products for the society and customers, we will strive to build a good corporate culture, practice our strategy and fulfill our social responsibilities with a enterprising and harmonious attitude. We have our own team of professionals who use the industry experience accumulated over the years to guide the practice process and provide a guarantee for the production of high quality products. FOREVER SEALS always focuses on meeting customers' needs. We are dedicated to providing customers with comprehensive and quality solutions.
If you want to know more relevant product information, feel free to contact us. We are dedicated to serving you.
