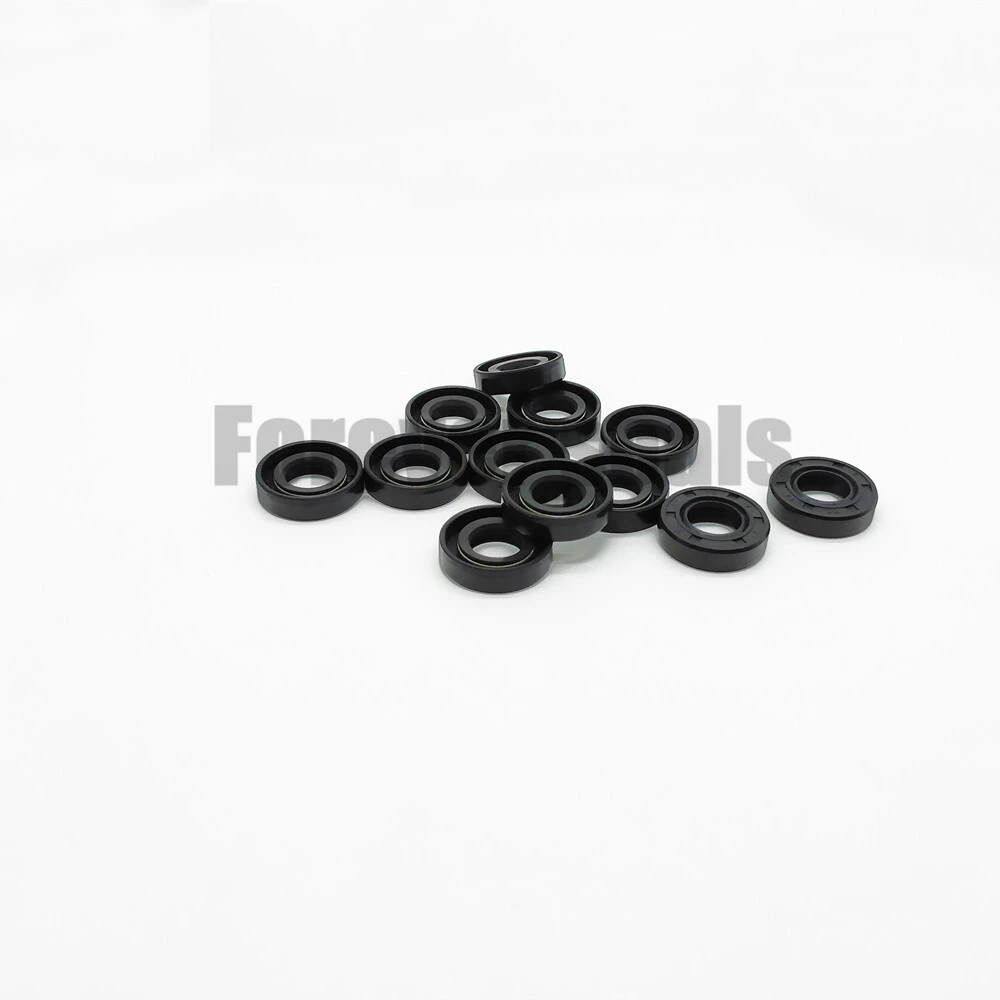

The TC profile is a shaft seal composed of a single metal cage with a rubber coating, a primary sealing lip with integrated spring and an additional anti-pollution lip.
2. Installation Recommendation
3. Standard materials
Very good static sealing
Very good thermal expansion compensation
Greater roughness is allowed in teh housing
Reduced risk of corrosion
Sealing for low and high viscosity fluids
Modern primary sealing lip with low radial forces
Protection against undesirable air contaminants
5. Installation Dimensions
About the Dimensions, you can download it through below link.
