Product details of the rubber seal products
Quick Detail
While producing FOREVER SEALS rubber seal products, the quality of materials are taken into seriously. The product is not only functional but also durable, with a longer service life compared with other competitive products. Quality assurance is guaranteed in FOREVER SEALS.
Product Information
More detailed information about rubber seal products is provided for you as follows.
1. Description

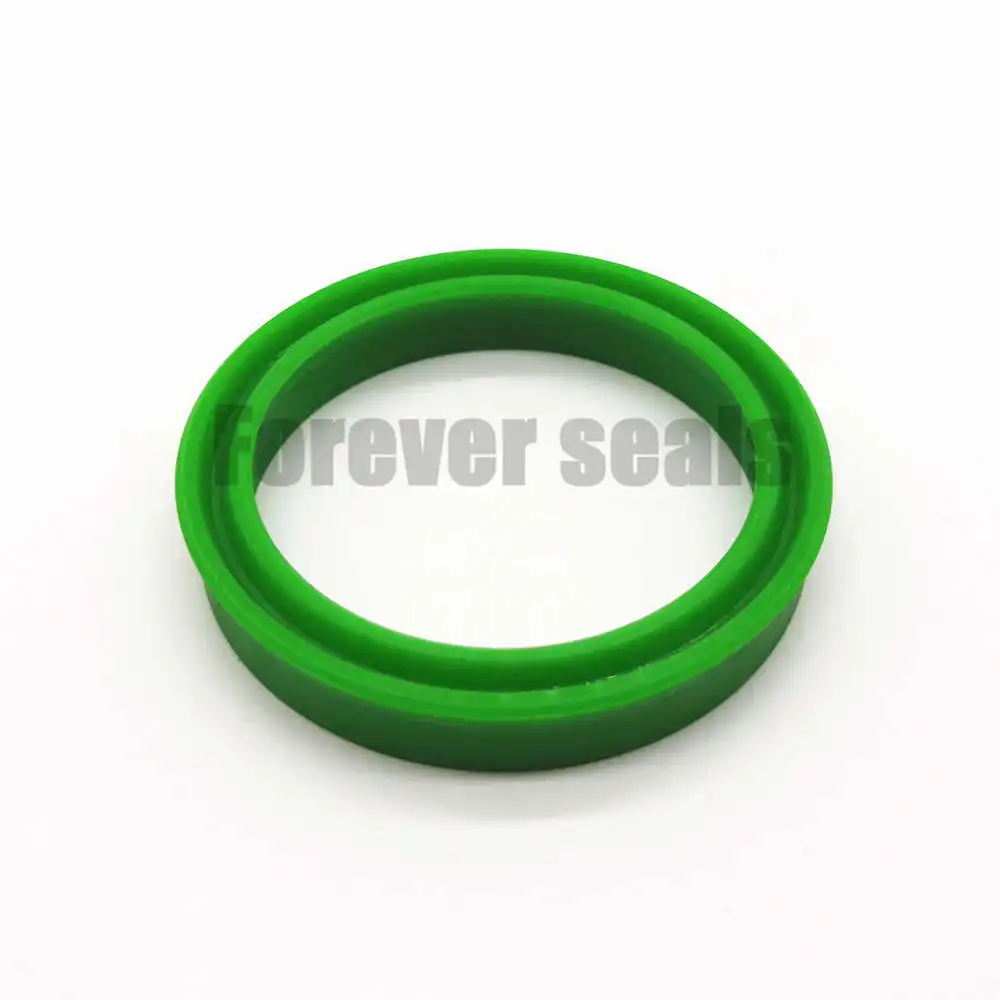

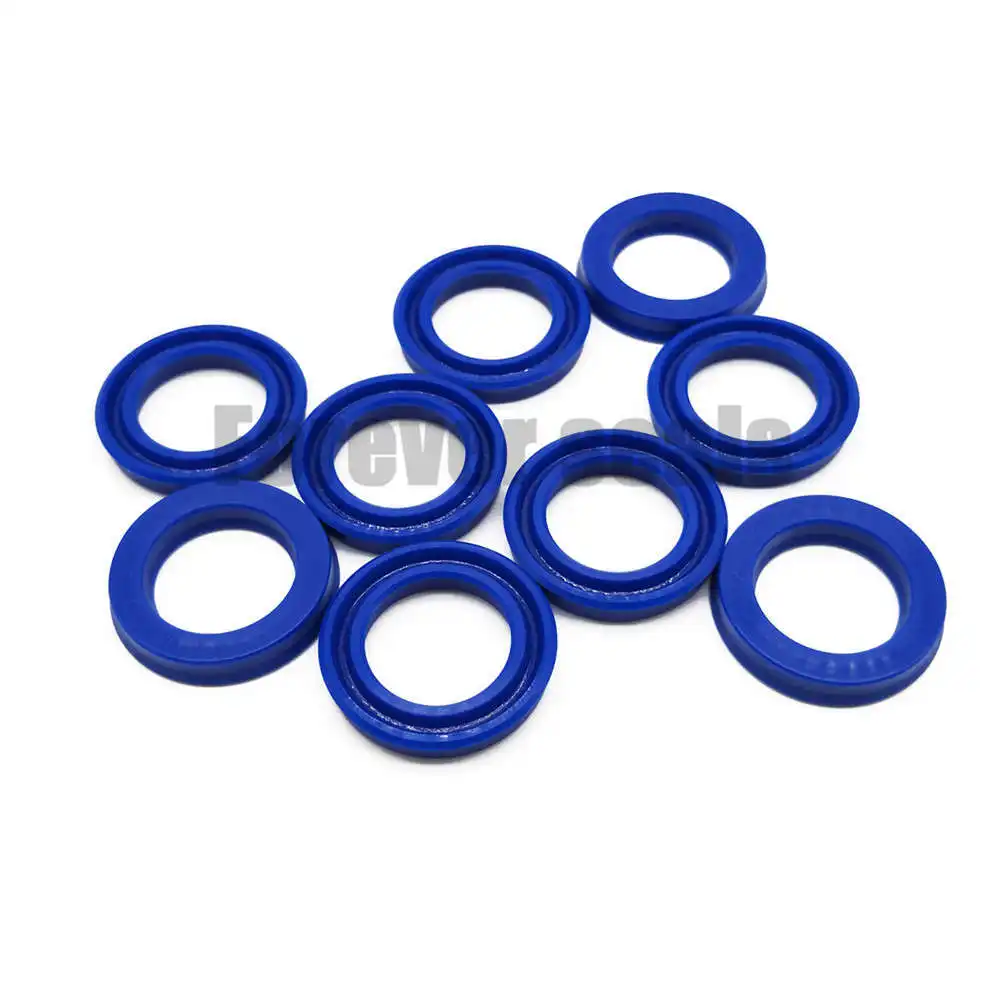

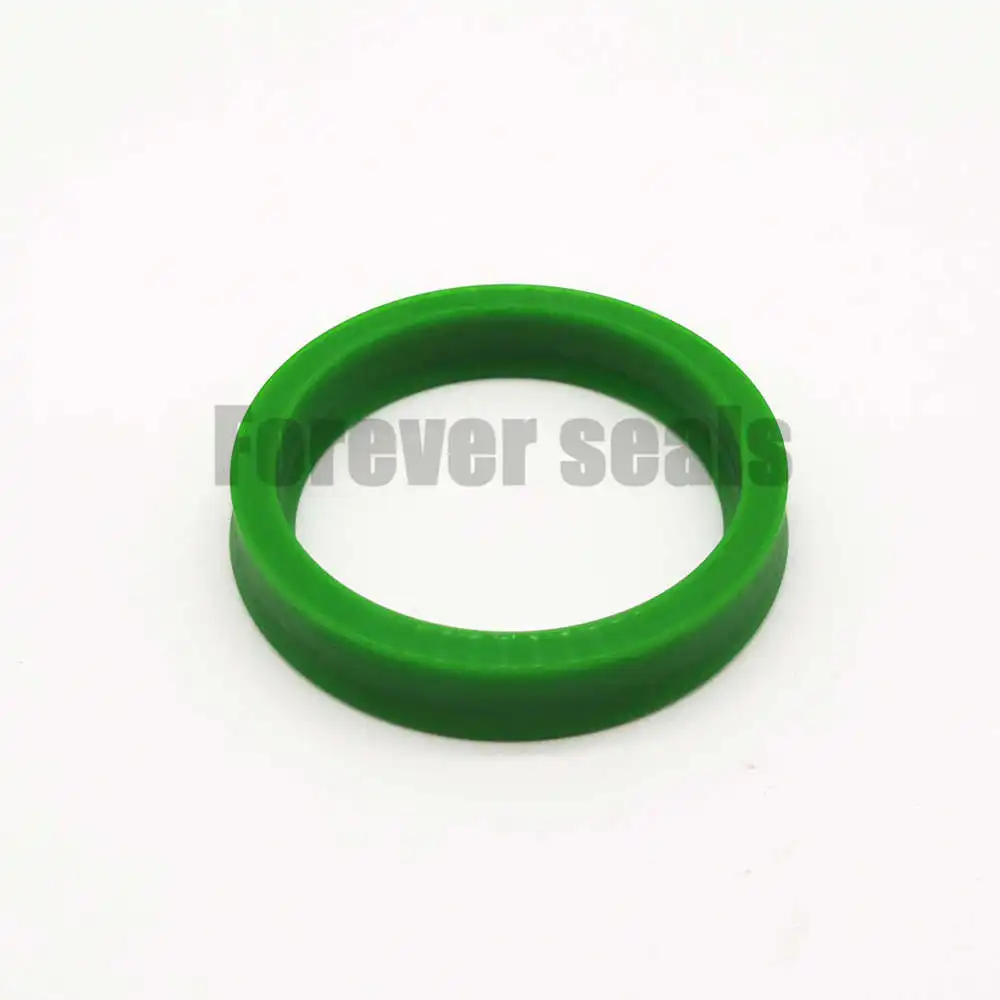

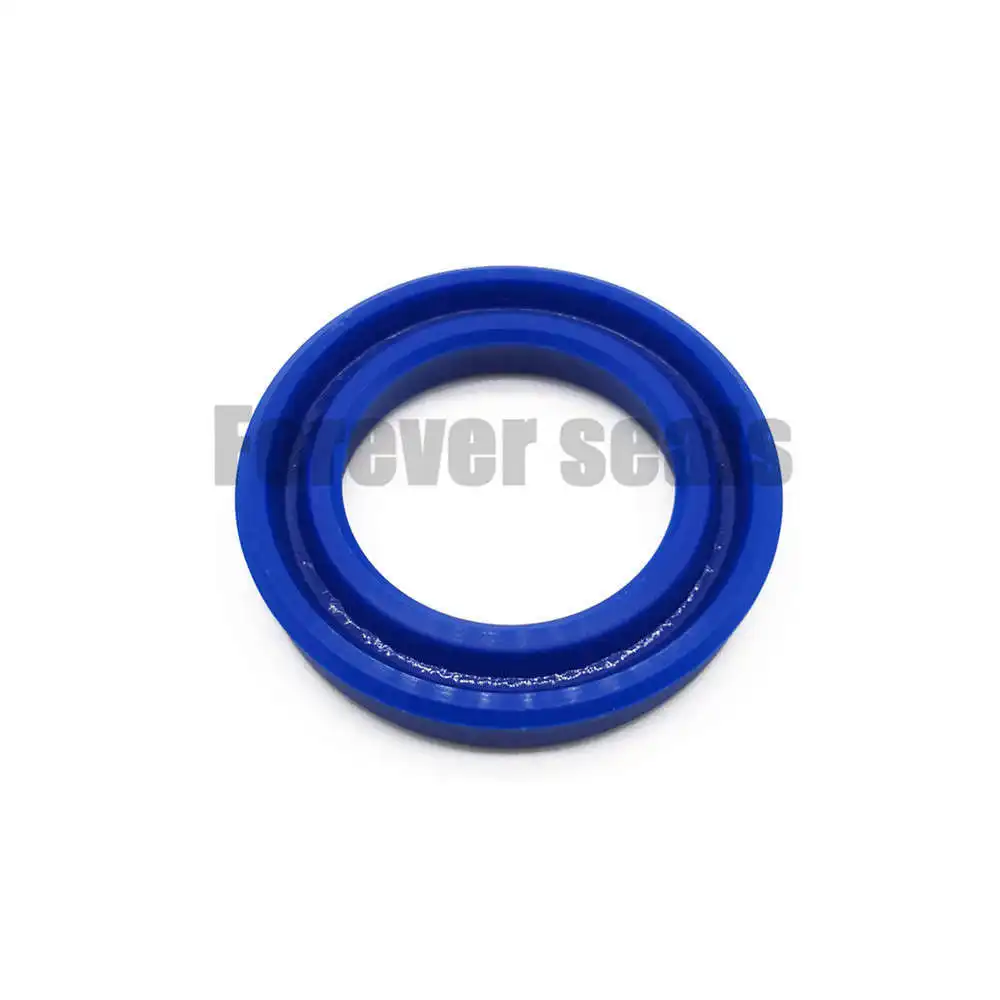

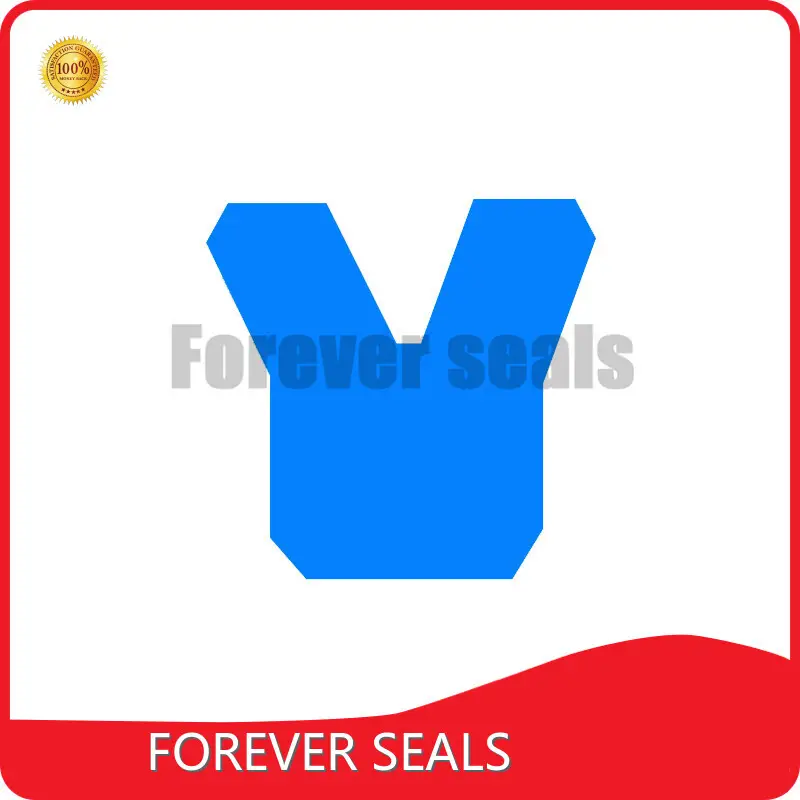

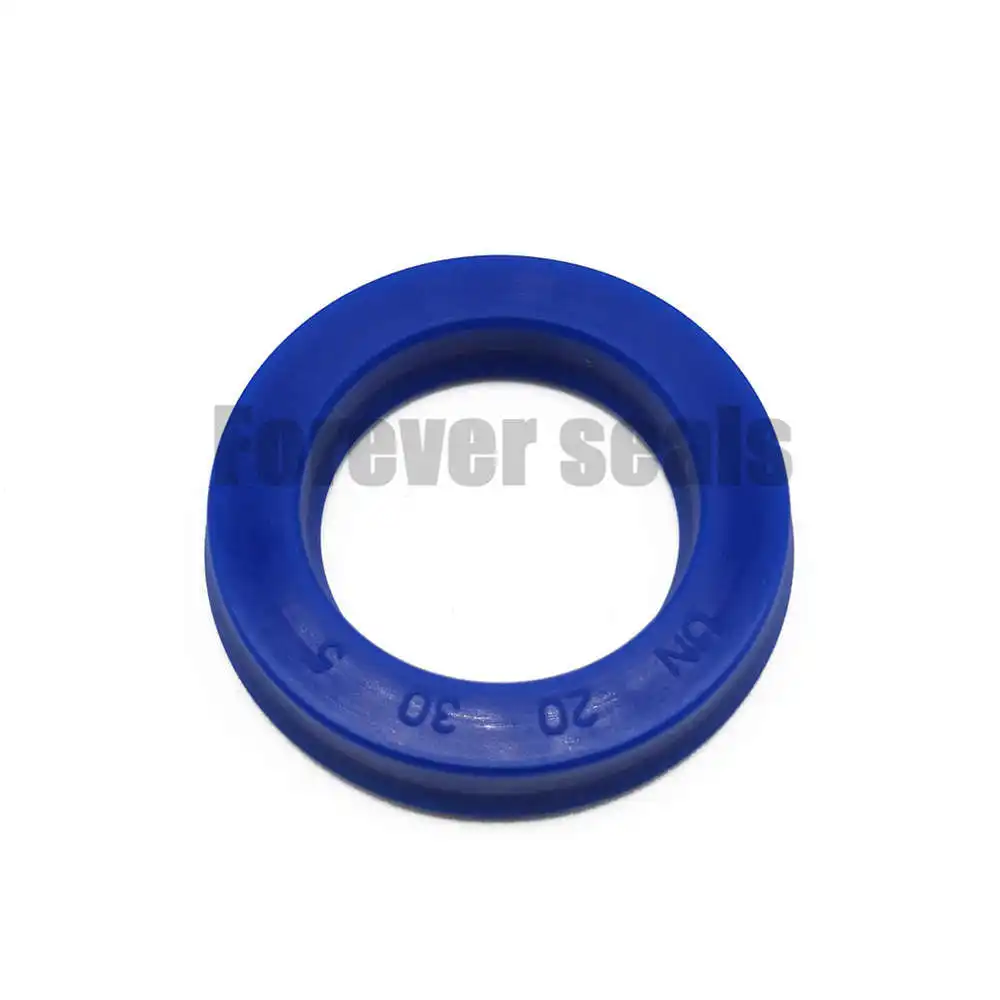

UNS seal can be used for piston and rod application. It it is a typical lip seal which used very widely in hydraulic cylinders. The inside lip and outside lip are same height. It can be installed easily. As the cross section is wide, UNS often used for hydraulic cylinders of low pressure.
2. Installation Recommendation
3. Installation Sizes
Piston
|
P<5MPa |
B=d+0.9 |
D<60 |
C=4 |
h <7 |
L=h+0.5 |
|
P 5-10MPa |
B=d+0.7 |
D 60-180 |
C=6.5 |
h =7-8 |
L=h+0.8 |
|
P 10-20MPa |
B=d+0.4 |
D 180-250 |
C=7.5 |
h >8 |
L=h+1.0 |
|
P 20-30MPa |
B=d+0.2 |
D 250-400 |
C=10 |
h >8 |
L=h+1.0 |
Piston Rod
|
P<5MPa |
B=D-0.9 |
D<60 |
C=4 |
D1=D-1 |
h<7 |
L=h+0.5 |
|
P 5-10MPa |
B=D-0.7 |
D 60-180 |
C=5.5 |
D1=D-1 |
h=7-8 |
L=h+0.8 |
|
P 10-20MPa |
B=D-0.4 |
D 120-180 |
C=6.5 |
D1=D-1 |
h>8 |
L=h+1.0 |
|
P 20-30MPa |
B=D-0.2 |
D 180-250 |
C=7.5 |
D1=D-2 |
h>8 |
L=h+1.0 |
|
P 30-40MPa |
B=D-0.1 |
D 250-400 |
C=10 |
D1=D-2 |
h>8 |
L=h+1.0 |
4. Standard materials
TPU, CPU
5. Working condition
Pressure: CPU≤40MPa TPU≤31.5MPa
Temperature: -35~+100℃
Speed: 0.5m/s
Medium: Hydraulic oils ( mineral oil-based )
