Product details of the hydraulic piston seals sizes
Quick Overview
hydraulic piston seals sizes has the best design that comes from world-class designers. With its excellent quality, this product greatly reduces the possibility of return and exchange. Our hydraulic piston seals sizes has a wide range of applications and can be used in a variety of situations and scenarios. All these features provide probability for abroad application of this product.
Product Introduction
Our hydraulic piston seals sizes has the following differentiated advantages compared to similar products.
1. Description

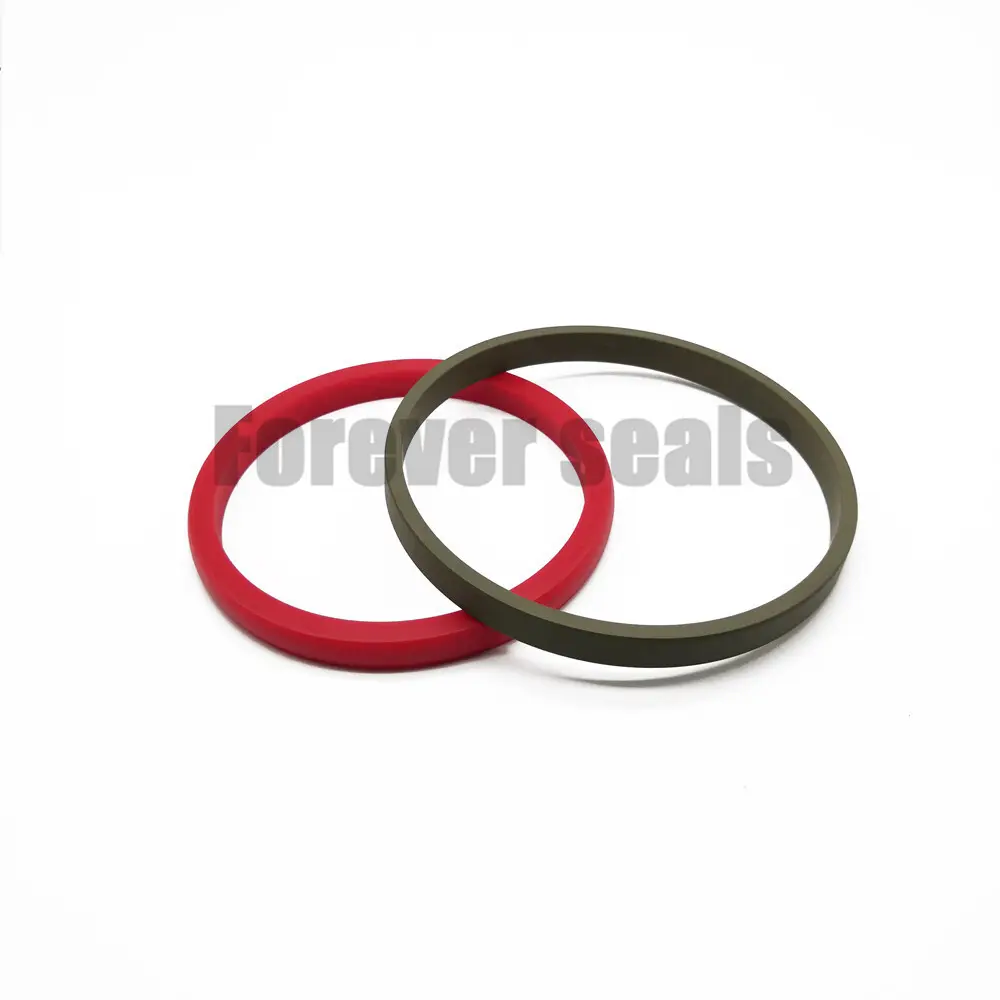

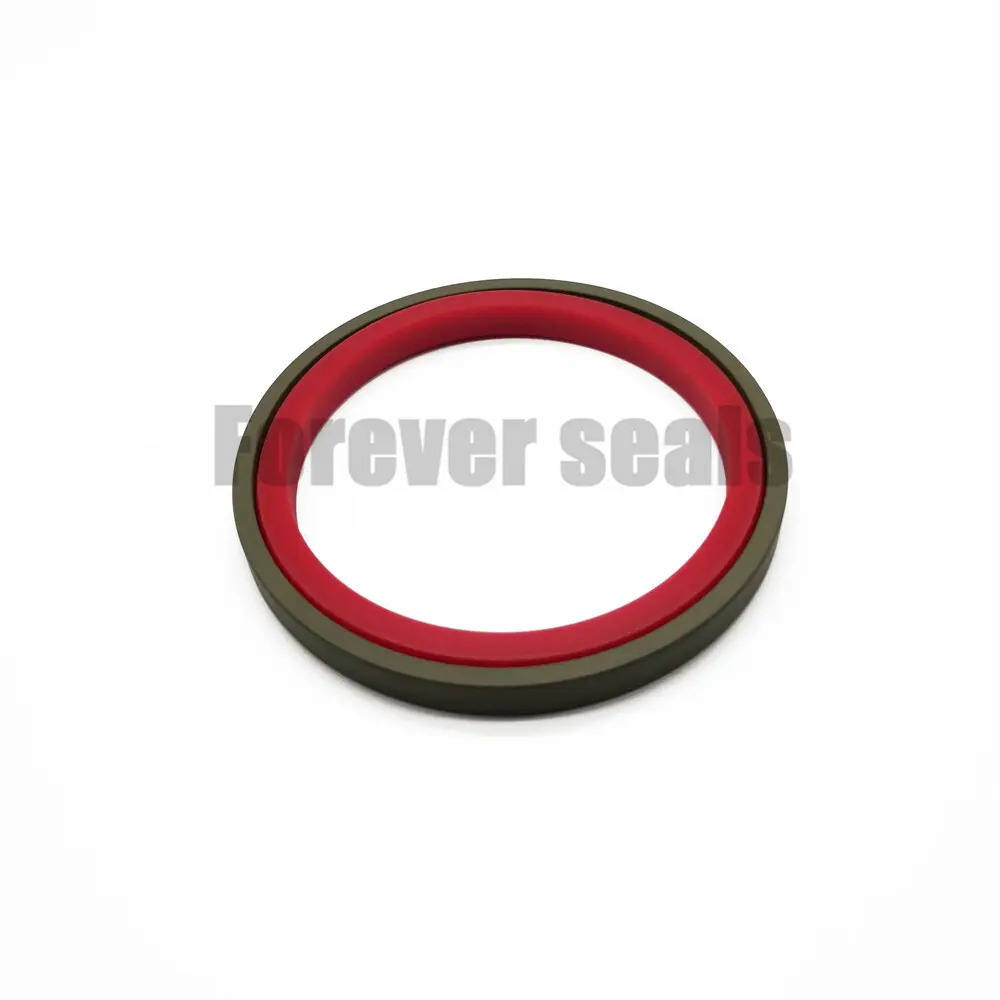

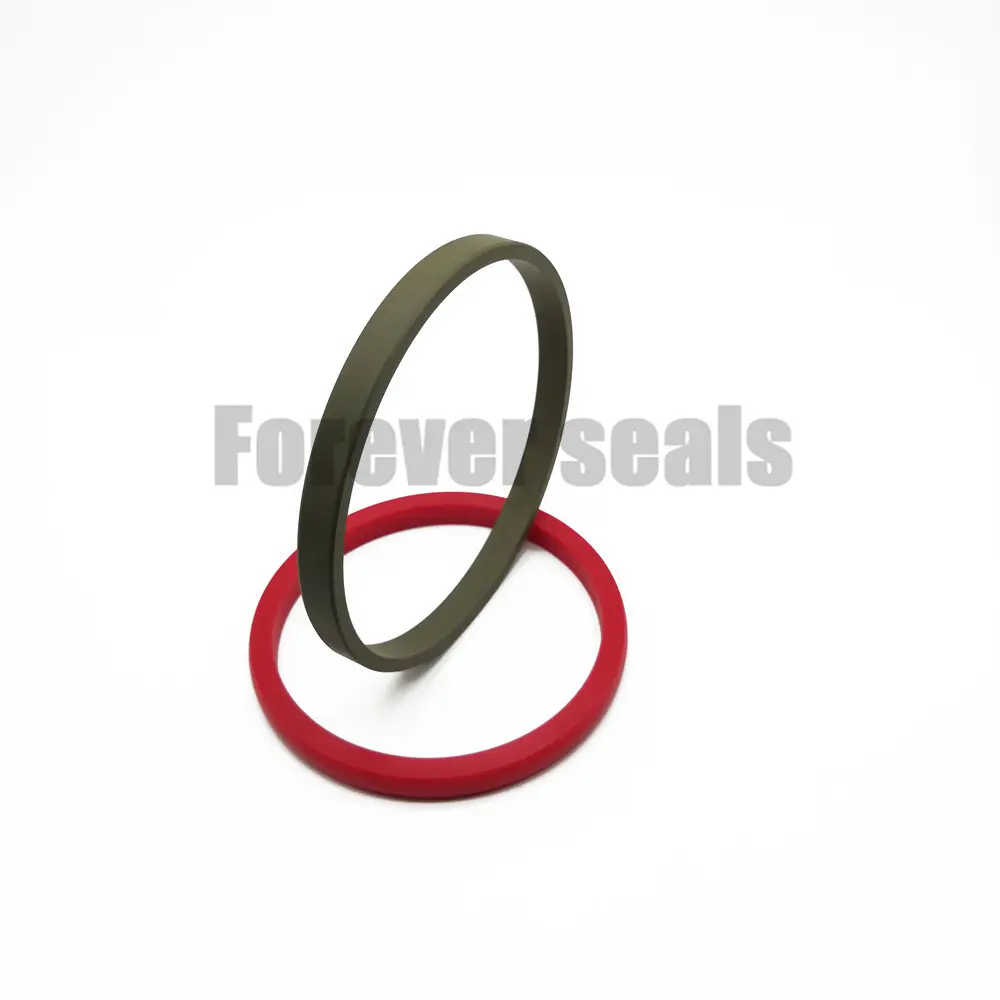

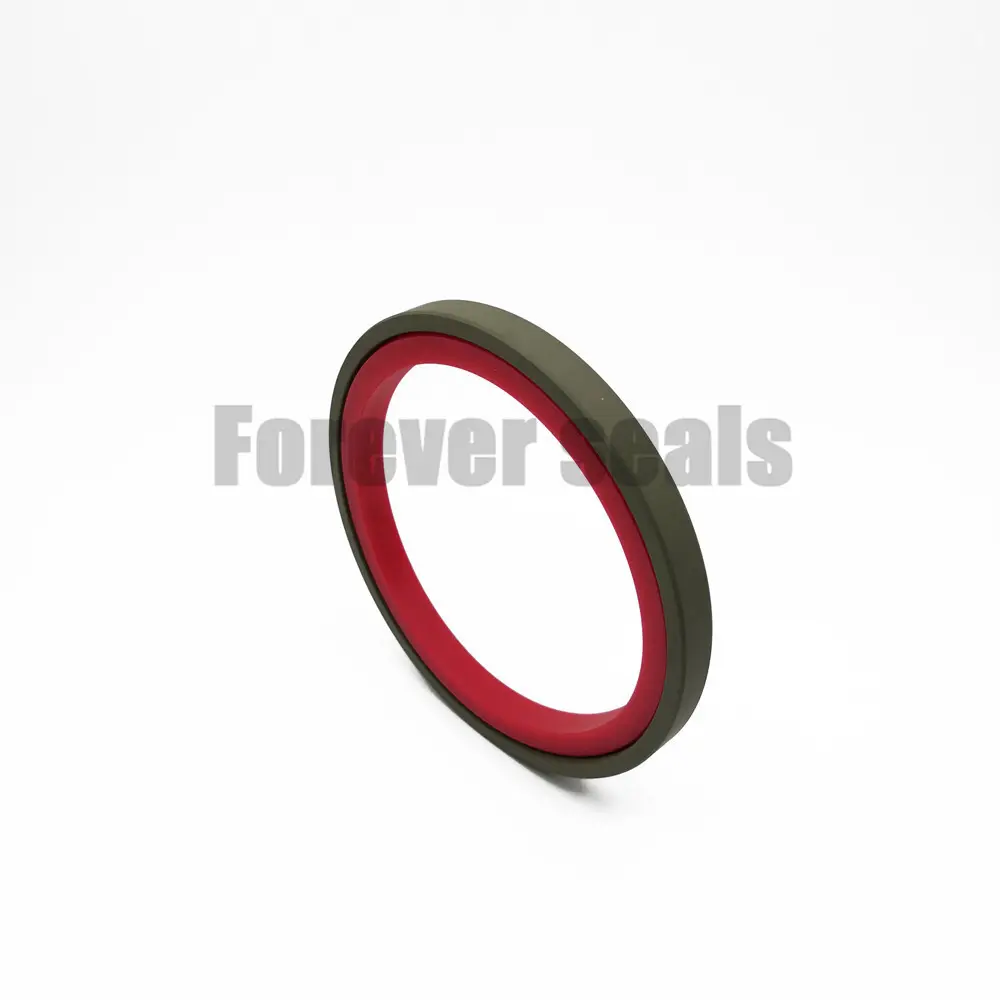

OMK-S applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.
2. Installation Recommendation
3. Installation Sizes
|
Bore Diameter |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
|||
|
D H8 |
d h8 |
L1+0.2 |
R1 |
16MPa |
26MPa |
32MPa |
40MPa |
|
55.0-149.9 |
D-10.0 |
10.0 |
0.4 |
0.60 |
0.50 |
0.40 |
0.40 |
|
150.0-244.9 |
D-12.5 |
12.5 |
0.4 |
0.75 |
0.65 |
0.55 |
0.50 |
|
245.0-500.0 |
D-15.0 |
15.0 |
0.8 |
0.75 |
0.65 |
0.55 |
0.50 |
|
500.1-760.0 |
D-17.5 |
17.5 |
1.2 |
0.75 |
0.65 |
0.55 |
0.50 |
|
760.1-999.9 |
D-20.0 |
20.0 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |
|
≧1000 |
D-20.0 |
20.5 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |

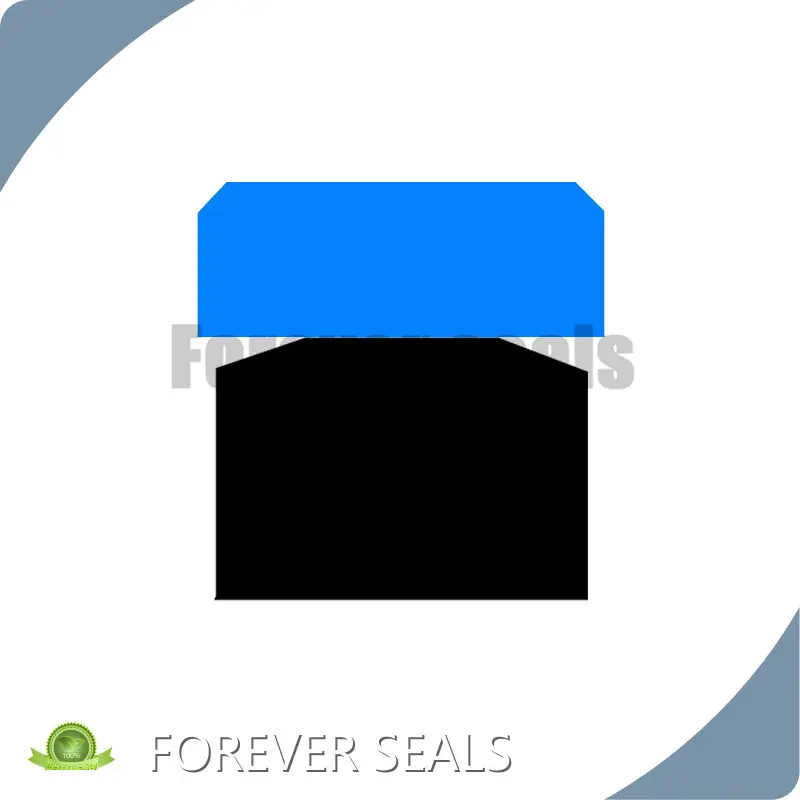

Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
40 - 1600mm |
0 - 60MPa |
-30℃ +100℃ |
5 m/s |
hydraulic oil, flame retardant liquid, water and others |
6. Installation Dimensions
|
Bore Dia. |
Groove Dia. |
Groove Width |
Order No. |
|
D H8 |
d h8 |
L+0.2 |
|
|
55 60 70 |
40 45 55 |
10 10 10 |
GSF-W55*40*10 GSF-W60*45*10 GSF-W70*55*10 |
|
80 90 100 |
60 70 80 |
10 10 10 |
GSF-W80*60*10 GSF-W90*70*10 GSF-W100*80*10 |
|
110 115 120 |
90 95 100 |
10 10 10 |
GSF-W110*90*10 GSF-W115*95*10 GSF-W120*100*10 |
|
130 140 150 |
110 120 125 |
10 10 12.5 |
GSF-W130*110*10 GSF-W140*120*10 GSF-W150*125*12.5 |
|
160 165 170 |
135 140 145 |
12.5 12.5 12.5 |
GSF-W160*135*12.5 GSF-W165*140*12.5 GSF-W170*145*12.5 |
|
180 185 190 |
155 160 165 |
12.5 12.5 12.5 |
GSF-W180*155*12.5 GSF-W185*160*12.5 GSF-W190*165*12.5 |
|
200 205 210 |
175 180 185 |
12.5 12.5 12.5 |
GSF-W200*175*12.5 GSF-W205*180*12.5 GSF-W210*185*12.5 |
