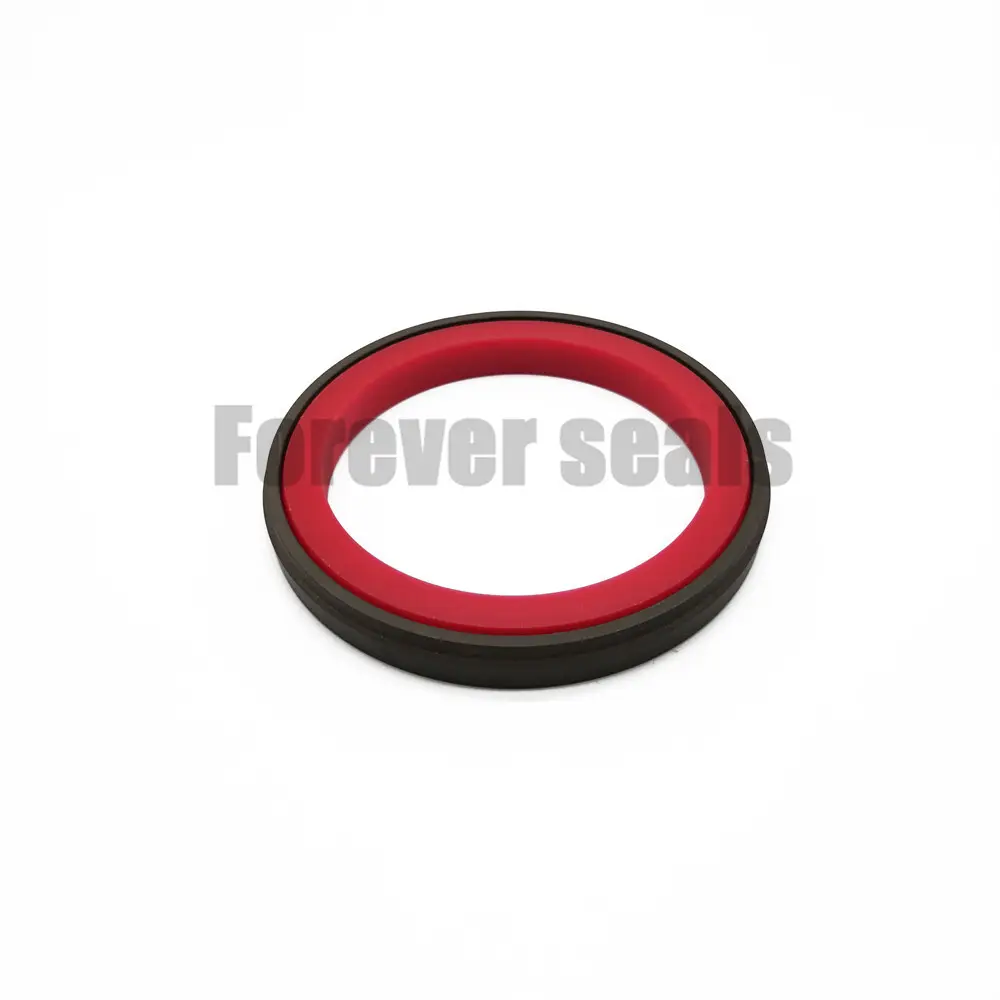

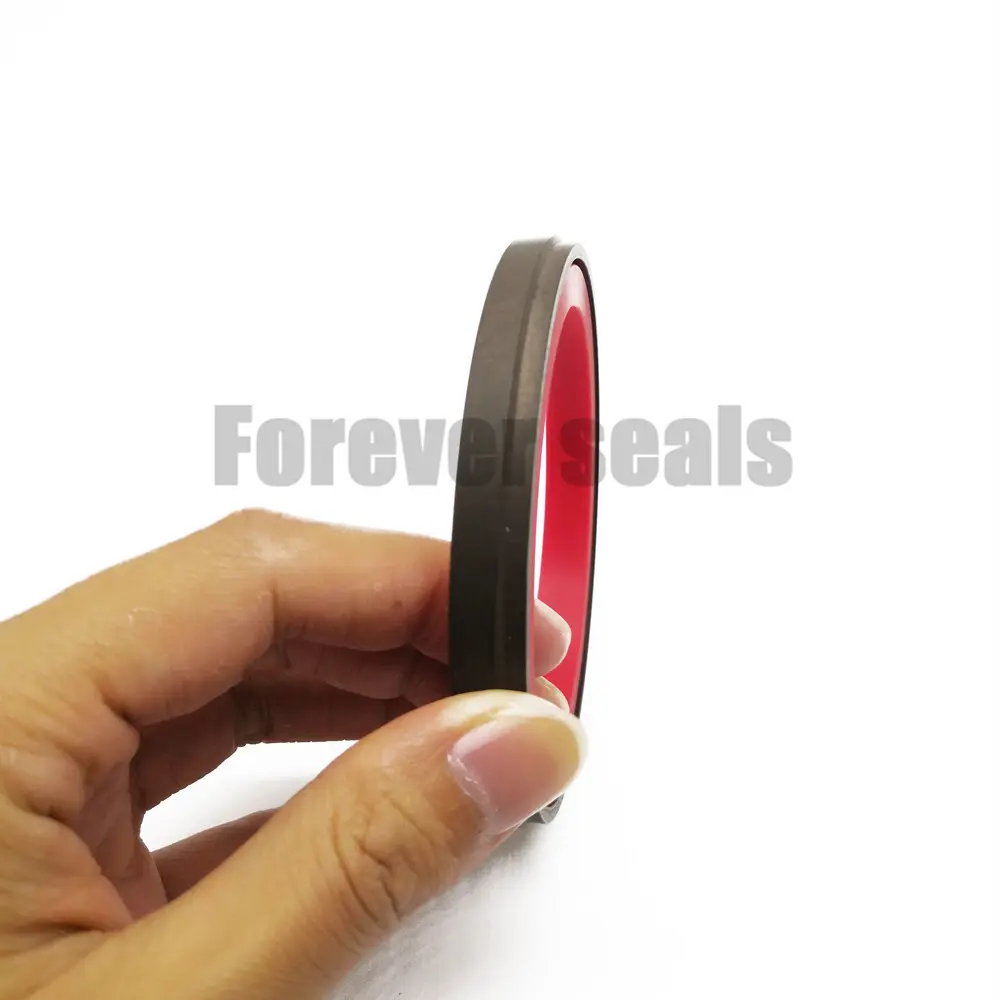

Hydraulic Piston Seals by FOREVER SEALS
1. Description
OMK-ES applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.
2. Installation Recommendation
3. Installation Sizes
|
Bore Diameter |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
|||
|
D H8 |
d h8 |
L1+0.2 |
R1 |
16MPa |
26MPa |
32MPa |
40MPa |
|
55.0-149.9 |
D-10.0 |
10.0 |
0.4 |
0.60 |
0.50 |
0.40 |
0.40 |
|
150.0-244.9 |
D-12.5 |
12.5 |
0.4 |
0.75 |
0.65 |
0.55 |
0.50 |
|
245.0-500.0 |
D-15.0 |
15.0 |
0.8 |
0.75 |
0.65 |
0.55 |
0.50 |
|
500.1-760.0 |
D-17.5 |
17.5 |
1.2 |
0.75 |
0.65 |
0.55 |
0.50 |
|
760.1-999.9 |
D-20.0 |
20.0 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |
|
≧1000 |
D-20.0 |
20.5 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |

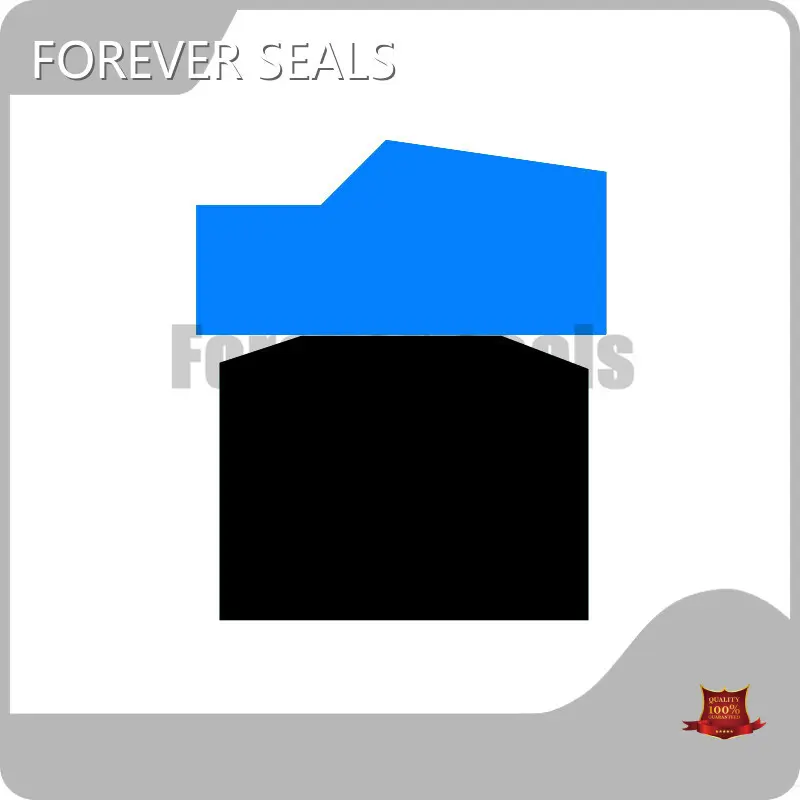

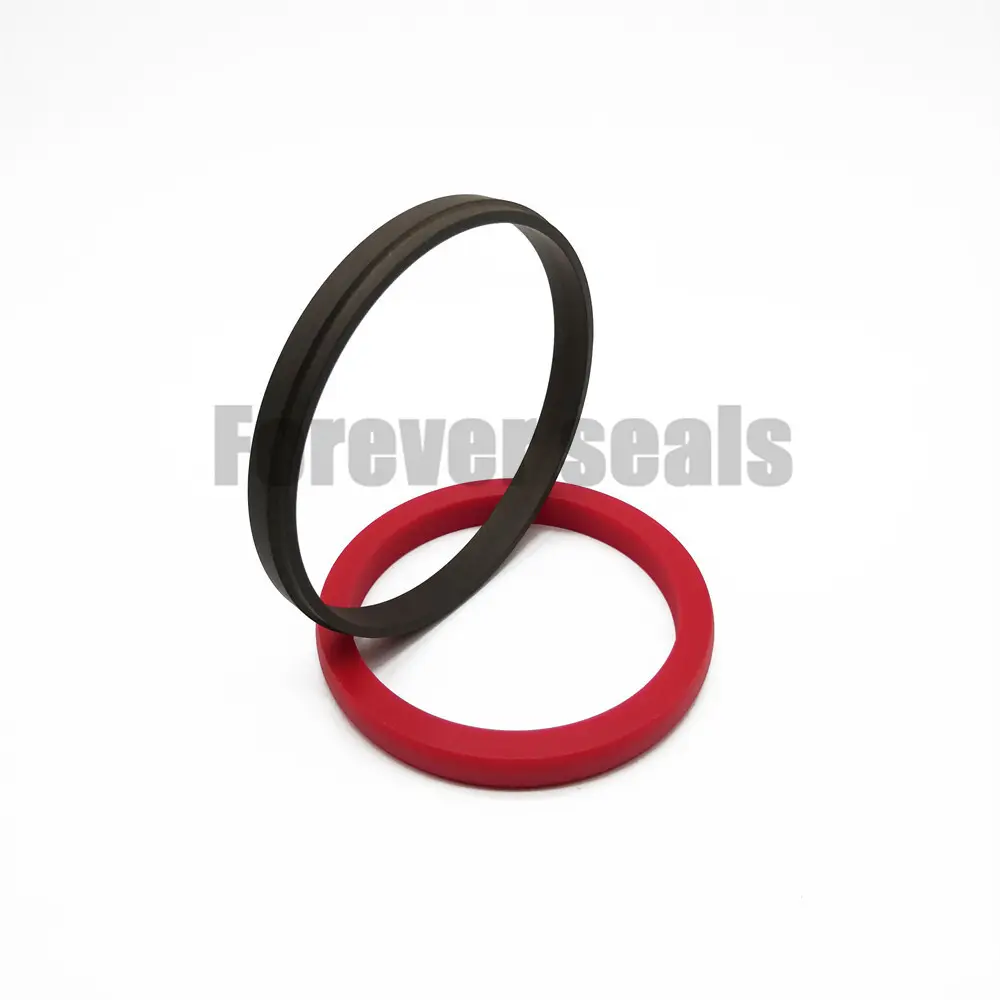

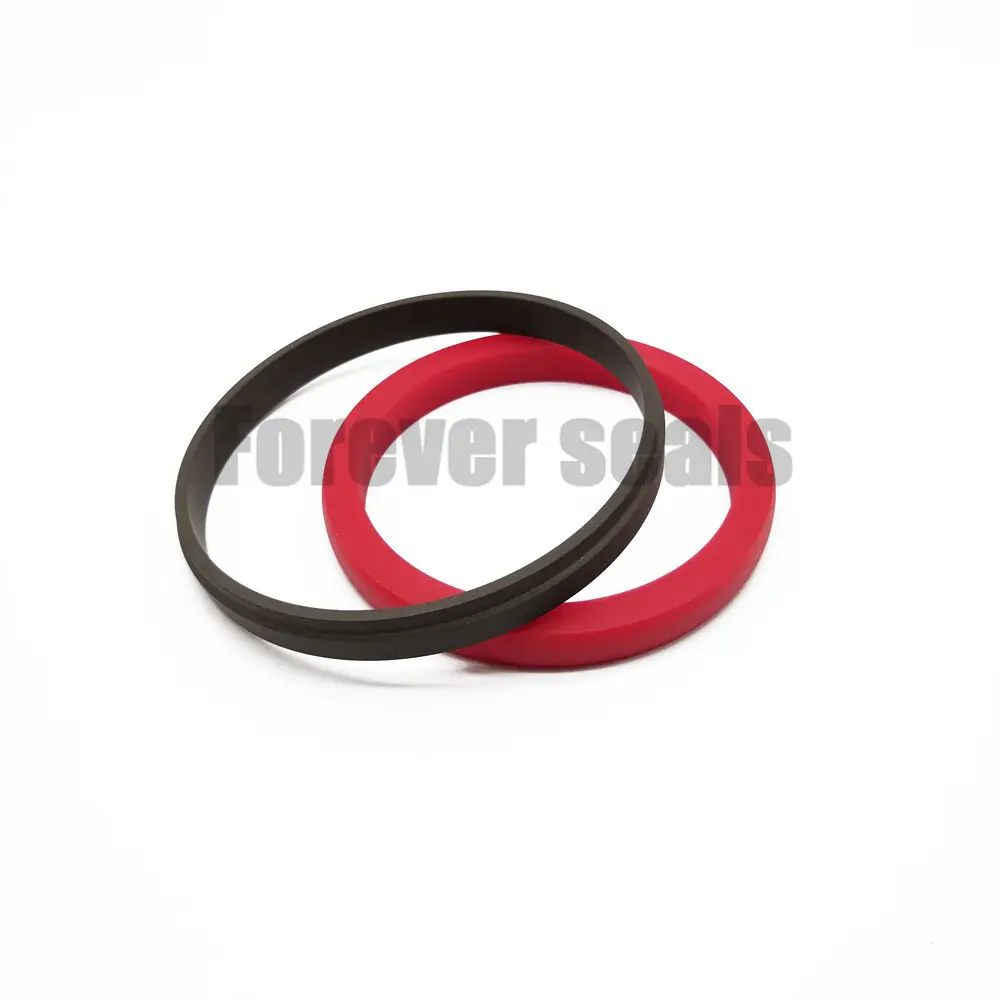

Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
40 - 1600mm |
0 - 60MPa |
-30℃ +100℃ |
5 m/s |
hydraulic oil, flame retardant liquid, water and others |
Company Advantages
· Our hydraulic piston seals is compact in outline for convenient transportation.
· The functionality of the product is tested repeatedly.
· FOREVER SEALS has been perfecting the manufacture of remarkable and top quality hydraulic piston seals.
Company Features
· With rich industry experience, we are counted among the leading manufacturers and importers of a vast gamut of hydraulic piston seals.
· FOREVER SEALS is fully dedicated to ensuring only the most reliable quality products reach our customers.
· FOREVER SEALS TECHNOLOGY.,LIMITED will actively expand and extend the industrial chain. Inquire online!
Application of the Product
hydraulic piston seals of FOREVER SEALS has very extensive application in different scenarios.
With a focus on SEALS,O-RINGS, FOREVER SEALS is dedicated to providing reasonable solutions for customers.
