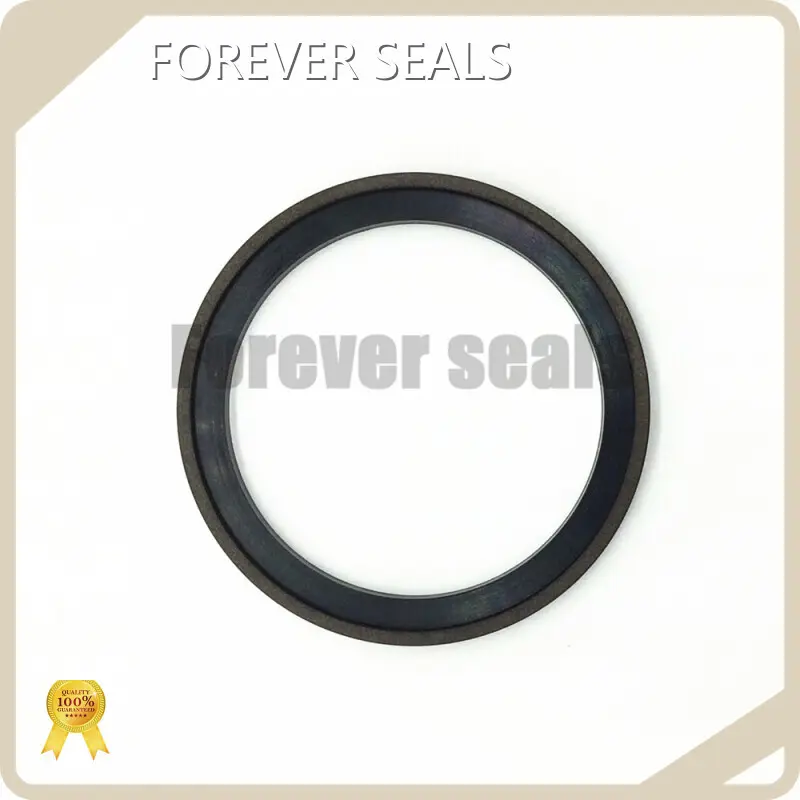

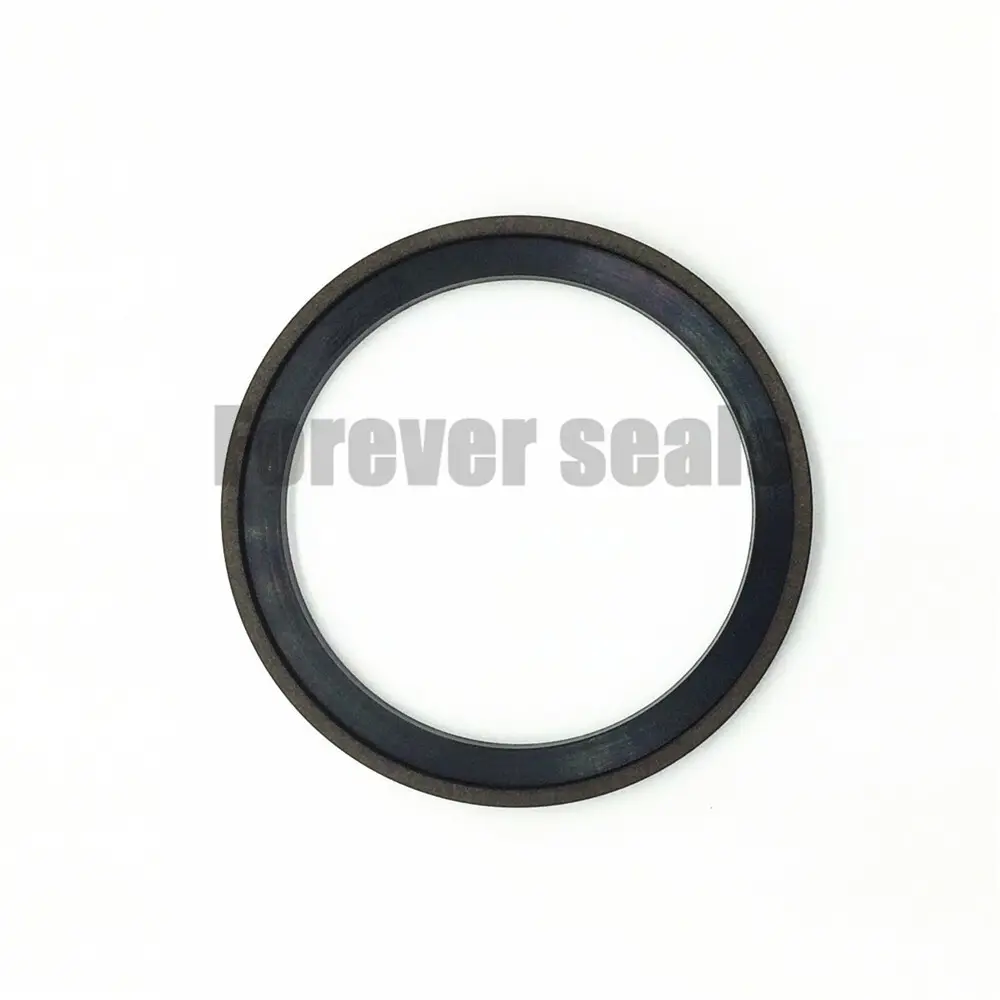

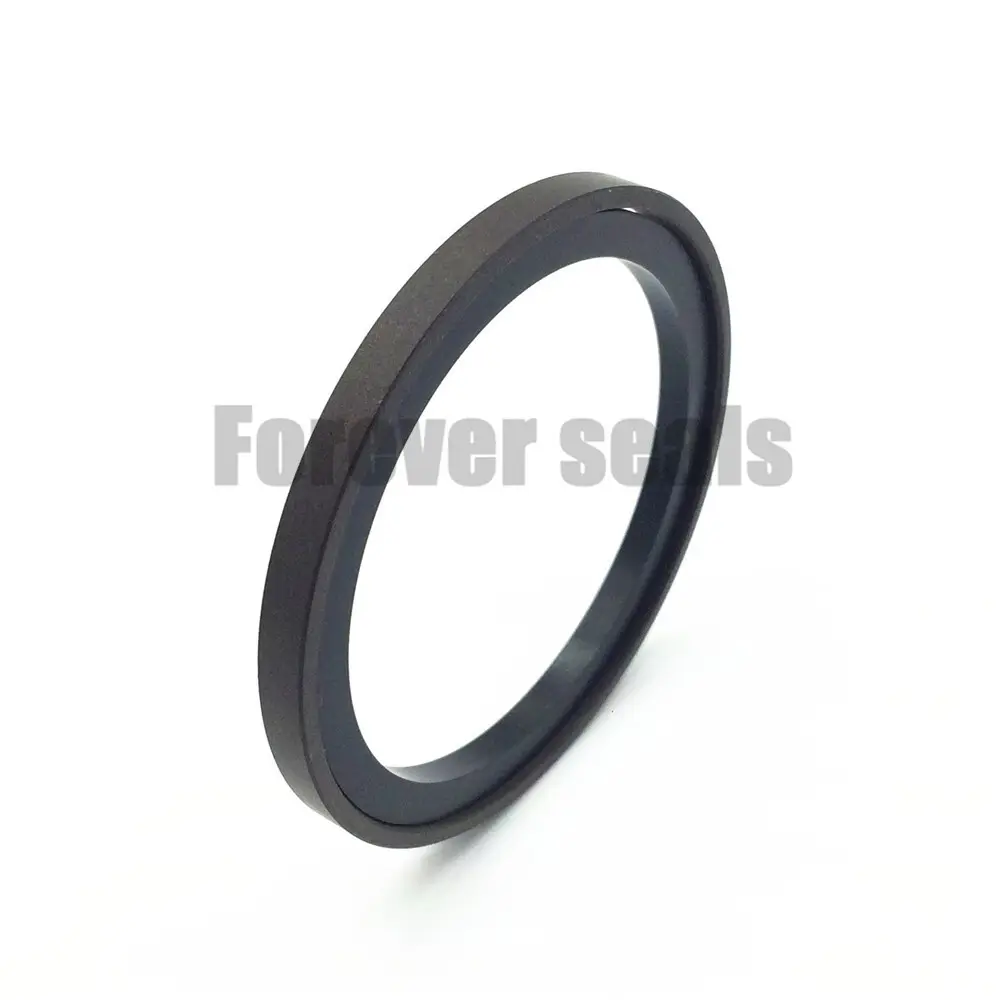

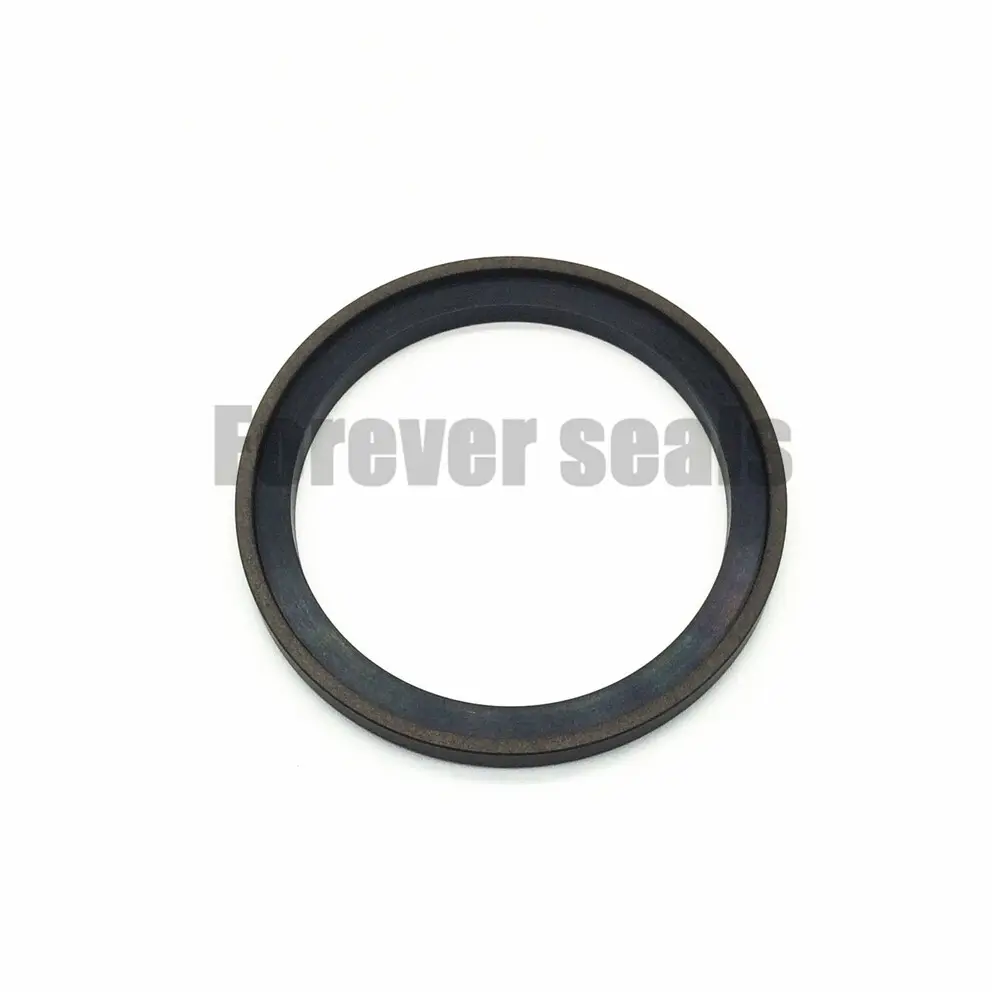

Hydraulic Piston Seal Design by FOREVER SEALS
Product details of the hydraulic piston seal design
Quick Detail
With smooth and elegant surface, hydraulic piston seal design is of great performance for clients. The product undergoes in-house strict quality testing and inspections. FOREVER SEALS's hydraulic piston seal design is available in a wide range of applications. FOREVER SEALS TECHNOLOGY.,LIMITED always adhere to the principle of innovative ideas on hydraulic piston seal design.
Product Introduction
Our hydraulic piston seal design's outstanding quality is shown in the details.
1. Description
SPG is standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.
2. Installation Recommendation
3. Standard materials

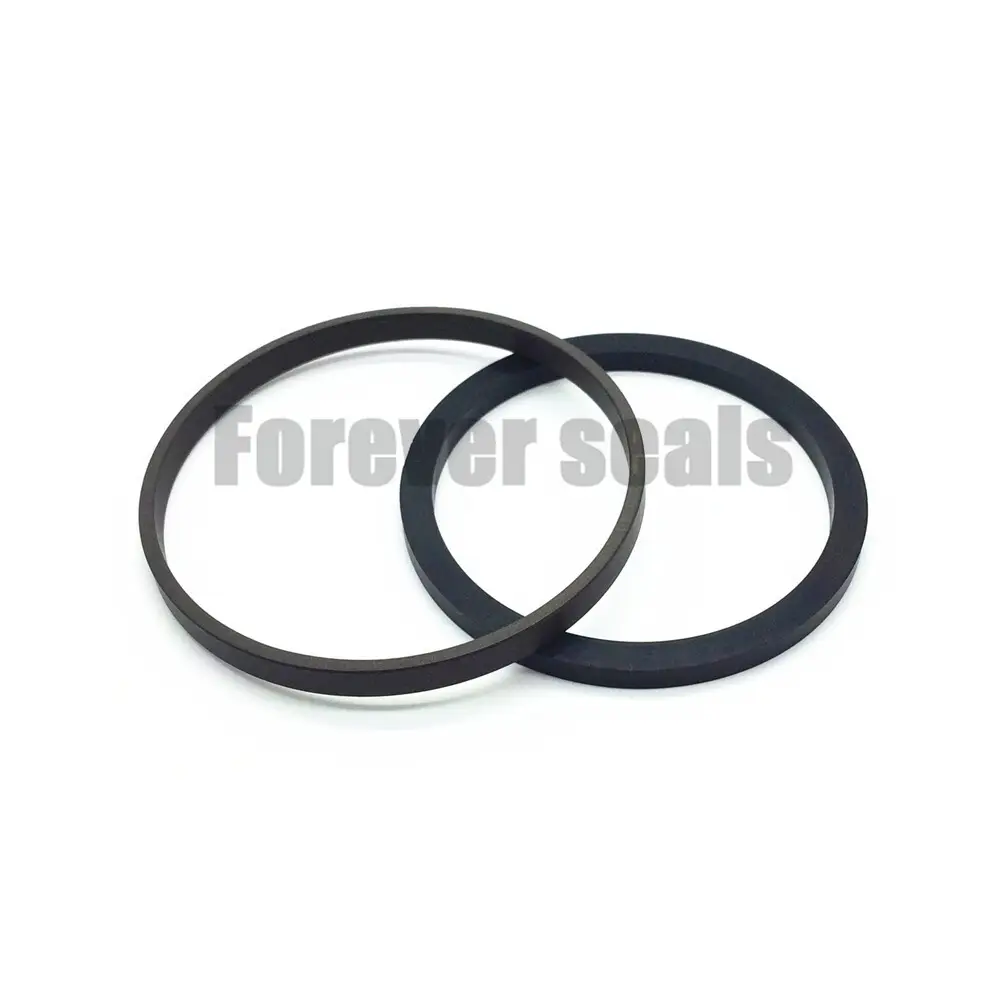

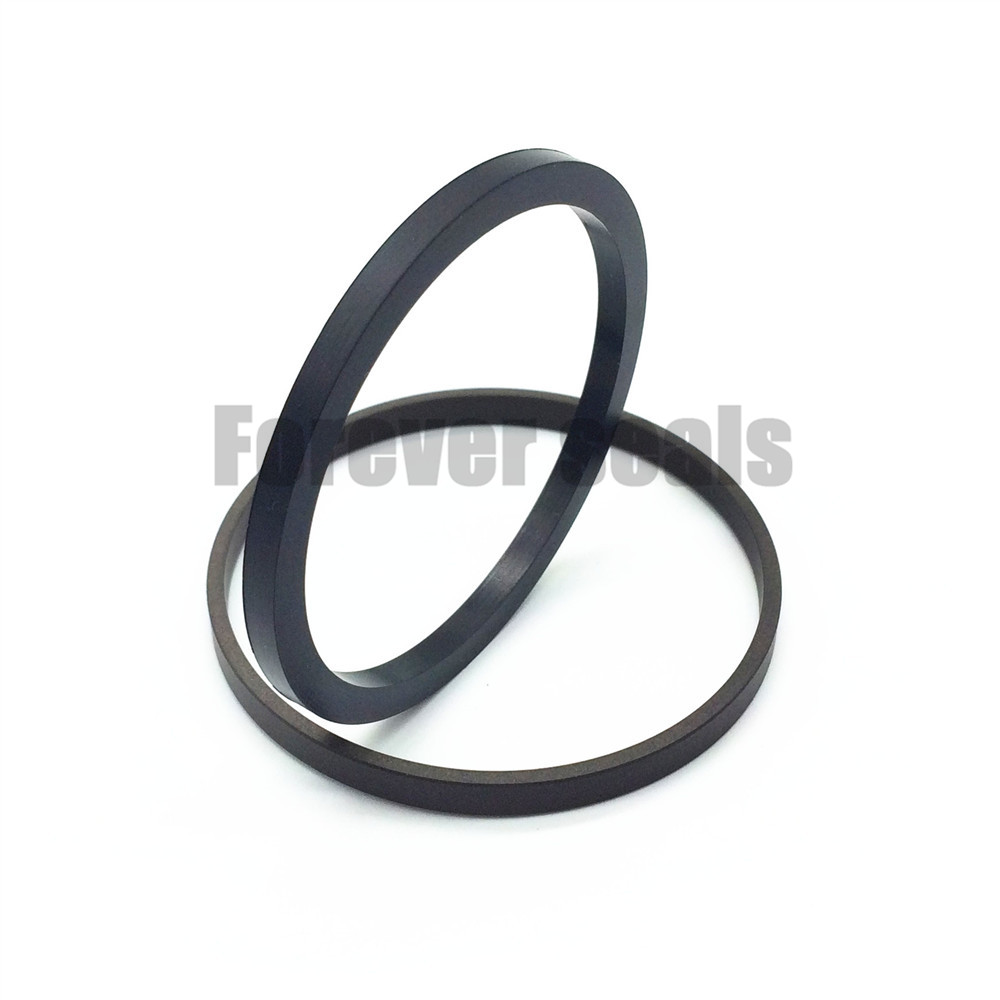

Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
30 - 1600mm |
0 - 35MPa |
-30℃ +200℃ |
1.5 m/s |
hydraulic oil, flame retardant liquid, water and others. |
5. Installation Dimensions
Nominal Size of Packing, and Housing dimensions
L +0.2
Order No.
D
d
H
30
31.5
32
20.5
22
22.5
4.3
4.3
4.3
4.5
4.5
4.5
SPG30*20.5*4.5
SPG31.5*22*4.5
SPG32*22.5*4.5
35
35.5
40
25.5
26
30
4.3
4.3
4.3
4.5
4.5
4.5
SPG35*25.5*4.5
SPG35.5*26*4.5
SPG40*30*4.5
45
50
55
35
40
45
4.3
4.3
4.3
4.5
4.5
4.5
SPG45*35*4.5
SPG50*40*4.5
SPG55*45*4.5
56
60
63
46
50
48
4.3
4.3
7.3
4.5
4.5
7.5
SPG56*46*4.5
SPG60*50*4.5
SPG63*48*7.5
65
69
70
50
54
55
7.3
7.3
7.3
7.5
7.5
7.5
SPG65*50*7.5
SPG69*54*7.5
SPG70*55*7.5
71
75
80
56
60
65
7.3
7.3
7.3
7.5
7.5
7.5
SPG71*56*7.5
SPG75*60*7.5
SPG80*65*7.5
85
90
95
70
75
80
7.3
7.3
7.3
7.5
7.5
7.5
SPG85*70*7.5
SPG90*75*7.5
SPG95*80*7.5
100
105
108
85
90
92
7.3
7.3
7.3
7.5
7.5
7.5
SPG100*85*7.5
SPG105*90*7.5
SPG108*92*7.5
110
112
120
94
96
104
7.3
7.3
7.3
7.5
7.5
7.5
SPG110*94*7.5
SPG112*96*7.5
SPG120*104*7.5
125
130
135
109
114
119
7.3
7.3
7.3
7.5
7.5
7.5
SPG125*109*7.5
SPG130*114*7.5
SPG135*119*7.5
140
145
150
124
129
134
7.3
7.3
7.3
7.5
7.5
7.5
SPG140*124*7.5
SPG145*129*7.5
SPG150*134*7.5
Company Information
FOREVER SEALS TECHNOLOGY.,LIMITED includes a wealth of manufacturing expertise hydraulic piston seal design. FOREVER SEALS TECHNOLOGY.,LIMITED has a group of hydraulic piston seal design designers and production engineers. We adhere to a consistently high-quality responsibility hydraulic piston seal design. Inquire now!
If you have needs for purchasing our products in bulk, please contact our official customer service personnel.
