Product details of the hydraulic oil seal
Product Introduction
FOREVER SEALS hydraulic oil seal is designed based on design standards. The product is not only of reliable quality, but also offers long-term excellent performance. The product under the FOREVER SEALS brand has continually grown and expanded in the international competition.
1. Description

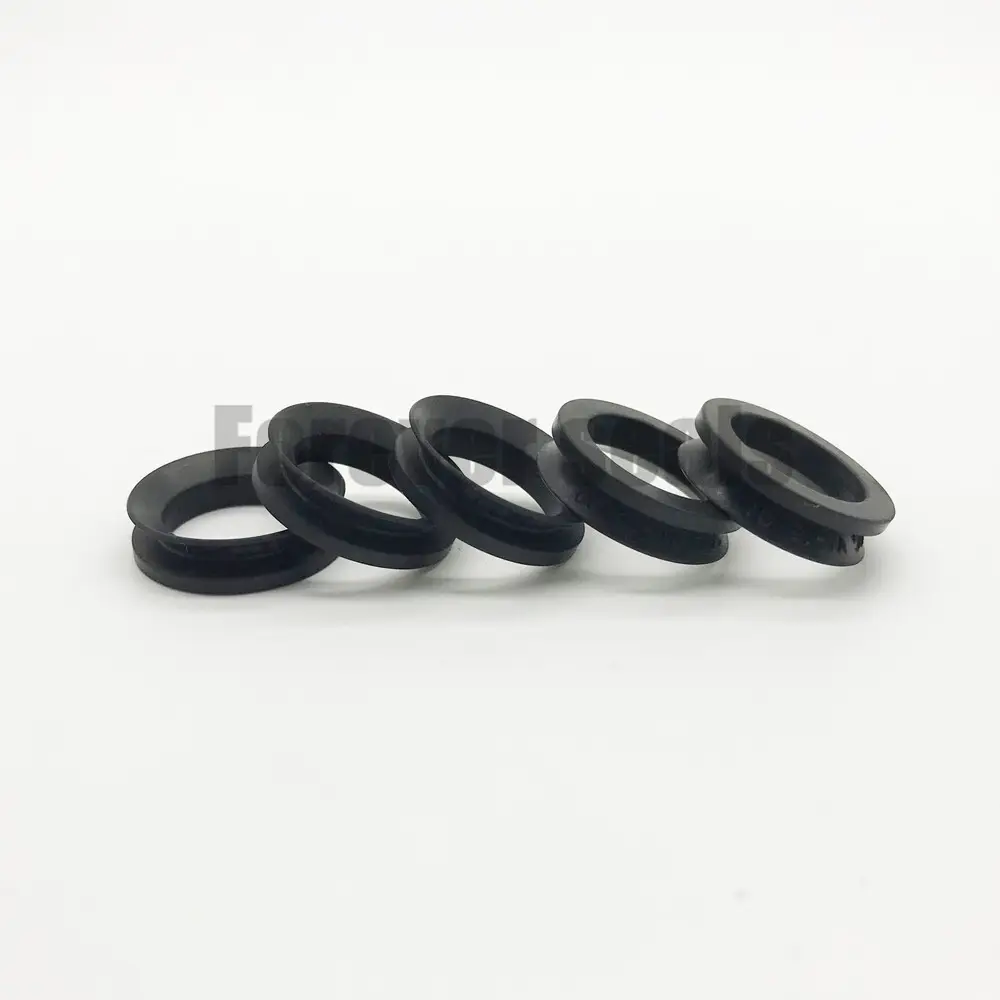

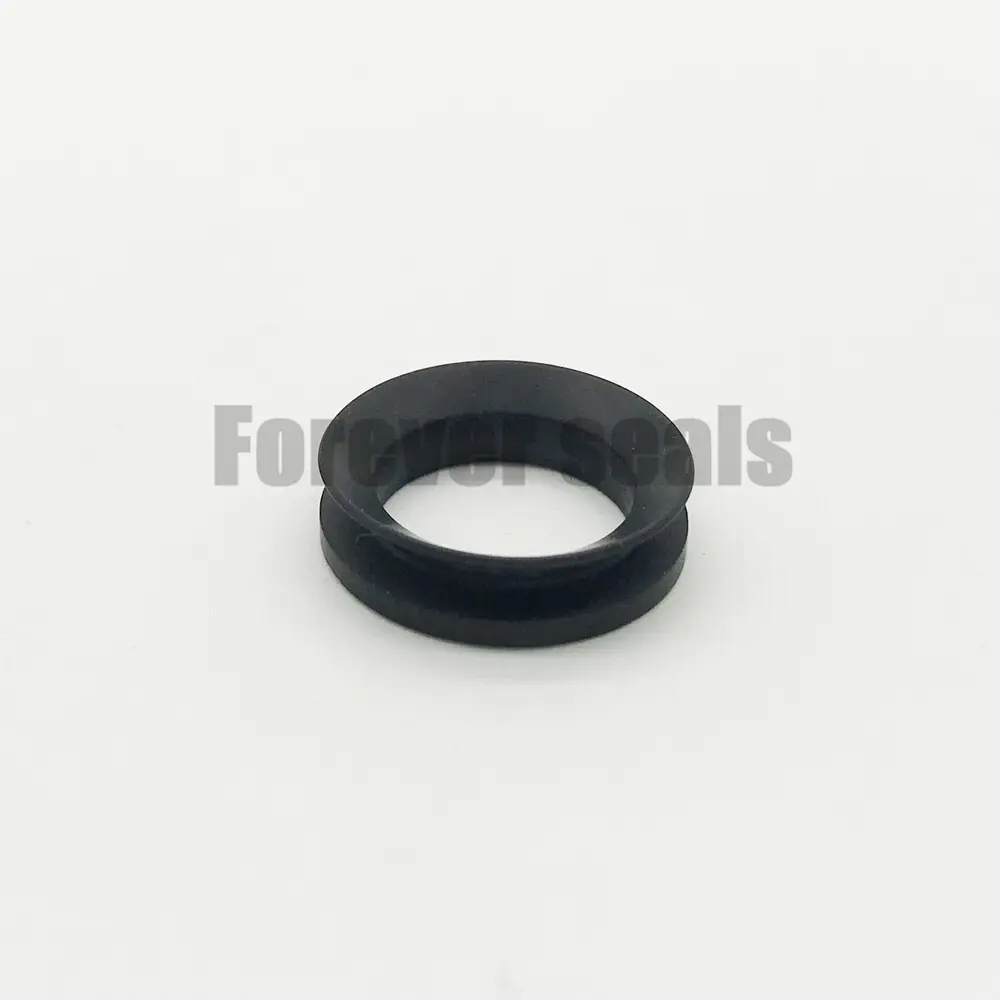

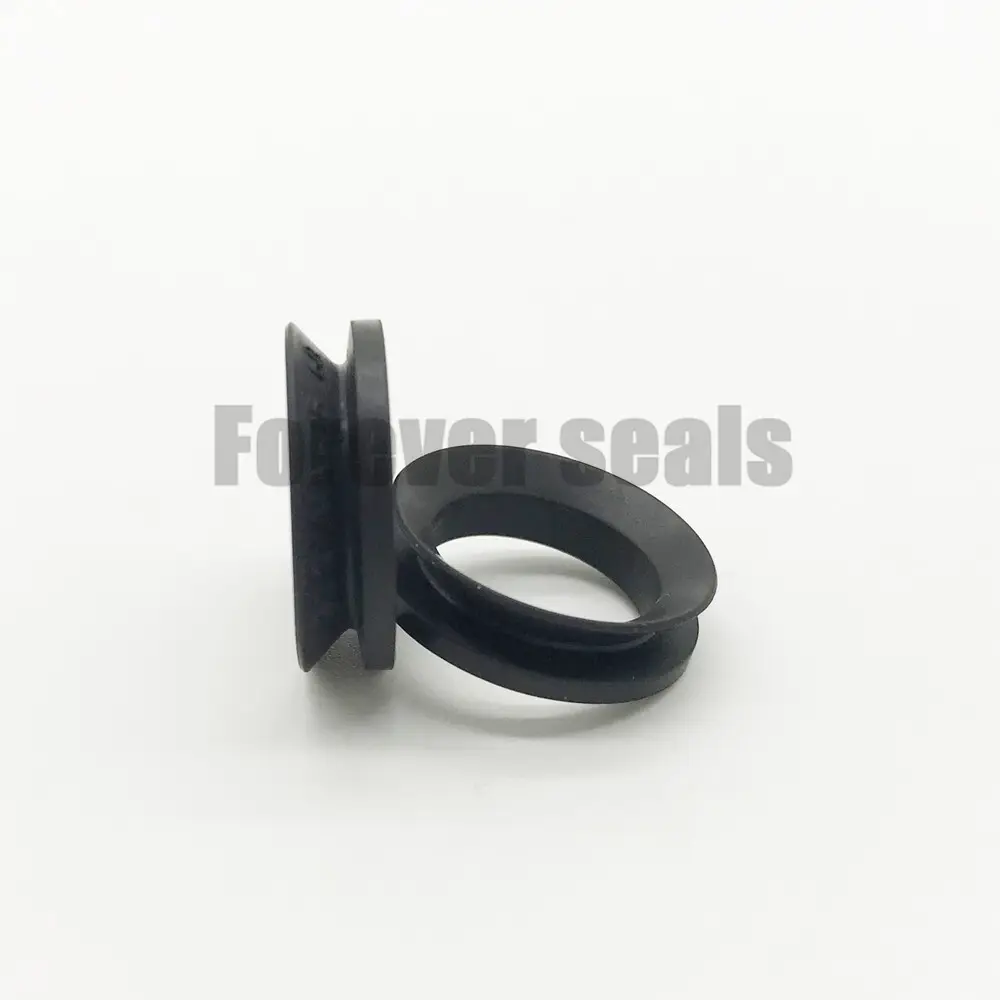

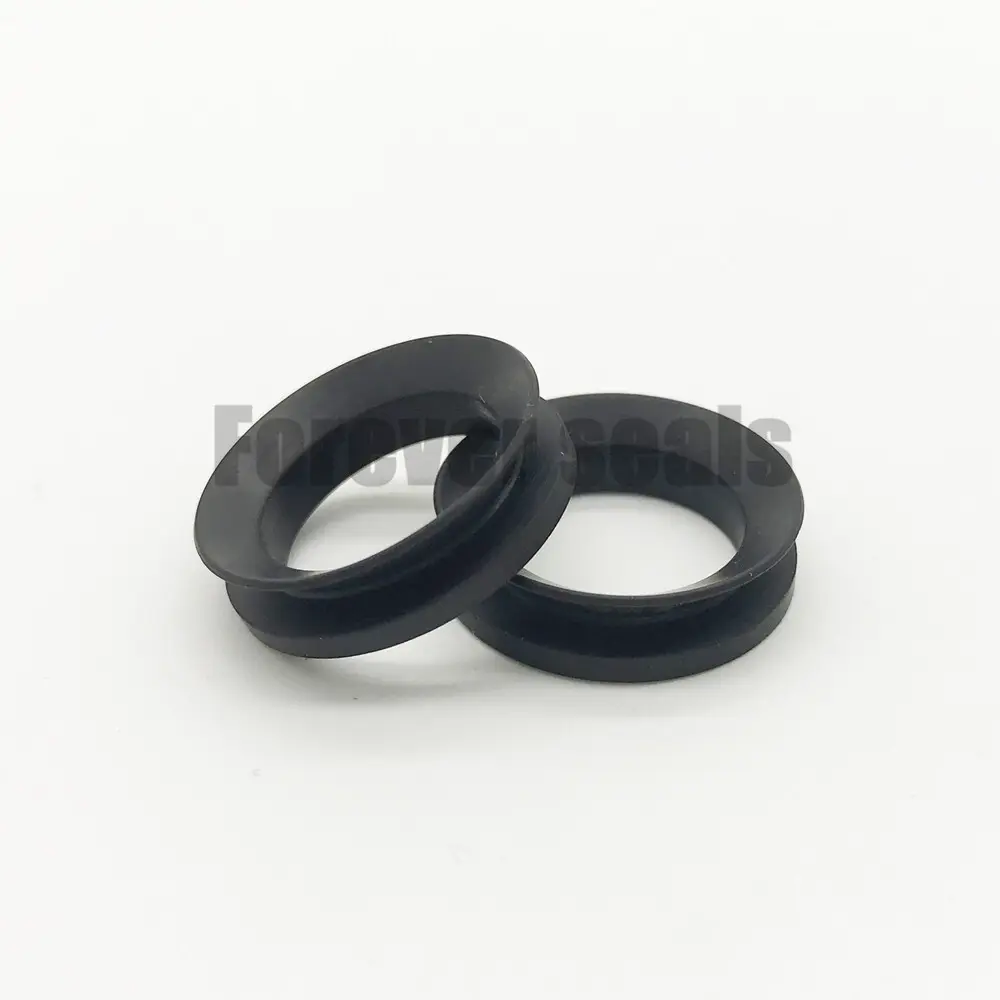

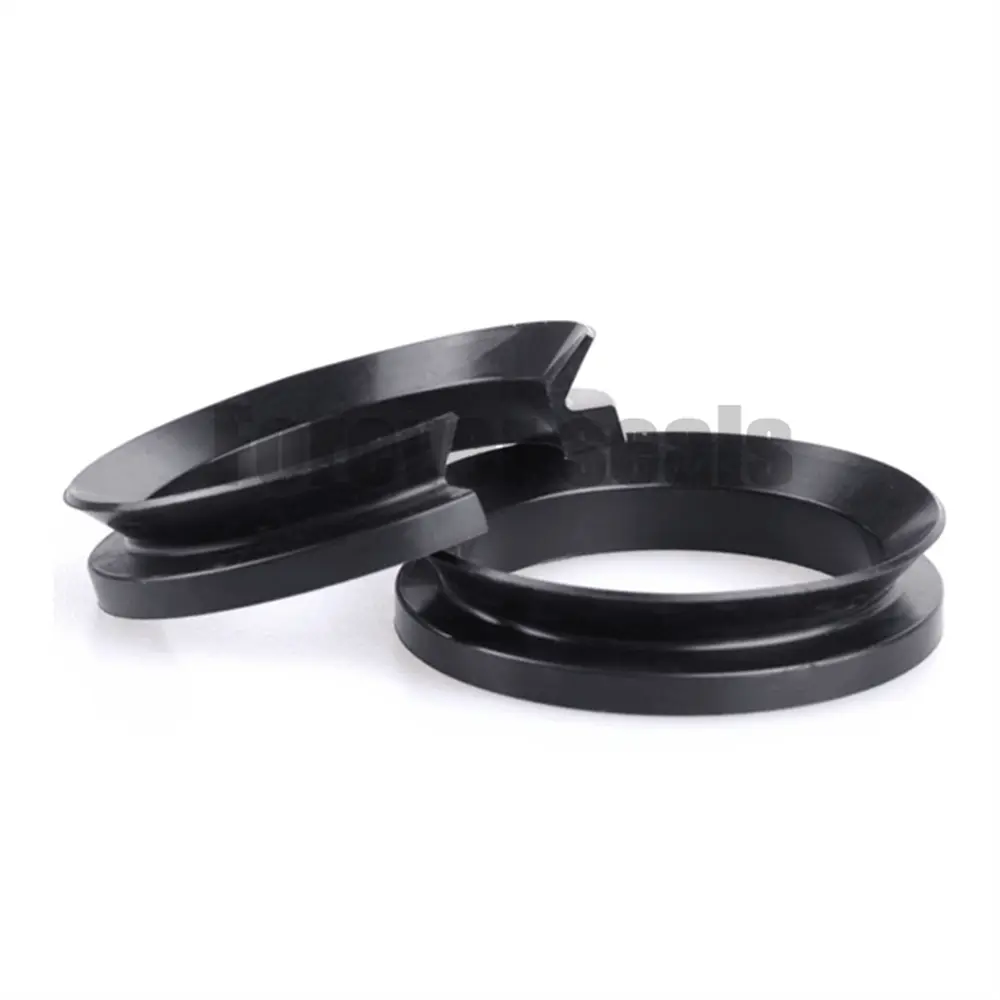

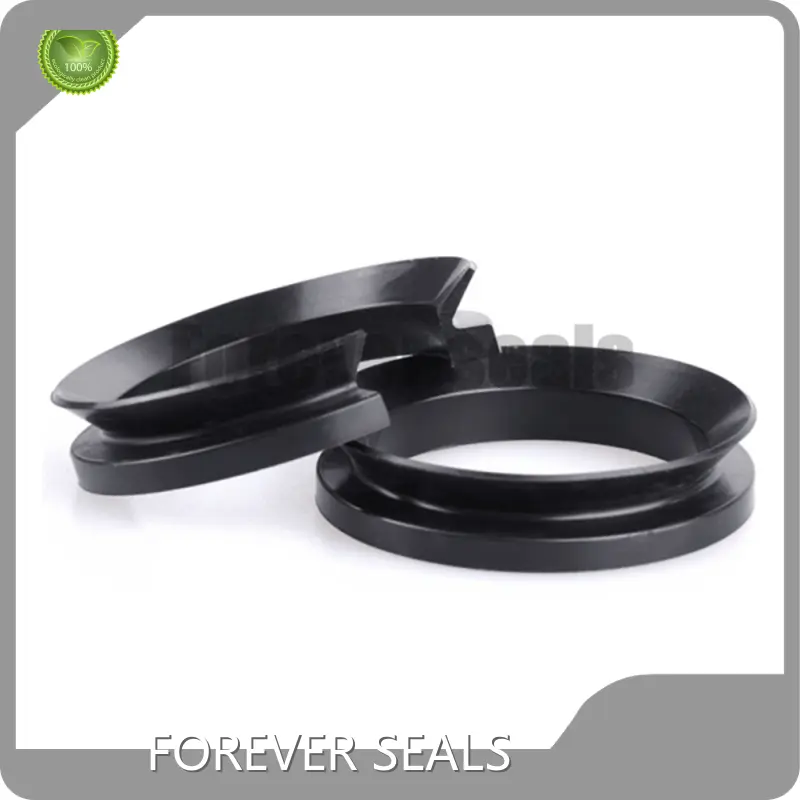

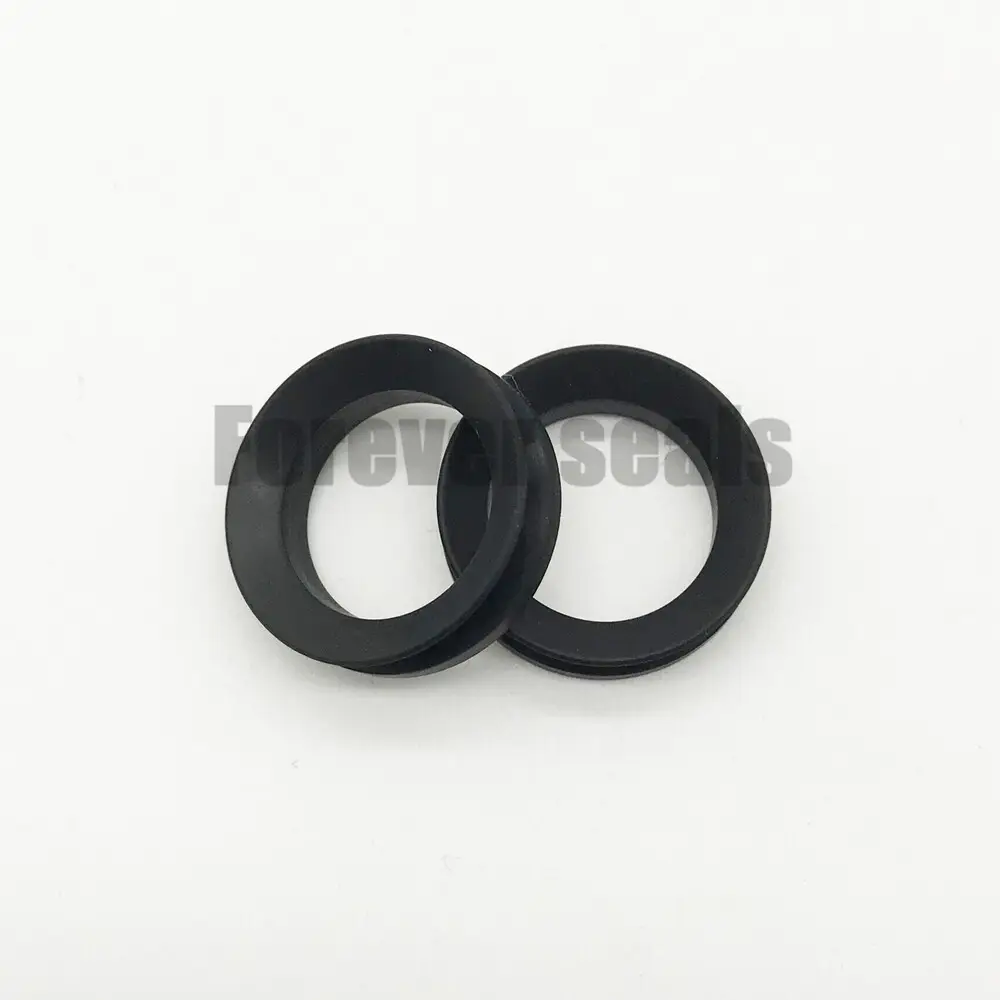

VA seal is a unique all-rubber seal for rotary shafts. It has been used successfully by OEMs and on the replacement market world wide in a broad range of applications. VA seal is the perfect seal to prevent the ingress of dirt, dust, water or combinations of these media while positively retaining grease. With its unique design and performance, VA seal can be used with a wide range of bearing types. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.
2. Installation Recommendation
3. Standard materials
NBR / FKM
4. Installation Dimensions
|
For shaft diameter d1 |
Inside dia. d |
Height of cross- section c |
Dimension A |
Free width B |
Maximum d2 |
Minimum d3 |
Fitted width B1 |
Order No. |
|
2.7 - 3.5 |
2.5 |
1.5 |
2.1 |
3.0 |
d1 + 1 |
d1 + 4 |
2.5 ±0.3 |
VA003 |
|
3.5 - 4.5 |
3.2 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA004 |
|
4.5 - 5.5 |
4 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA005 |
|
5.5 - 6.5 |
5 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA006 |
|
6.5 - 8.0 |
6 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA007 |
|
8.0 - 9.5 |
7 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA008 |
|
9.5 - 11.5 |
9 |
3 |
3.4 |
5.5 |
d1 + 1 |
d1 + 9 |
4.5 ±0.6 |
VA010 |
|
11.5 - 12.5 |
10.5 |
3 |
3.4 |
5.5 |
d1 + 1 |
d1 + 9 |
4.5 ±0.6 |
VA012 |
|
12.5 - 13.5 |
11.7 |
3 |
3.4 |
5.5 |
d1 + 1 |
d1 + 9 |
4.5 ±0.6 |
VA013 |
|
13.5 - 15.5 |
12.5 |
3 |
3.4 |
5.5 |
d1 + 1 |
d1 + 9 |
4.5 ±0.6 |
VA014 |
http://www.foreverseals.com/download.html
