Product details of the hydraulic oil seal
Product Overview
Every detail of FOREVER SEALS hydraulic oil seal reflects the exquisite craftsmanship. Owning to our new advanced technology, Our hydraulic oil seal is in higher performance. If you need high quality hydraulic oil seal, it will be a wise choice to choose us.
Product Introduction
The specific details of hydraulic oil seal are presented below.
1. Description

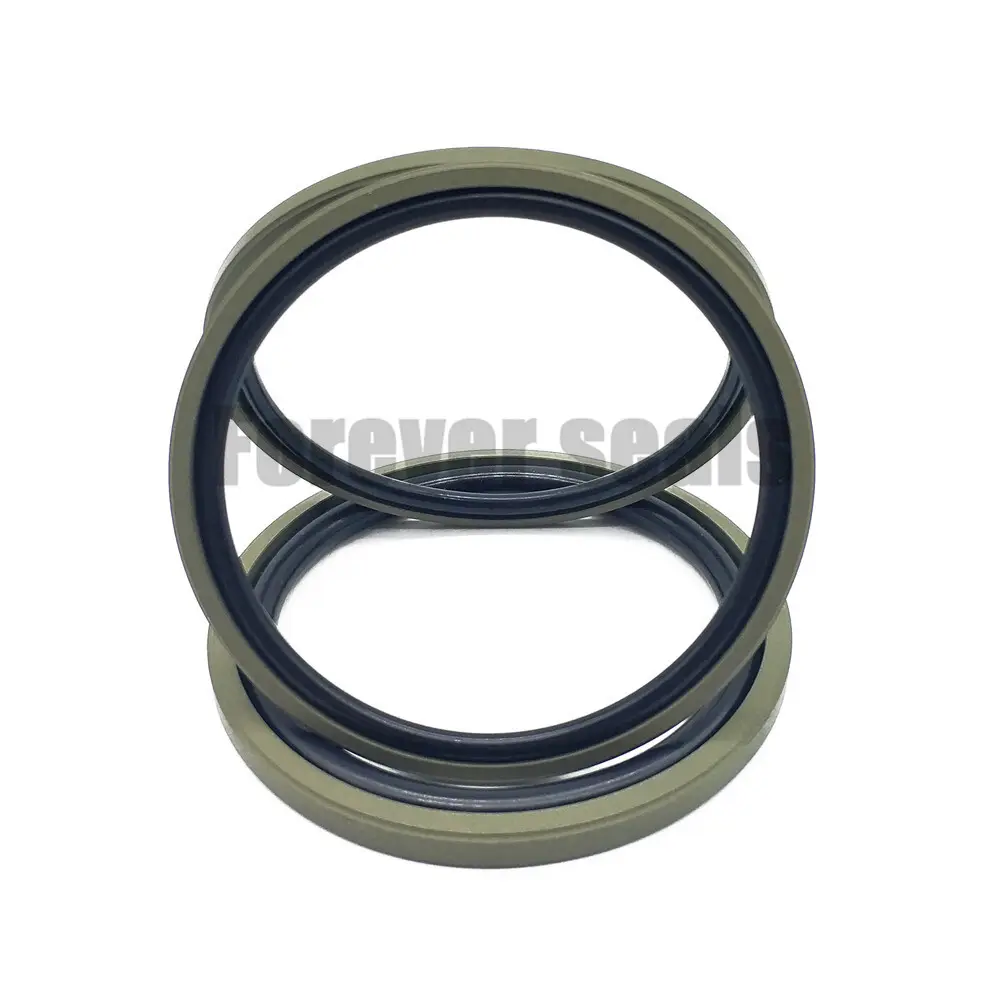

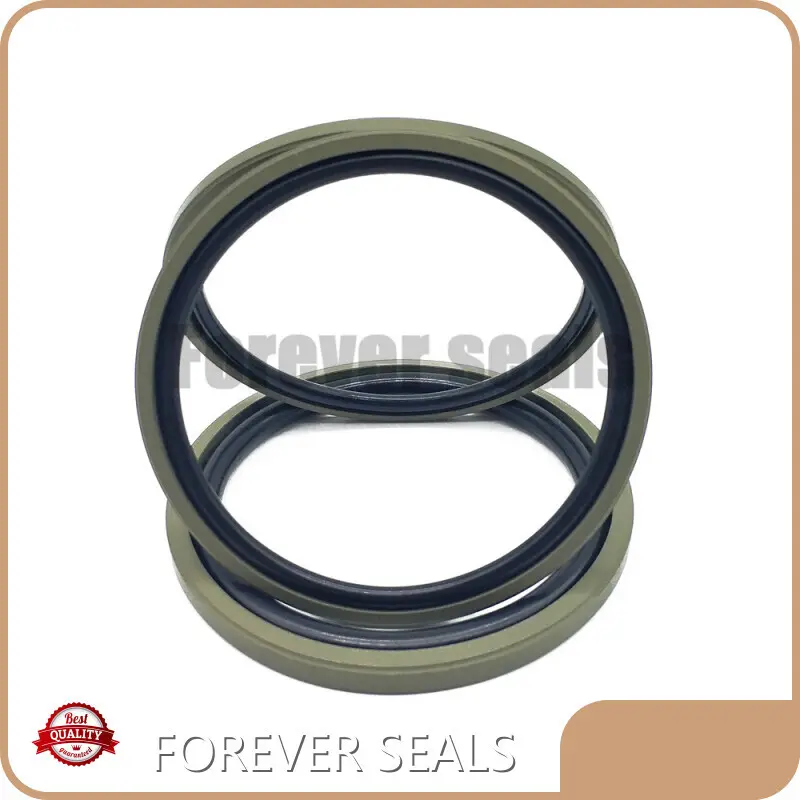

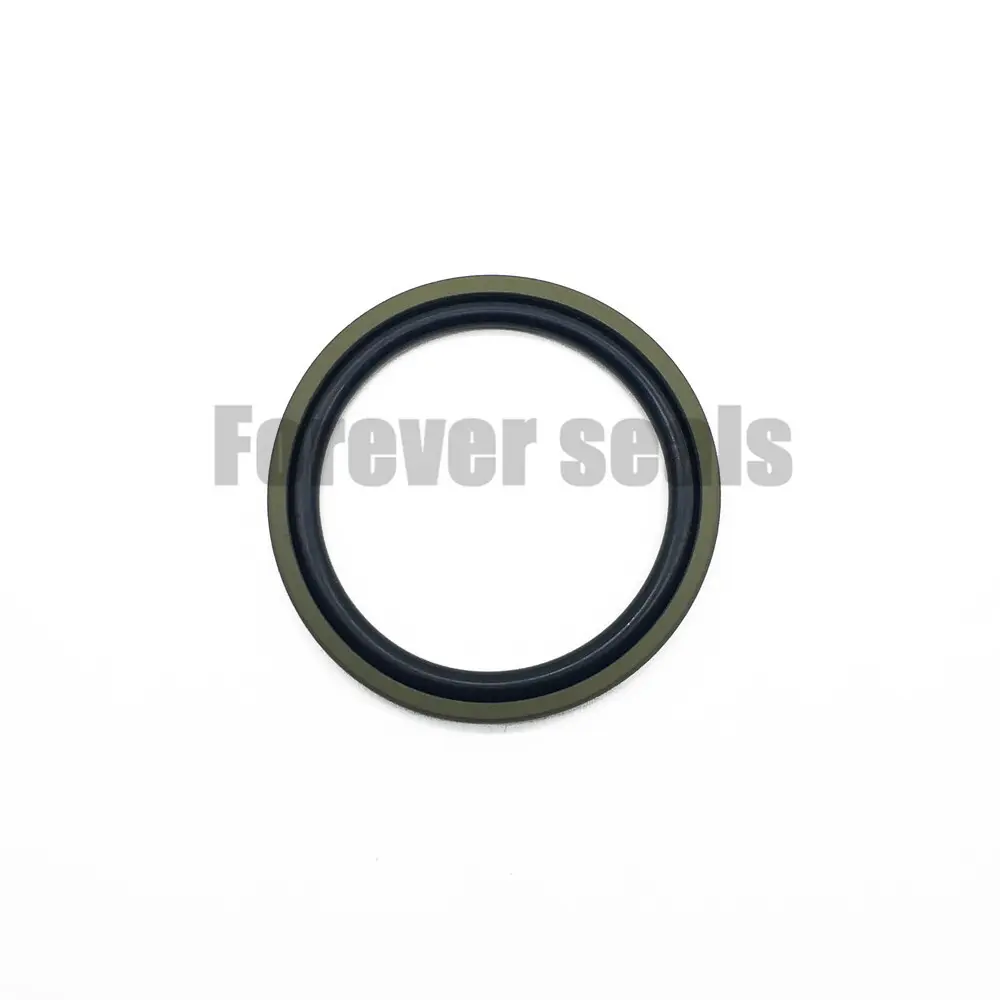

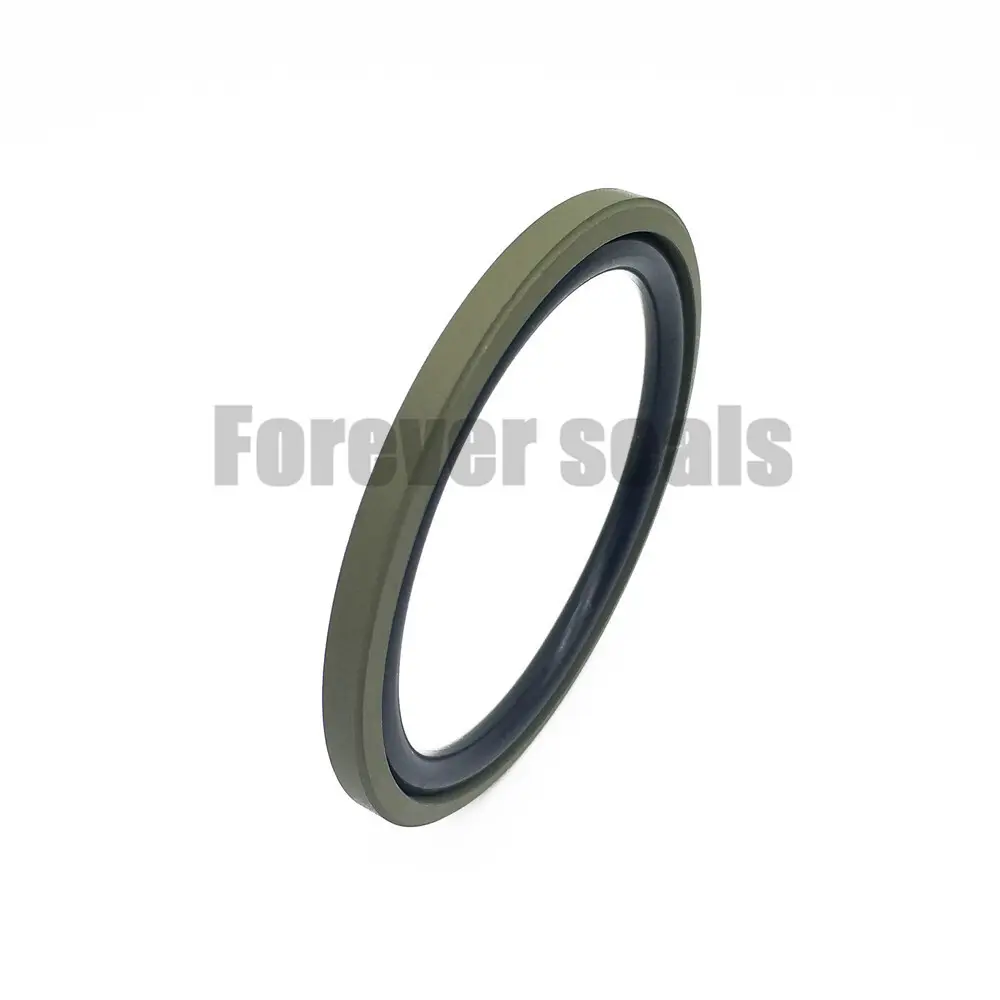

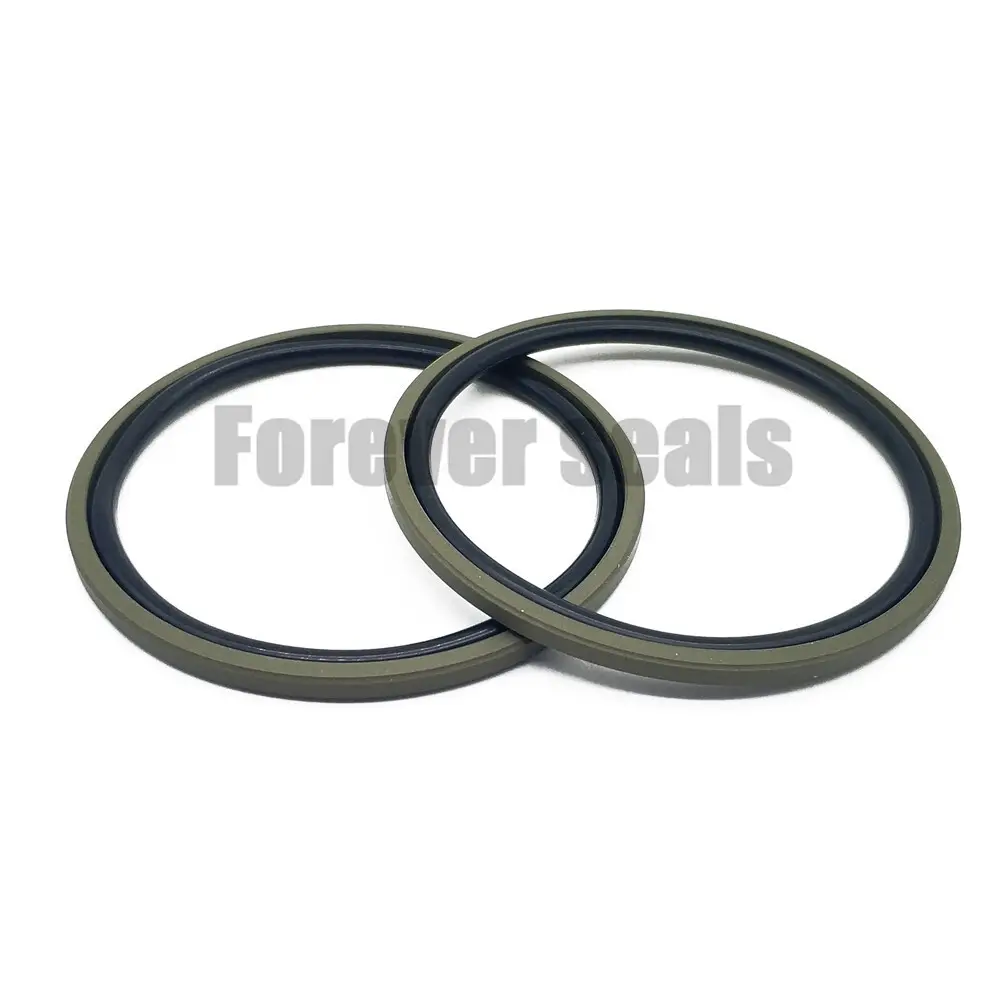

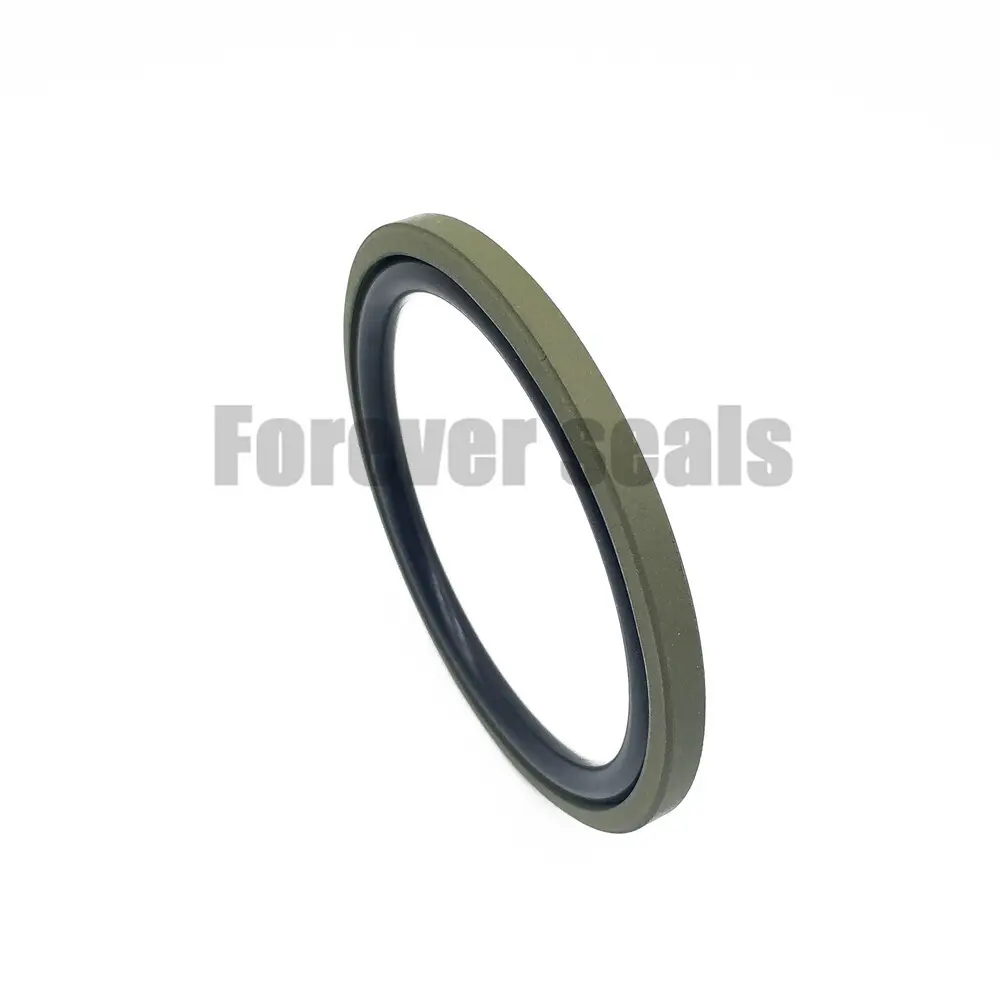

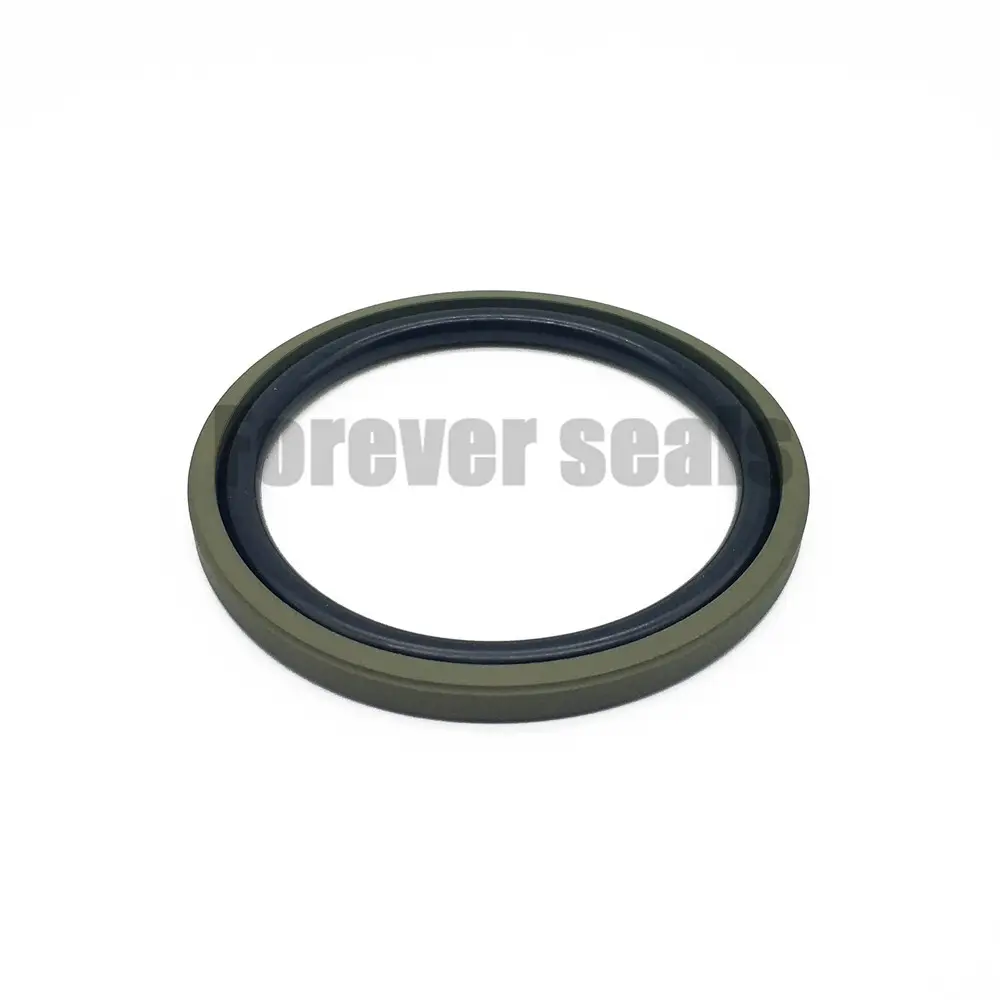

Glyd Ring is a double-acting O-Ring energized piston seal for dynamic applications. Glyd Ring provides low friction with no stick-slip, minimal break out force and high wear resistance. Main application is actuator cylinders. Installed in grooves to ISO 7425.
2. Installation Recommendation
3. Installation dimensions - Standard recommendations
|
Bore Diameter DN H9 |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
O-Ring Cross-Section |
||||
|
Standard Application |
Light Application |
Heavy Duty Application |
d1 h9 |
L1+0.2 |
R1 |
10MPa |
20MPa |
40MPa |
d2 |
|
8-14.9 |
15-39.9 |
- |
DN-4.9 |
2.2 |
0.4 |
0.3 |
0.20 |
0.15 |
1.78 |
|
15-39.9 |
40-79.9 |
- |
DN-7.5 |
3.2 |
0.6 |
0.4 |
0.25 |
0.15 |
2.62 |
|
40-79.9 |
80-132.9 |
15-39.9 |
DN-11.0 |
4.2 |
1.0 |
0.4 |
0.25 |
0.20 |
3.53 |
|
80-132.9 |
133-329.9 |
40-79.9 |
DN-15.5 |
6.3 |
1.3 |
0.5 |
0.30 |
0.20 |
5.33 |
|
133-329.9 |
330-699.9 |
80-132.9 |
DN-21.0 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
330-669.9 |
670-99.9 |
133-329.9 |
DN-24.5 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
670-999.9 |
≥1000 |
330-669.9 |
DN-28.0 |
9.5 |
2.5 |
0.7 |
0.50 |
0.30 |
8.40 |
|
≥1000 |
≥1000 |
≥1000 |
DN-38.0 |
13.8 |
3.0 |
1.0 |
0.70 |
0.60 |
12.00 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
8 - 1600mm |
0 - 60MPa |
-45℃ +200℃ |
15 m/s |
hydraulic oil, flame retardant liquid, water and others |
