Product details of the high pressure rotary seals
Product Description
The design of FOREVER SEALS high pressure rotary seals complies with the industrial design concepts. Our team strictly follows the quality control systems to ensure the efficiency of this product. FOREVER SEALS brand creates imaginative and on-trend high pressure rotary seals through high-quality materials.
1. Description

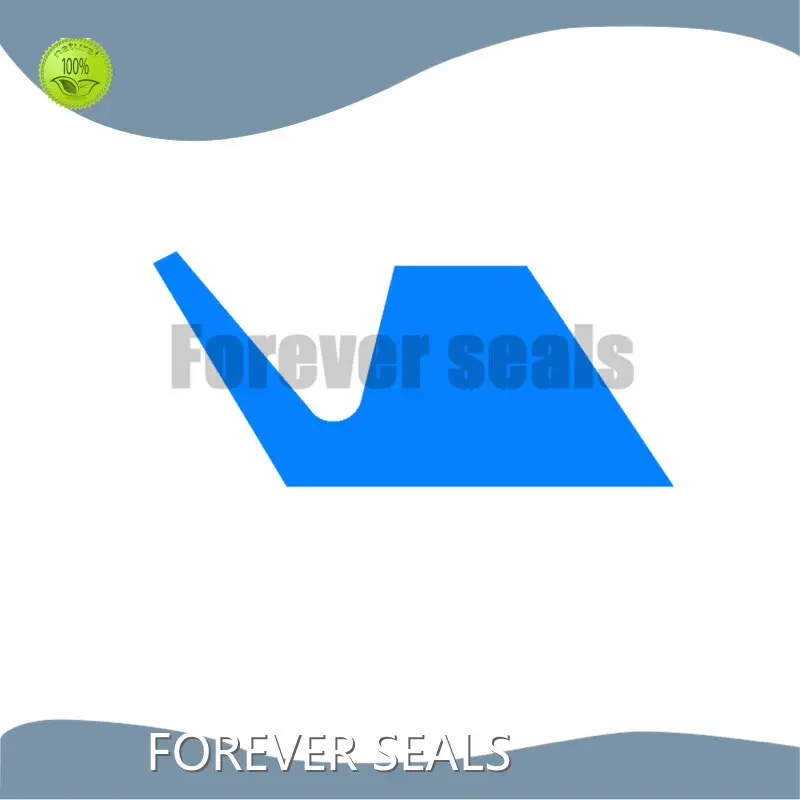

VS seal is a unique all-rubber seal for rotary shafts. It has been used successfully by OEMs and on the replacement market world wide in a broad range of applications. VS seal is the perfect seal to prevent the ingress of dirt, dust, water or combinations of these media while positively retaining grease. With its unique design and performance, VS seal can be used with a wide range of bearing types. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.
2. Installation Recommendation
3. Standard materials
NBR / FKM
4. Installation Dimensions
|
For shaft diameter d1 |
Inside dia. d |
Height of cross- section c |
Dimen- sion A |
Free width B |
Maximum d2 |
Minimum d3 |
Fitted width B1 |
Order No. |
|
4.5 - 5.5 |
4 |
2 |
3.9 |
5.2 |
d1 + 1 |
d1 + 6 |
4.5 ±0.4 |
VS005 |
|
5.5 - 6.5 |
5 |
2 |
3.9 |
5.2 |
d1 + 1 |
d1 + 6 |
4.5 ±0.4 |
VS006 |
|
6.5 - 8.0 |
6 |
2 |
3.9 |
5.2 |
d1 + 1 |
d1 + 6 |
4.5 ±0.4 |
VS007 |
|
8.0 - 9.5 |
7 |
2 |
3.9 |
5.2 |
d1 + 1 |
d1 + 6 |
4.5 ±0.4 |
VS008 |
|
9.5 - 11.5 |
9 |
3 |
5.6 |
7.7 |
d1 + 1 |
d1 + 9 |
6.7 ±0.6 |
VS010 |
|
11.5 - 13.5 |
10.5 |
3 |
5.6 |
7.7 |
d1 + 1 |
d1 + 9 |
6.7 ±0.6 |
VS012 |
|
13.5 - 15.5 |
12.5 |
3 |
5.6 |
7.7 |
d1 + 1 |
d1 + 9 |
6.7 ±0.6 |
VS014 |
|
15.5 - 17.5 |
14 |
3 |
5.6 |
7.7 |
d1 + 1 |
d1 + 9 |
6.7 ±0.6 |
VS016 |
|
17.5 - 19 |
16 |
3 |
5.6 |
7.7 |
d1 + 1 |
d1 + 9 |
6.7 ±0.6 |
VS018 |
|
19 - 21 |
18 |
4 |
7.9 |
10.5 |
d1 + 2 |
d1 + 12 |
9.0 ±0.8 |
VS020 |
http://www.foreverseals.com/download.html
