Professional O-Ring and Oil Seal Manufacturer, Sealing Solution Supplier Since 2008.
Good Selling Rubber Seal Products Price List
Product details of the rubber seal products
Product Overview
The design of rubber seal products comes from top designers all over the world. Our commitment to quality ensures that the product is always at the best quality. The product has found its wide applications in the industry because of its fine characteristics.
Product Introduction
Compared with similar products, our company's rubber seal products has the following outstanding features.
1. Description

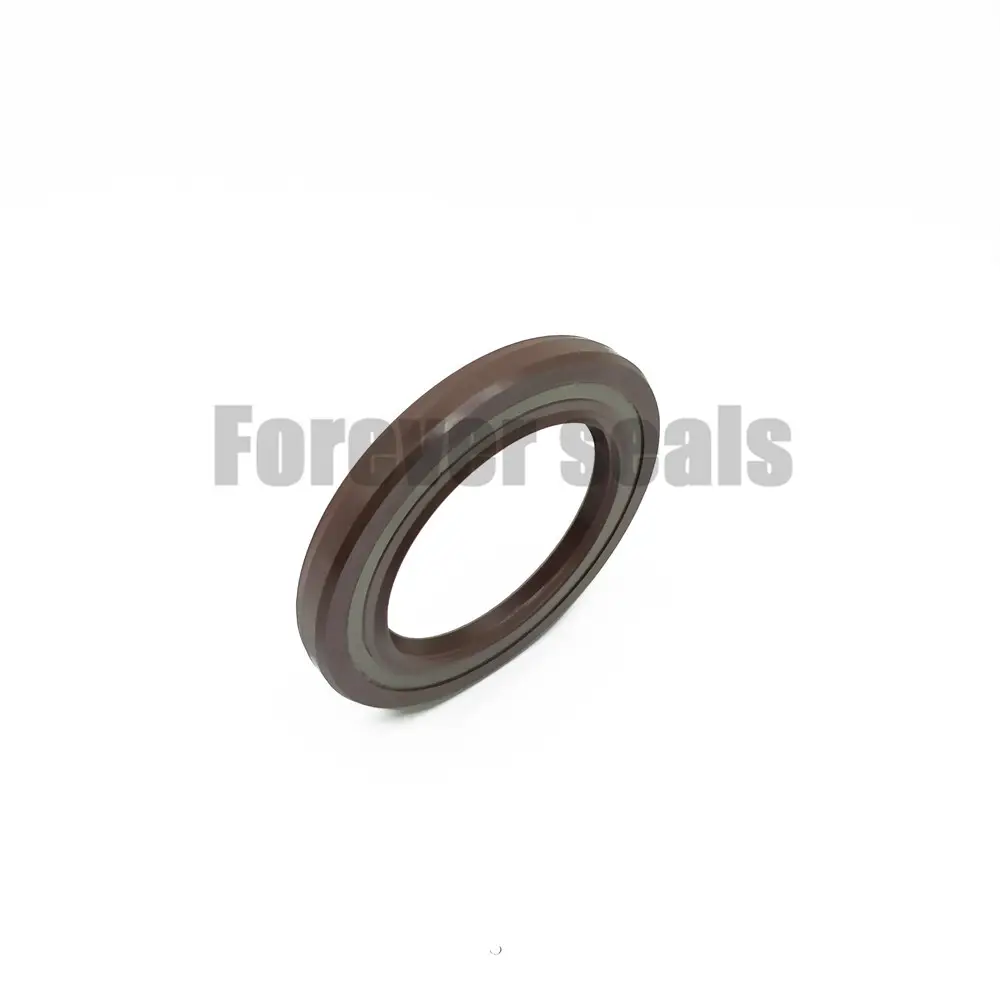

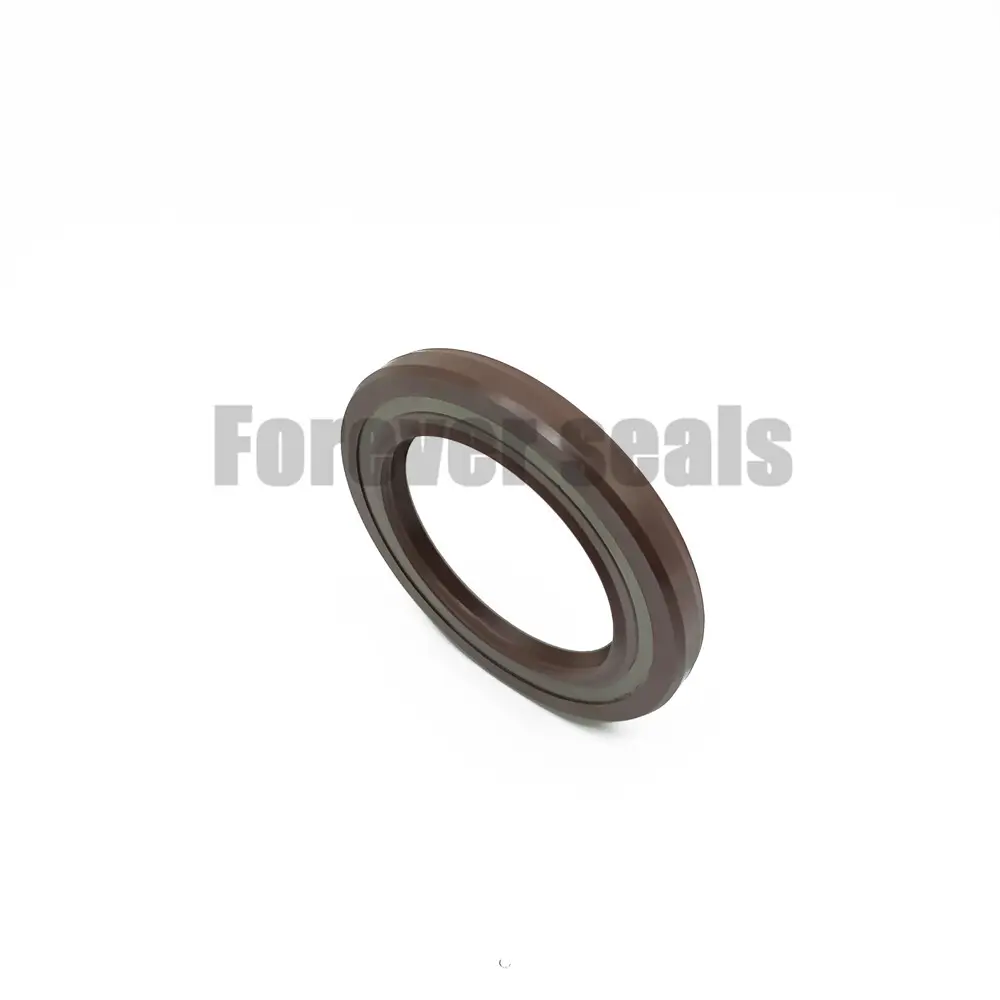

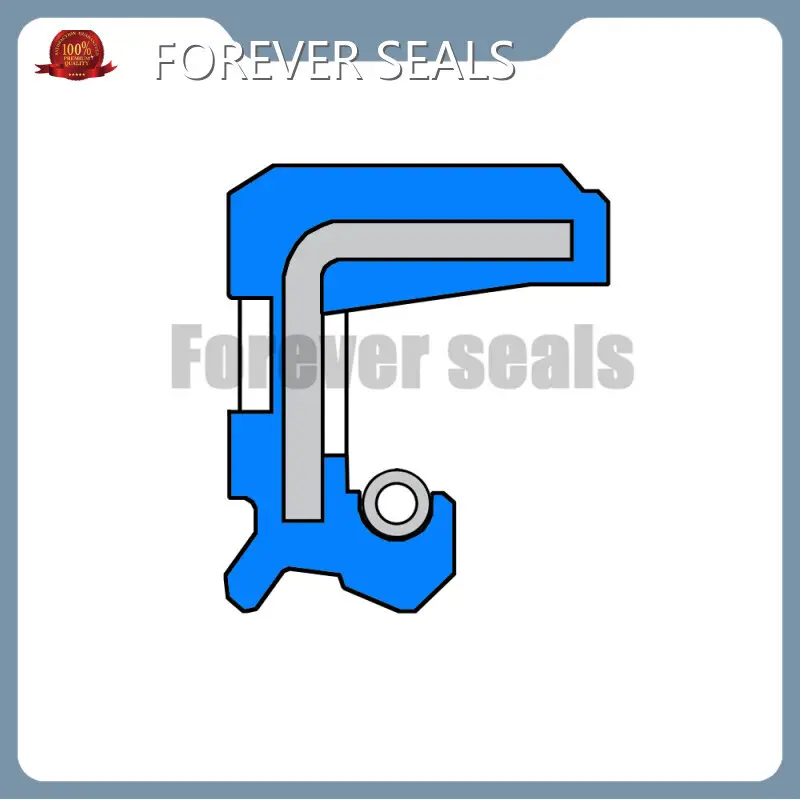

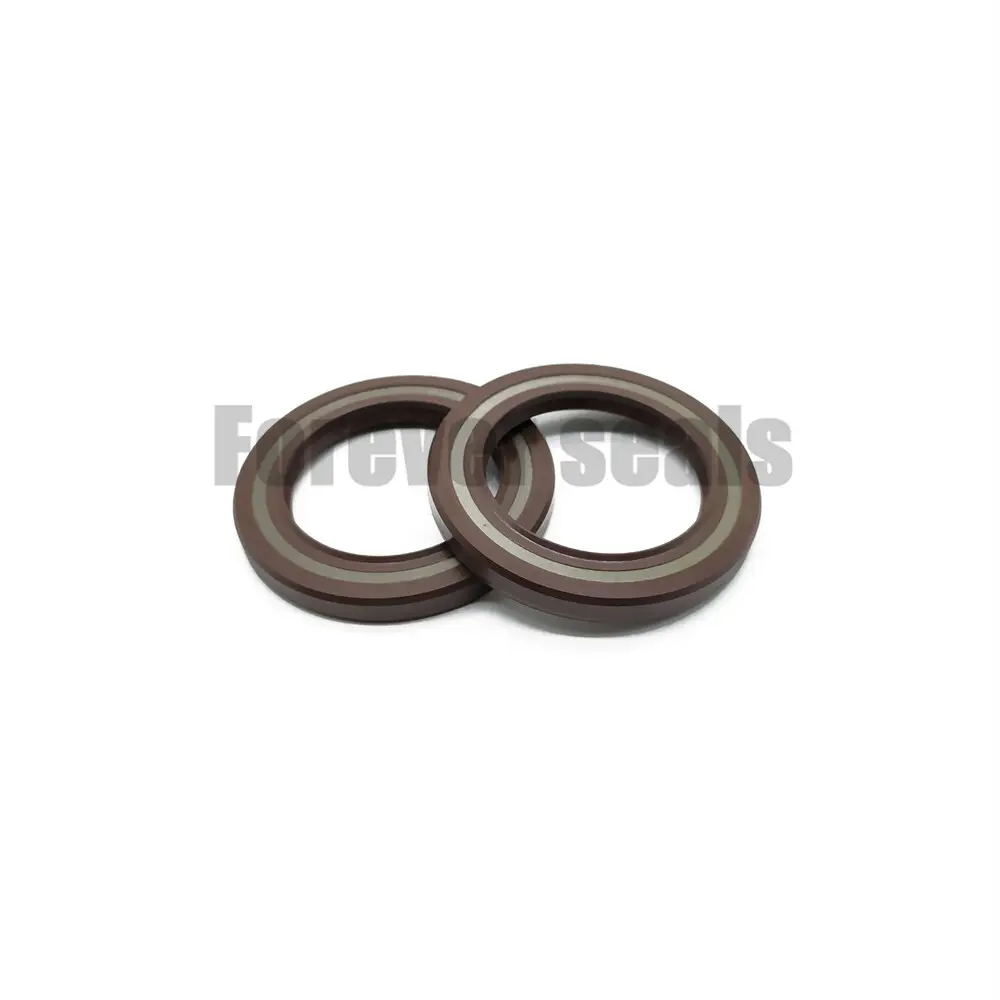

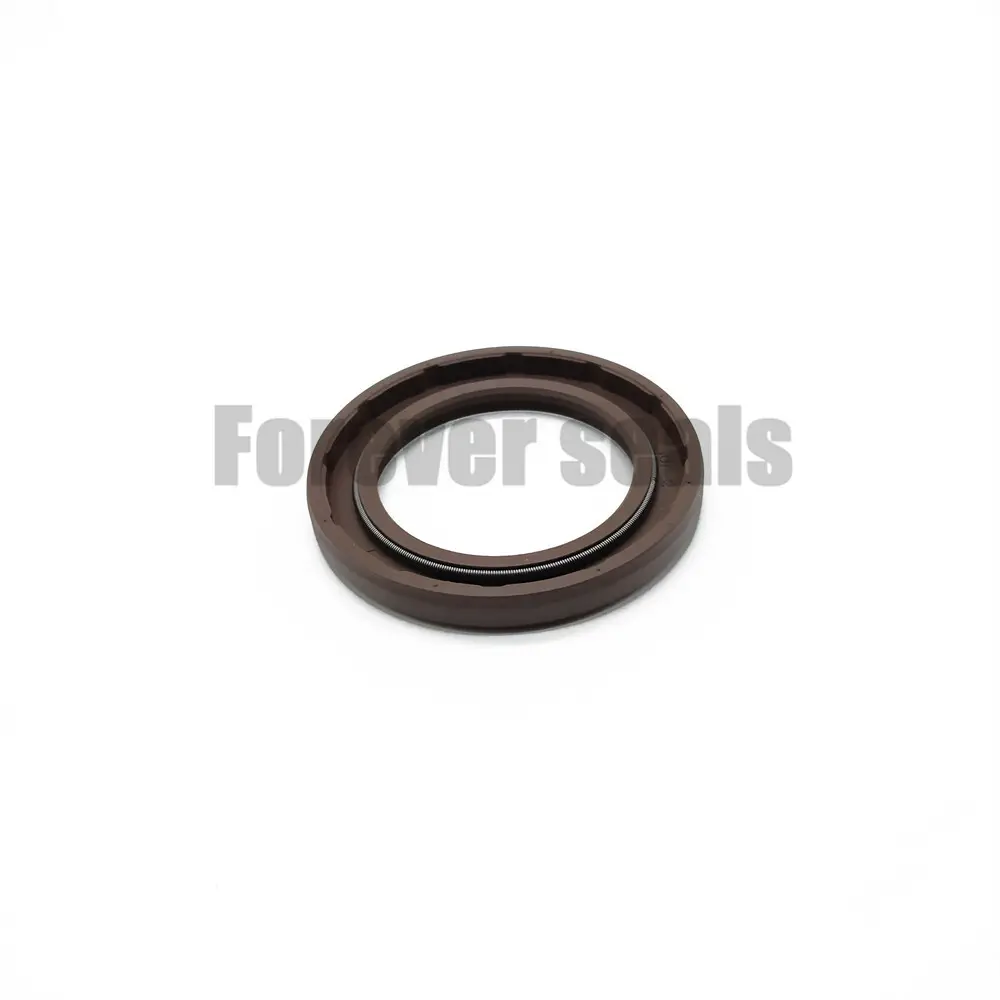

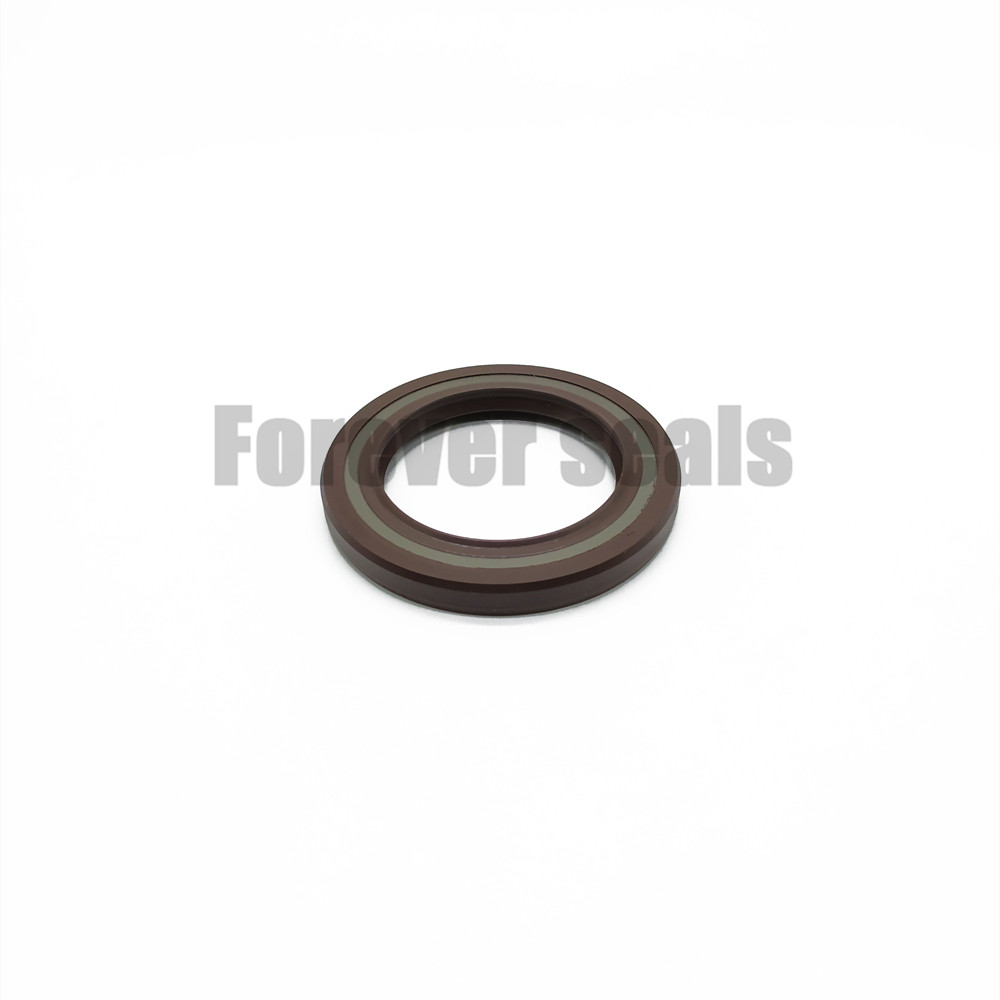

TCV is the standard oil seal which used for rotation axis. It is linked together with metal skeleton and rubber elastic layer. Mainly used for the working conditions of low pressure and high speed rotation.
2. Standard materials
FKM, NBR
3. Installation Dimensions
| Inner Diam. | Outer Diam. | Height | Order No. |
| 17 | 30 | 6 | TCV17*30*6 |
| 17.46 | 28.58 | 5.7/6.3 | TCV17.46*28.58*5.7/6.3 |
| 18 | 30 | 6 | TCV18*30*6 |
| 18 | 35 | 9 | TCV18*35*9 |
| 19 | 30 | 6 | TCV19*30*6 |
| 19 | 35 | 6 | TCV19*35*6 |
| 20 | 47 | 6 | TCV20*47*6 |
| 22 | 35 | 6 | TCV22*35*6 |
| 24 | 38 | 8 | TCV24*38*8 |
| 25 | 35 | 6 | TCV25*35*6 |
| 25 | 35 | 7 | TCV25*35*7 |
| 28 | 40 | 6 | TCV28*40*6 |
| 28.56 | 42 | 5.5 | TCV28.56*42*5.5 |
| 28.575 | 50.8 | 6.35 | TCV28.575*50.8*6.35 |
| 30 | 42 | 7 | TCV30*42*7 |
| 30 | 48 | 6 | TCV30*48*6 |
| 30 | 52 | 7 | TCV30*52*7 |
| 34.92 | 52 | 6 | TCV34.92*52*6 |
| 34.93 | 50.8 | 7.95 | TCV34.93*50.8*7.95 |
| 35 | 47 | 6 | TCV35*47*6 |
| 35 | 52 | 7 | TCV35*52*7 |
| 35 | 54 | 6/5.5 | TCV35*54*6/5.5 |
| 35 | 55 | 7 | TCV35*55*7 |
| 35 | 57 | 8 | TCV35*57*8 |
| 37 | 57 | 9 | TCV37*57*9 |
| 38.1 | 57.15 | 7.95 | TCV38.1*57.15*7.95 |
| 40 | 52 | 7 | TCV40*52*7 |
| 40 | 55 | 7 | TCV40*55*7 |
| 40 | 60 | 12 | TCV40*60*12 |
| 40 | 62 | 7 | TCV40*62*7 |
| 40 | 67 | 7 | TCV40*67*7 |
| 40 | 80 | 7 | TCV40*80*7 |
| 42 | 62 | 7 | TCV42*62*7 |
| 42 | 72 | 6.5 | TCV42*72*6.5 |
| 43.5 | 63.5 | 7 | TCV43.5*63.5*7 |
| 44.45 | 57.15 | 7.9 | TCV44.45*57.15*7.9 |
| 44.45 | 60 | 7 | TCV44.45*60*7 |
| 45 | 62 | 7 | TCV45*62*7 |
| 45 | 63 | 8 | TCV45*63*8 |
| 45 | 65 | 6 | TCV45*65*6 |
| 45 | 65 | 7 | TCV45*65*7 |
| 45 | 80 | 7 | TCV45*80*7 |
| 47 | 62 | 8 | TCV47*62*8 |
| 49.23 | 63.55 | 7.95 | TCV49.23*63.55*7.95 |
| 50 | 65 | 7 | TCV50*65*7 |
| 50 | 68 | 7 | TCV50*68*7 |
| 50 | 70 | 7 | TCV50*70*7 |
| 50 | 72 | 7 | TCV50*72*7 |
| 50 | 75 | 8 | TCV50*75*8 |
| 50 | 80 | 7 | TCV50*80*7 |
| 52 | 72 | 7/8 | TCV52*72*7/8 |
| 55 | 70 | 7 | TCV55*70*7 |
| 55 | 72 | 8 | TCV55*72*8 |
| 55 | 78 | 8 | TCV55*78*8 |
| 55 | 90 | 7 | TCV55*90*7 |
| 58 | 80 | 8 | TCV58*80*8 |
| 60 | 80 | 7 | TCV60*80*7 |
| 62 | 85 | 7 | TCV62*85*7 |
| 65 | 97 | 7.5 | TCV65*97*7.5 |
| 70 | 95 | 7 | TCV70*95*7 |
| 73 | 90 | 7/8 | TCV73*90*7/8 |
| 80 | 100 | 7 | TCV80*100*7 |
| 60 | 106 | 7 | TCV60*106*7 |
| 85 | 110 | 8 | TCV85*110*8 |
| 90 | 110 | 7 | TCV90*110*7 |
| 75 | 120 | 7 | TCV75*120*7 |
| 100 | 120 | 8 | TCV100*120*8 |
4. Product Catalog
You can download catalog through below link.
http://www.foreverseals.com/download.html
