Good Selling Rubber Seal Price List
Product details of the rubber seal
Product Introduction
All raw materials of FOREVER SEALS rubber seal are strictly selected and then are put into a precision production. The product is guaranteed to be durable and functional. This product has received the trust and praise of the majority of users in the industry.
1. Description

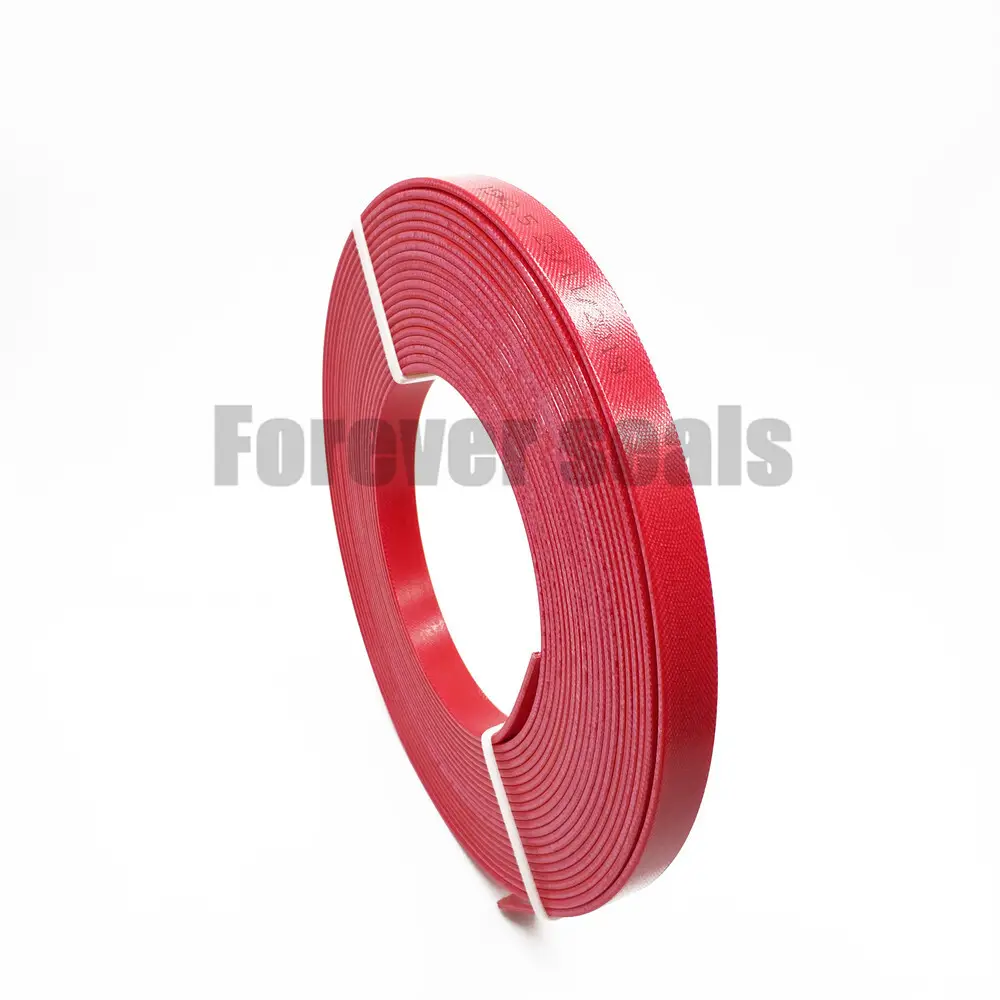

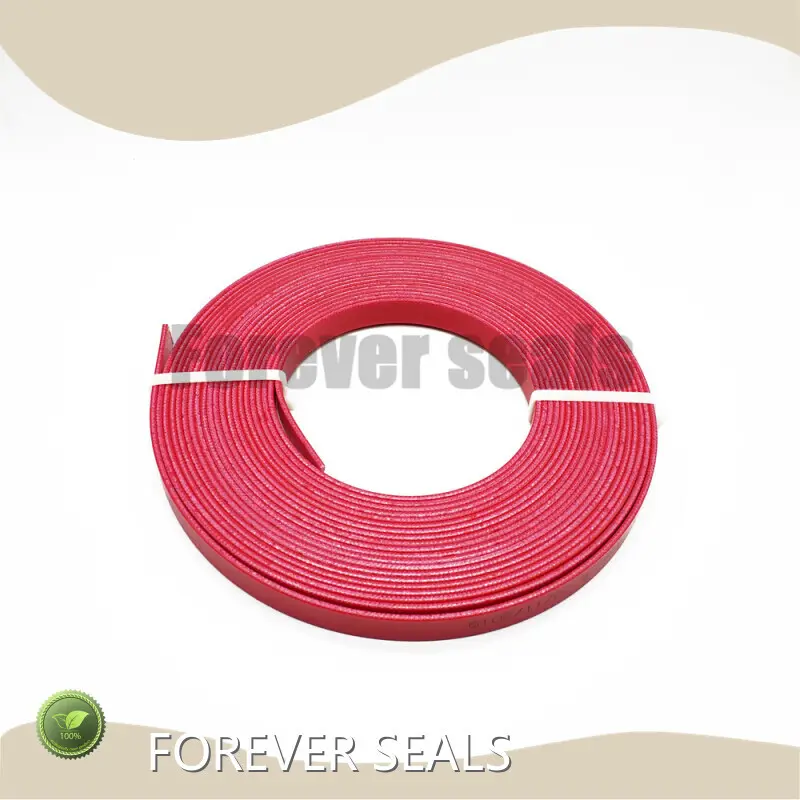

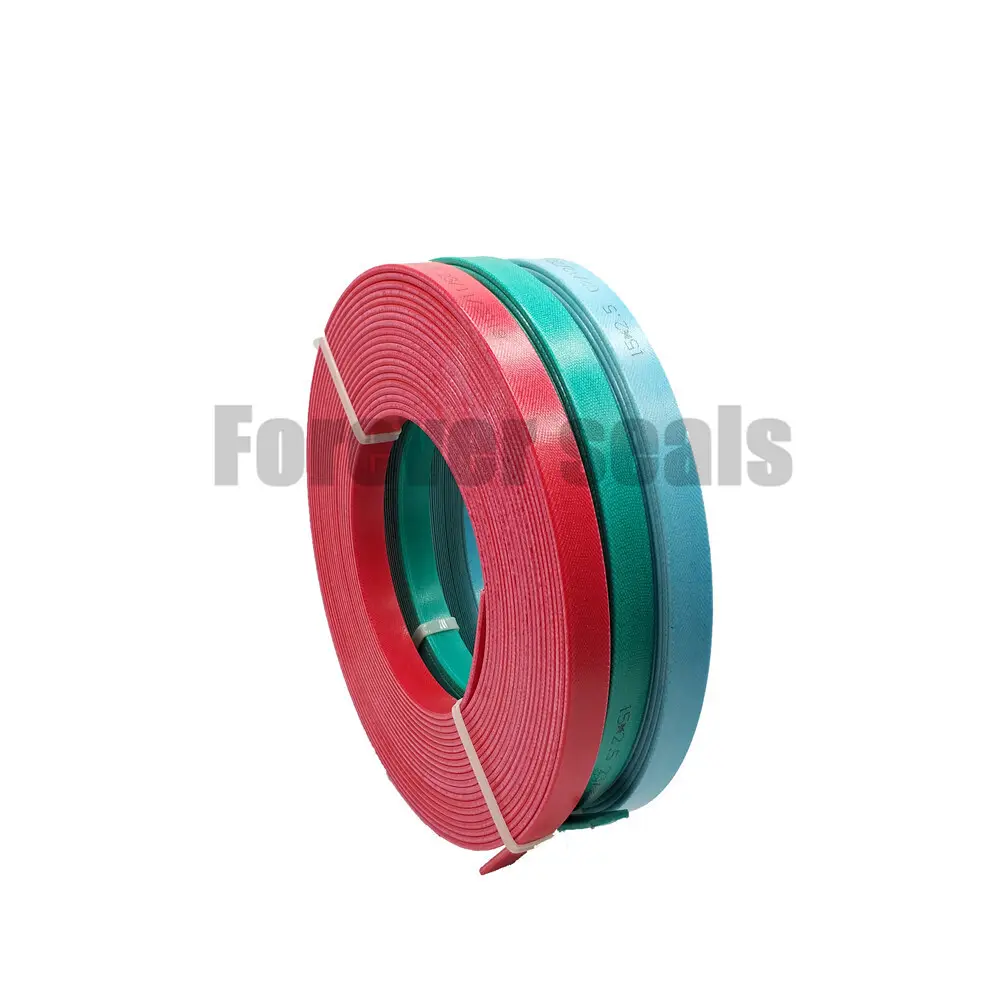

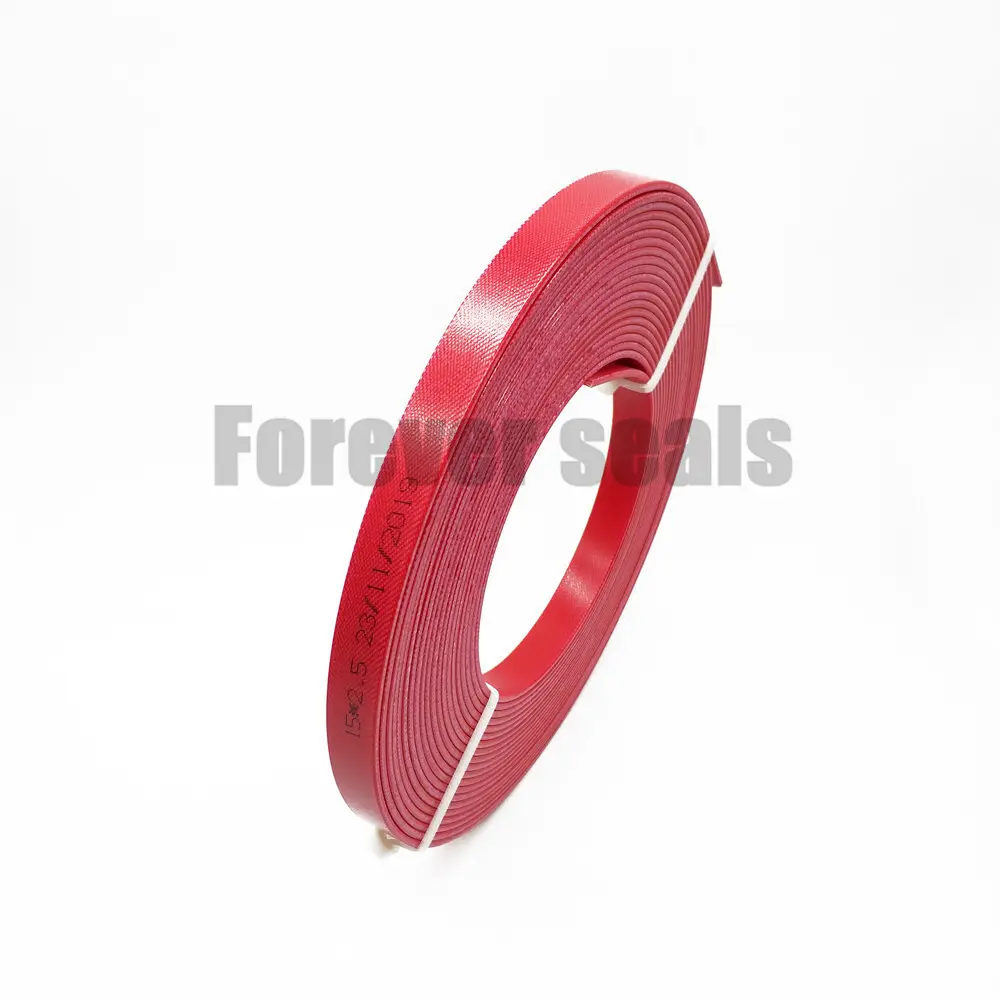

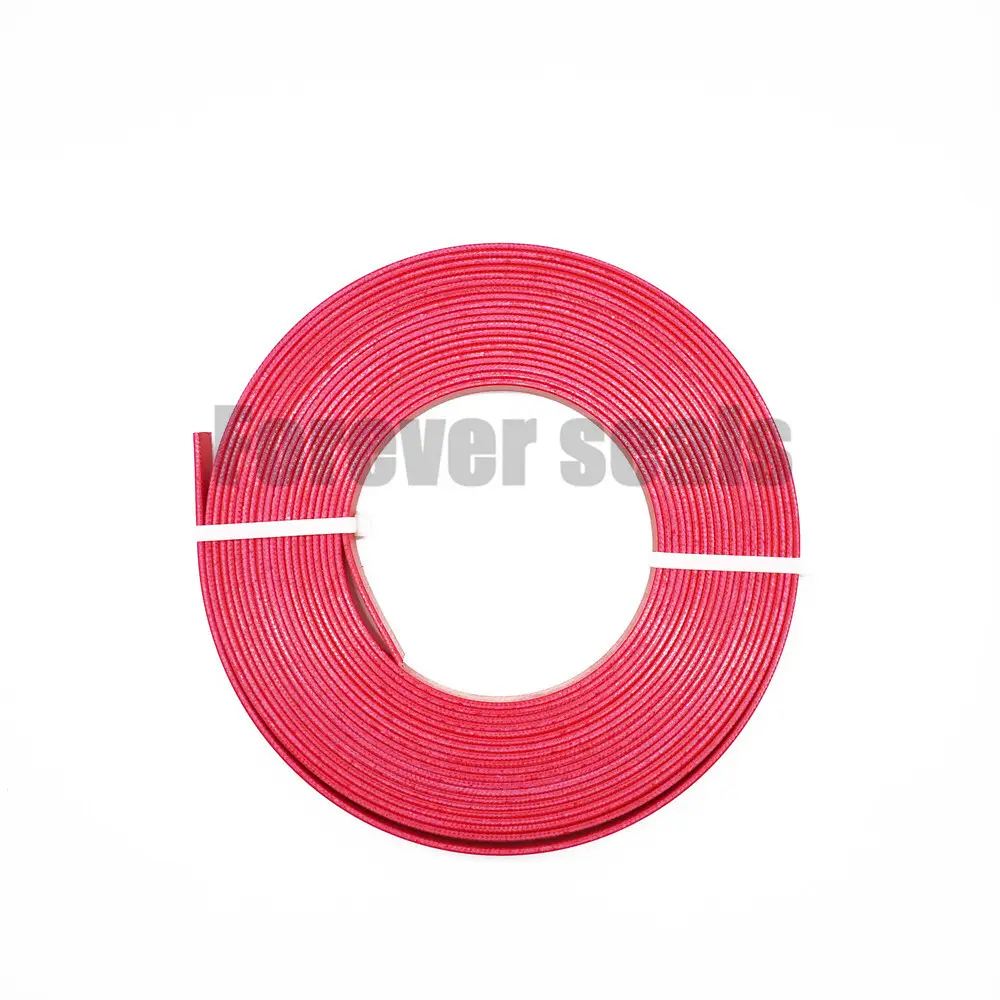

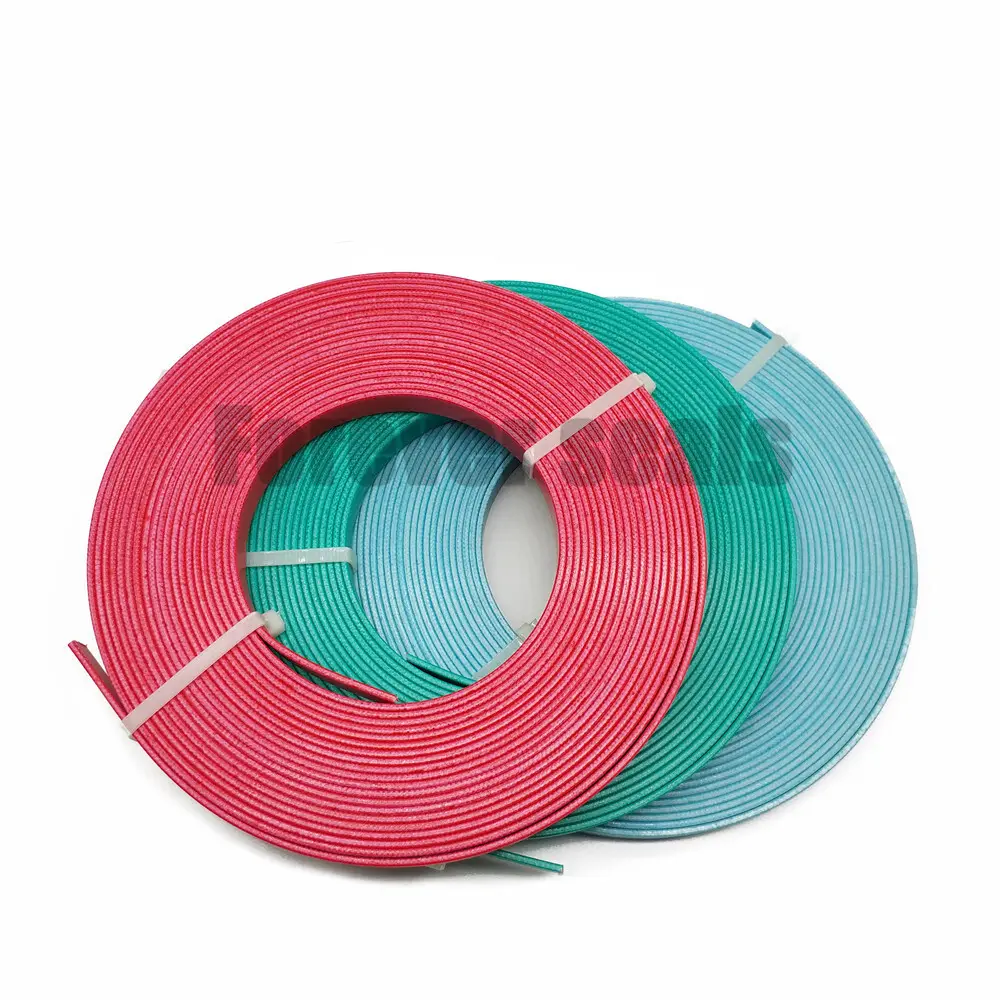

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.
2. Installation Recommendation
3. Standard materials
Phenolic resin
4. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
Custom as Required |
— |
-55℃ +225℃ |
15 m/s |
hydraulic oil, emulsion, and water |
Piston: L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]
Rod: L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ] C = 3.14 k=0.8
5. Length of whole roll
All sizes are 10 mteres each roll.
Standard groove width
|
Groove width L2 |
2.5 |
3.2 |
4 |
4.2 |
5.6 |
6 |
6.3 |
8.1 |
9.7 |
10 |
12 |
15 |
18 |
20 |
25 |
30 |
40 |
50 |
The products of various width could be provided.
Standard thickness of product
|
Thickness W |
1 |
1.5 |
1.55 |
2 |
2.5 |
3 |
4 |
5 |
6 |
