Product details of the rubber seal
Quick Overview
FOREVER SEALS rubber seal is manufactured by adopting advanced technology and production equipment. This product is internationally renowned for its superior performance and long life. With the purpose of serving customers, FOREVER SEALS TECHNOLOGY.,LIMITED will develop together with its clients.
Product Information
The main differences between FOREVER SEALS's rubber seal and similar products are as follows.
1. Description

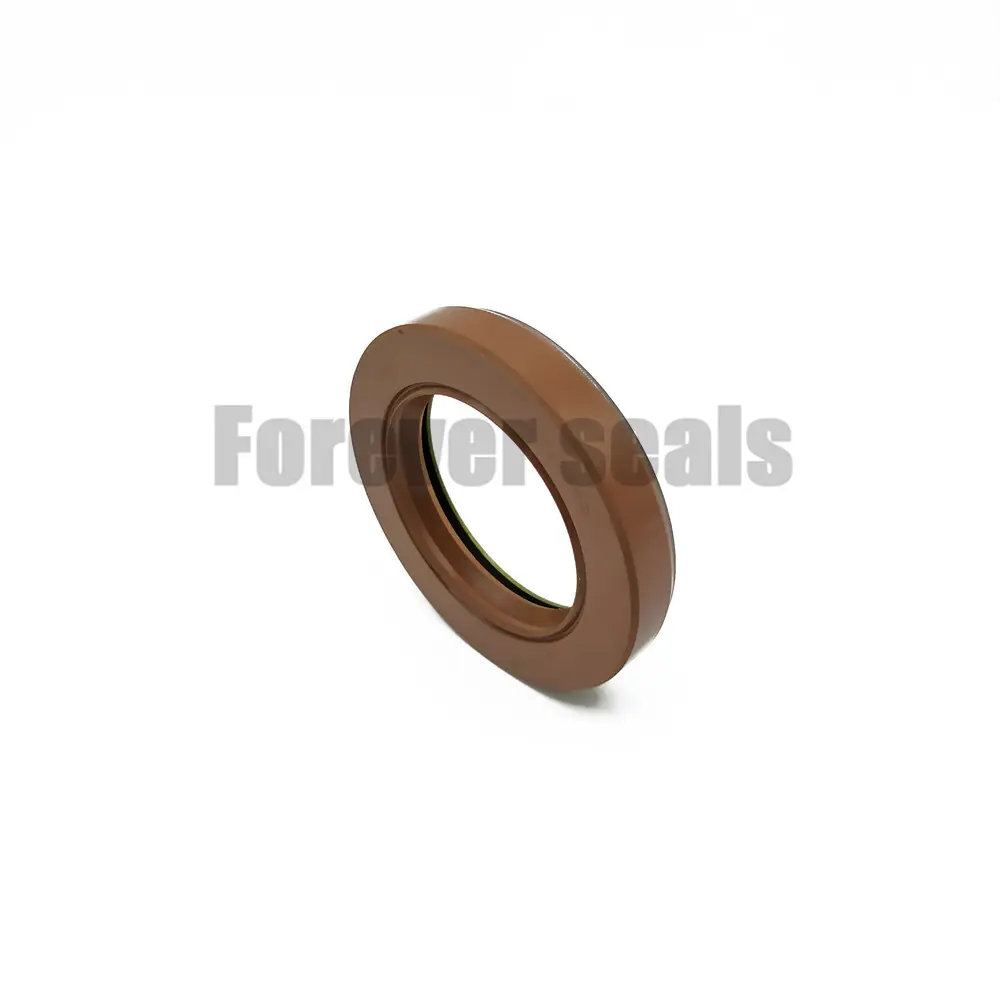

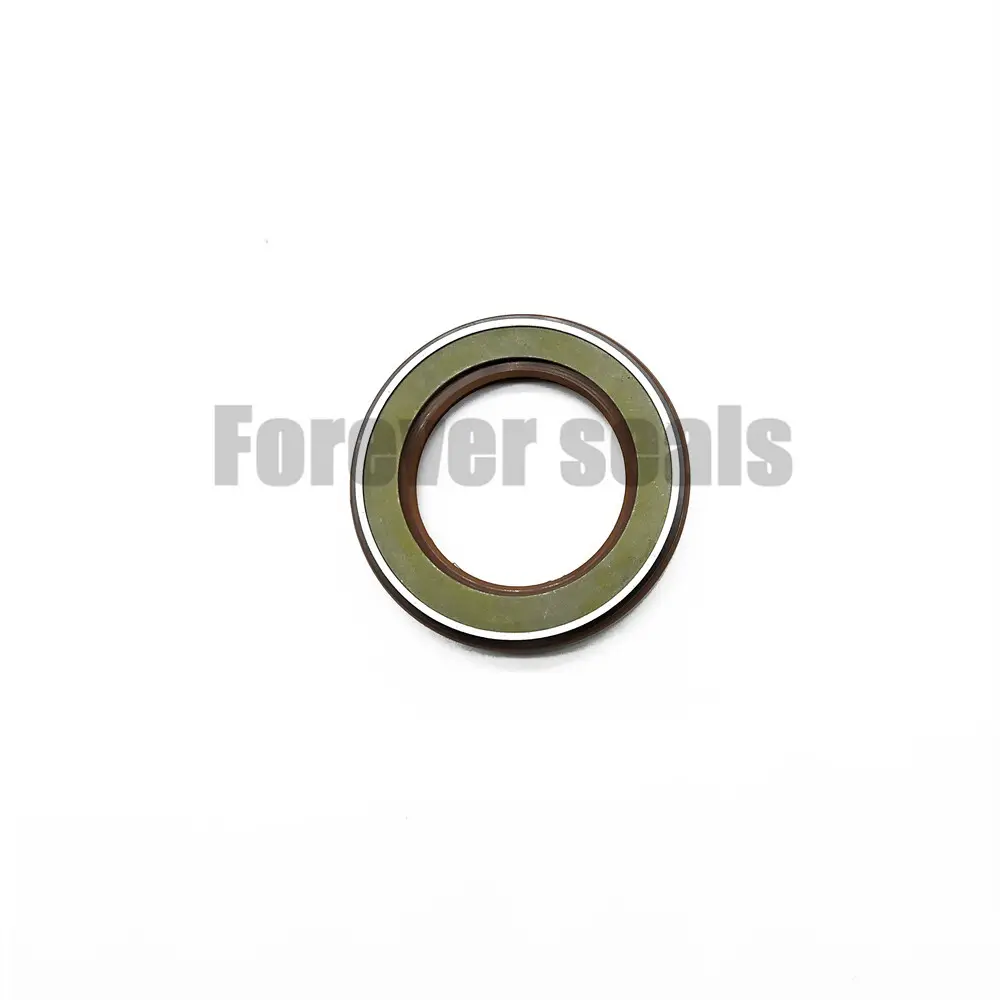

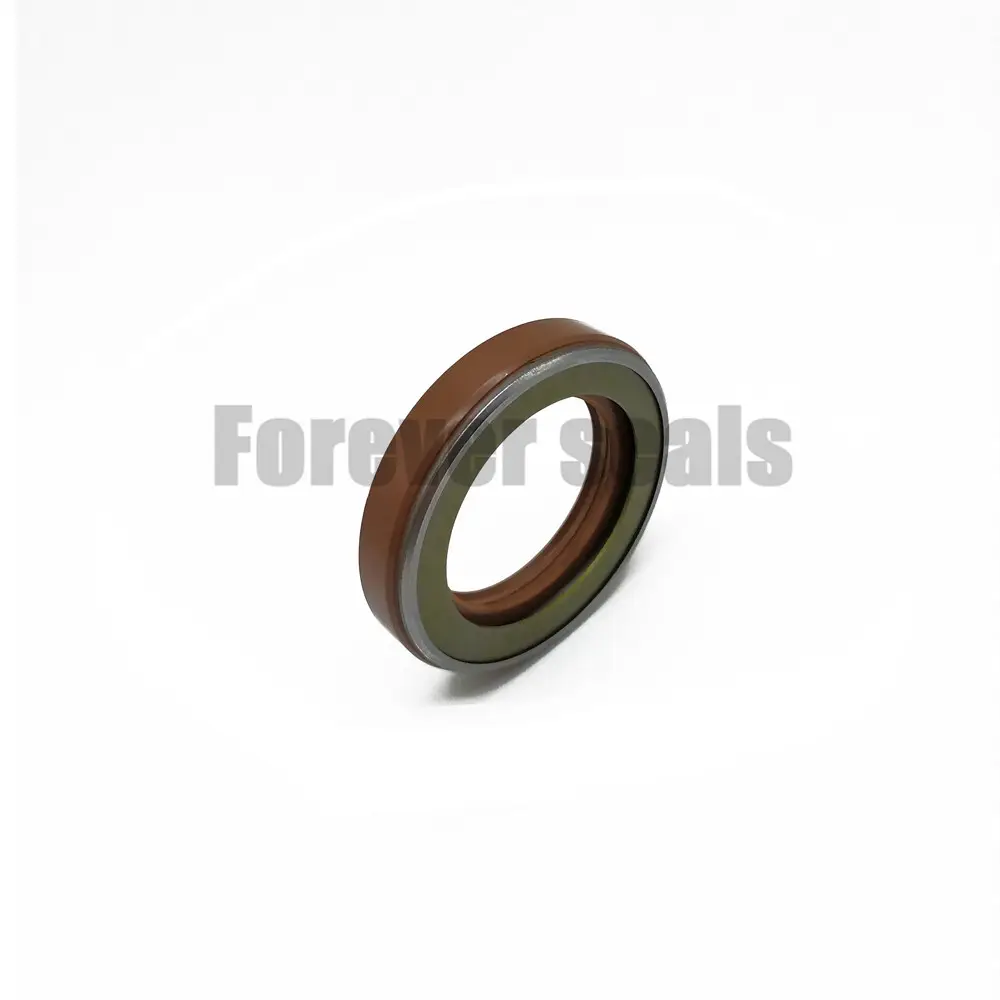

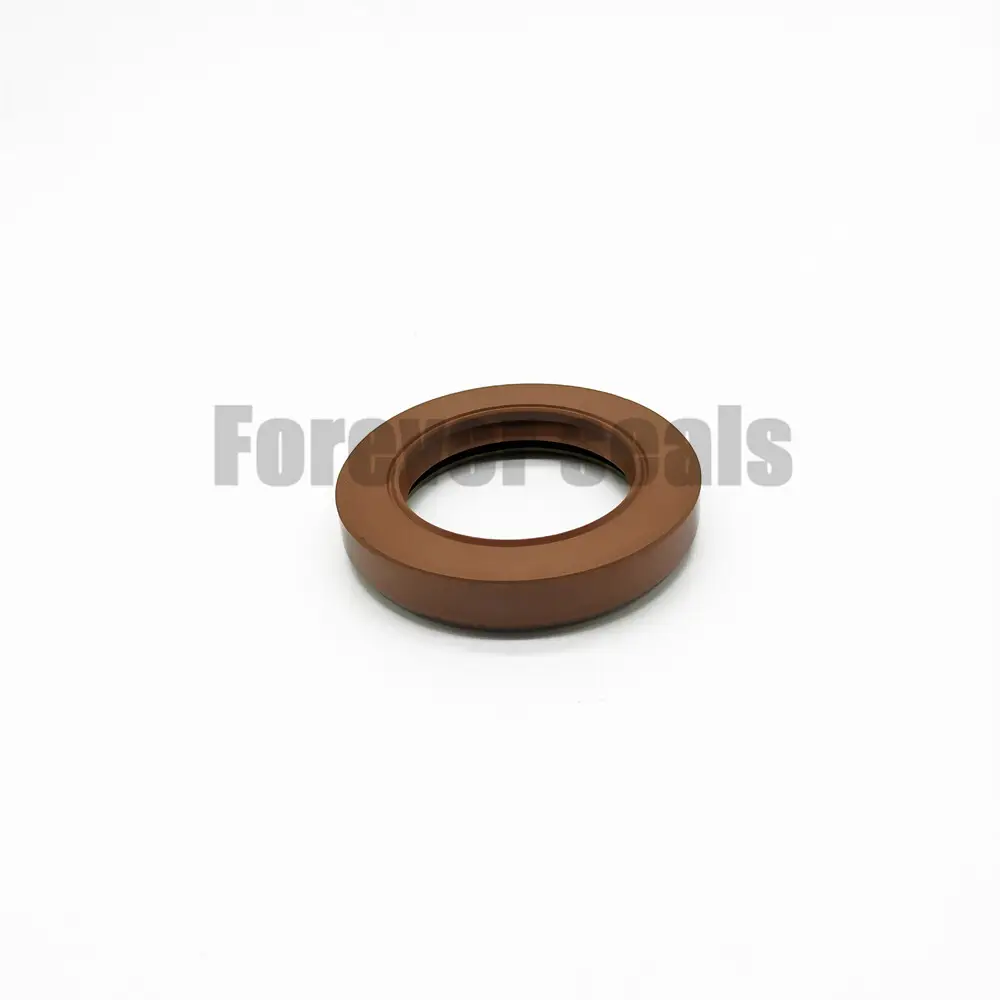

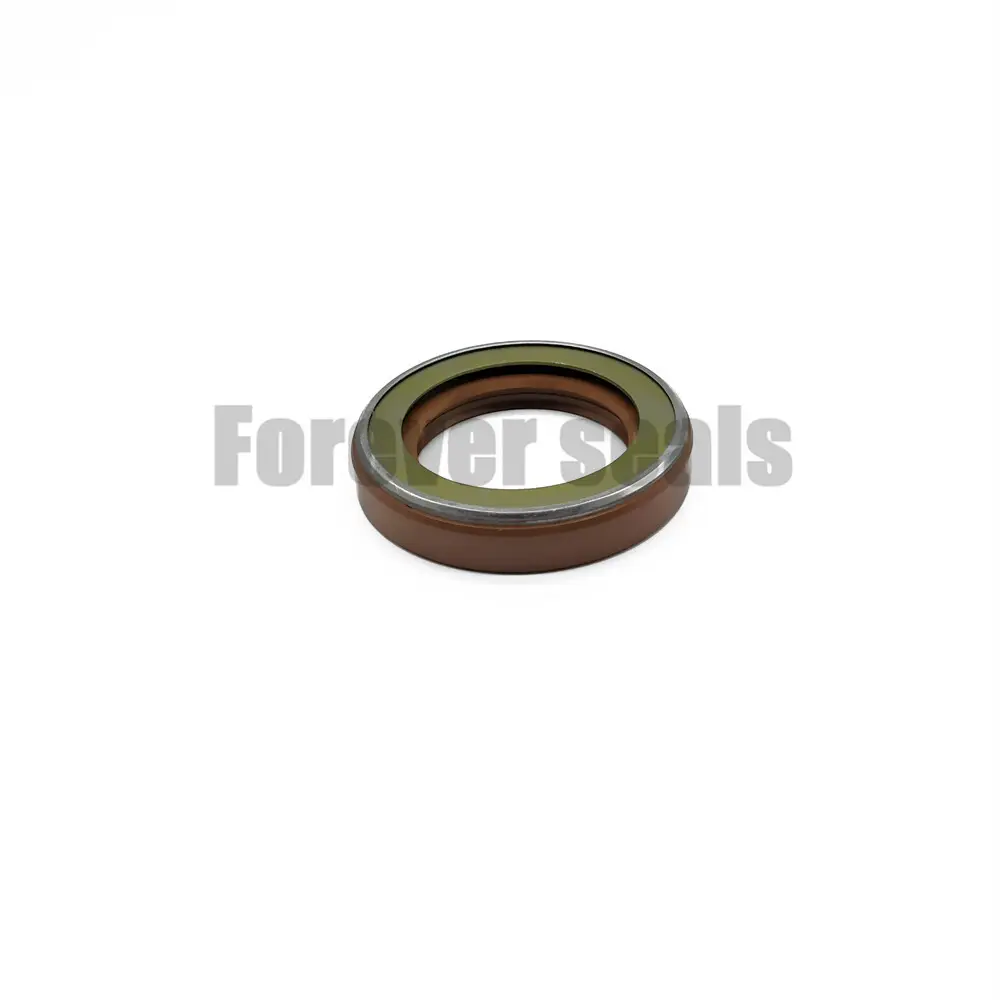

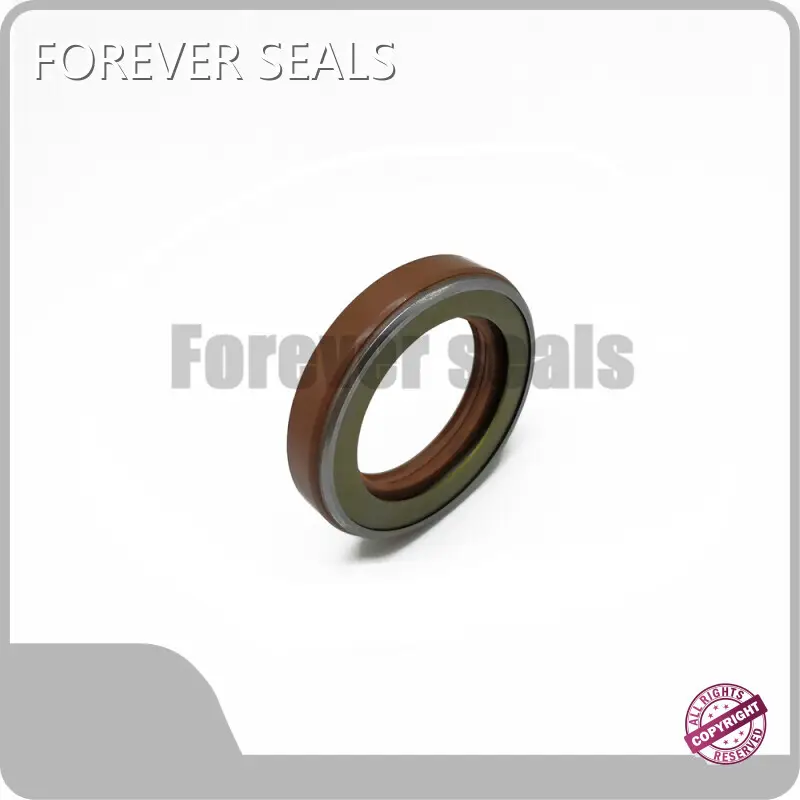

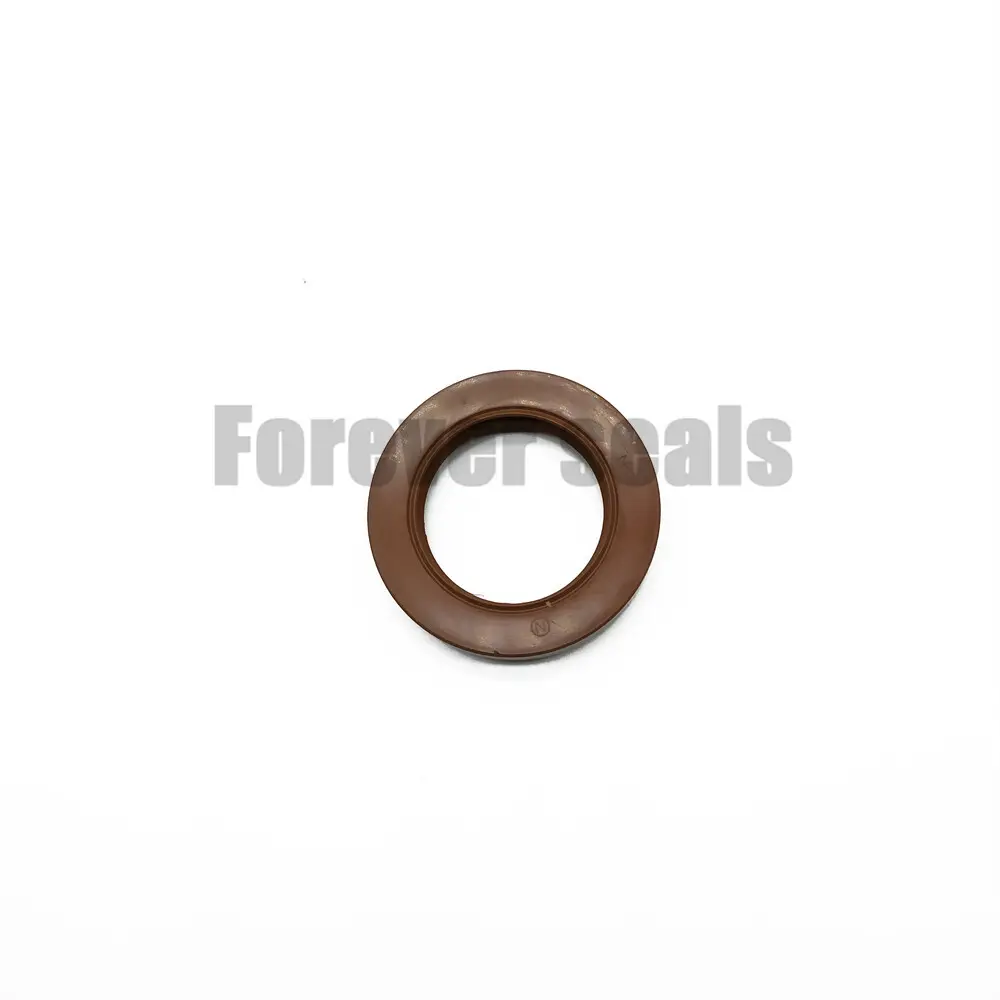

TCN is pressure- resistant oil seal with an auxiliary cage to minimize lip deformation under pressure. Used for high-pressure rotating shafts.
2. Standard materials
NBR, FKM
3. Installation Dimensions
| Inner Diam. | Outer Diam. | Height | Part No. | Order No. |
| 17 | 35 | 8 | AP0760 | TCN17*35*8 |
| 20 | 35 | 8 | AP1013E | TCN20*35*8 |
| 20 | 40 | 11 | AP1033I | TCN20*40*11 |
| 22 | 42 | 10 | AP1147F | TCN22*42*10 |
| 22 | 42 | 11 | AP1148F | TCN22*42*11 |
| 24 | 40 | 8 | AP1260E | TCN24*40*8 |
| 25 | 45 | 11 | AP1338F | TCN25*45*11 |
| 28 | 48 | 11 | AP1563J | TCN28*48*11 |
| 30 | 42 | 7 | AP1665E | TCN30*42*7 |
| 30 | 50 | 11 | AP1709H | TCN30*50*11 |
| 32 | 52 | 11 | AP1904F | TCN32*52*11 |
| 34 | 54 | 11 | AP1978G | TCN34*54*11 |
| 35 | 55 | 11 | AP2085G | TCN35*55*11 |
| 35 | 55 | 11 | AP2085A | TCN35*55*11 |
| 35 | 55 | 12 | AP2086F | TCN35*55*12 |
| 35 | 55 | 9 | AP2083G | TCN35*55*9 |
| 38 | 58 | 11 | AP2240G | TCN38*58*11 |
| 40 | 62 | 11 | AP2388E | TCN40*62*11 |
| 40 | 60 | 12 | AP2379F | TCN40*60*12 |
| 40 | 62 | 12 | AP2390Q | TCN40*62*12 |
| 42 | 65 | 12 | AP2507H | TCN42*65*12 |
| 45 | 65 | 12 | AP2659E | TCN45*65*12 |
| 45 | 68 | 12 | AP2668G | TCN45*68*12 |
| 48 | 62 | 9 | AP2775G | TCN48*62*9 |
| 48 | 70 | 12 | AP2791G | TCN48*70*12 |
| 50 | 72 | 12 | AP2864I | TCN50*72*12 |
| 52 | 75 | 12 | AP2967J | TCN52*75*12 |
| 52 | 75 | 9/3 | AP2965E | TCN52*75*9/3 |
| 55 | 78 | 12 | AP3055F | TCN55*78*12 |
| 58 | 80 | 12 | AP3154H | TCN58*80*12 |
| 60 | 82 | 12 | AP3222B | TCN60*82*12 |
| 62 | 85 | 12 | AP3297G | TCN62*85*12 |
| 65 | 90 | 13 | AP3409F | TCN65*90*13 |
| 68 | 90 | 14 | AP3461E | TCN68*90*14 |
| 70 | 95 | 13 | AP3527B | TCN70*95*13 |
| 75 | 100 | 13 | AP3618G | TCN75*100*13 |
| 80 | 105 | 13 | AP3744K | TCN80*105*13 |
| 85 | 110 | 13 | AP3842H | TCN85*110*13 |
| 90 | 115 | 13 | AP3932B | TCN90*115*13 |
| 95 | 120 | 13 | AP3994B | TCN95*120*13 |
| 100 | 125 | 13 | AP4063B | TCN100*125*13 |
| 105 | 135 | 14 | AP4153H | TCN105*135*14 |
| 110 | 140 | 14 | AP4212B | TCN110*140*14 |
| 115 | 145 | 14 | AP4282G | TCN115*145*14 |
| 120 | 150 | 14 | AP4346B | TCN120*150*14 |
| 125 | 155 | 14 | AP4399E | TCN125*155*14 |
| 130 | 160 | 14 | AP4451G | TCN130*160*14 |
| 135 | 165 | 14 | AP4498E | TCN135*165*14 |
| 140 | 170 | 14 | AP4542F | TCN140*170*14 |
| 145 | 175 | 14 | AP4581G | TCN145*175*14 |
| 150 | 180 | 14 | AP4624G | TCN150*180*14 |
| 160 | 190 | 16 | AP4713G | TCN160*190*16 |
| 170 | 200 | 16 | AP4795F | TCN170*200*16 |
| 35 | 60 | 15 | AP4561E | TCN35*60*15 |
| 44.45 | 63.55 | 9.5 | UP0445E | TCN44.45*63.55*9.5 |
| 34.925 | 57.15 | 8.85 | UP0449E | TCN34.925*57.15*8.85 |
| 33.34 | 72.39 | 9.5 | UP0450E | TCN33.34*72.39*9.5 |
| 38.15 | 57.15 | 9.5 | UP0234E | TCN38.15*57.15*9.5 |
4. Product Catalog
You can download catalog through below link.
http://www.foreverseals.com/download.html
