FOREVER SEALS Rubber Seal Products Price List-1
Product details of the rubber seal products
Product Introduction
FOREVER SEALS rubber seal products is designed by our independent designers who have been paying great attention to it. With the functions that meet user need, the product has a good practical value. Reasonable prices from FOREVER SEALS TECHNOLOGY.,LIMITED will add to your advantage in competition.
1. Description

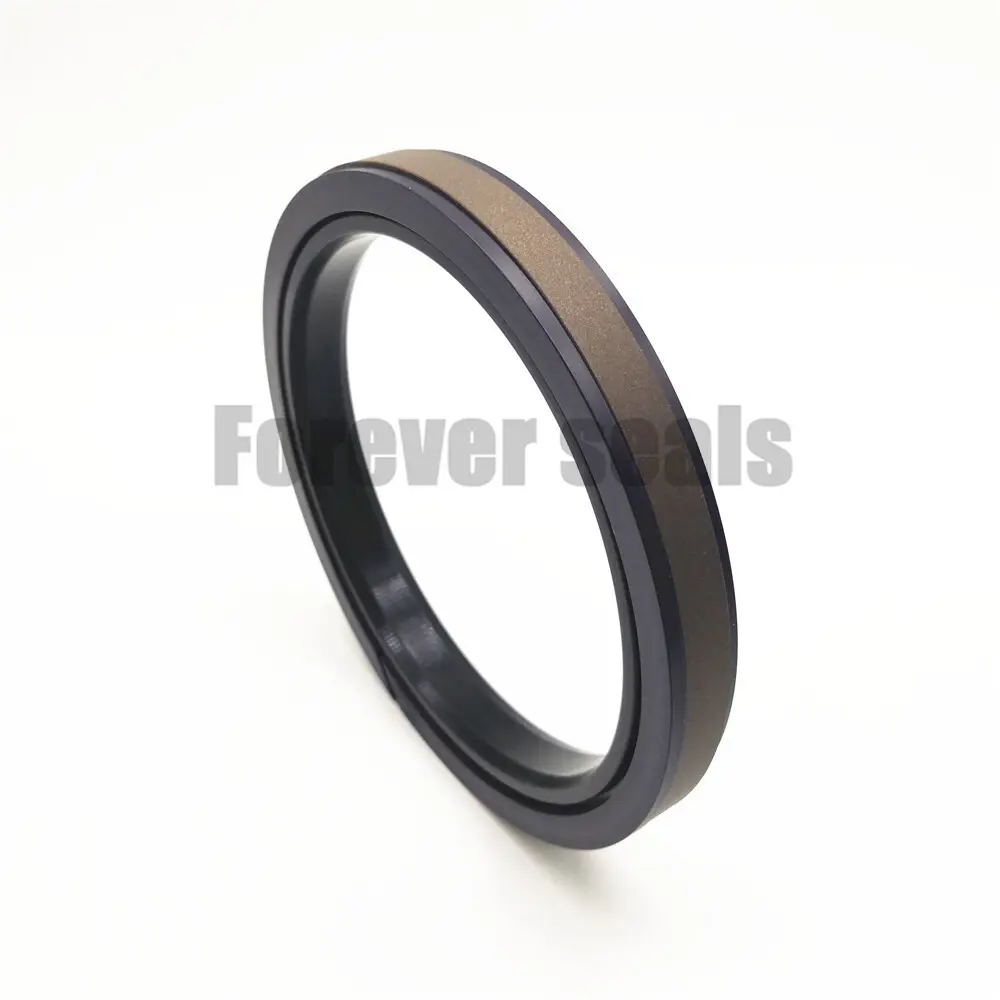

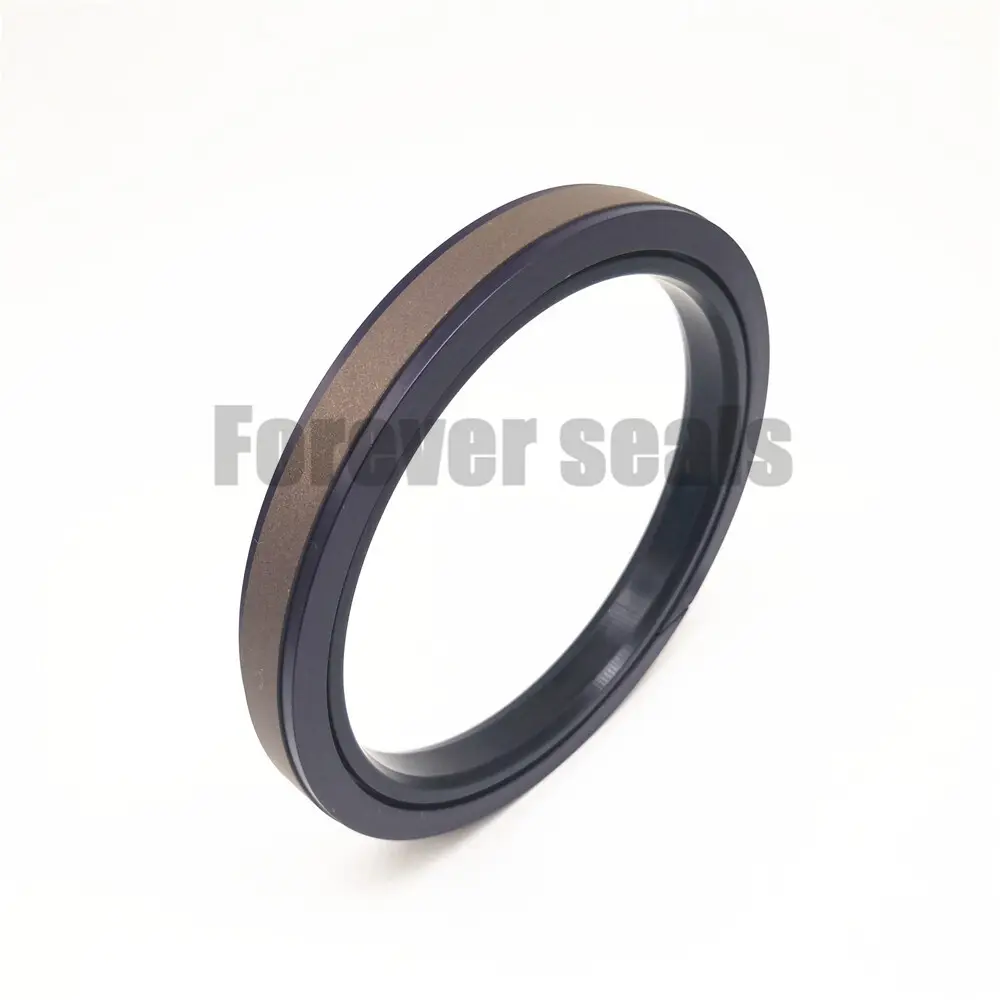

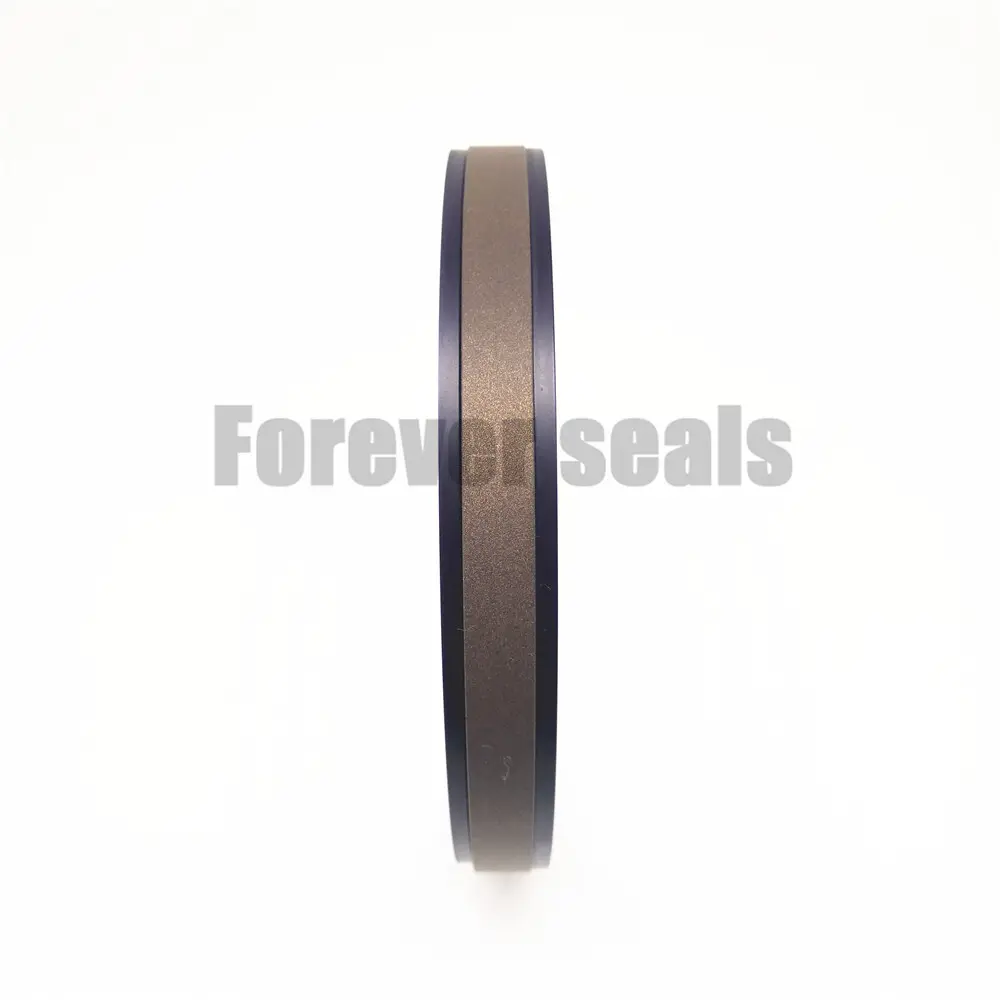

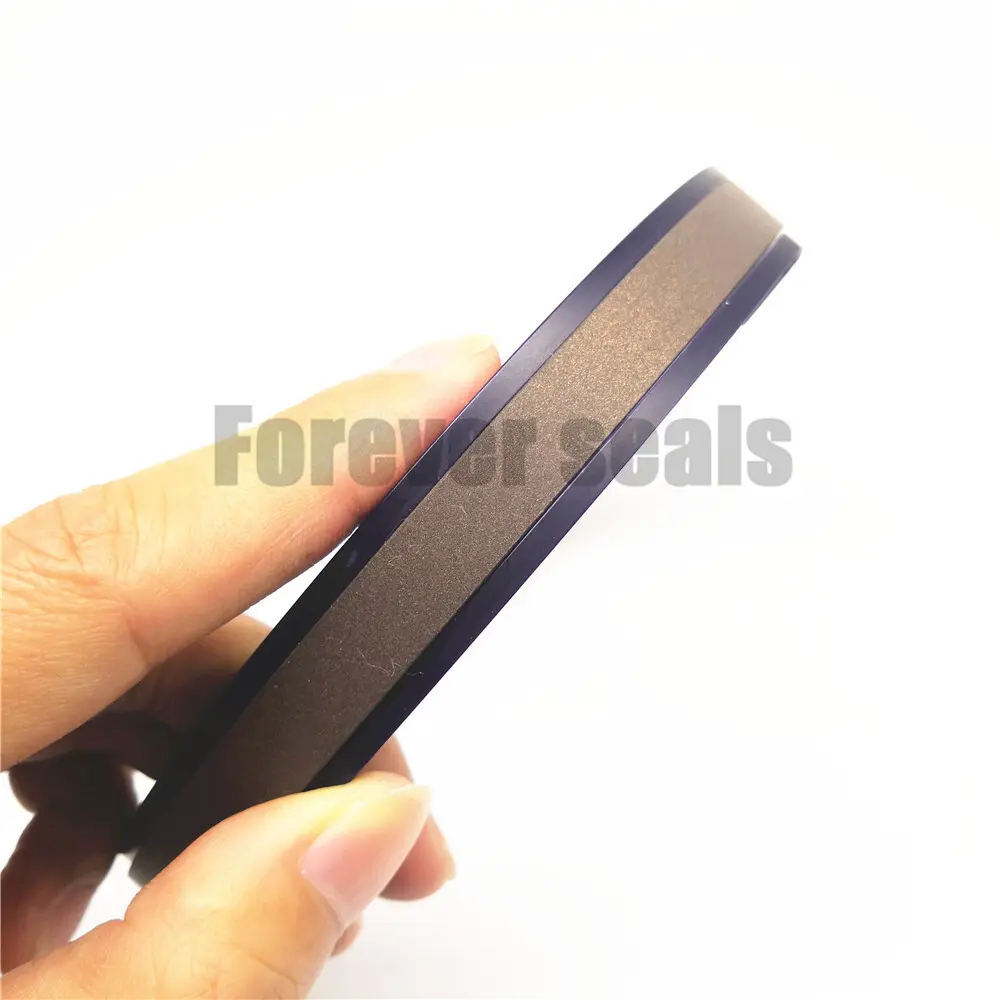

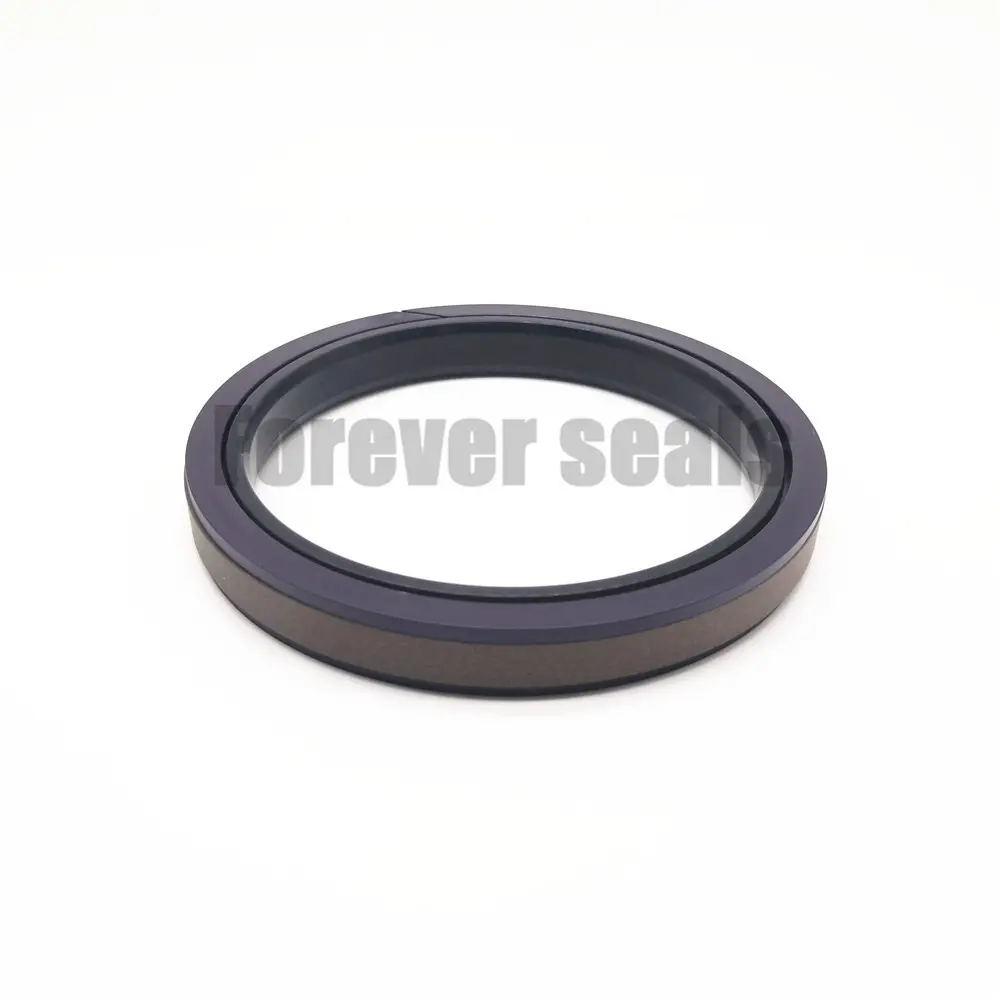

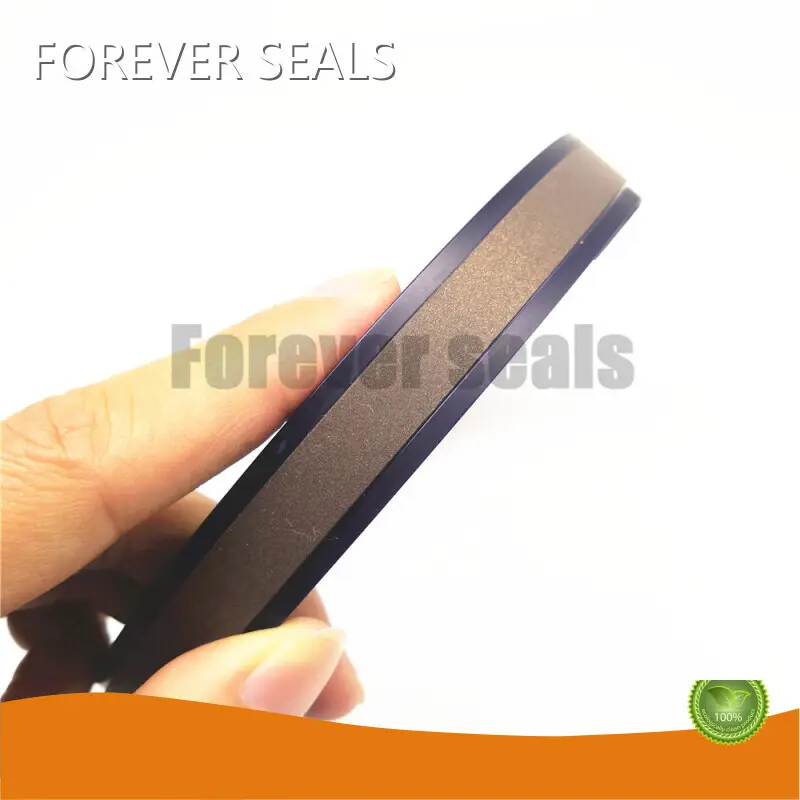

SPGW of Forever Seals is suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.
2. Installation Recommendation

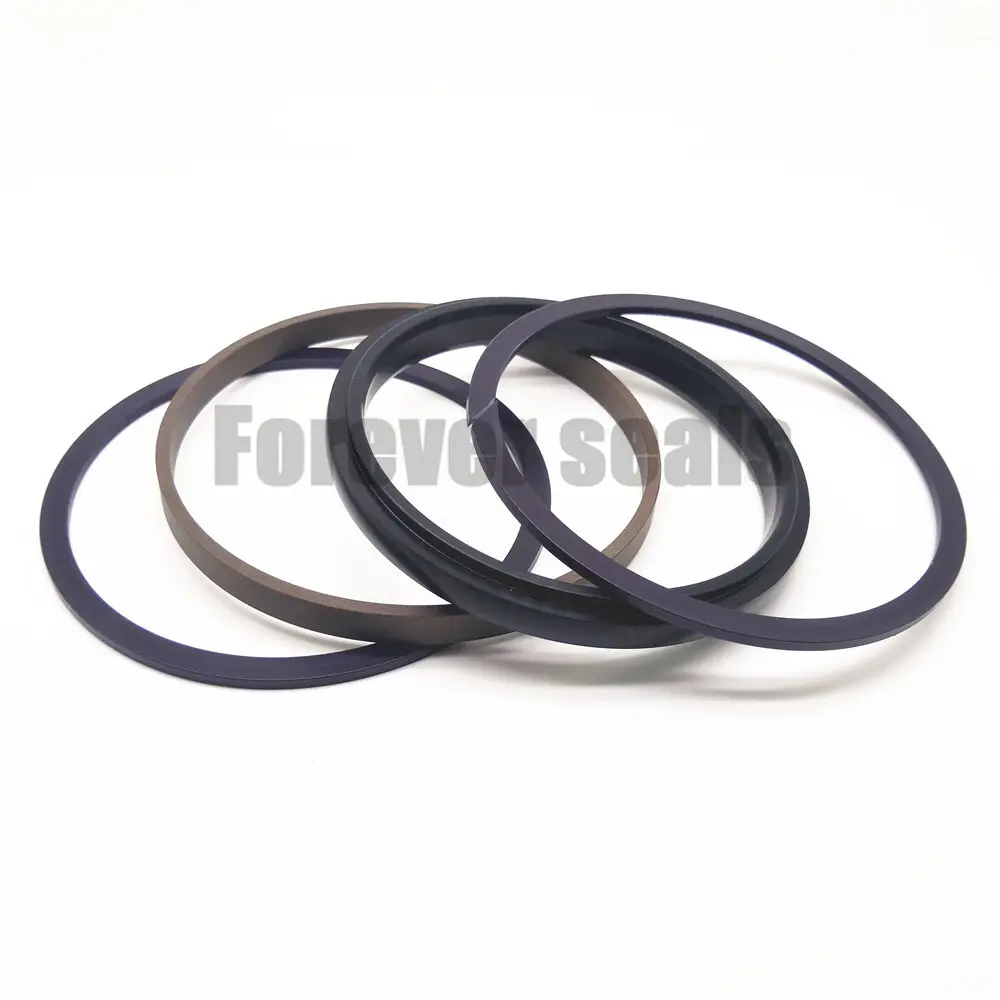

3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Back-up ring: POM / PA
4. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
50 - 350mm |
0 - 50MPa |
-30℃ +100℃ |
1.5 m/s |
hydraulic oil, flame retardant liquid, water and others |
5. Installation Dimensions
|
Nominal Size of Packing, and Housing dimensions |
L+0.2 |
Order No. |
||
|
D1 |
dN |
H |
||
|
50 55 60 |
36 41 46 |
8.5 8.5 8.5 |
9 9 9 |
SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5 |
|
63 65 70 |
48 50 55 |
10.5 10.5 10.5 |
11 11 11 |
SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5 |
|
75 80 85 |
60 65 70 |
10.5 10.5 10.5 |
11 11 11 |
SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5 |
|
90 95 100 |
75 80 85 |
10.5 10.5 12 |
11 11 12.5 |
SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12 |
|
105 110 115 |
90 95 100 |
12 12 12 |
12.5 12.5 12.5 |
SPGW105*90*12 SPGW110*95*12 SPGW115*100*12 |
|
120 125 130 |
105 102 107 |
12 15.5 15.5 |
12.5 16 16 |
SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5 |
|
135 140 145 |
112 117 122 |
15.5 15.5 15.5 |
16 16 16 |
SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5 |
|
150 155 160 |
127 132 137 |
15.5 15.5 15.5 |
16 16 16 |
SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5 |
|
165 170 180 |
142 147 157 |
15.5 15.5 15.5 |
16 16 16 |
SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5 |
|
185 190 200 |
162 167 177 |
15.5 15.5 15.5 |
16 16 16 |
SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5 |
|
210 220 225 |
187 197 202 |
15.5 15.5 17 |
16 16 17.5 |
SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5 |
|
230 240 250 |
207 217 222 |
17 17 17 |
17.5 17.5 17.5 |
SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17 |
|
260 270 280 |
232 242 252 |
17 17 17 |
17.5 17.5 17.5 |
SPGW260*232*17 SPGW270*242*17 SPGW280*252*17 |
|
300 320 350 |
272 292 322 |
17 17 17 |
17.5 17.5 17.5 |
SPGW300*272*17 SPGW320*292*17 SPGW350*322*17 |
Company Feature
• FOREVER SEALS's products are not only popular in China, but also sold well overseas.
• With a focus on service quality, FOREVER SEALS guarantees the service with a standardized service system. Customer's satisfaction would be improved by the management of their expectations. Their emotions will be comforted through professional guidance.
• FOREVER SEALS's geographic location is superior with multiple traffic lines. This provides convenience for the outward transportation and guarantees the stable supply of SEALS,O-RINGS.
• Our company has a strong technical team engaged in independent innovation. Meanwhile, we actively strengthen cooperation with domestic research institutes. Apart from that, we recruit well-known experts in the industry as senior consultants. All that provides strong technical support for our development.
If you are interested in our products, please contact us. We are dedicated to providing you with excellent and the most professional services.
