Factory Direct Industrial Seals Manufacturers Price List
Product details of the industrial seals manufacturers
Quick Overview
There is a fact that the function of industrial seals manufacturers is well-designed to match the needs of the products. industrial seals manufacturers offer the best performance for its price. Our industrial seals manufacturers has a wide range of applications and can be used in a variety of situations and scenarios. The explosive growth of market demand is conducive to the development of this product.
Product Information
Our industrial seals manufacturers are processed by the latest technology in the industry, and they perform better in the following details.
1. Description

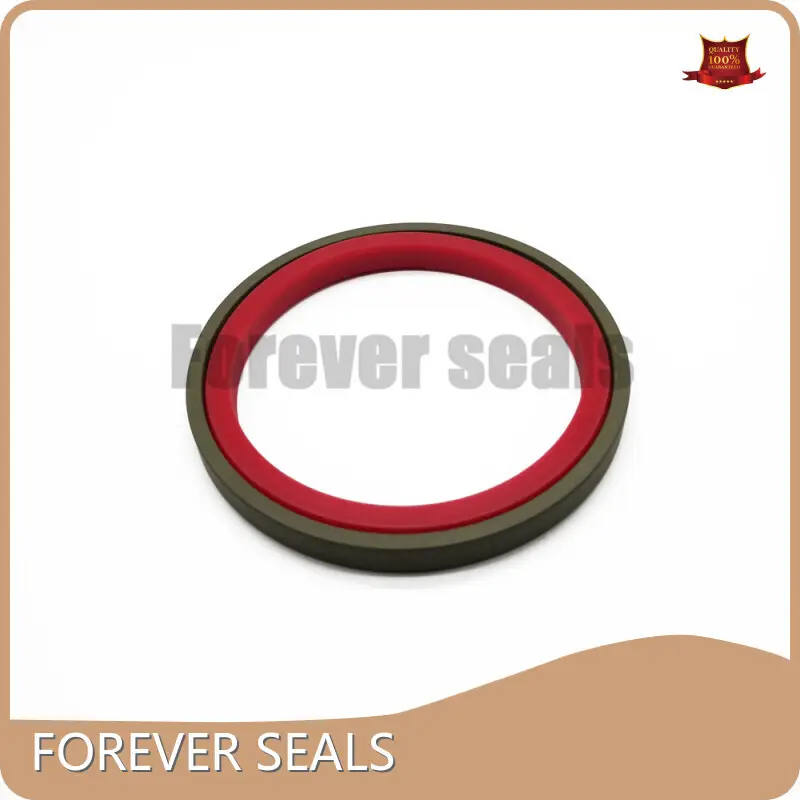

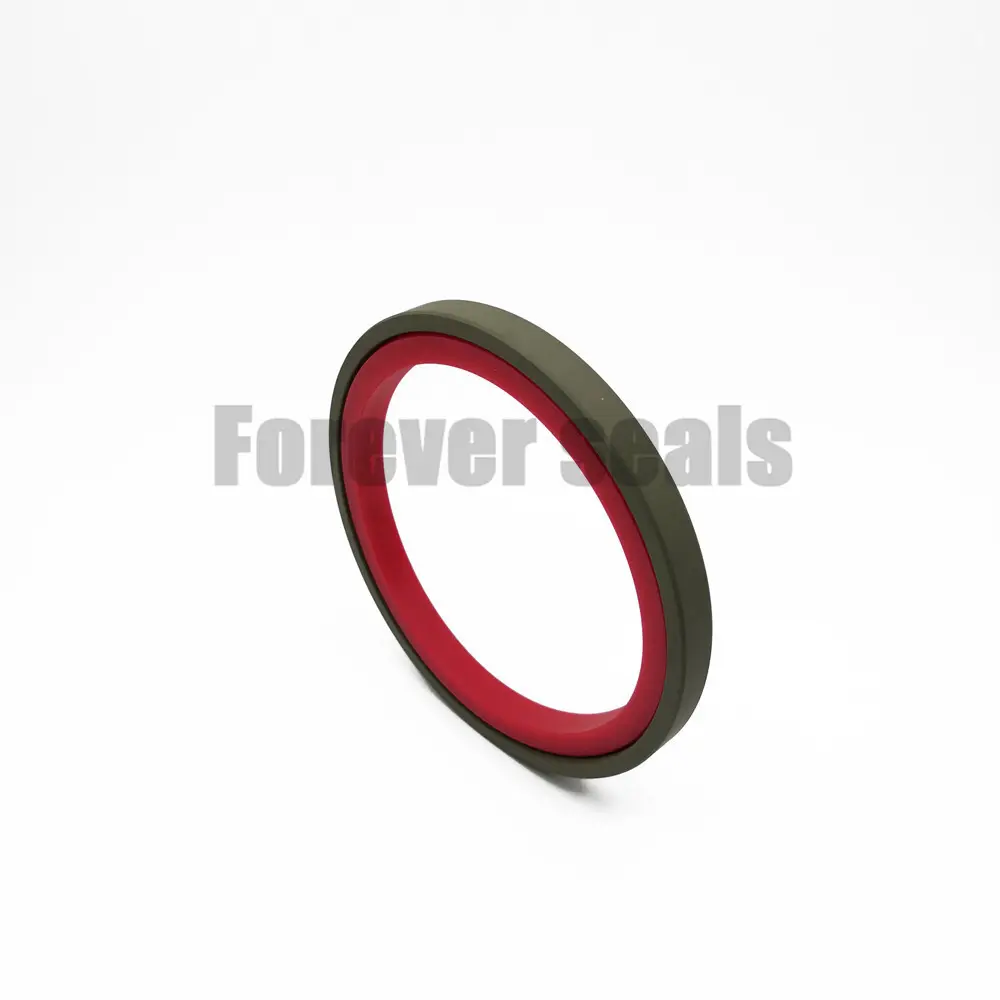

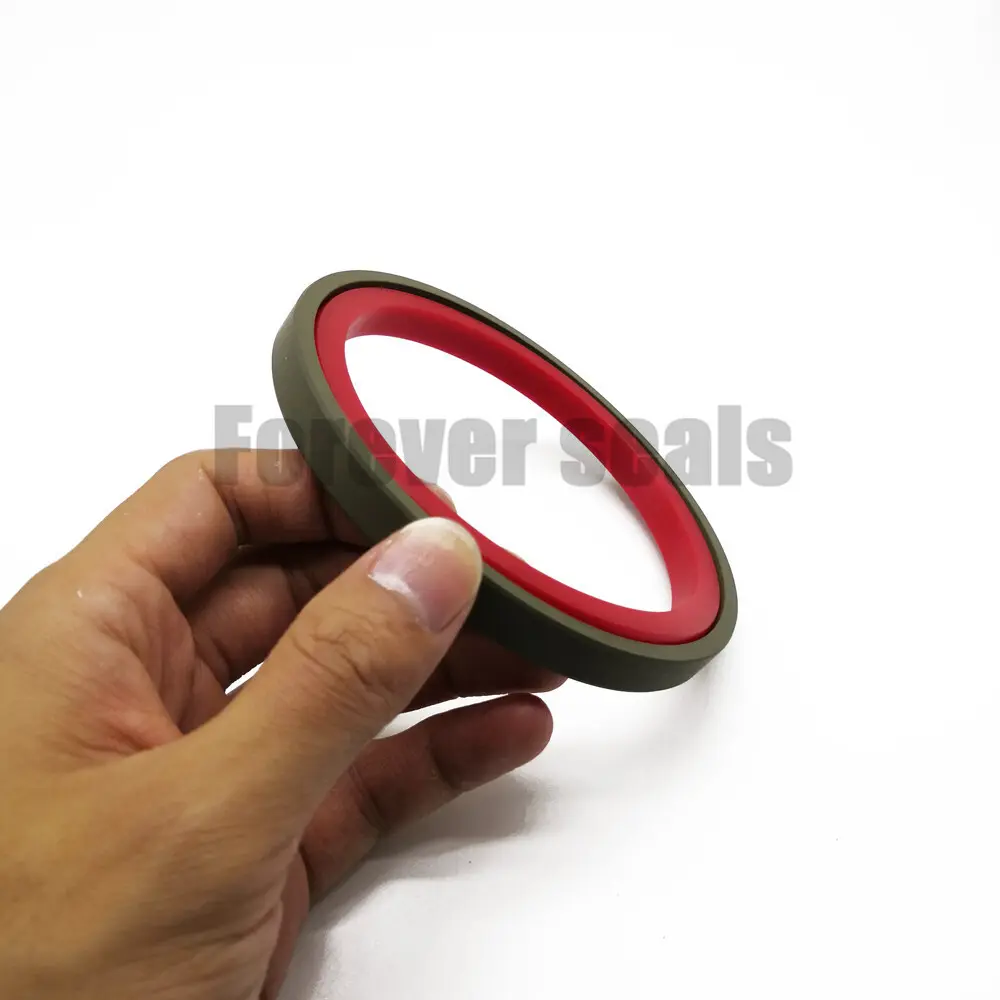

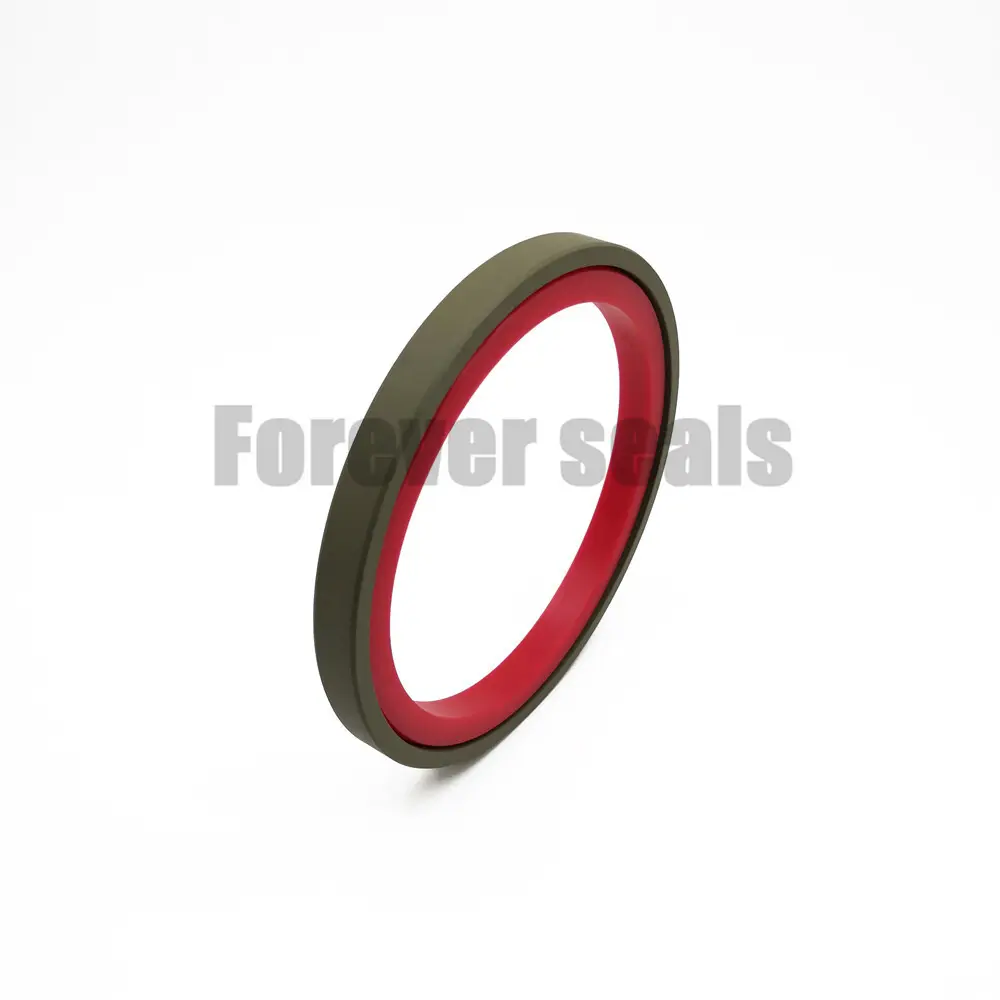

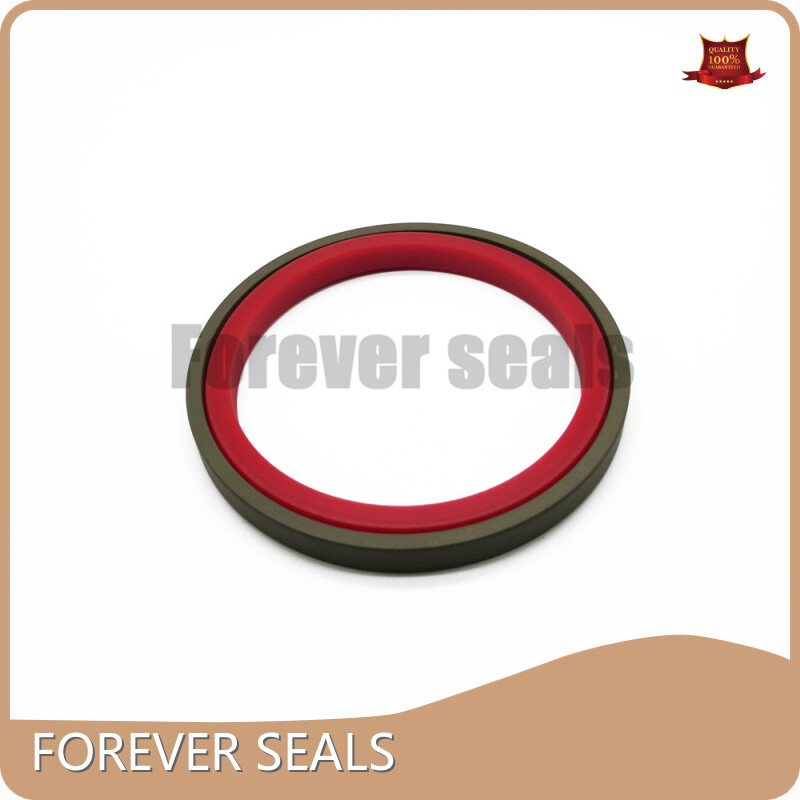

OMK-S applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.
2. Installation Recommendation
3. Installation Sizes
|
Bore Diameter |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
|||
|
D H8 |
d h8 |
L1+0.2 |
R1 |
16MPa |
26MPa |
32MPa |
40MPa |
|
55.0-149.9 |
D-10.0 |
10.0 |
0.4 |
0.60 |
0.50 |
0.40 |
0.40 |
|
150.0-244.9 |
D-12.5 |
12.5 |
0.4 |
0.75 |
0.65 |
0.55 |
0.50 |
|
245.0-500.0 |
D-15.0 |
15.0 |
0.8 |
0.75 |
0.65 |
0.55 |
0.50 |
|
500.1-760.0 |
D-17.5 |
17.5 |
1.2 |
0.75 |
0.65 |
0.55 |
0.50 |
|
760.1-999.9 |
D-20.0 |
20.0 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |
|
≧1000 |
D-20.0 |
20.5 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |

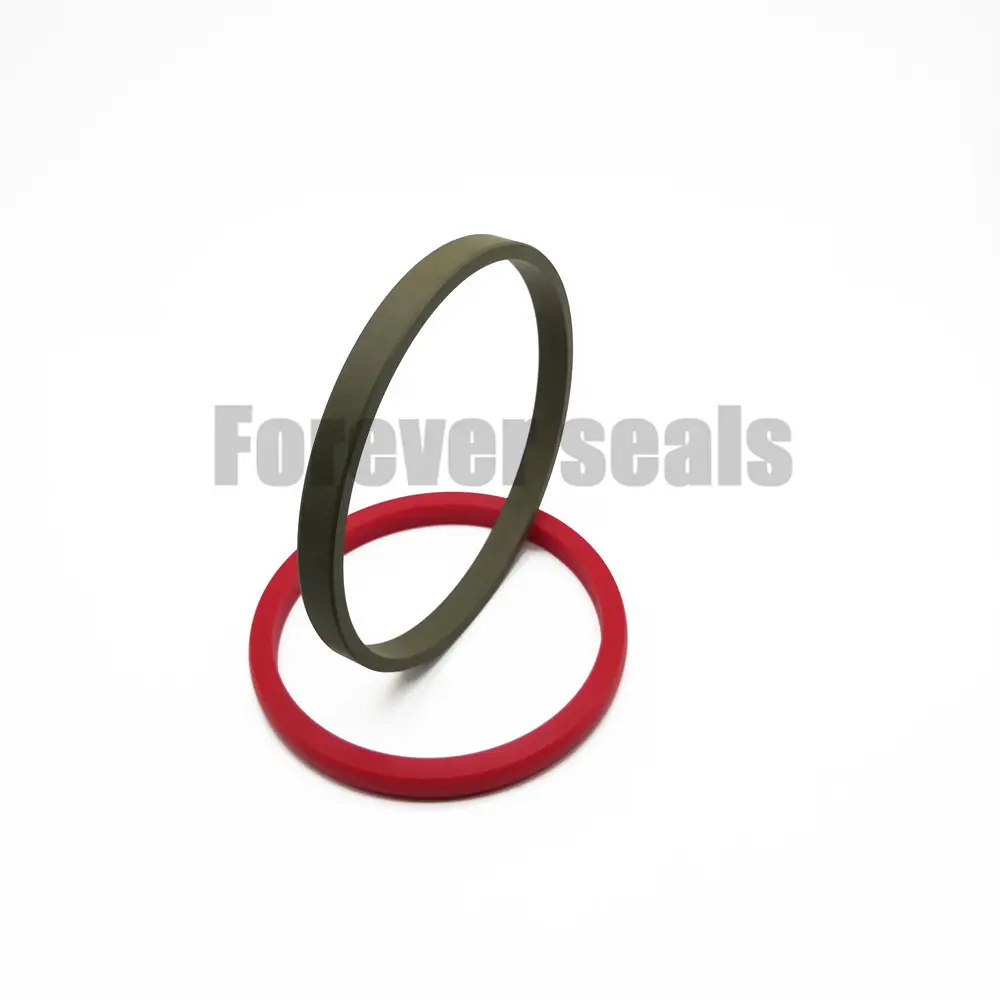

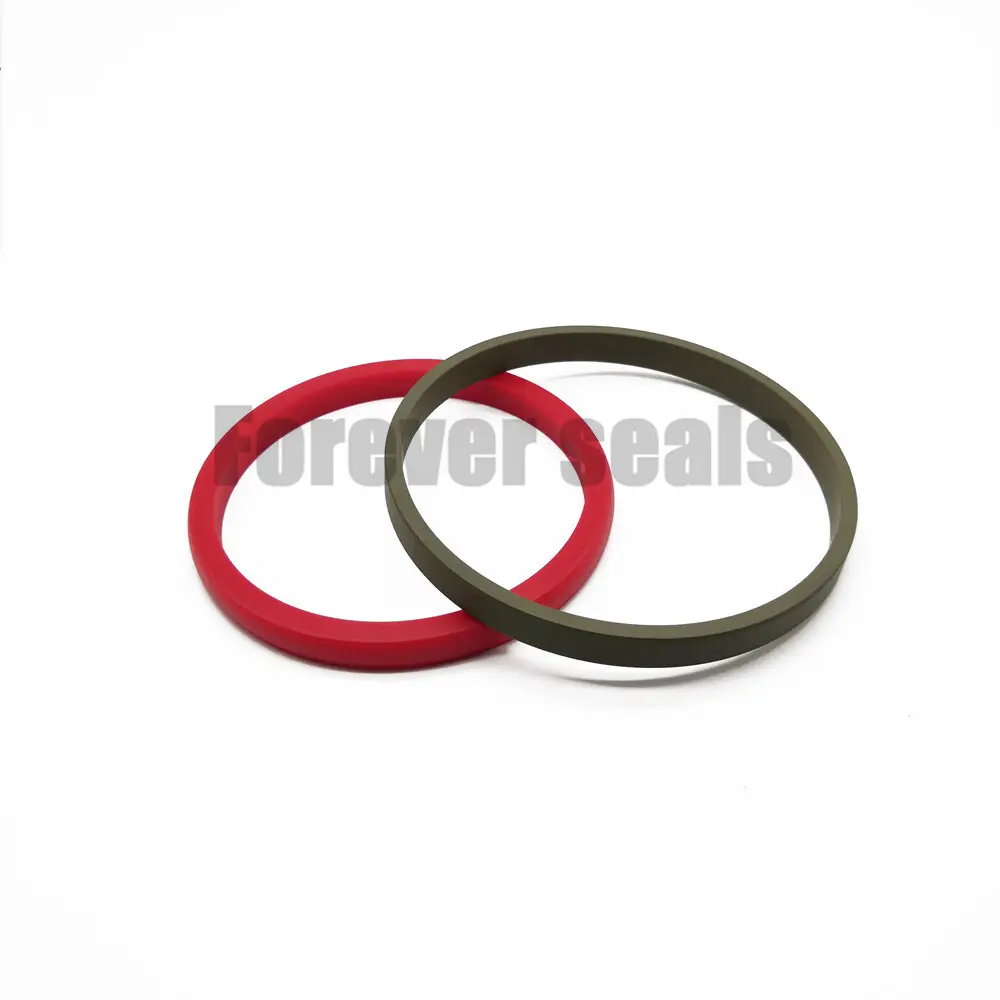

Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
40 - 1600mm |
0 - 60MPa |
-30℃ +100℃ |
5 m/s |
hydraulic oil, flame retardant liquid, water and others |
6. Installation Dimensions
|
Bore Dia. |
Groove Dia. |
Groove Width |
Order No. |
|
D H8 |
d h8 |
L+0.2 |
|
|
55 60 70 |
40 45 55 |
10 10 10 |
GSF-W55*40*10 GSF-W60*45*10 GSF-W70*55*10 |
|
80 90 100 |
60 70 80 |
10 10 10 |
GSF-W80*60*10 GSF-W90*70*10 GSF-W100*80*10 |
|
110 115 120 |
90 95 100 |
10 10 10 |
GSF-W110*90*10 GSF-W115*95*10 GSF-W120*100*10 |
|
130 140 150 |
110 120 125 |
10 10 12.5 |
GSF-W130*110*10 GSF-W140*120*10 GSF-W150*125*12.5 |
|
160 165 170 |
135 140 145 |
12.5 12.5 12.5 |
GSF-W160*135*12.5 GSF-W165*140*12.5 GSF-W170*145*12.5 |
|
180 185 190 |
155 160 165 |
12.5 12.5 12.5 |
GSF-W180*155*12.5 GSF-W185*160*12.5 GSF-W190*165*12.5 |
|
200 205 210 |
175 180 185 |
12.5 12.5 12.5 |
GSF-W200*175*12.5 GSF-W205*180*12.5 GSF-W210*185*12.5 |
