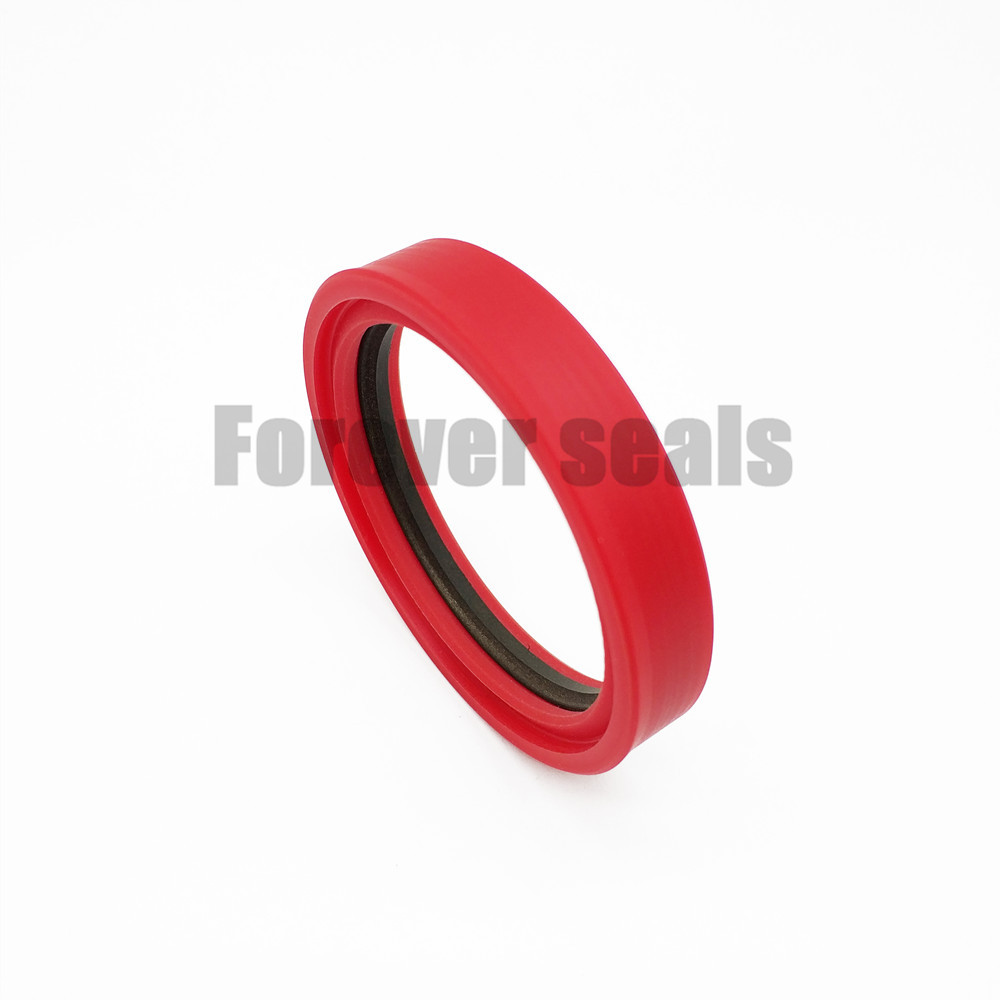

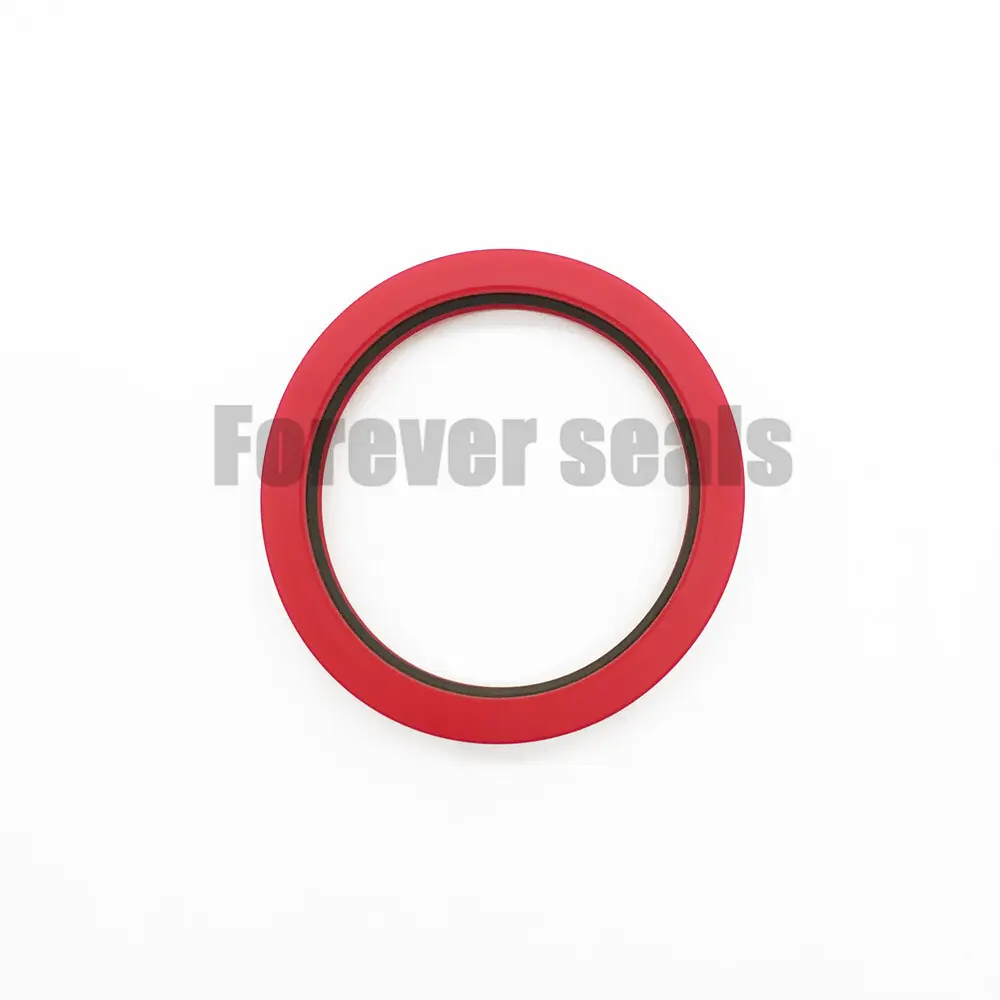

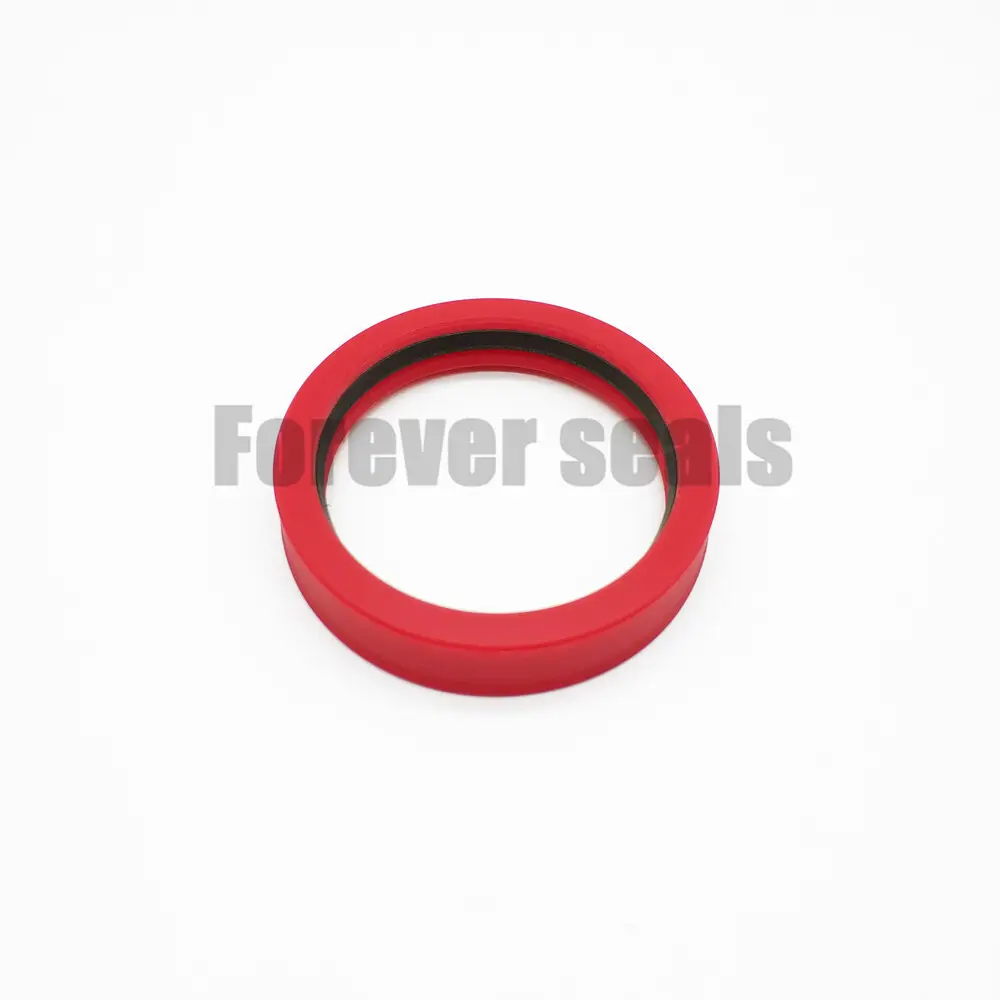

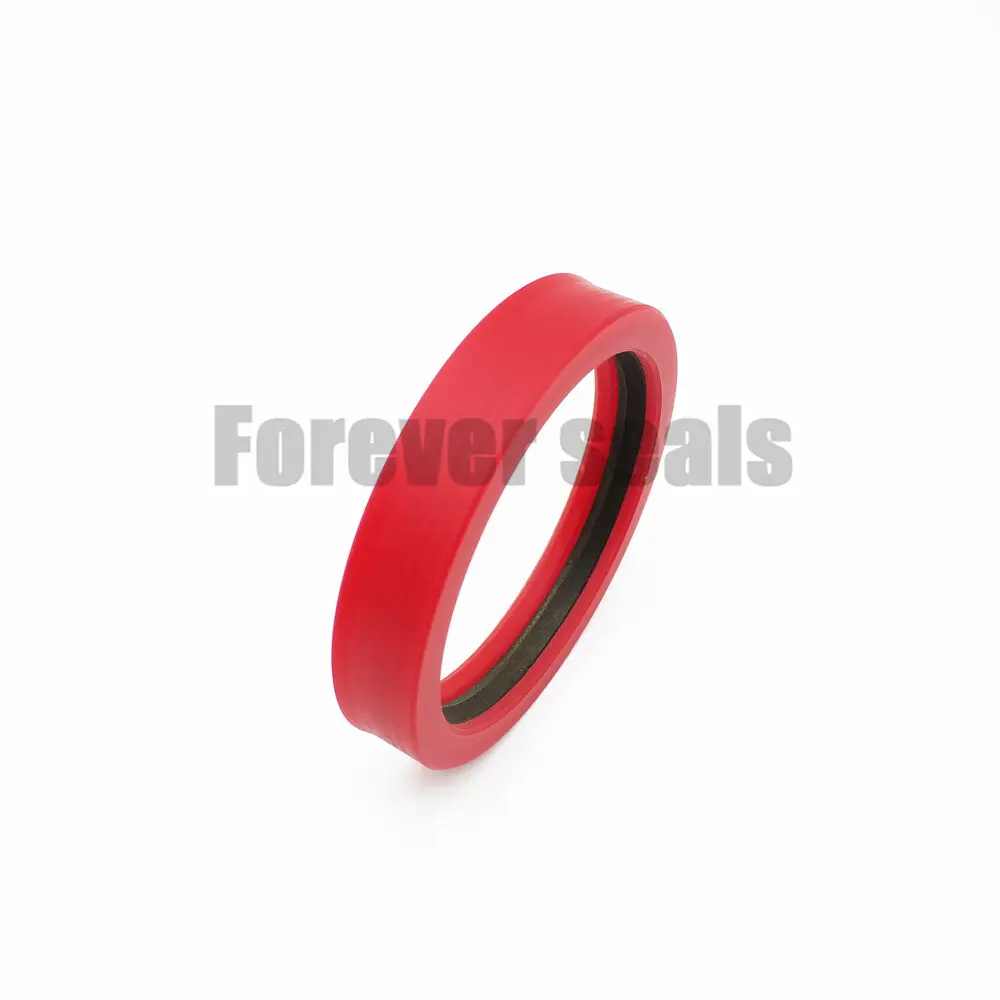

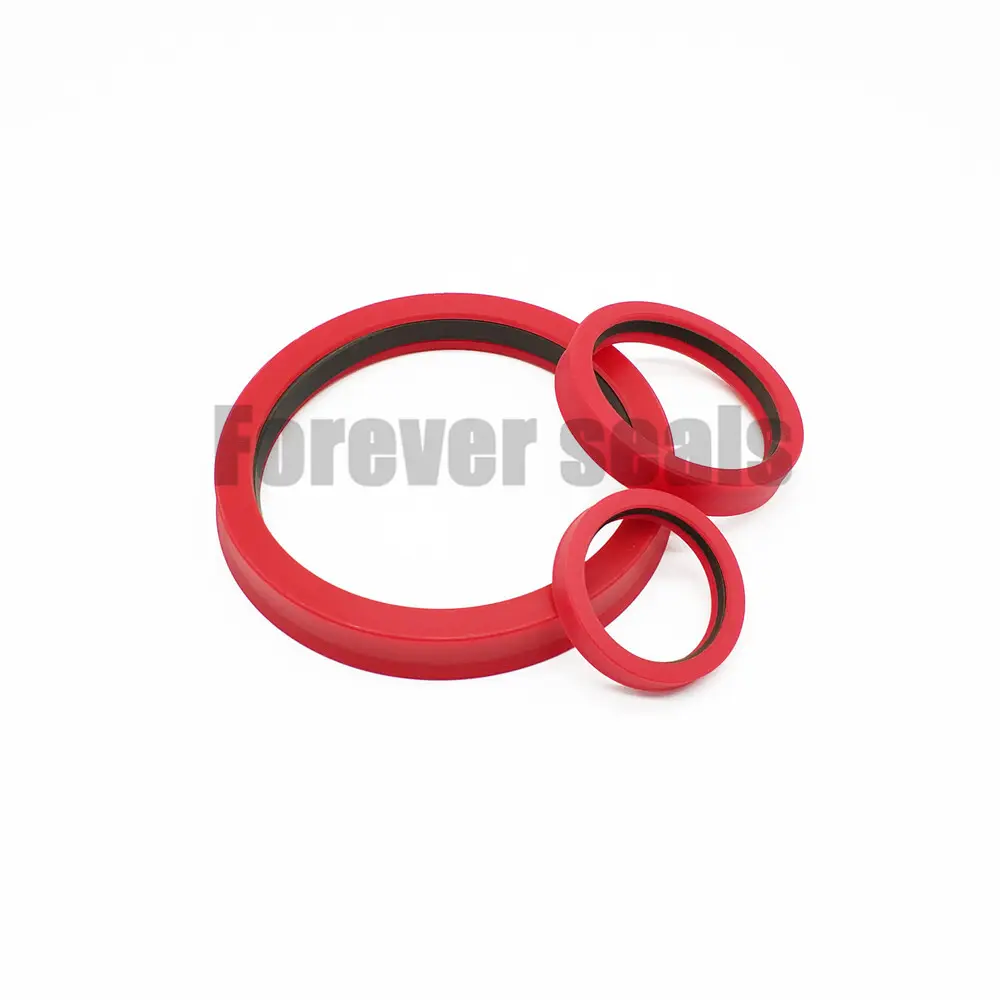

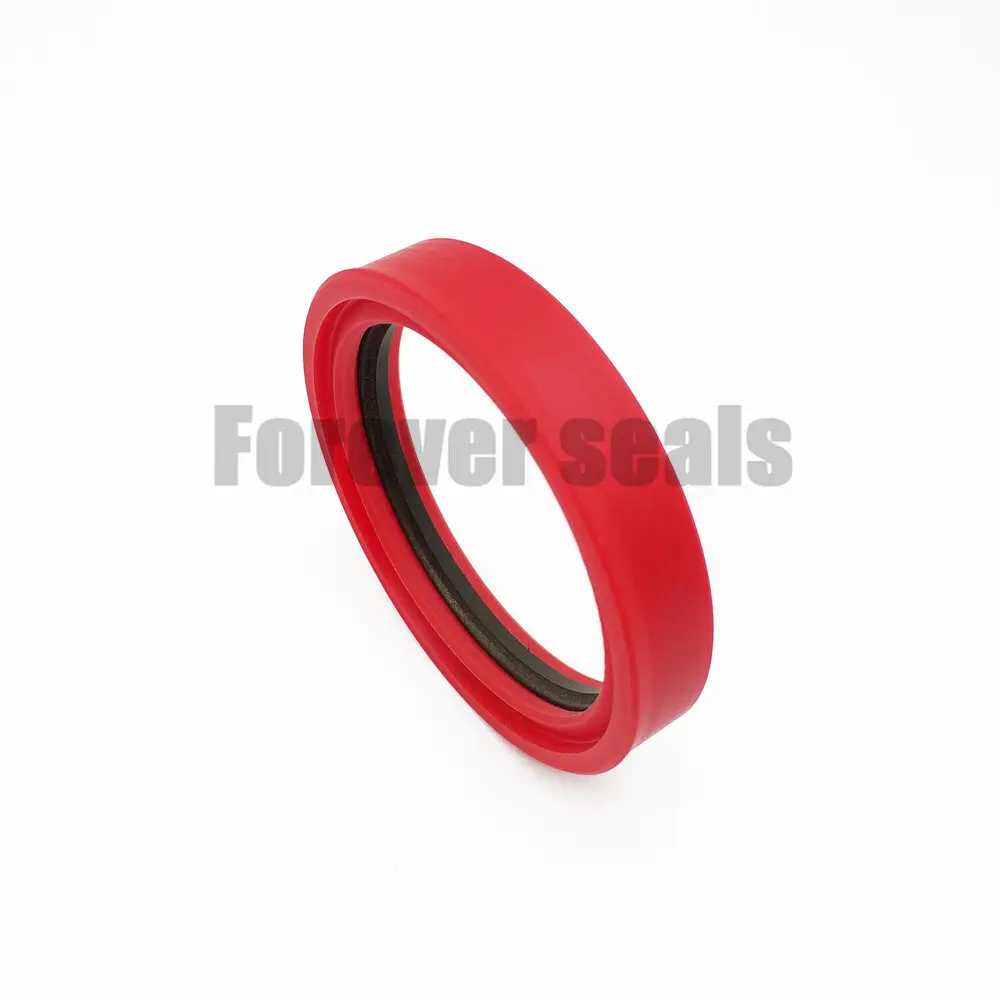

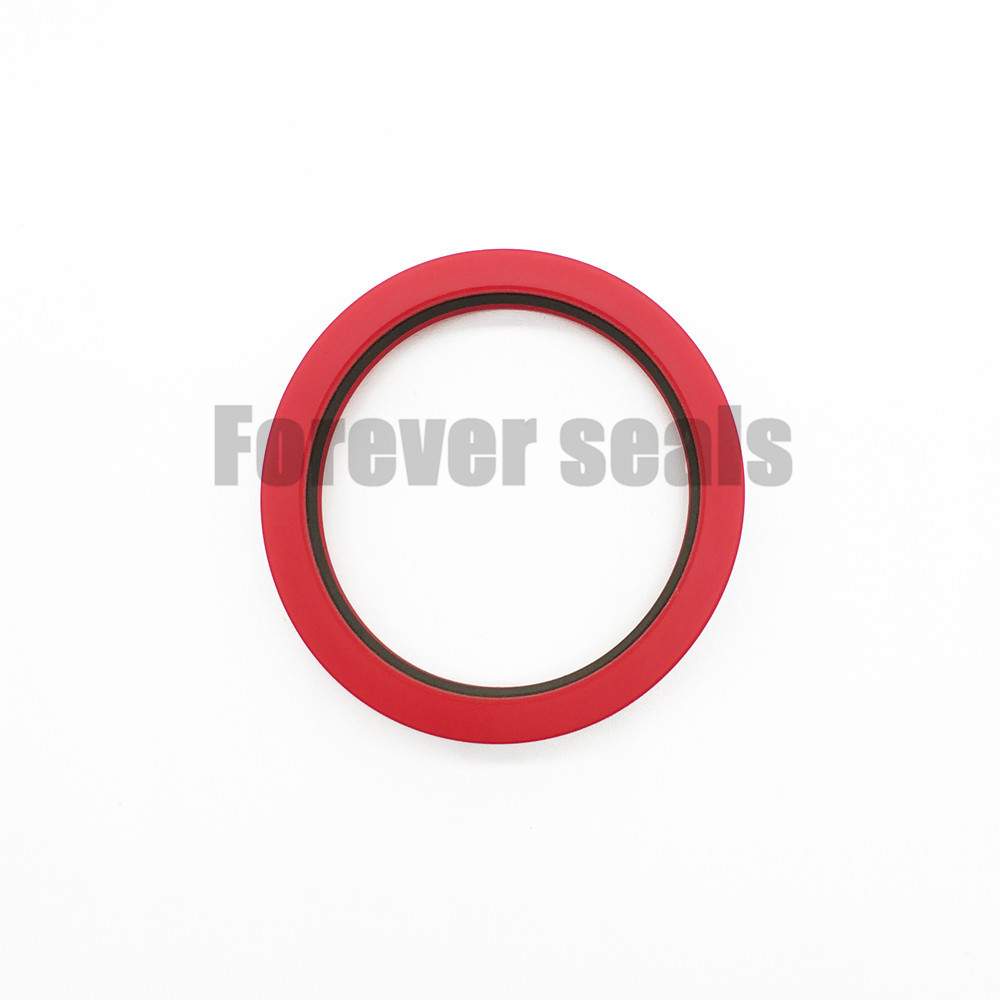

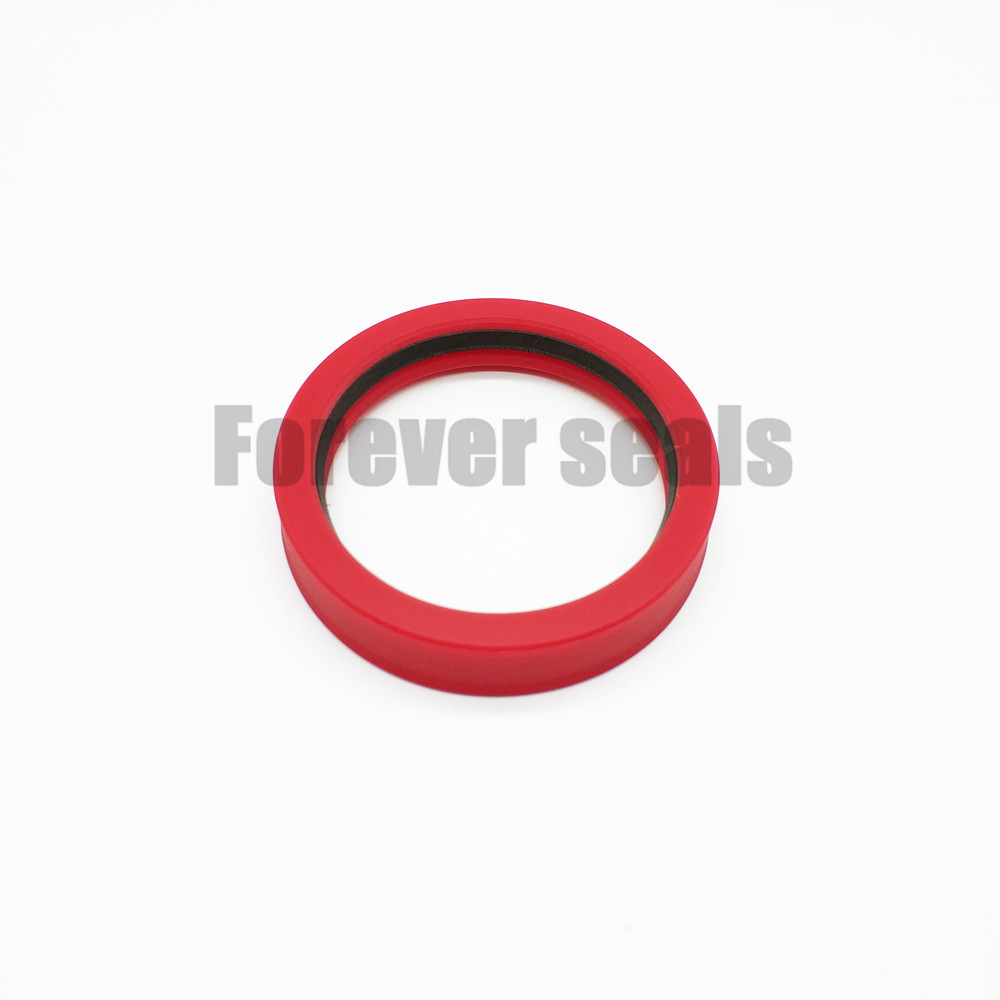

Customized Hydraulic Cylinder Piston Seal Types Company
Company Advantages
· The strict control process ensures that FOREVER SEALS hydraulic cylinder piston seal types will meet the exact specifications.
· This product is highly regarded among customers, with high durability and high cost performance.
· FOREVER SEALS has been an experienced enterprise that offering the life-time service timely.
1. Description
Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in the medium with oil spots.
Meet the standard of GB/T 15242.3.

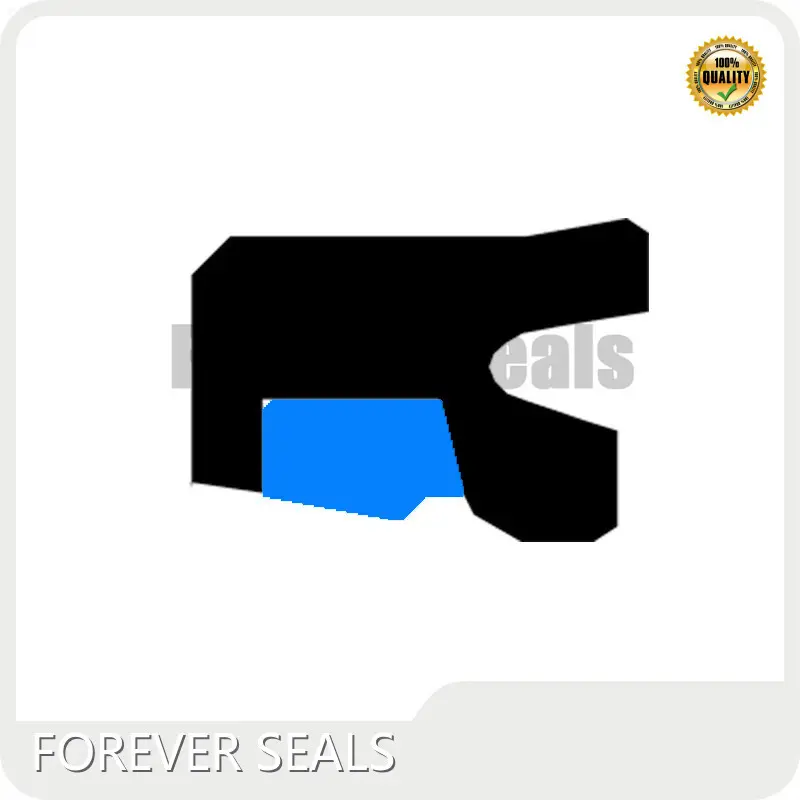

2. Installation Recommendation
3. Installation Sizes
|
Rod Diameter d e8 |
Groove Diameter D H9 |
Groove Width L D10 |
H |
|
20-30 |
d+8 |
7.5 |
7 |
|
31-35 |
d+8 |
7.5 |
7 |
|
36-44 |
d+8 |
8.5 |
8 |
|
45-55 |
d+10 |
11.0 |
10 |
|
56-119 |
d+15 |
13.0 |
12 |
|
120-319 |
d+20 |
17.0 |
16 |
|
320-499 |
d+30 |
21.0 |
20 |
|
＞499 |
d+40 |
26.5 |
25 |
Sealing ring: filled PTFE
Y-Ring: NBR / PU
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
20 - 1600mm |
0 - 60MPa |
-30℃ +100℃ |
1 m/s |
Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others. |
6. Installation Dimensions
|
Rod Dia. |
Outer Dia. |
Groove Width |
Order No. |
|
d e8 |
D H9 |
L D10 |
|
|
20 22 23 |
28 30 31 |
7.5 7.5 7.5 |
TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5 |
|
25 28 30 |
33 36 38 |
7.5 7.5 7.5 |
TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5 |
|
32 35 36 |
40 43 44 |
7.5 7.5 8.5 |
TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5 |
|
40 42 45 |
48 50 55 |
8.5 8.5 11 |
TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11 |
|
47 48 50 |
57 58 60 |
11 11 11 |
TDI47*57*11 TDI48*58*11 TDI50*60*11 |
|
52 55 56 |
62 65 71 |
11 11 13 |
TDI52*62*11 TDI55*65*11 TDI56*71*13 |
About more dimensions, you can download it through below link.
http://www.foreverseals.com/download.html
Company Features
· FOREVER SEALS TECHNOLOGY.,LIMITED provides customers with excellent cost performance hydraulic cylinder piston seal types.
· FOREVER SEALS TECHNOLOGY.,LIMITED's R&D capability has highlighted through hydraulic cylinder piston seal types. The development of R&D capability is the top priority for FOREVER SEALS TECHNOLOGY.,LIMITED.
· FOREVER SEALS TECHNOLOGY.,LIMITED's credo is to provide our customers with the highest level of service, accountability, cost savings and we facilitate the entire process of ordering, freight, and billing. Inquire online!
Product Comparison
Compared with other similar products, our hydraulic cylinder piston seal types has the following advantages.
