Custom Rubber Rings Price List-1
Product details of the custom rubber rings
Product Overview
The raw materials of FOREVER SEALS custom rubber rings are made full use by our professional workers. Strict quality control ensures that the quality and performance of the product meets industry specifications. The custom rubber rings of FOREVER SEALS can be used in many industries. FOREVER SEALS TECHNOLOGY.,LIMITED has always been aimed high in quality for custom rubber rings.
Product Information
Compared with ordinary products, our custom rubber rings has the specific differences as follows.
1. Description

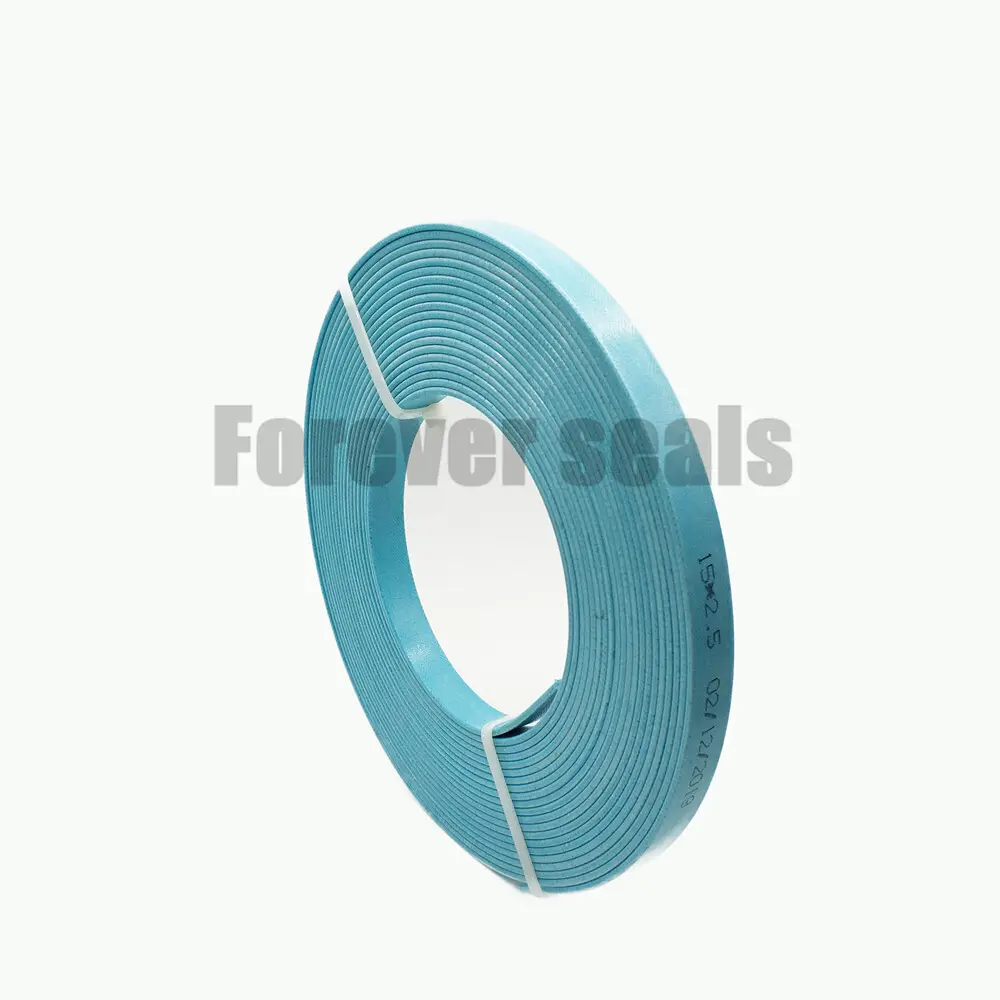

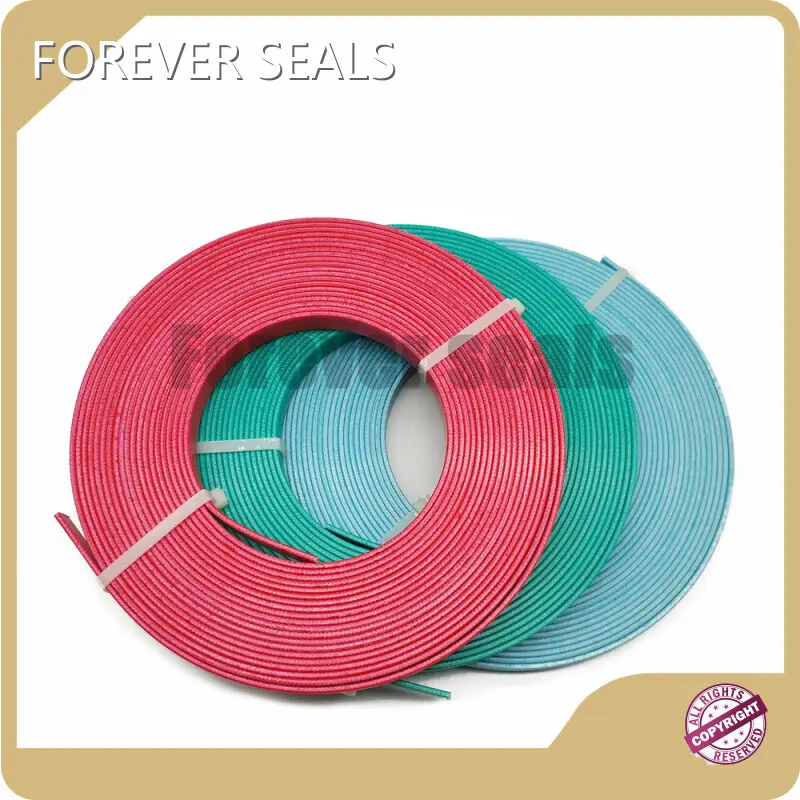

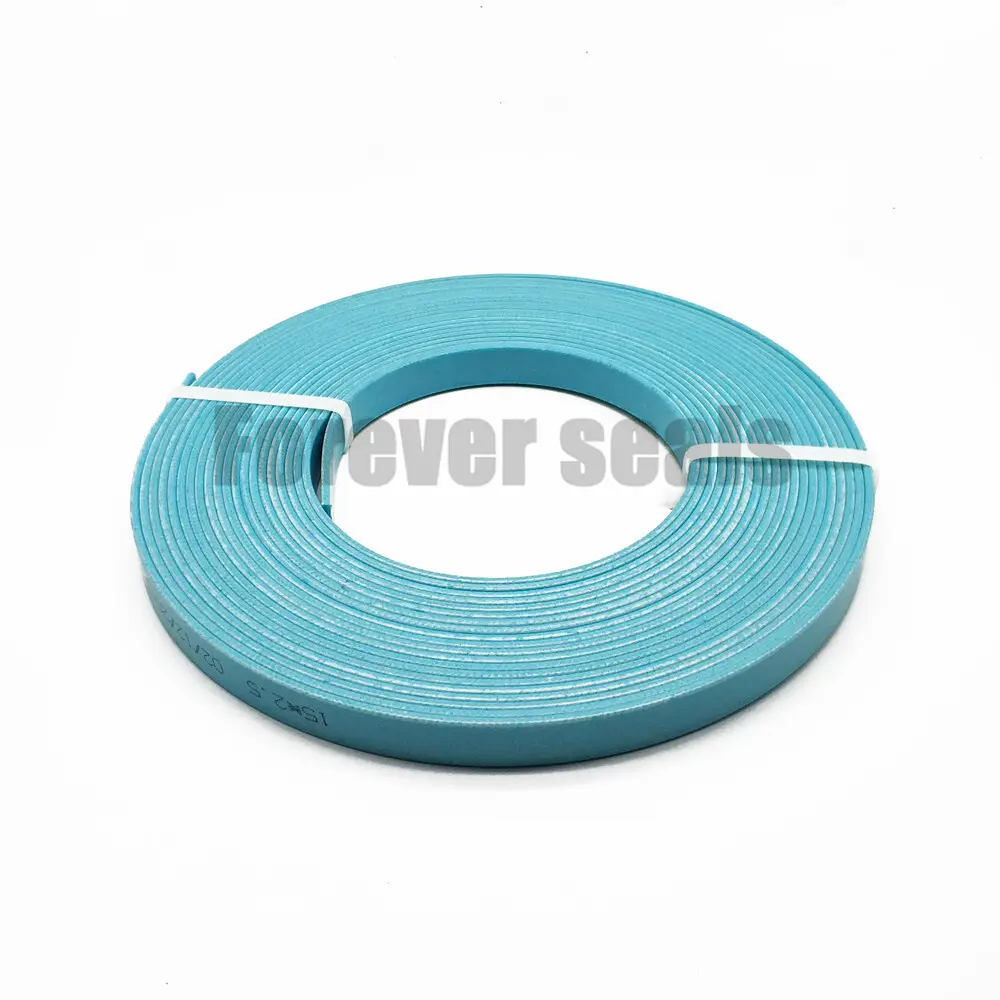

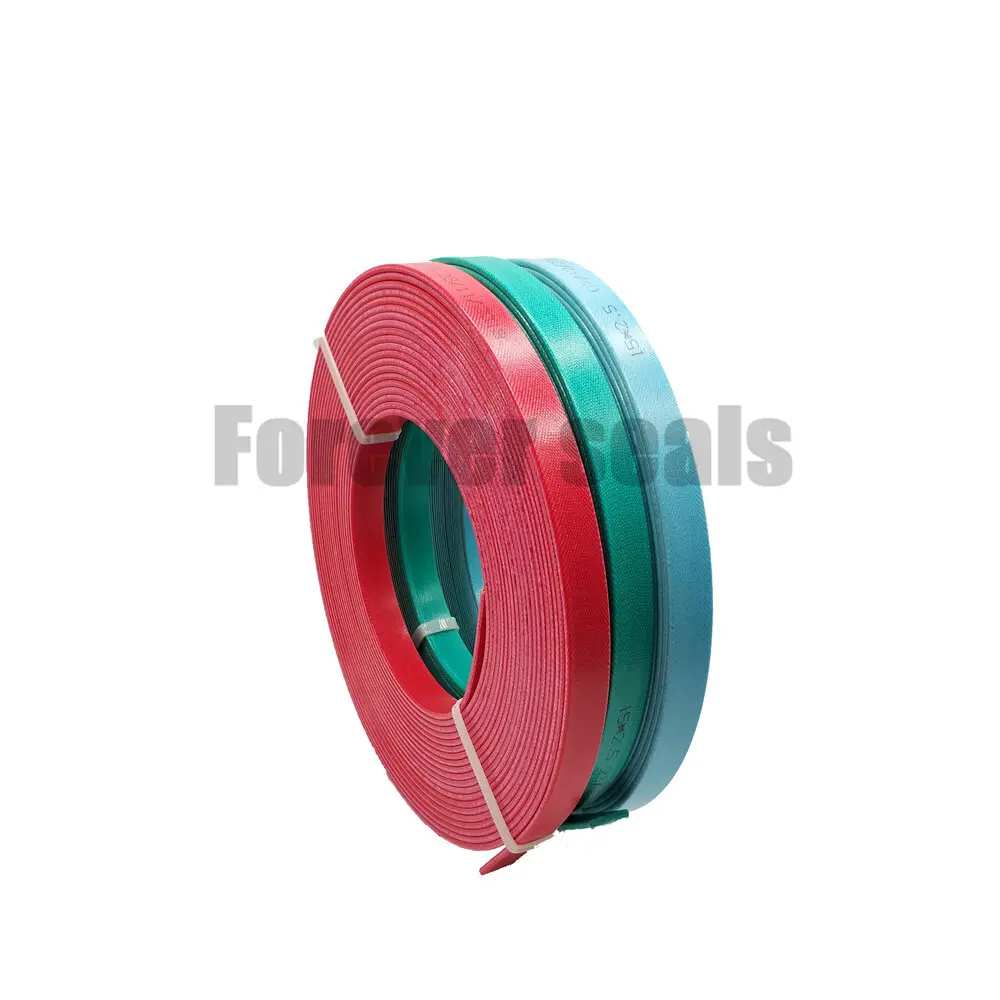

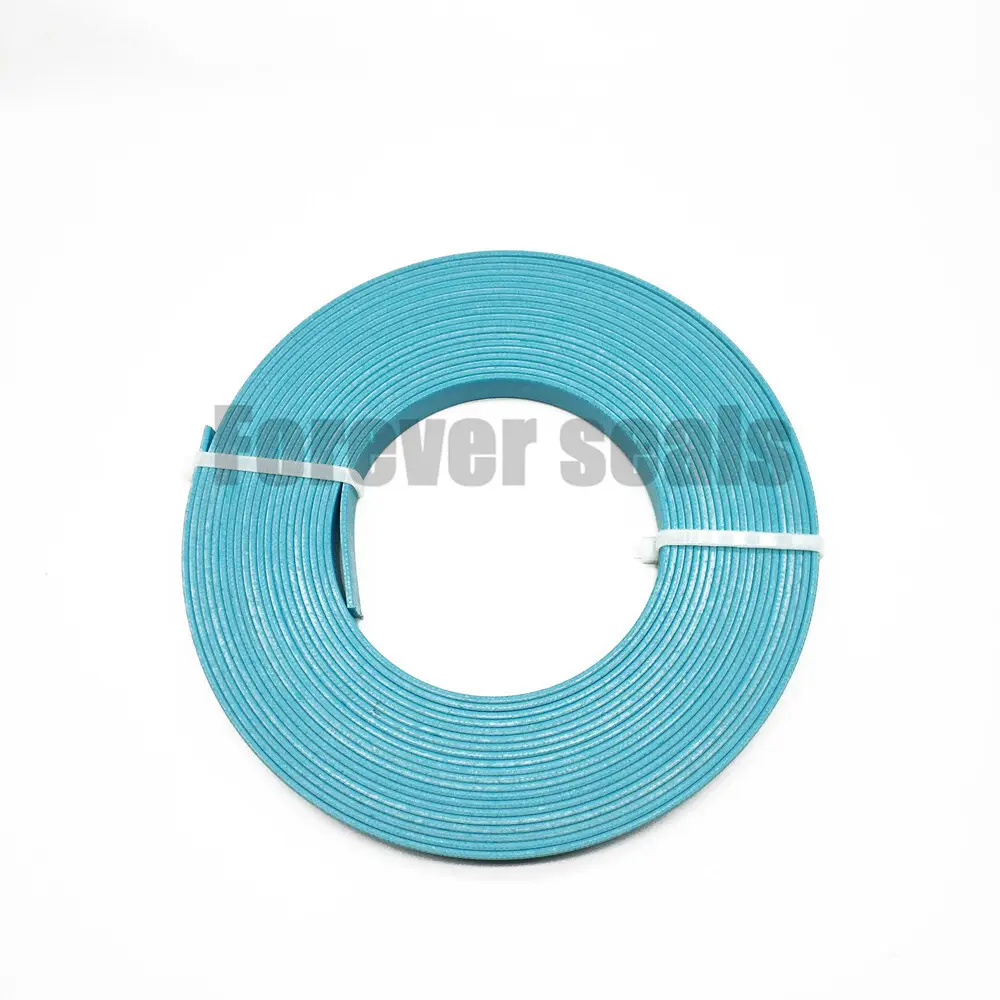

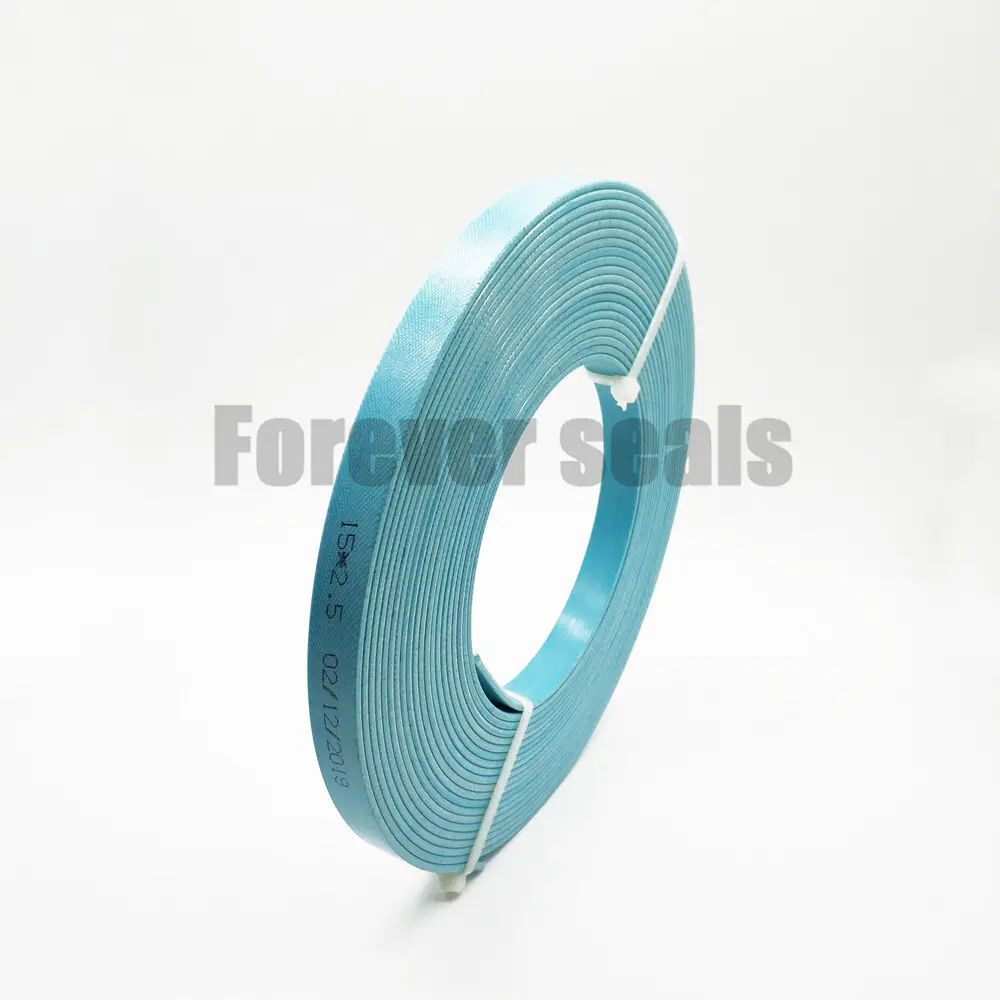

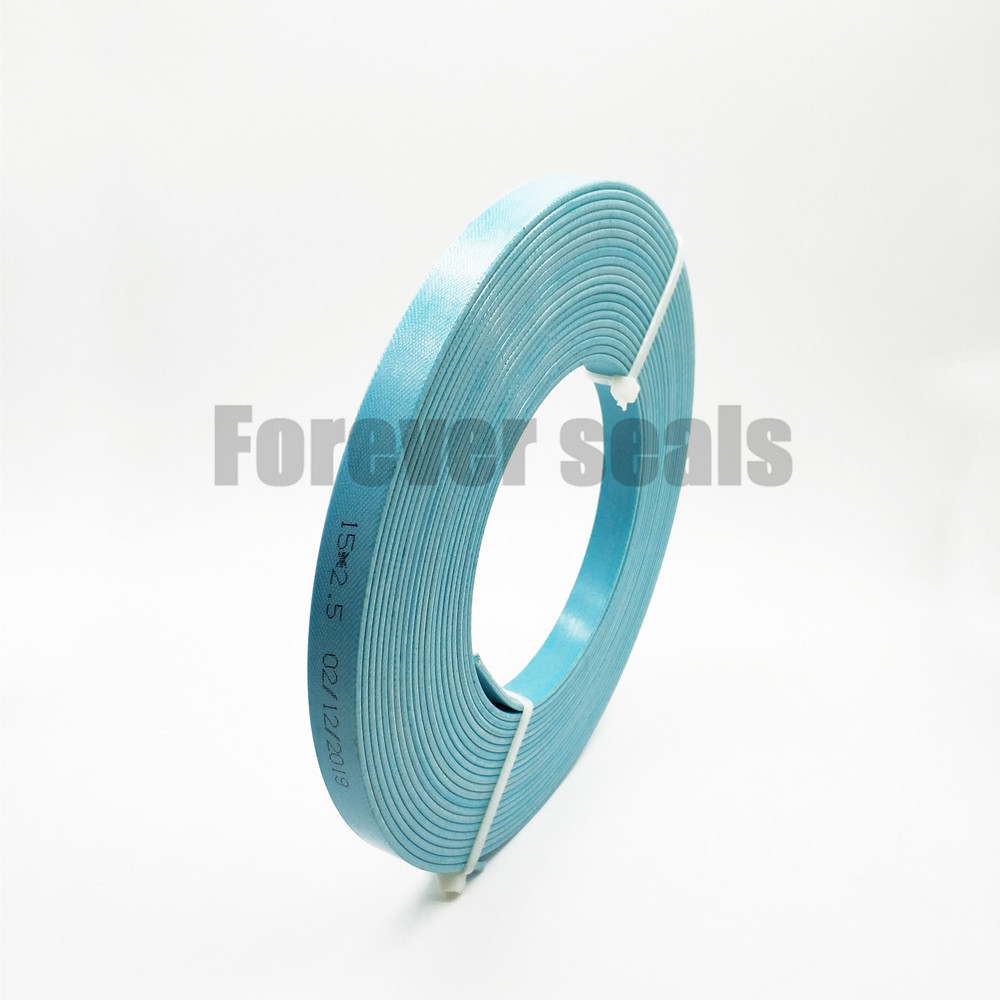

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.
2. Installation Recommendation
3. Standard materials
Phenolic resin
4. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
Custom as Required |
— |
-55℃ +225℃ |
15 m/s |
hydraulic oil, emulsion, and water |
Piston: L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]
Rod: L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ] C = 3.14 k=0.8
5. Length of whole roll
All sizes are 10 mteres each roll.
Standard groove width
|
Groove width L2 |
2.5 |
3.2 |
4 |
4.2 |
5.6 |
6 |
6.3 |
8.1 |
9.7 |
10 |
12 |
15 |
18 |
20 |
25 |
30 |
40 |
50 |
The products of various width could be provided.
Standard thickness of product
|
Thickness W |
1 |
1.5 |
1.55 |
2 |
2.5 |
3 |
4 |
5 |
6 |
