Custom Made High Pressure Rotary Seals Price List
Product details of the high pressure rotary seals
Product Overview
FOREVER SEALS high pressure rotary seals is designed & manufactured by using top-quality material and advanced tools & equipment in conformity with the industry standards. The product is highly appreciated for its high performance and long service life. This product is believed to be easily recognized by the customers.
Product Introduction
With a focus on details, FOREVER SEALS strives to create high-quality high pressure rotary seals.
1. Description

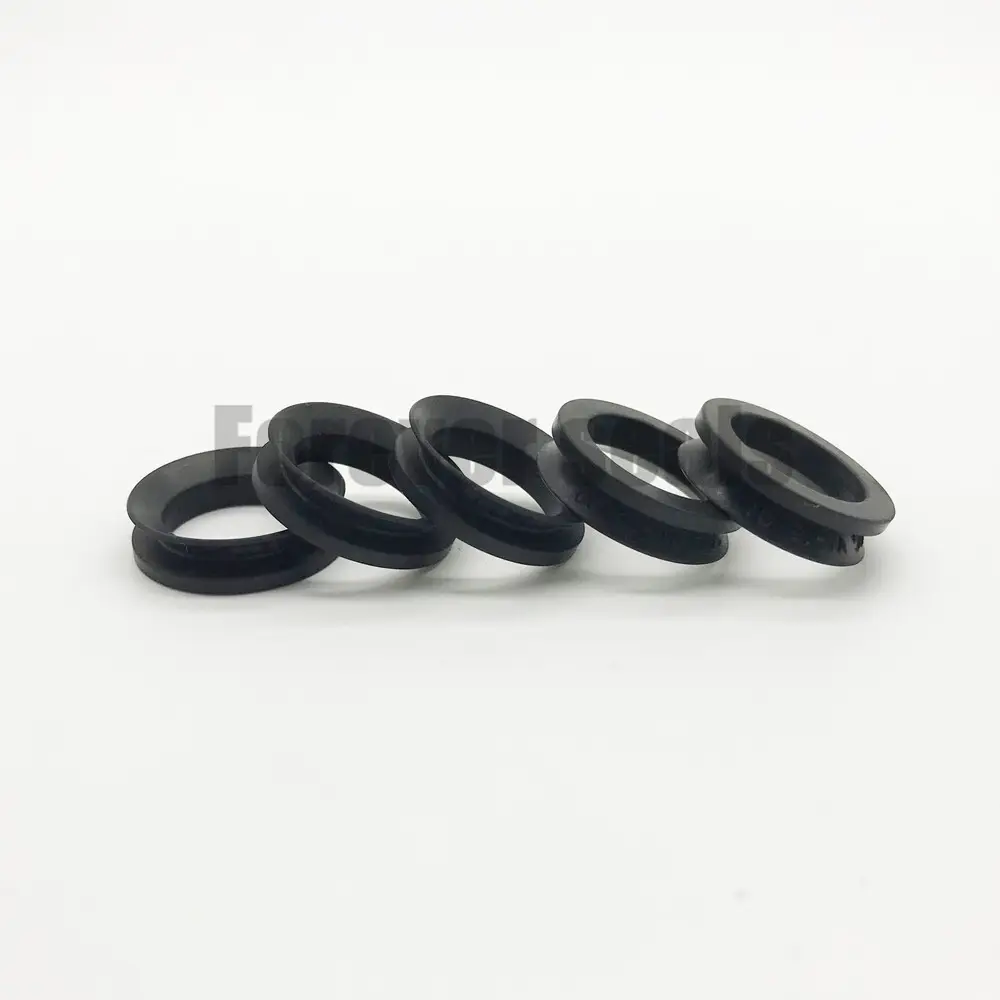

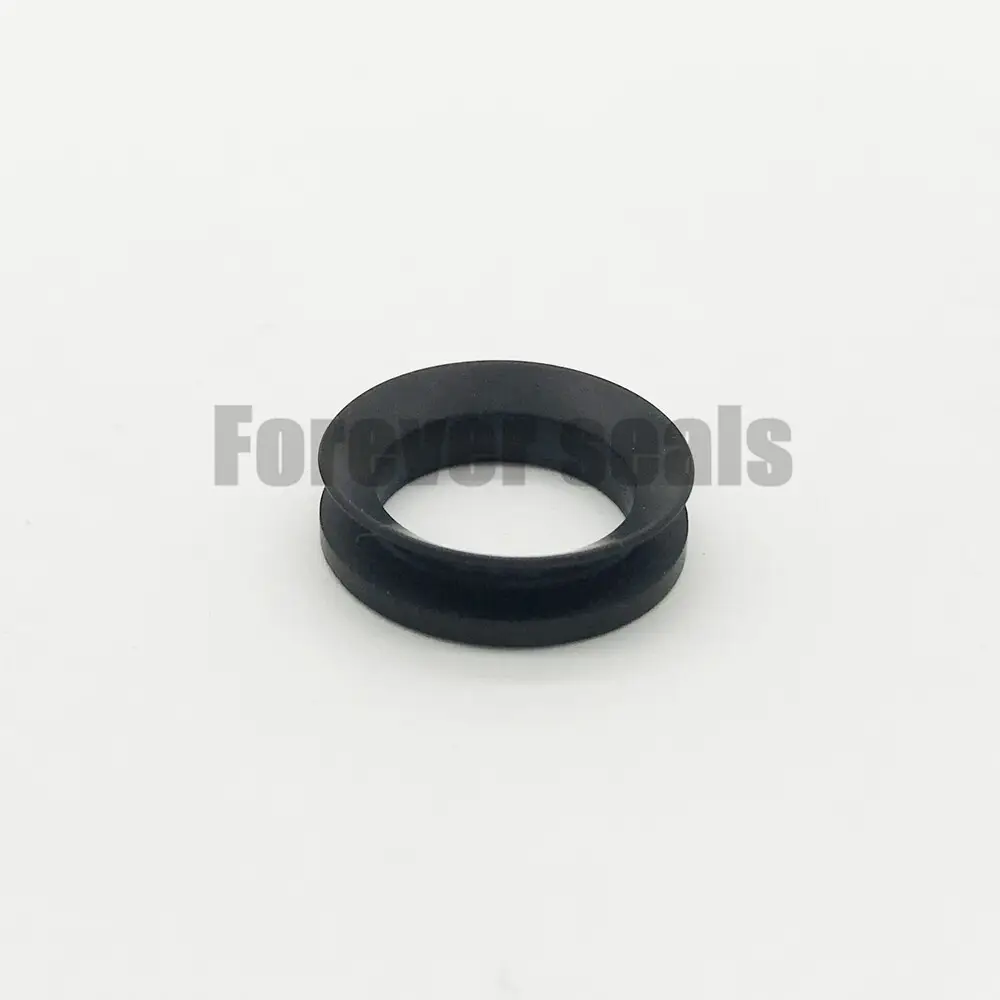

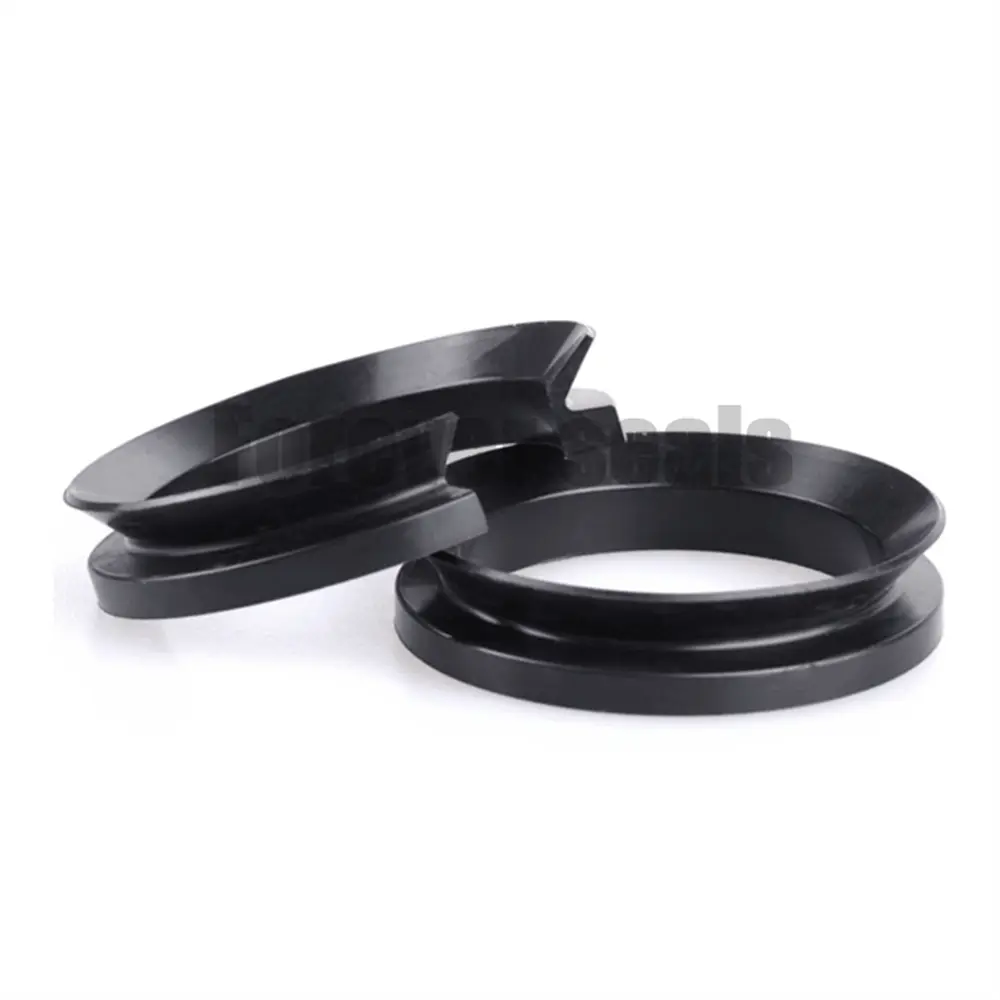

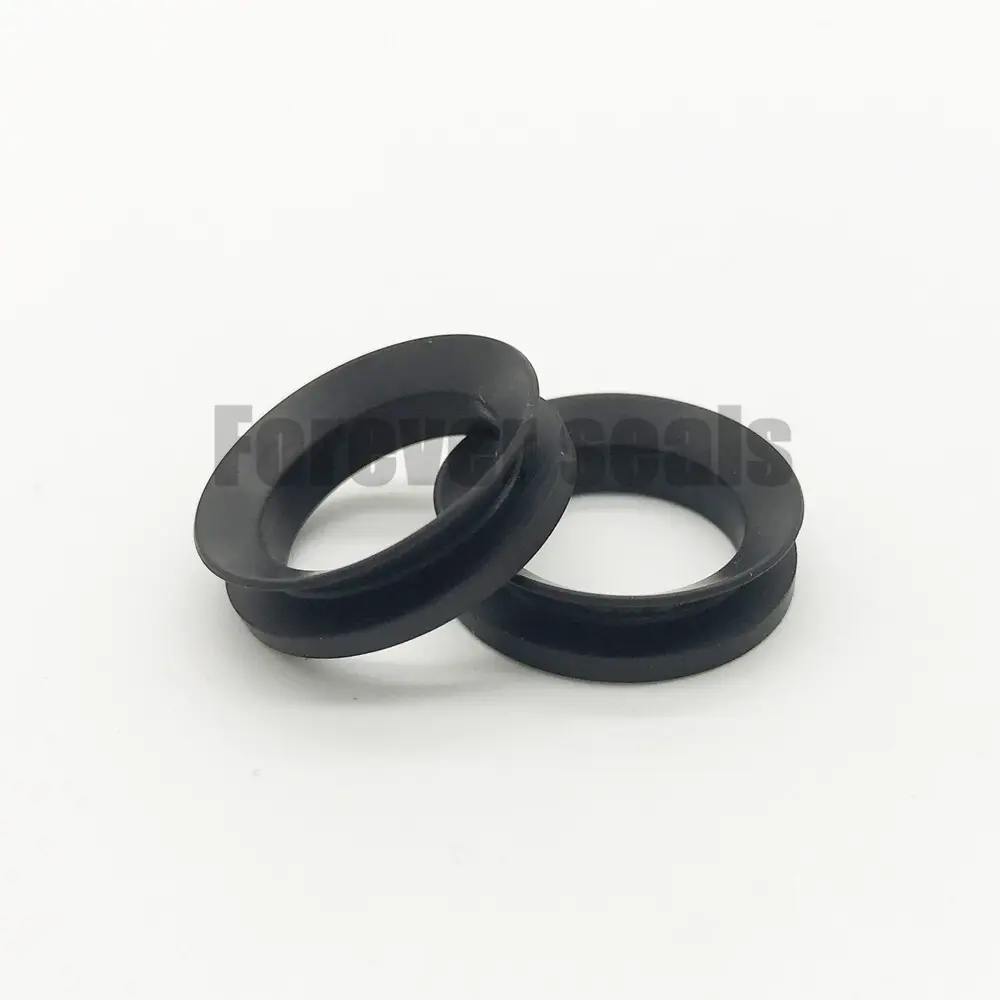

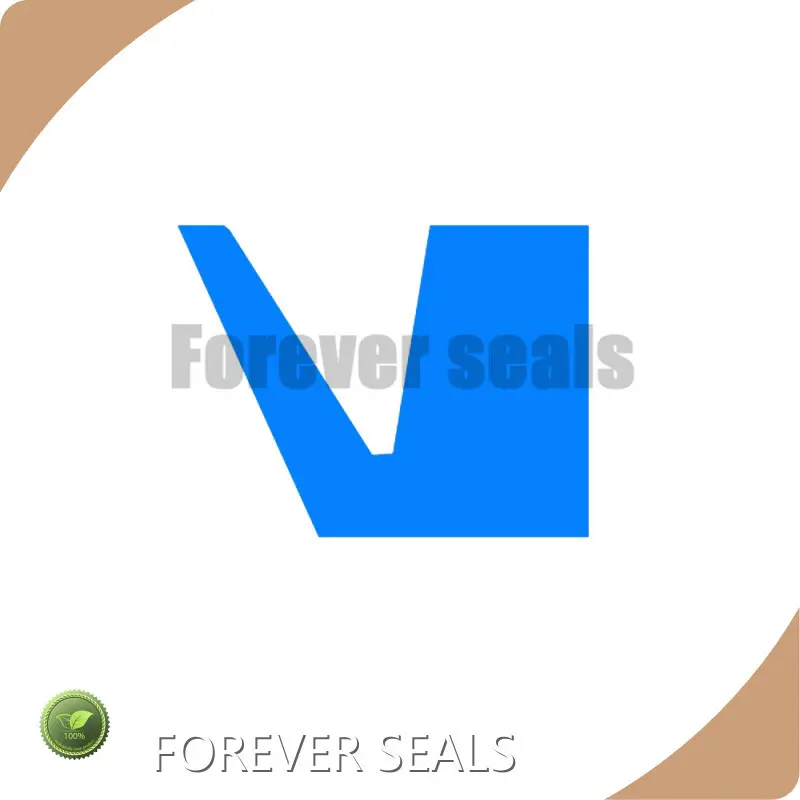

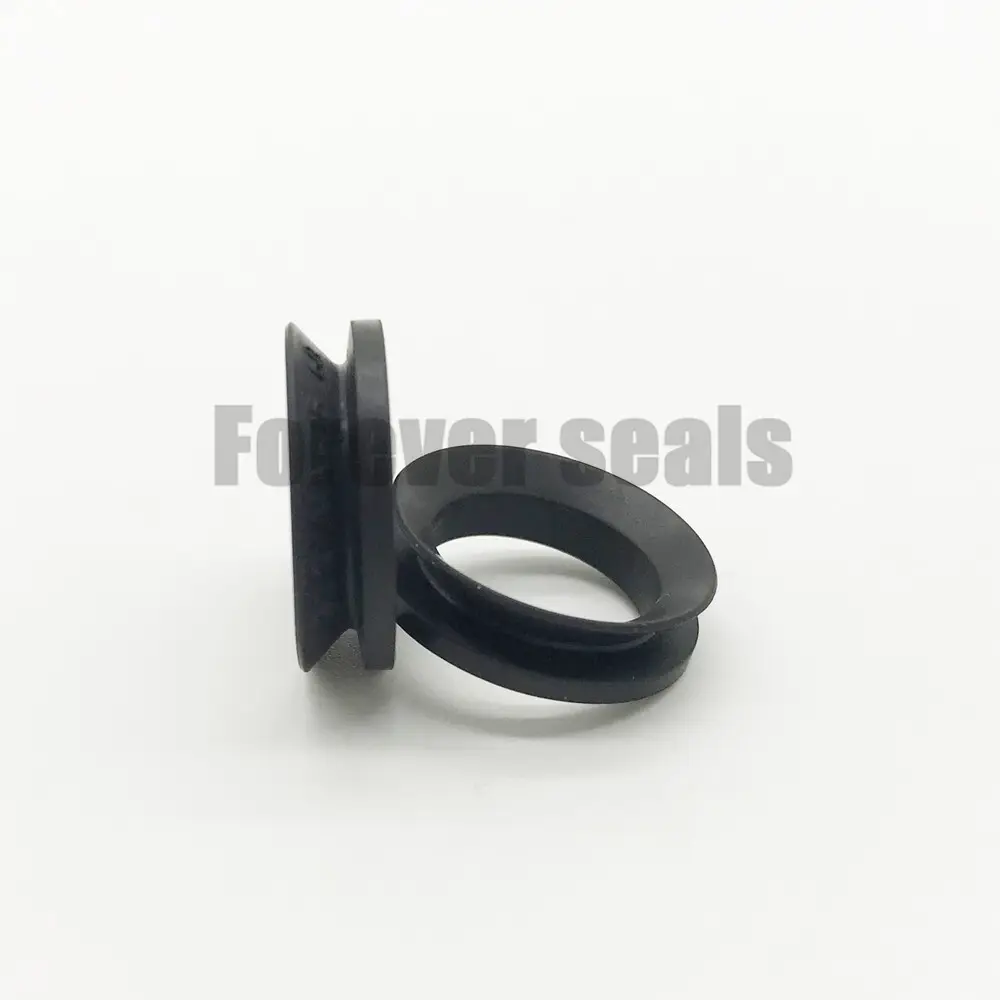

VA seal is a unique all-rubber seal for rotary shafts. It has been used successfully by OEMs and on the replacement market world wide in a broad range of applications. VA seal is the perfect seal to prevent the ingress of dirt, dust, water or combinations of these media while positively retaining grease. With its unique design and performance, VA seal can be used with a wide range of bearing types. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.
2. Installation Recommendation
3. Standard materials
NBR / FKM
4. Installation Dimensions
|
For shaft diameter d1 |
Inside dia. d |
Height of cross- section c |
Dimension A |
Free width B |
Maximum d2 |
Minimum d3 |
Fitted width B1 |
Order No. |
|
2.7 - 3.5 |
2.5 |
1.5 |
2.1 |
3.0 |
d1 + 1 |
d1 + 4 |
2.5 ±0.3 |
VA003 |
|
3.5 - 4.5 |
3.2 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA004 |
|
4.5 - 5.5 |
4 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA005 |
|
5.5 - 6.5 |
5 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA006 |
|
6.5 - 8.0 |
6 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA007 |
|
8.0 - 9.5 |
7 |
2 |
2.4 |
3.7 |
d1 + 1 |
d1 + 6 |
3.0 ±0.4 |
VA008 |
|
9.5 - 11.5 |
9 |
3 |
3.4 |
5.5 |
d1 + 1 |
d1 + 9 |
4.5 ±0.6 |
VA010 |
|
11.5 - 12.5 |
10.5 |
3 |
3.4 |
5.5 |
d1 + 1 |
d1 + 9 |
4.5 ±0.6 |
VA012 |
|
12.5 - 13.5 |
11.7 |
3 |
3.4 |
5.5 |
d1 + 1 |
d1 + 9 |
4.5 ±0.6 |
VA013 |
|
13.5 - 15.5 |
12.5 |
3 |
3.4 |
5.5 |
d1 + 1 |
d1 + 9 |
4.5 ±0.6 |
VA014 |
http://www.foreverseals.com/download.html
