Product details of the piston seal design
Product Description
FOREVER SEALS piston seal design is the one you should never miss as it is with practical and aesthetically-pleasing design. Owing to our strict quality management system, this product is of high quality. FOREVER SEALS has many trustworthy business partners who have been speaking highly of the piston seal design and its service.
1. Description

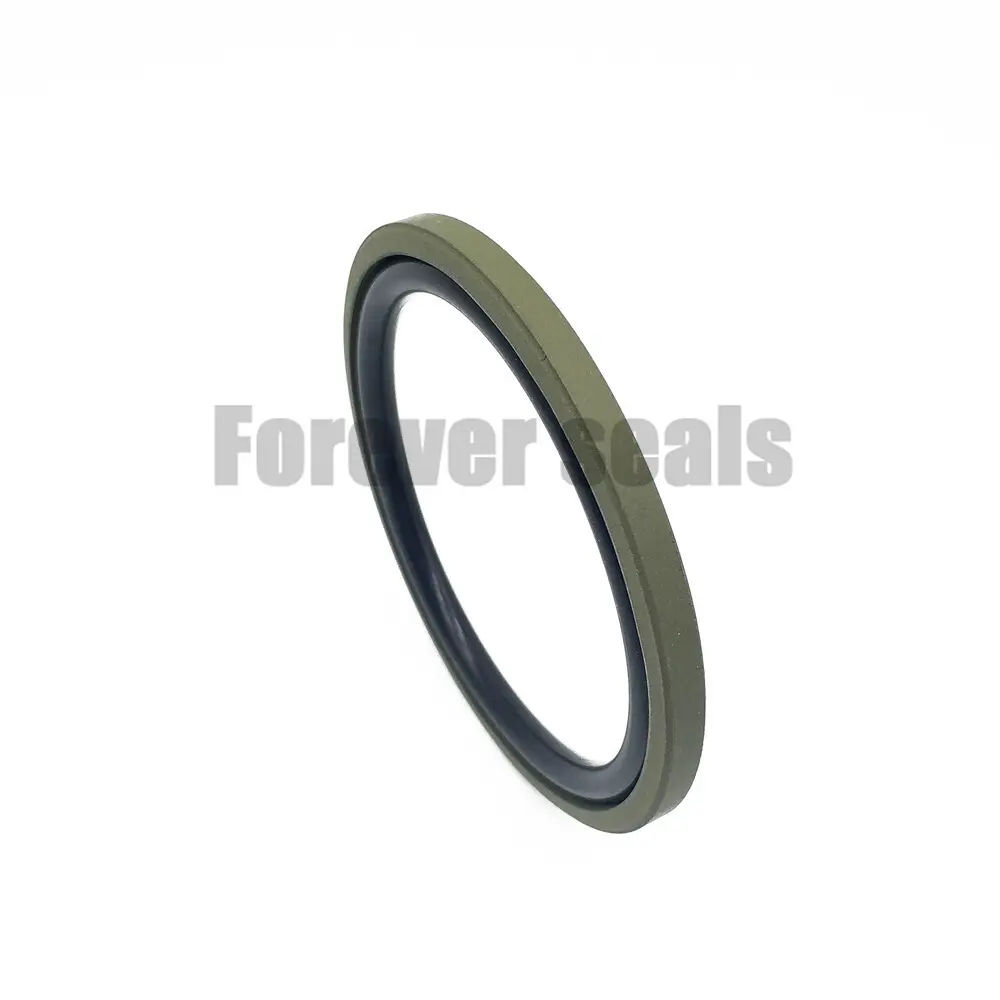

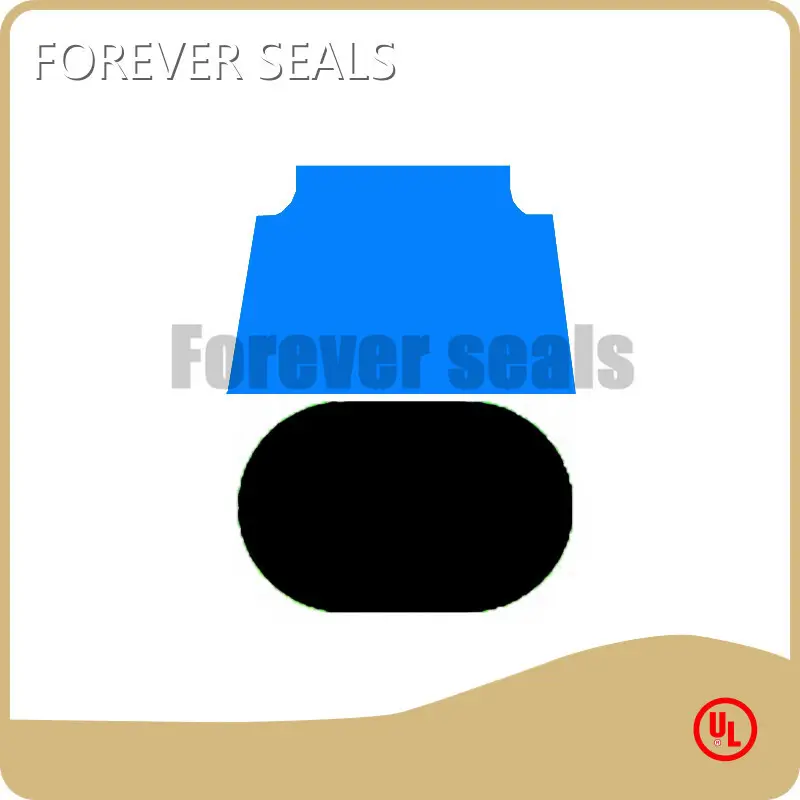

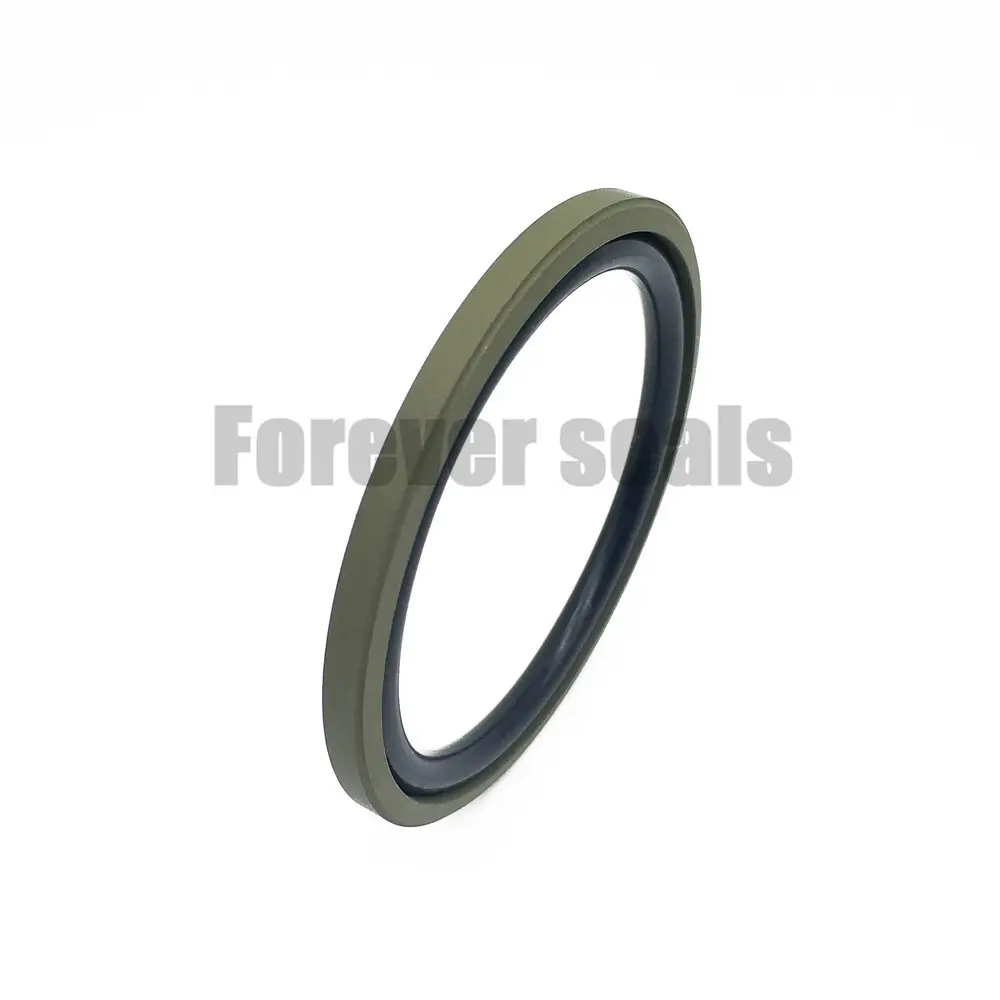

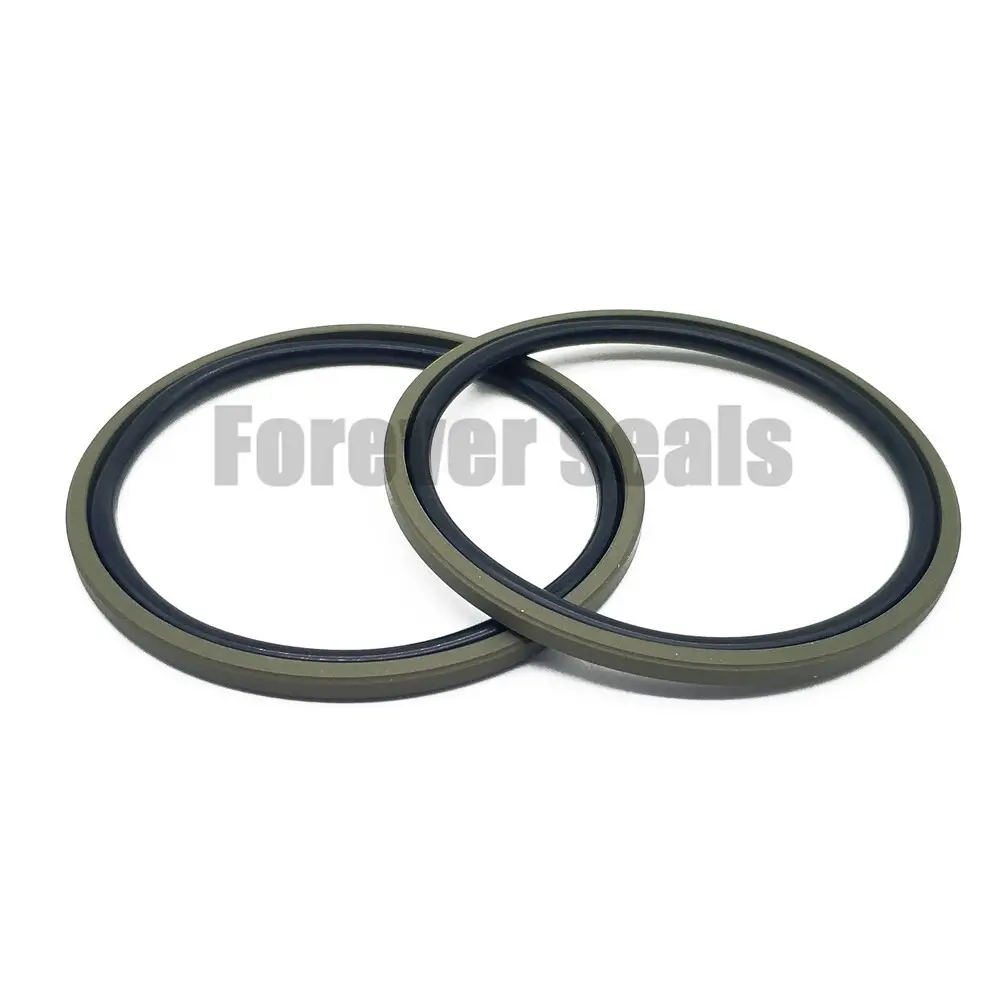

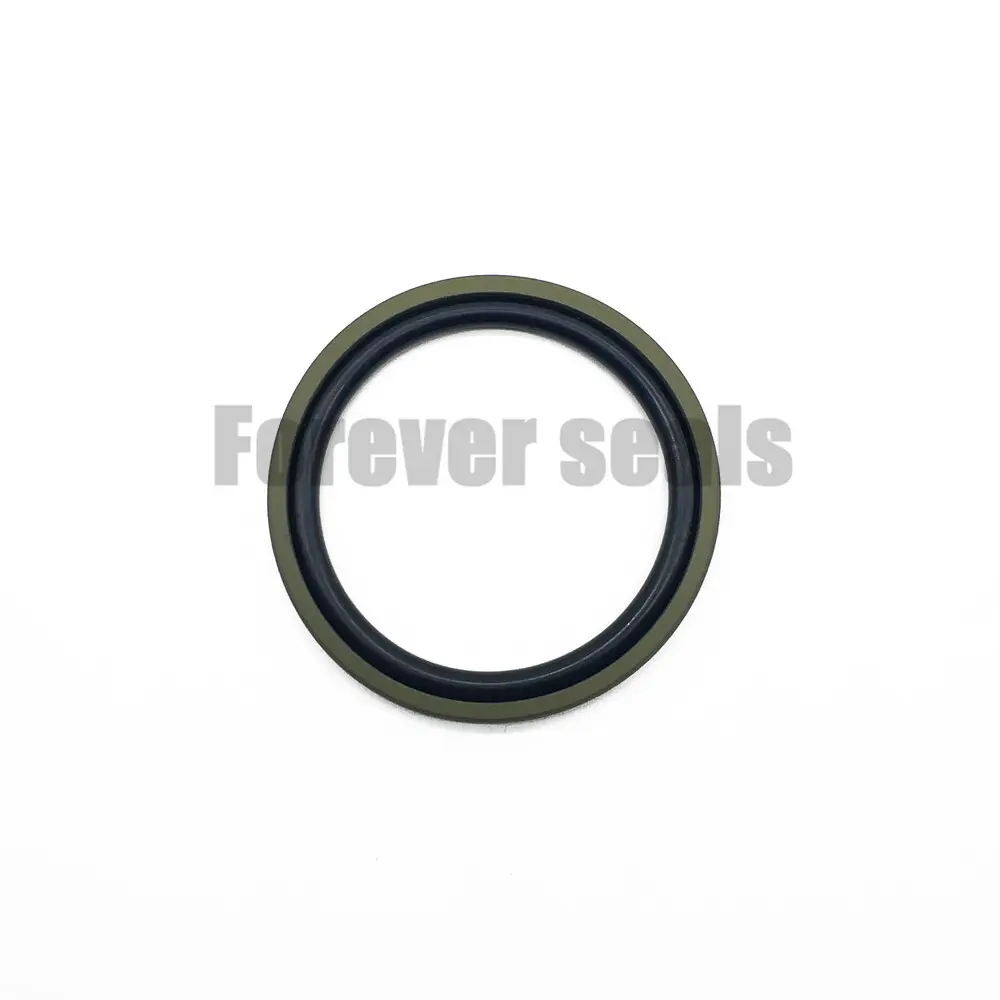

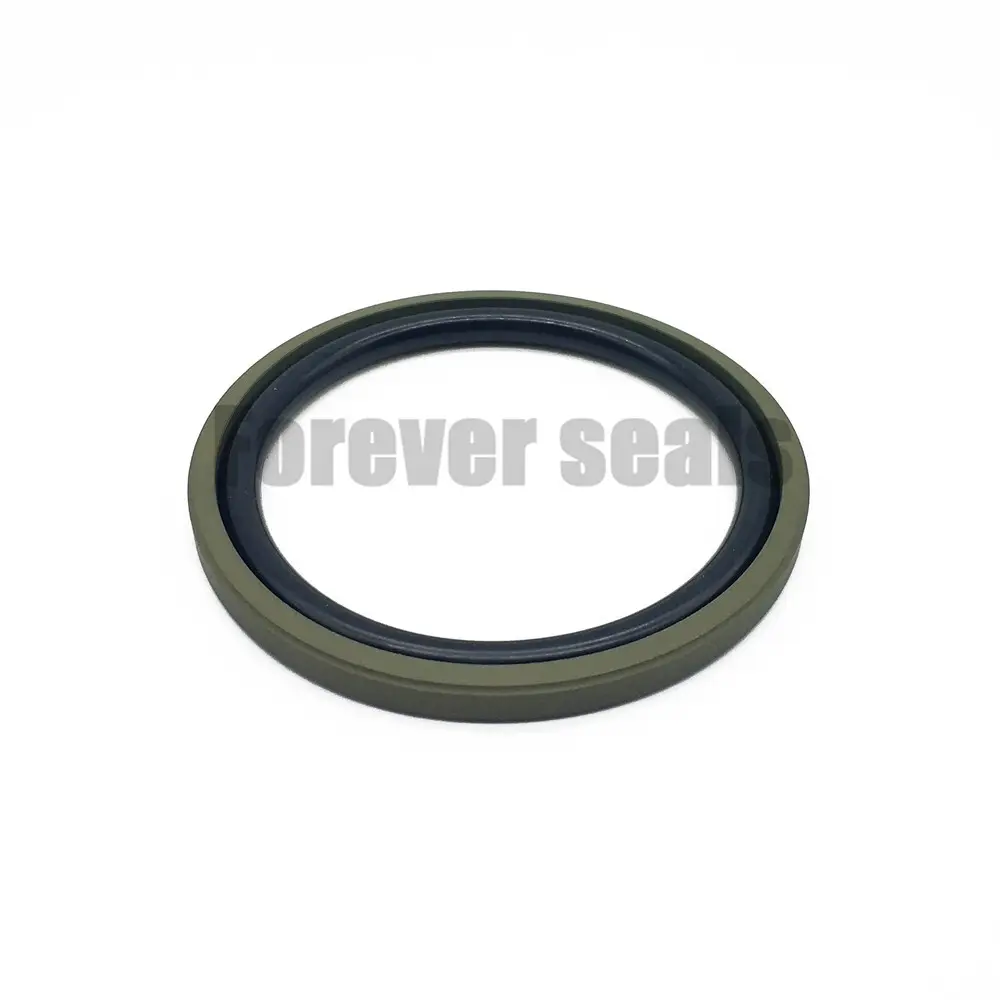

Glyd Ring is a double-acting O-Ring energized piston seal for dynamic applications. Glyd Ring provides low friction with no stick-slip, minimal break out force and high wear resistance. Main application is actuator cylinders. Installed in grooves to ISO 7425.
2. Installation Recommendation
3. Installation dimensions - Standard recommendations
|
Bore Diameter DN H9 |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
O-Ring Cross-Section |
||||
|
Standard Application |
Light Application |
Heavy Duty Application |
d1 h9 |
L1+0.2 |
R1 |
10MPa |
20MPa |
40MPa |
d2 |
|
8-14.9 |
15-39.9 |
- |
DN-4.9 |
2.2 |
0.4 |
0.3 |
0.20 |
0.15 |
1.78 |
|
15-39.9 |
40-79.9 |
- |
DN-7.5 |
3.2 |
0.6 |
0.4 |
0.25 |
0.15 |
2.62 |
|
40-79.9 |
80-132.9 |
15-39.9 |
DN-11.0 |
4.2 |
1.0 |
0.4 |
0.25 |
0.20 |
3.53 |
|
80-132.9 |
133-329.9 |
40-79.9 |
DN-15.5 |
6.3 |
1.3 |
0.5 |
0.30 |
0.20 |
5.33 |
|
133-329.9 |
330-699.9 |
80-132.9 |
DN-21.0 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
330-669.9 |
670-99.9 |
133-329.9 |
DN-24.5 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
670-999.9 |
≥1000 |
330-669.9 |
DN-28.0 |
9.5 |
2.5 |
0.7 |
0.50 |
0.30 |
8.40 |
|
≥1000 |
≥1000 |
≥1000 |
DN-38.0 |
13.8 |
3.0 |
1.0 |
0.70 |
0.60 |
12.00 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
8 - 1600mm |
0 - 60MPa |
-45℃ +200℃ |
15 m/s |
hydraulic oil, flame retardant liquid, water and others |
