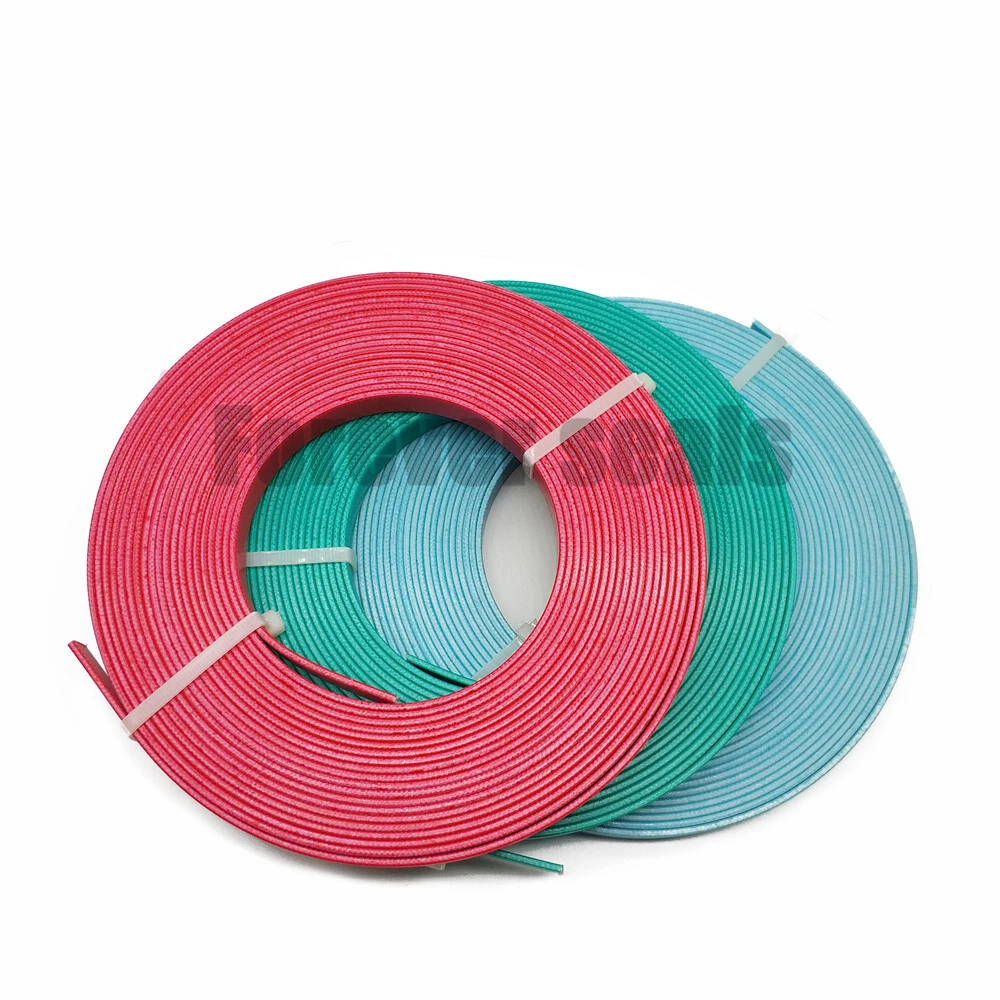

hydraulic cylinder phenolic resin hard guide strip tape wear ring

  • Category: Guide seals
  • Temperature: -40 - +120℃
  • Material: Phenolic resin
  • Color: blue, green, red
  • Application: hydraulic cylidner
  • Product description:hydraulic cylinder phenolic resin hard guide strip tape wear ring
  • INQUIRY   EMAIL

1. Description

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

2. Installation Recommendation

3. Standard materials

Phenolic resin

4. Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

Custom as Required

-55℃ +225℃

15 m/s

hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Length of whole roll

All sizes are 10 mteres each roll.


Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.
