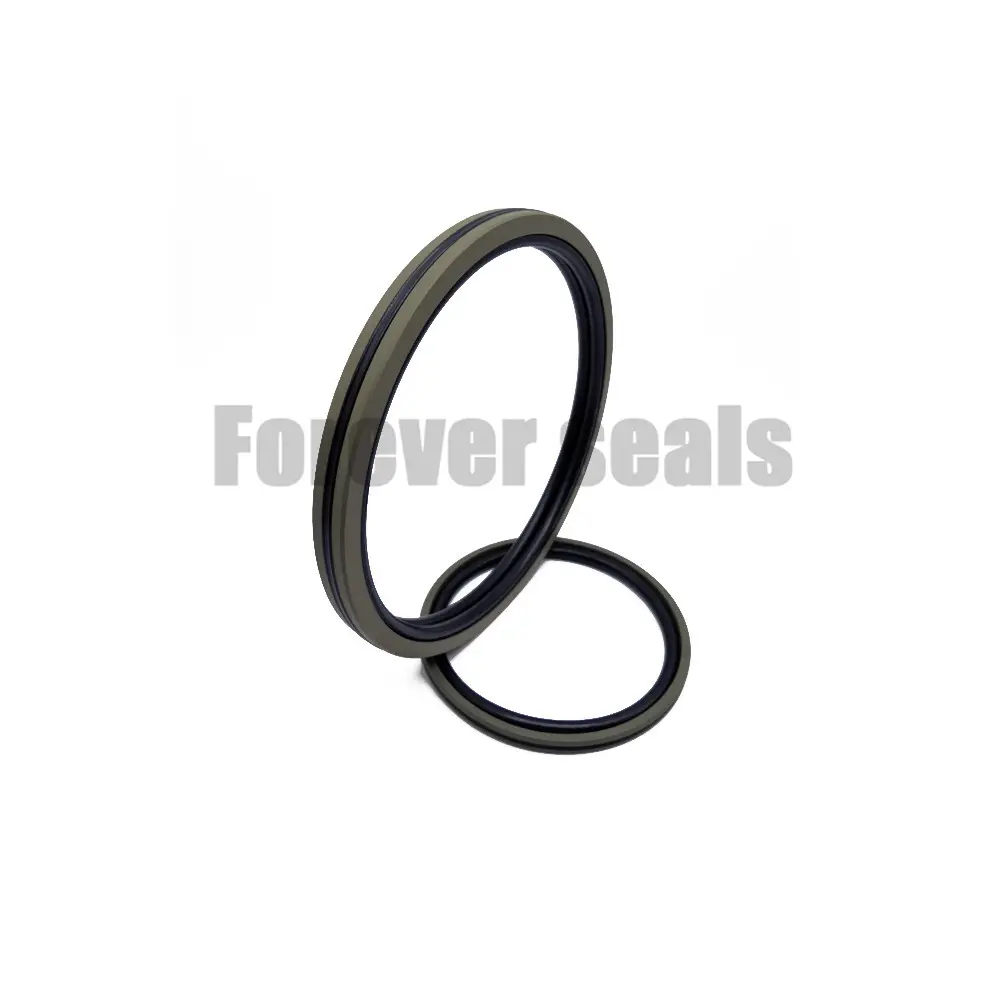

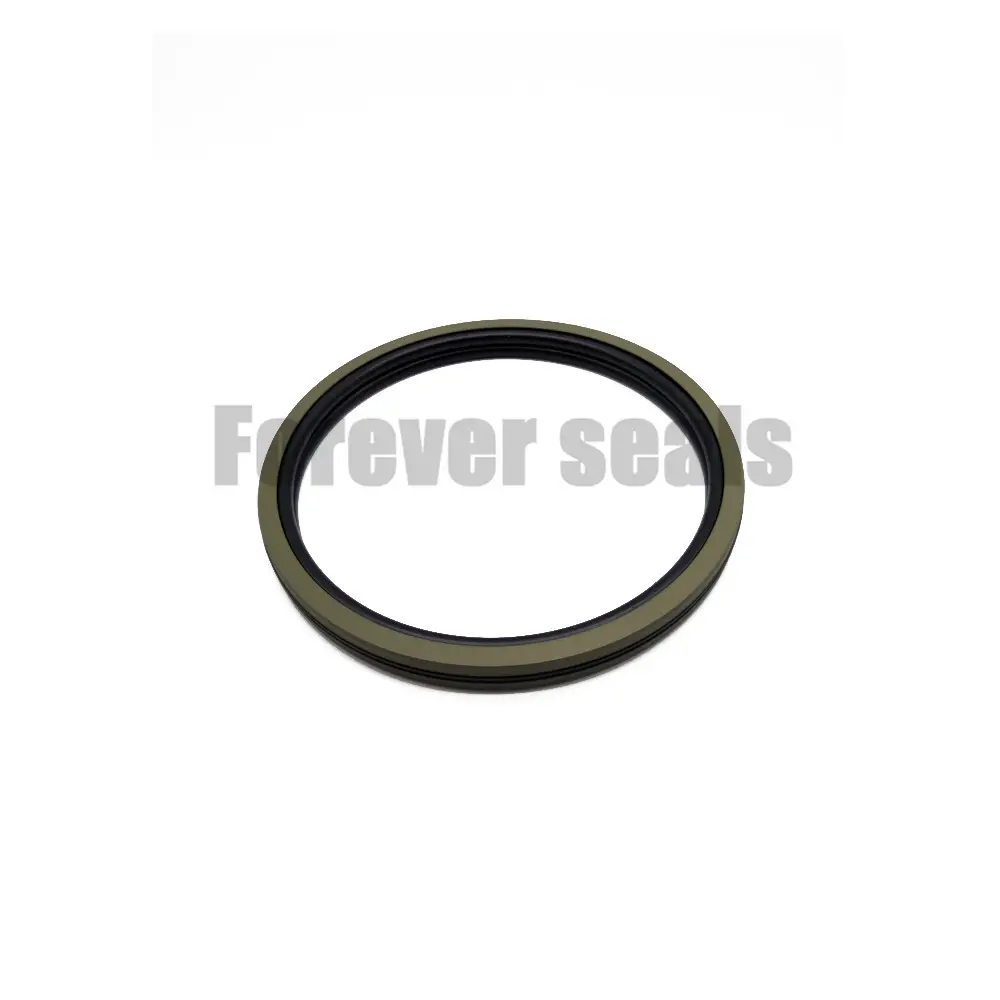

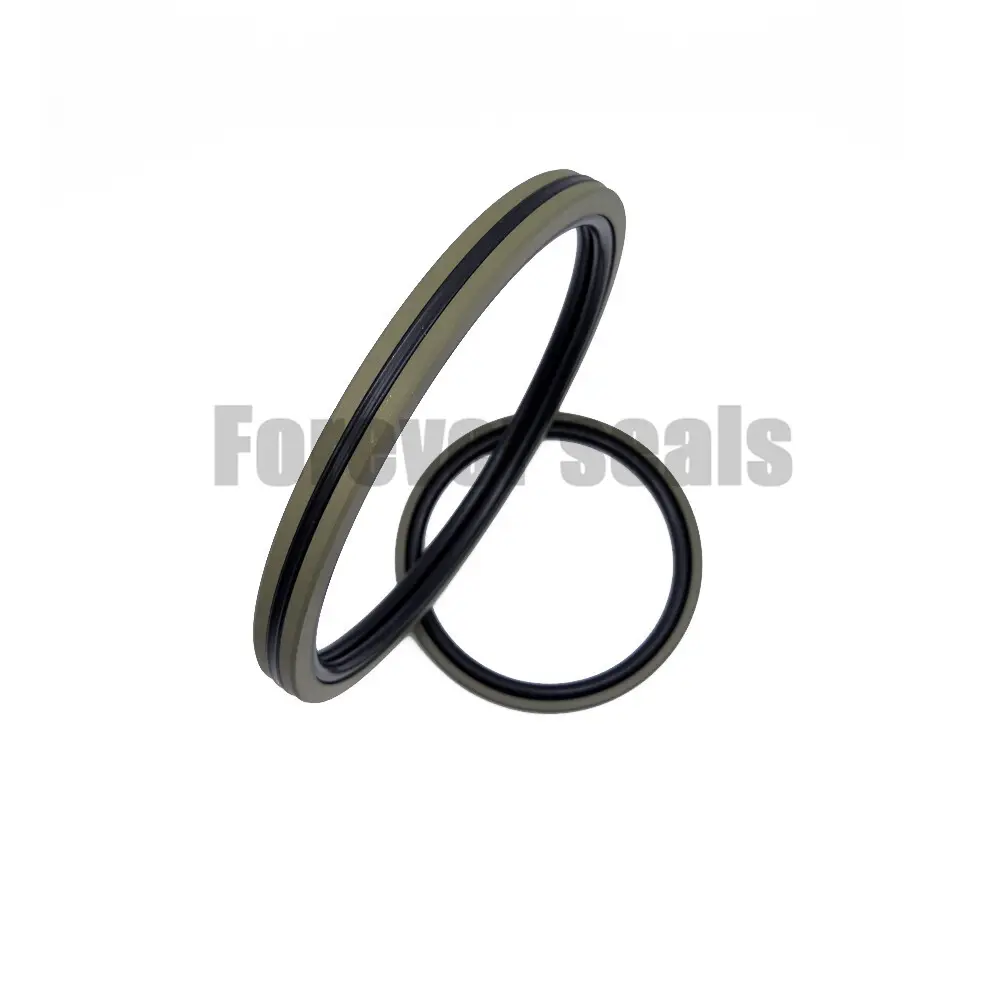

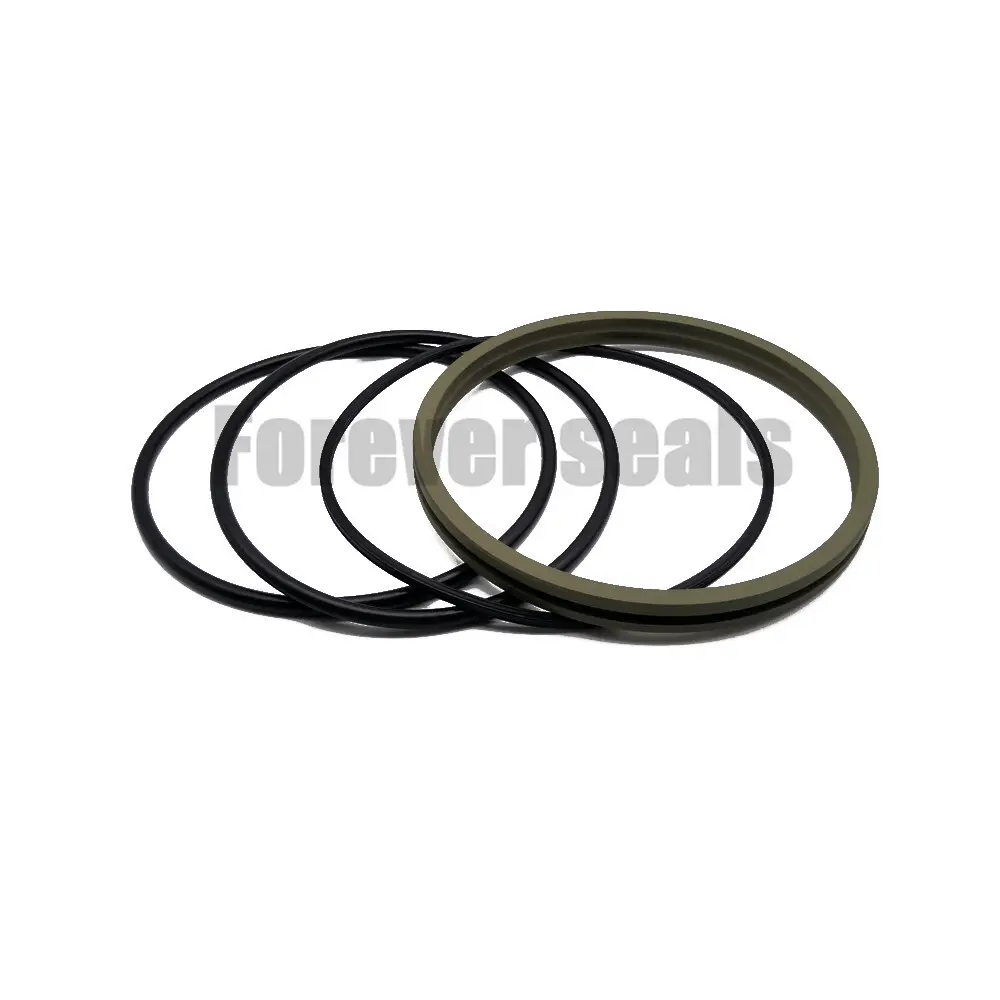

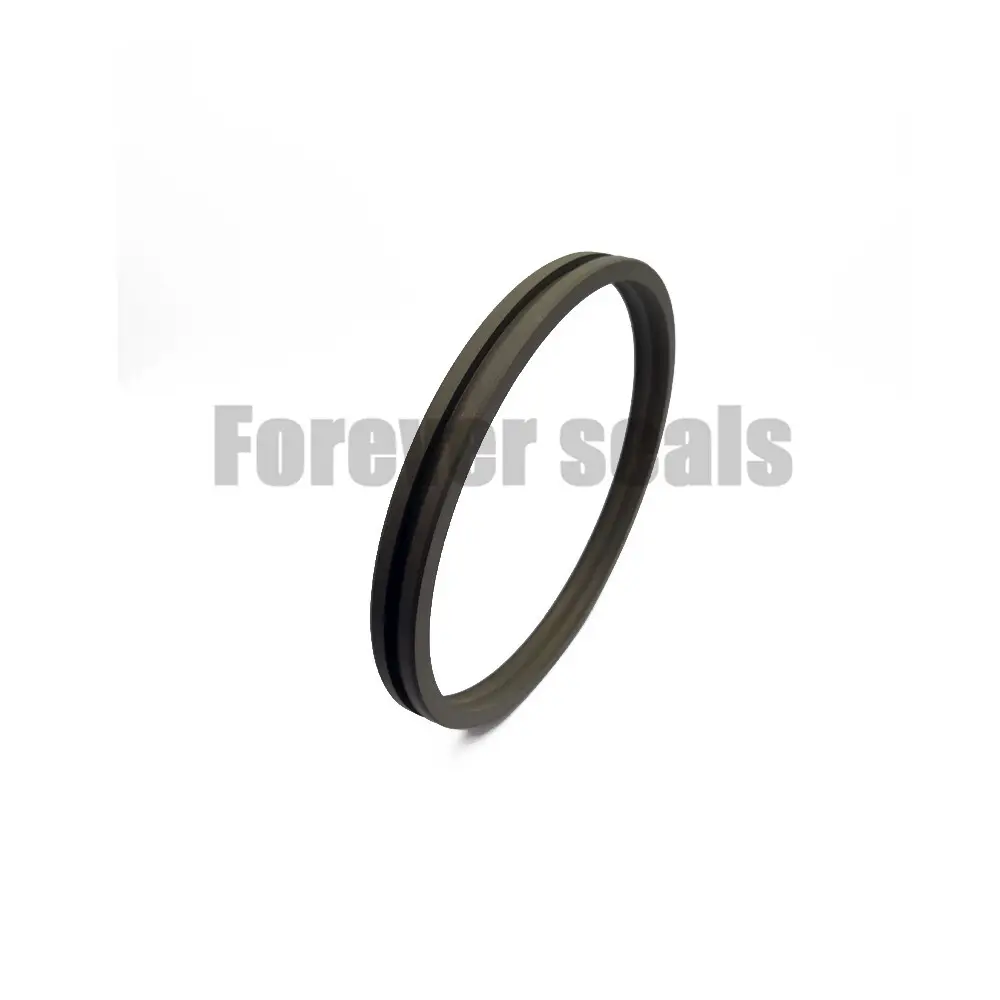

Product details of the pneumatic piston seals
Product Introduction
The production of FOREVER SEALS pneumatic piston seals is carried out according to industry production standard. Its functionality has been technically improved by a professional team. This product has received the trust and praise of the majority of users in the industry.
1. Description
AQ seals apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.
2. Installation Recommendation
3. Installation Sizes
|
Bore Diameter DN H9 |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
O-Ring Cross Section |
X-Ring Seal Cross Section |
|||
|
Standard Application |
Light Application |
d1 h9 |
L1+0.2 |
R1 |
10MPa |
20MPa |
30MPa |
d2 |
W |
|
15 - 39.9 |
40 - 79.9 |
DN - 11.0 |
4.2 |
1.0 |
0.25 |
0.15 |
0.10 |
3.53 |
1.78 |
|
40 - 79.9 |
80 - 132.9 |
DN - 15.5 |
6.3 |
1.3 |
0.3 |
020 |
0.15 |
5.33 |
1.78 |
|
80 - 132.9 |
133 - 252.9 |
DN - 21.0 |
8.1 |
1.8 |
0.3 |
0.20 |
0.15 |
7.00 |
2.62 |
|
133 - 252.9 |
-- |
DN - 24.5 |
8.1 |
1.8 |
0.3 |
0.20 |
0.15 |
7.00 |
2.62 |
|
253 - 462.9 |
-- |
DN - 28.0 |
9.5 |
2.5 |
0.45 |
0.30 |
0.25 |
8.40 |
3.53 |
|
463 - 700 |
-- |
DN - 35.0 |
11.5 |
3.0 |
0.55 |
0.40 |
0.35 |
10.00 |
5.33 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
16 - 1600mm |
0－40MPa |
-30℃ +200℃ |
2 m/s |
hydraulic oil, flame retardant liquid, water and others |
6. Installation Dimensions
Bore Dia.
Groove Dia.
Groove Width
Order No.
O-Ring Dimension
d h9
D1 H9
L1+0.2
40
42
45
30
32
35
6.3
6.3
6.3
DAQ2-40*30*6.3
DAQ2-42*32*6.3
DAQ2-45*35*6.3
29.82*2.62
31.42*2.62
34.59*2.62
48
50
52
38
40
42
6.3
6.3
6.3
DAQ2-48*38*6.3
DAQ2-50*40*6.3
DAQ2-52*42*6.3
37.77*2.62
39.34*2.62
40.94*2.62
55
60
63
45
50
53
6.3
6.3
6.3
DAQ2-55*45*6.3
DAQ2-60*50*6.3
DAQ2-63*53*6.3
44.12*2.62
48.90*2.62
52.07*2.62
65
70
75
55
60
65
6.3
6.3
6.3
DAQ2-65*55*6.3
DAQ2-70*60*6.3
DAQ2-75*65*6.3
53.64*2.62
58.42*2.62
63.17*2.62
80
85
90
67
72
77
8.3
8.3
8.3
DAQ2-80*67*8.3
DAQ2-85*72*8.3
DAQ2-90*77*8.3
66.27*3.53
69.44*3.53
75.79*3.53
95
100
105
82
87
92
8.3
8.3
8.3
DAQ2-95*82*8.3
DAQ2-100*87*8.3
DAQ2-105*92*8.3
78.97*3.53
85.32*3.53
91.67*3.53
