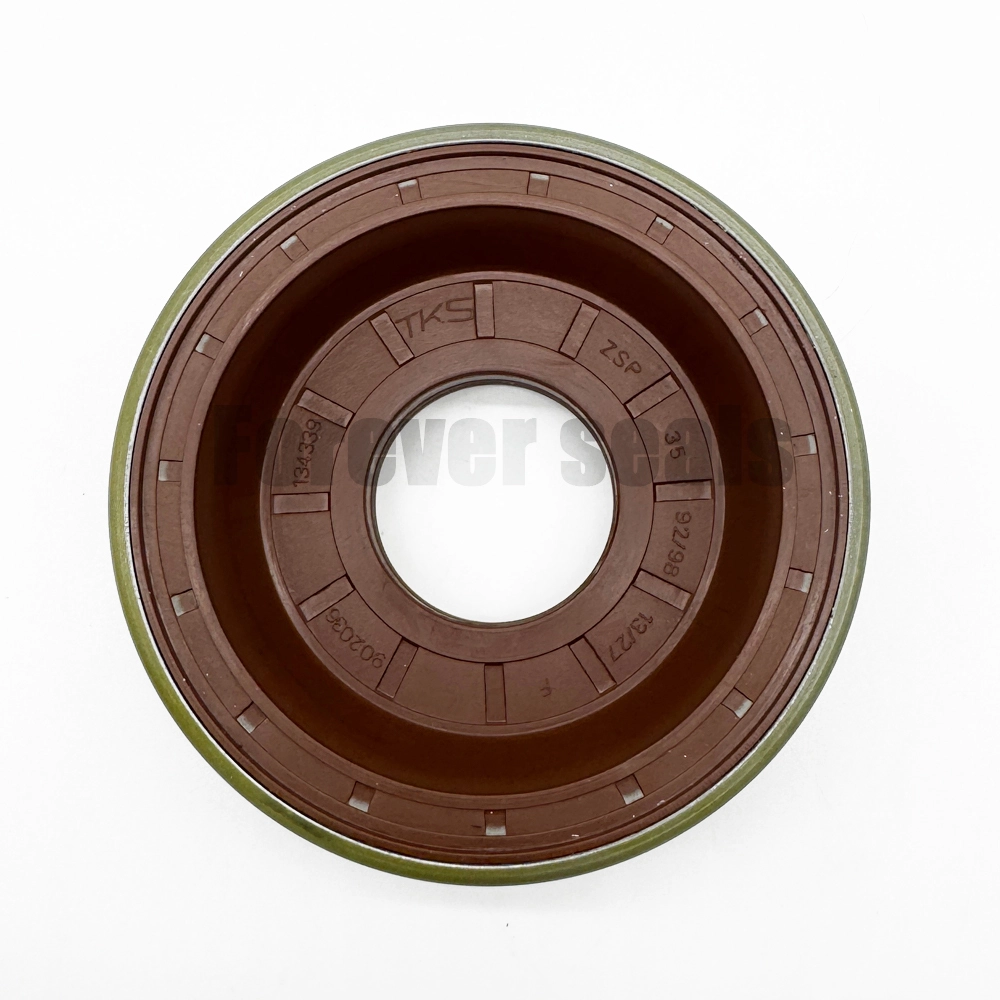

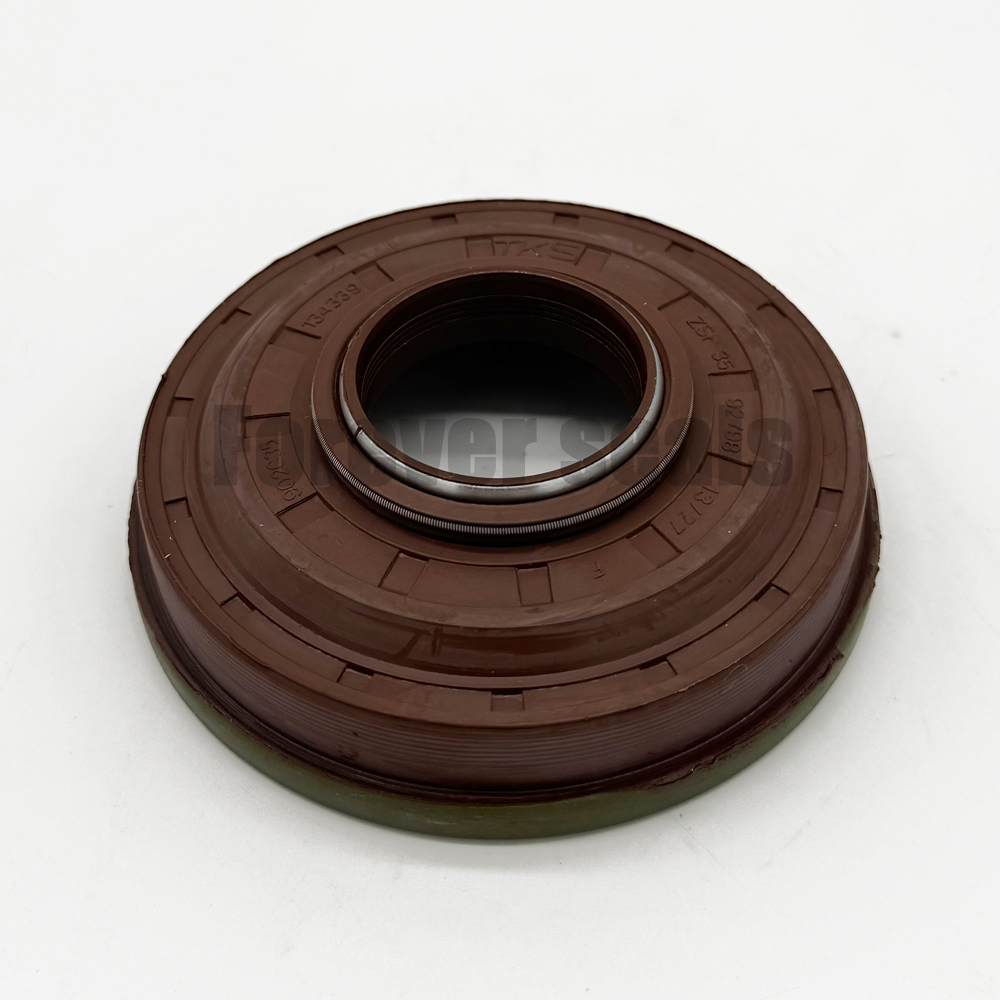

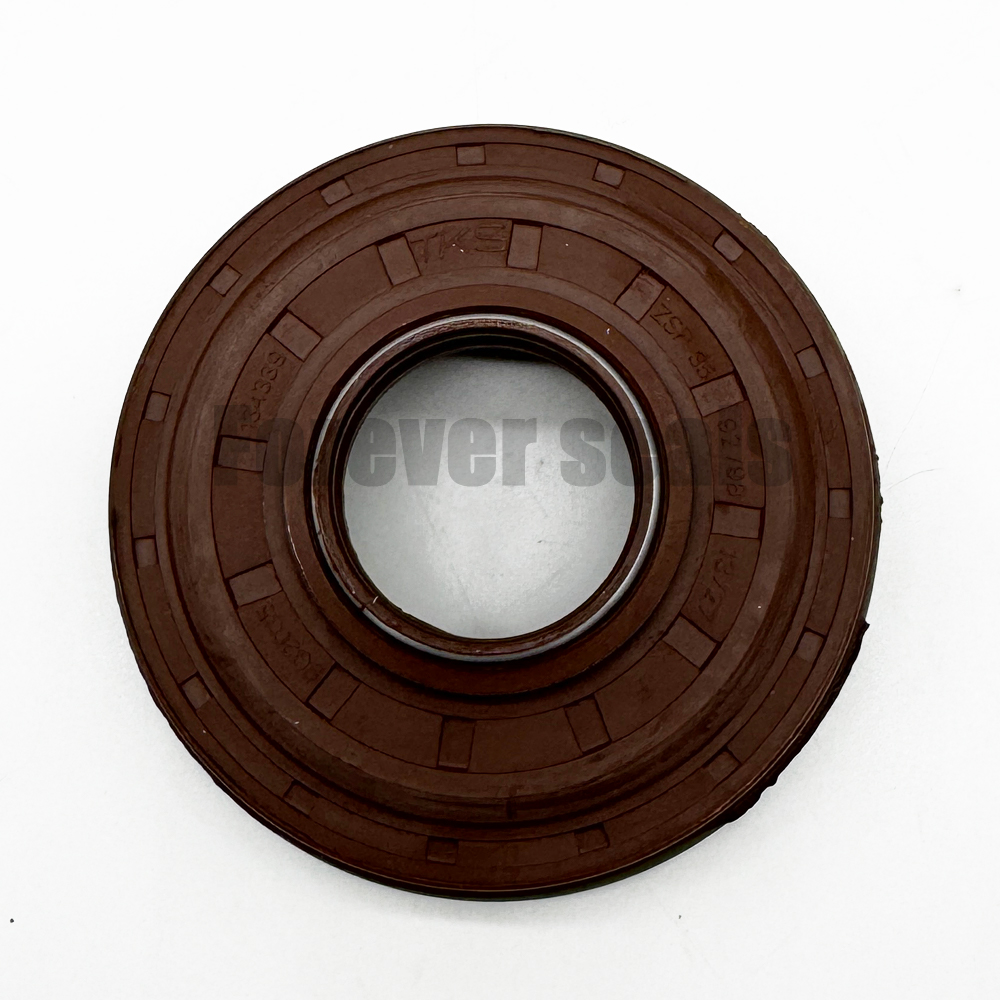

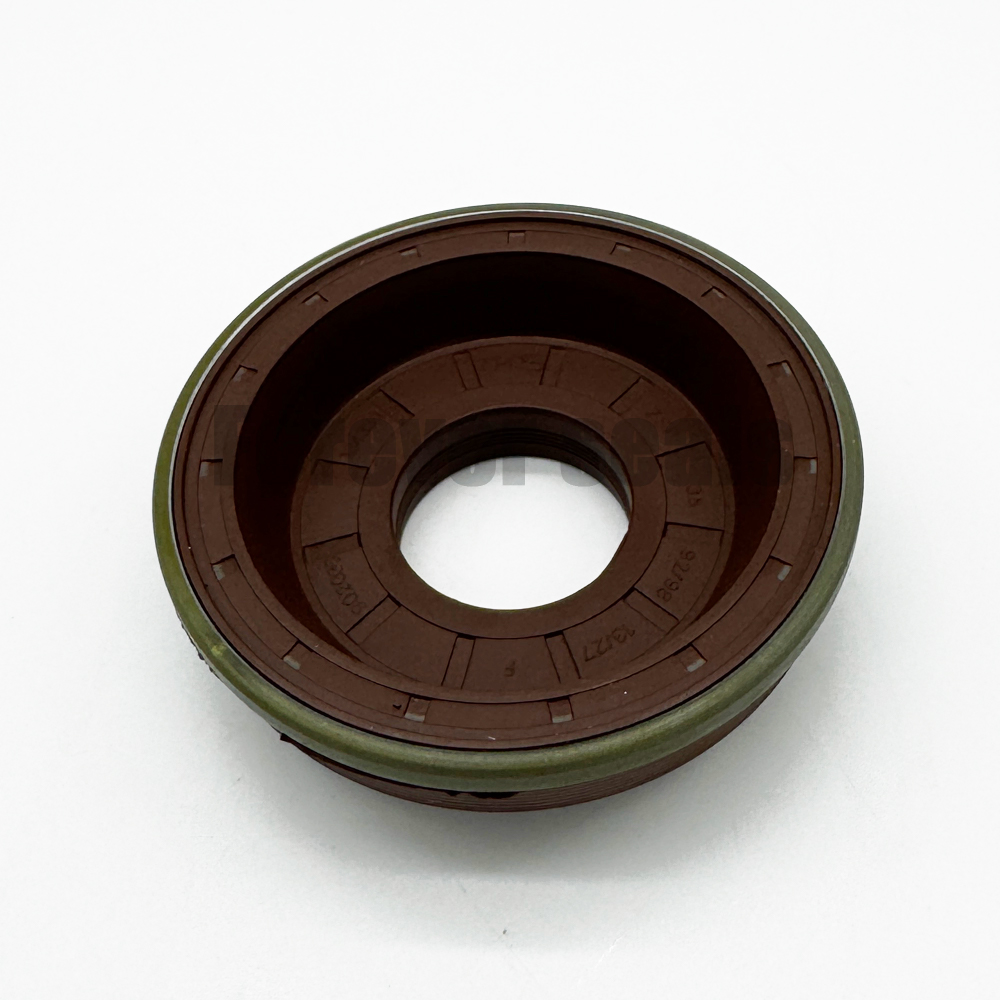

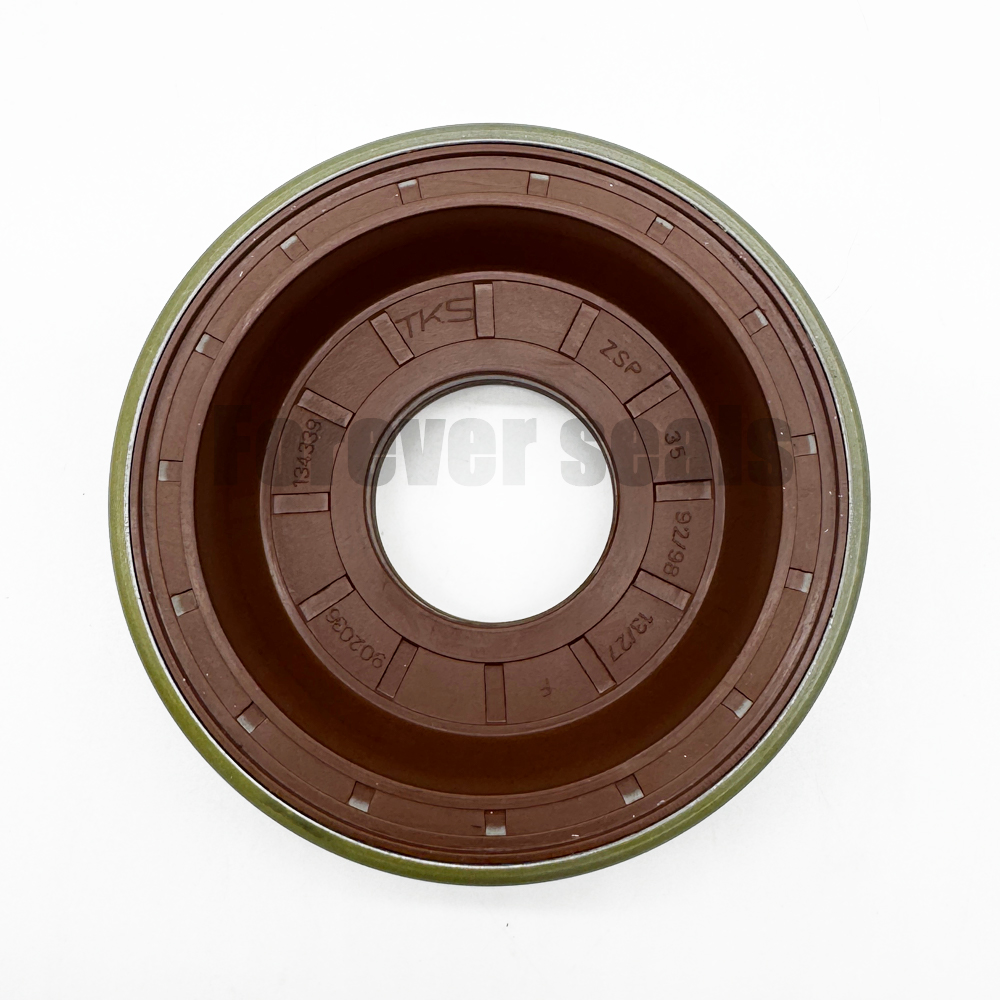

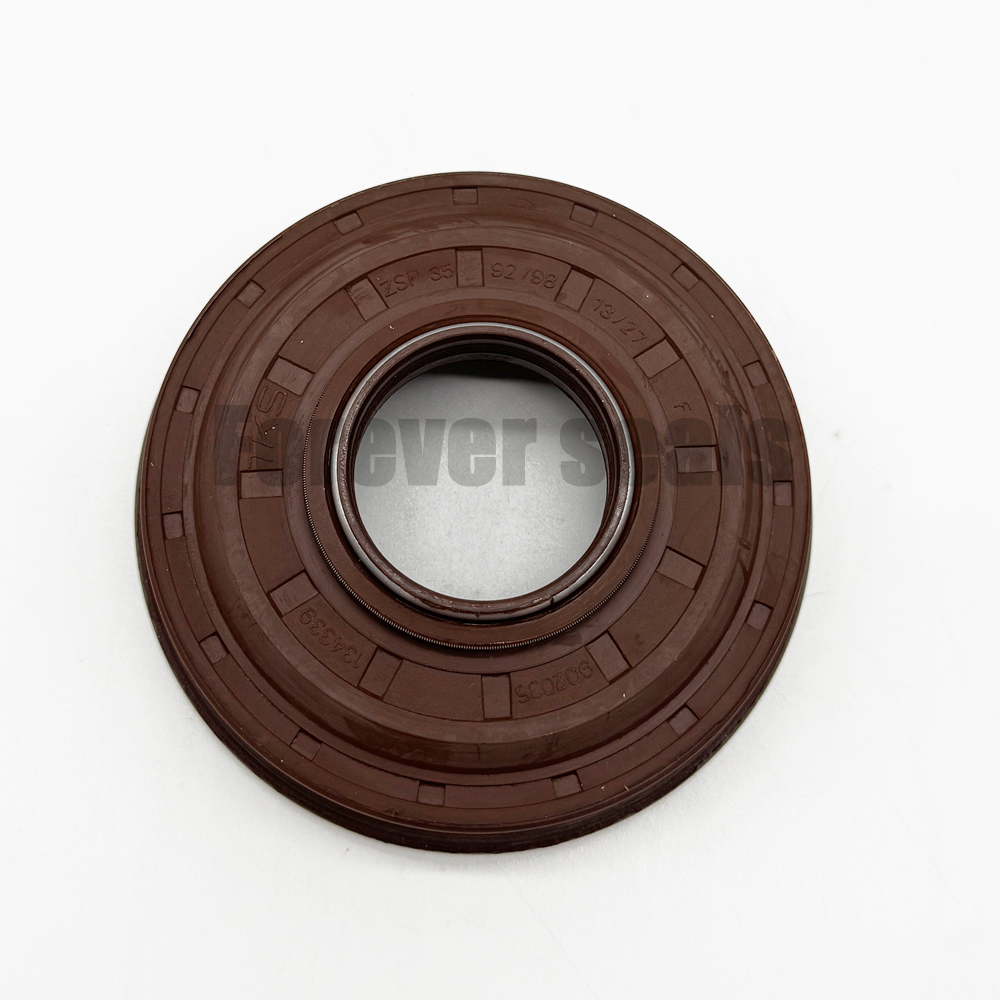

Industrial Machinery Box Type Oil Seal 35×92/98×13/27
Ideal for Pumps, Motors & Heavy-Duty Machinery
The 35×92/98×13/27 Box Type Oil Seal is a versatile, industrial-grade sealing component engineered for rotating shaft systems. Featuring dual outer diameter options (92mm/98mm) and a 35mm shaft fit, it seamlessly adapts to a wide range of equipment including pumps, motors and gearboxes. Crafted with durable materials to resist wear, temperature fluctuations and mechanical stress, it effectively prevents oil leakage and dust ingress, ensuring stable operation and extended service life for heavy-duty machinery in demanding working environments.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Product Advantages
- Dual-Spec Versatility: With dual outer diameter options (92mm/98mm) and a 35mm shaft fit, this seal eliminates the need for multiple inventory SKUs, reducing storage costs and streamlining installation for diverse equipment.
- Durable Sealing Performance: Made of high-quality rubber and reinforced skeleton structure, it resists wear, high temperature, and mechanical deformation, ensuring long-lasting protection against oil leakage and dust ingress.
- Cost-Effective Solution: Reduces equipment maintenance frequency and downtime, delivering excellent value for long-term industrial operations.
2. Working Principle
The box type oil seal relies on its precision-molded lip structure to form a tight contact with the rotating shaft. When the shaft operates, the lip adheres closely to the shaft surface, creating a dynamic sealing barrier. The reinforced skeleton enhances the seal’s structural stability, preventing deformation under pressure. Meanwhile, the seal’s design effectively blocks external contaminants (dust, debris) from entering the equipment while retaining internal lubricants, ensuring smooth operation of rotating components.
3. Product Details
- Model: 35×92/98×13/27
- Structure: Box type with metal skeleton reinforcement
- Material: Nitrile Rubber (NBR) as standard (customizable to Viton® for high-temperature needs)
- Precision Sizing: Strict dimensional tolerance control ensures perfect compatibility with target shafts and housing bores, avoiding installation gaps.
4. Application Range
This industrial-grade seal is widely applicable to:
- Heavy-duty machinery: Construction equipment, mining machinery, agricultural machinery
- Fluid handling equipment: Pumps, compressors, hydraulic systems
- Power transmission equipment: Motors, gearboxes, generators
5. FAQ
Q1: Can this seal be used in high-temperature environments?
A1: Our standard NBR seal works for temperatures ranging from -20℃ to 120℃. For higher temperatures (up to 200℃), we offer custom Viton® material options. Please contact our sales team for details.
Q2: What is the difference between the 92mm and 98mm outer diameters?
A2: The two outer diameter options are designed to fit different housing bore sizes of equipment, allowing one seal model to meet two installation requirements, optimizing inventory management.
Q3: How to ensure correct installation?
A3: Please clean the shaft and housing bore before installation, avoid sharp edges scratching the seal lip, and ensure the seal is fully seated in the bore without tilting.
6. Enterprise Selling Points (Forever Seals)
- 15+ Years of Expertise: We are a professional seal manufacturer with over 15 years of experience in R&D and production, mastering core sealing technology.
- Customization Capability: We provide tailored solutions for special materials, sizes, and performance requirements to meet unique customer needs.
- Quality Assurance: All products pass ISO 9001 quality certification, with strict testing procedures from raw material selection to finished product delivery, ensuring consistent quality.
- Global Service Network: We offer timely after-sales support and fast delivery, serving customers in over 50 countries and regions worldwide.
