Product details of the hydraulic piston seal
Product Overview
FOREVER SEALS hydraulic piston seal is designed by a team with professional design experiences in the industry for years. This product is vigilantly examined by our quality testing department. hydraulic piston seal developed and produced by our company can be widely used in various industries and professional fields. FOREVER SEALS TECHNOLOGY.,LIMITED will be highly responsible for the quality of hydraulic piston seal.
Product Introduction
We are confident about the exquisite details of hydraulic piston seal.
1. Description

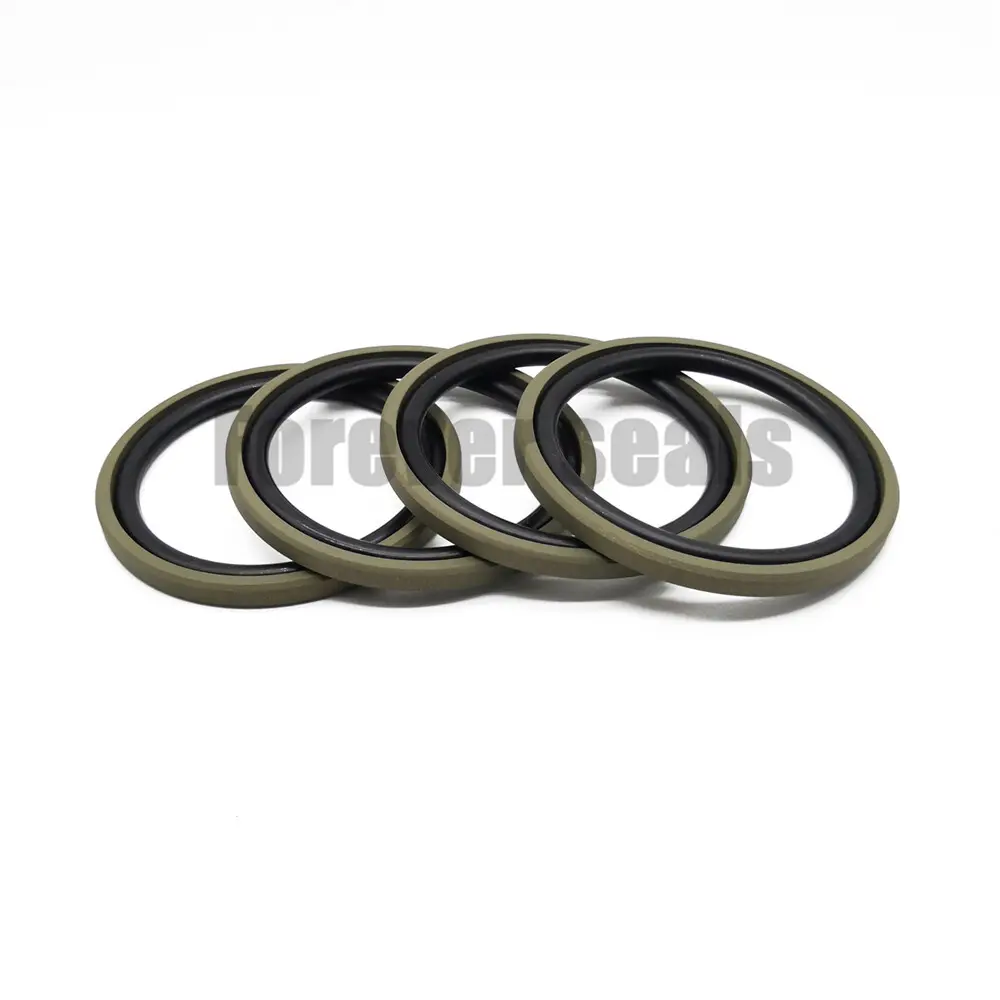

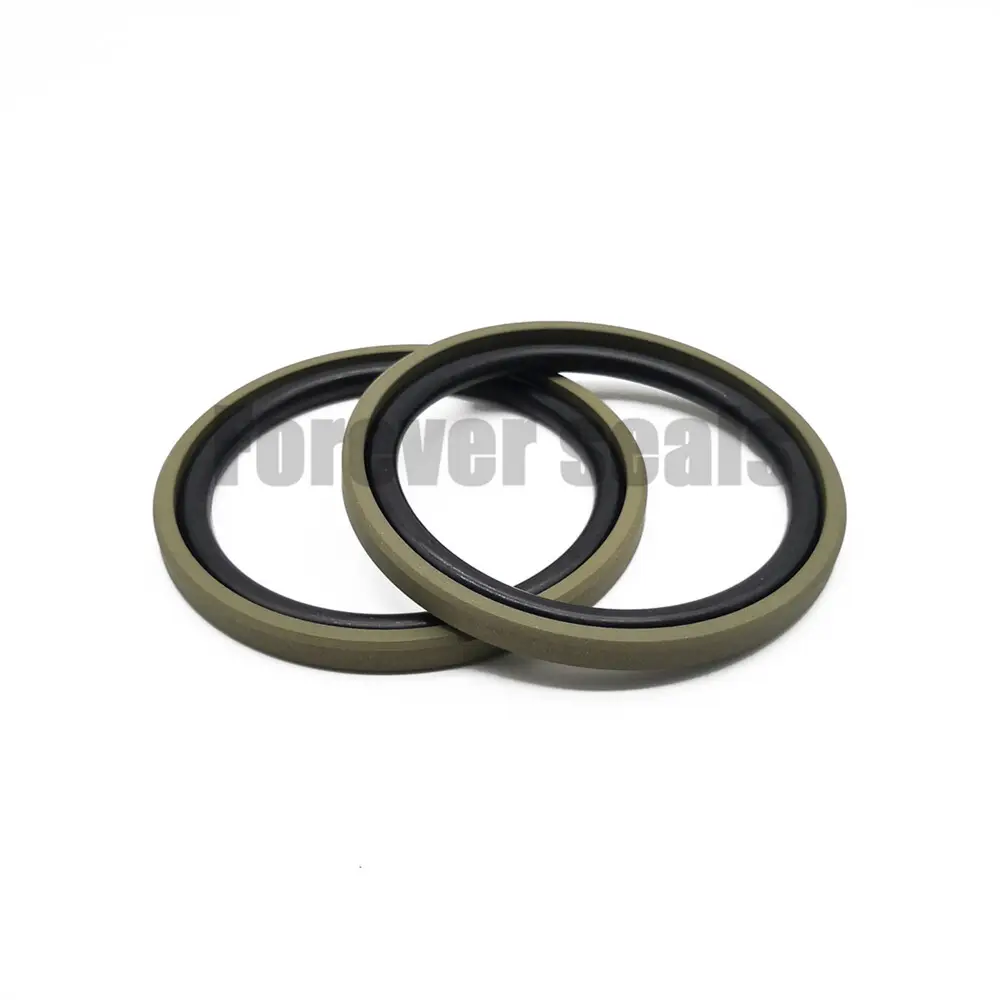

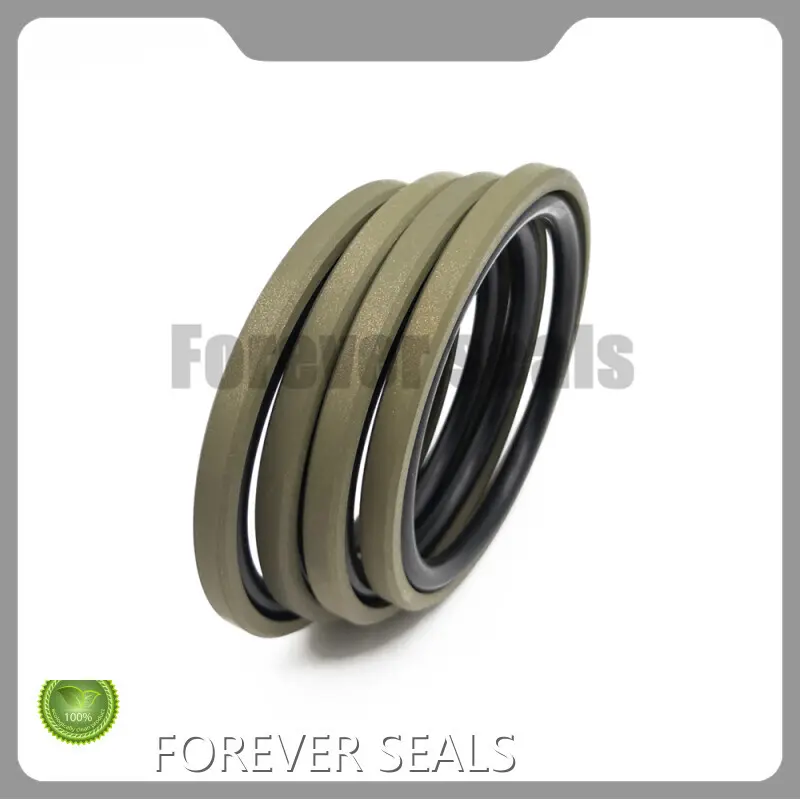

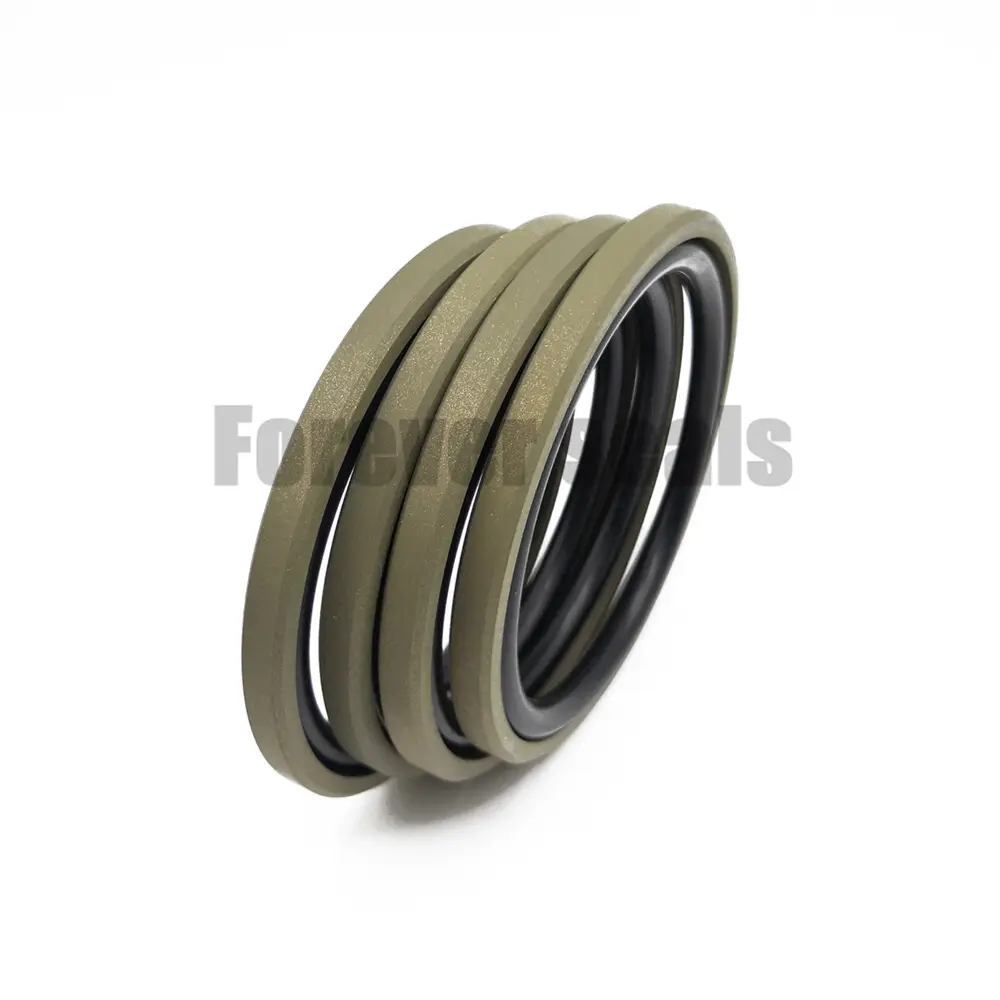

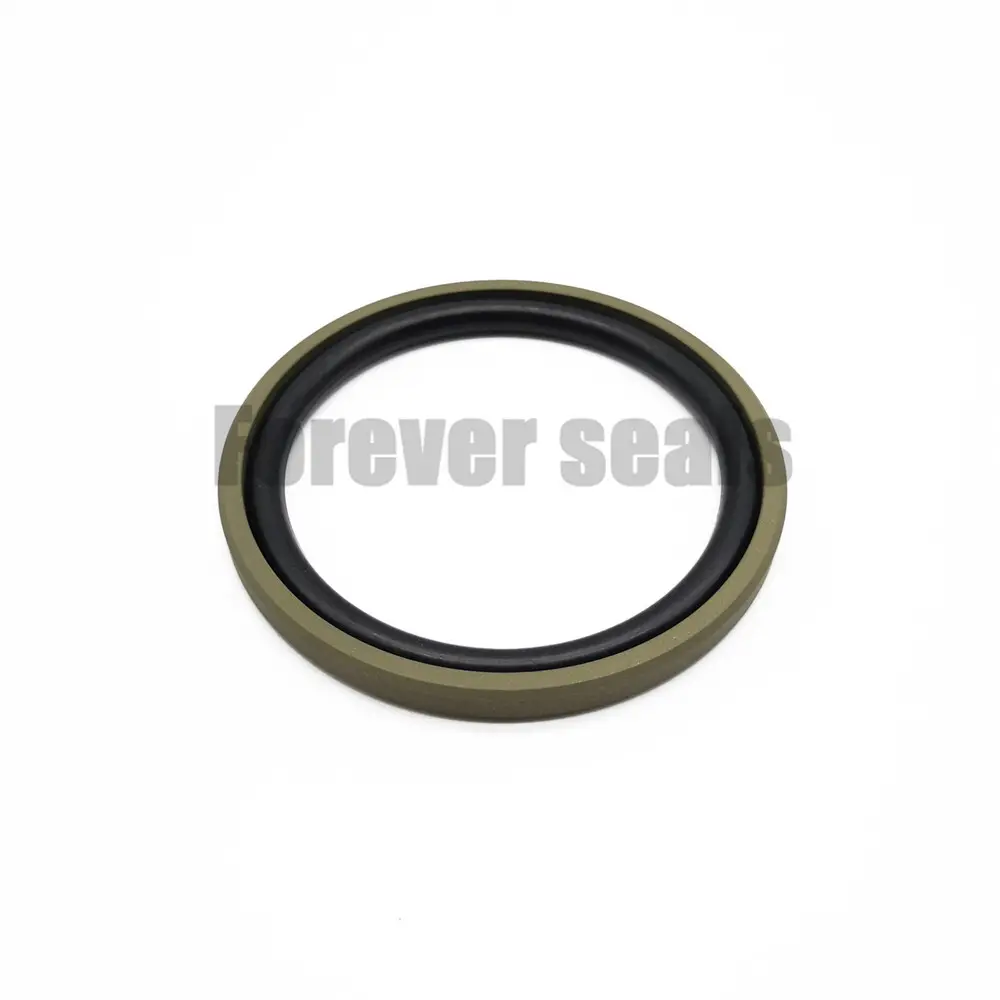

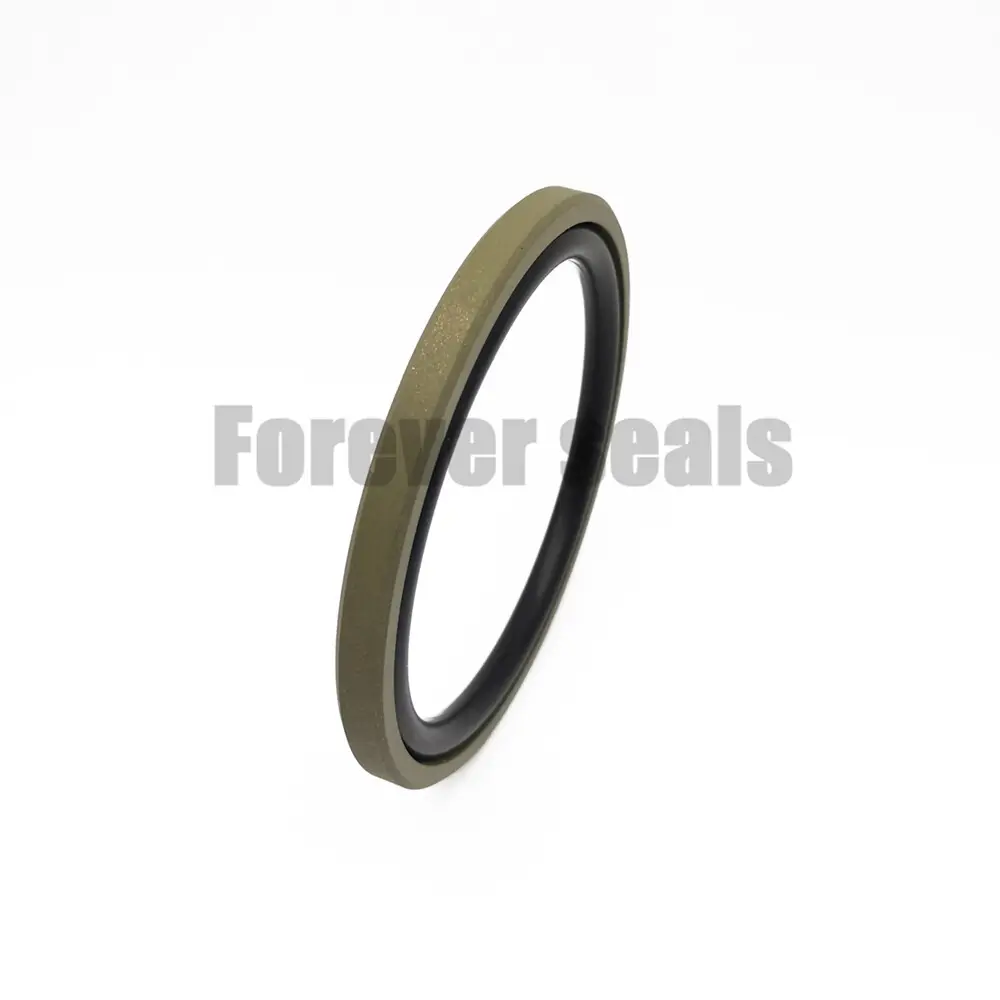

Glyd Ring is a double-acting O-Ring energized piston seal for dynamic applications. Glyd Ring provides low friction with no stick-slip, minimal break out force and high wear resistance. Main application is actuator cylinders. Installed in grooves to ISO 7425.
2. Installation Recommendation
3. Installation dimensions - Standard recommendations
|
Bore Diameter DN H9 |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
O-Ring Cross-Section |
||||
|
Standard Application |
Light Application |
Heavy Duty Application |
d1 h9 |
L1+0.2 |
R1 |
10MPa |
20MPa |
40MPa |
d2 |
|
8-14.9 |
15-39.9 |
- |
DN-4.9 |
2.2 |
0.4 |
0.3 |
0.20 |
0.15 |
1.78 |
|
15-39.9 |
40-79.9 |
- |
DN-7.5 |
3.2 |
0.6 |
0.4 |
0.25 |
0.15 |
2.62 |
|
40-79.9 |
80-132.9 |
15-39.9 |
DN-11.0 |
4.2 |
1.0 |
0.4 |
0.25 |
0.20 |
3.53 |
|
80-132.9 |
133-329.9 |
40-79.9 |
DN-15.5 |
6.3 |
1.3 |
0.5 |
0.30 |
0.20 |
5.33 |
|
133-329.9 |
330-699.9 |
80-132.9 |
DN-21.0 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
330-669.9 |
670-99.9 |
133-329.9 |
DN-24.5 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
670-999.9 |
≥1000 |
330-669.9 |
DN-28.0 |
9.5 |
2.5 |
0.7 |
0.50 |
0.30 |
8.40 |
|
≥1000 |
≥1000 |
≥1000 |
DN-38.0 |
13.8 |
3.0 |
1.0 |
0.70 |
0.60 |
12.00 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
8 - 1600mm |
0 - 60MPa |
-45℃ +200℃ |
15 m/s |
hydraulic oil, flame retardant liquid, water and others |
6. Installation Dimensions
Bore Dia.
Groove Dia.
Groove Width
Order No.
O-Ring Dimensions
8
10
12
3.1
5.1
7.1
2.2
2.2
2.2
GSF8*3.1*2.2
GSF10*5.1*2.2
GSF12*7.1*2.2
2.90*1.78
4.80*1.8
6.70*1.8
14
15
15
9.1
10.1
7.5
2.2
2.2
3.2
GSF14*9.1*2.2
GSF15*10.1*2.2
GSF15*7.5*3.2
8.75*1.8
7.59*2.62
8.75*1.8
16
16
18
11.1
8.5
13.1
2.2
3.2
2.2
GSF16*11.1*2.2
GSF16*8.5*3.2
GSF18*13.1*2.2
10.82*1.78
7.59*2.62
12.42*1.78
18
20
20
10.5
15.1
12.5
3.2
2.2
3.2
GSF18*10.5*3.2
GSF20*15.1*2.2
GSF20*12.5*3.2
9.19*2.62
14.00*1.78
12.37*2.62
About more dimensions, you can download it through below link.
http://www.foreverseals.com/download.html
7. Seals Selctions
8. Contact us
FOREVER SEALS TECHNOLOGY CO.,LIMITED Tel: 0757-87333601 Phone: +86-18098184099 Wechat: foreverseals Whatsapp: +86-18098184099 E-mail: sales@foreverseals.com Address: No. 327, Guangyun Road, Nanhai District, Foshan city, Guangdong Province, P.R China
