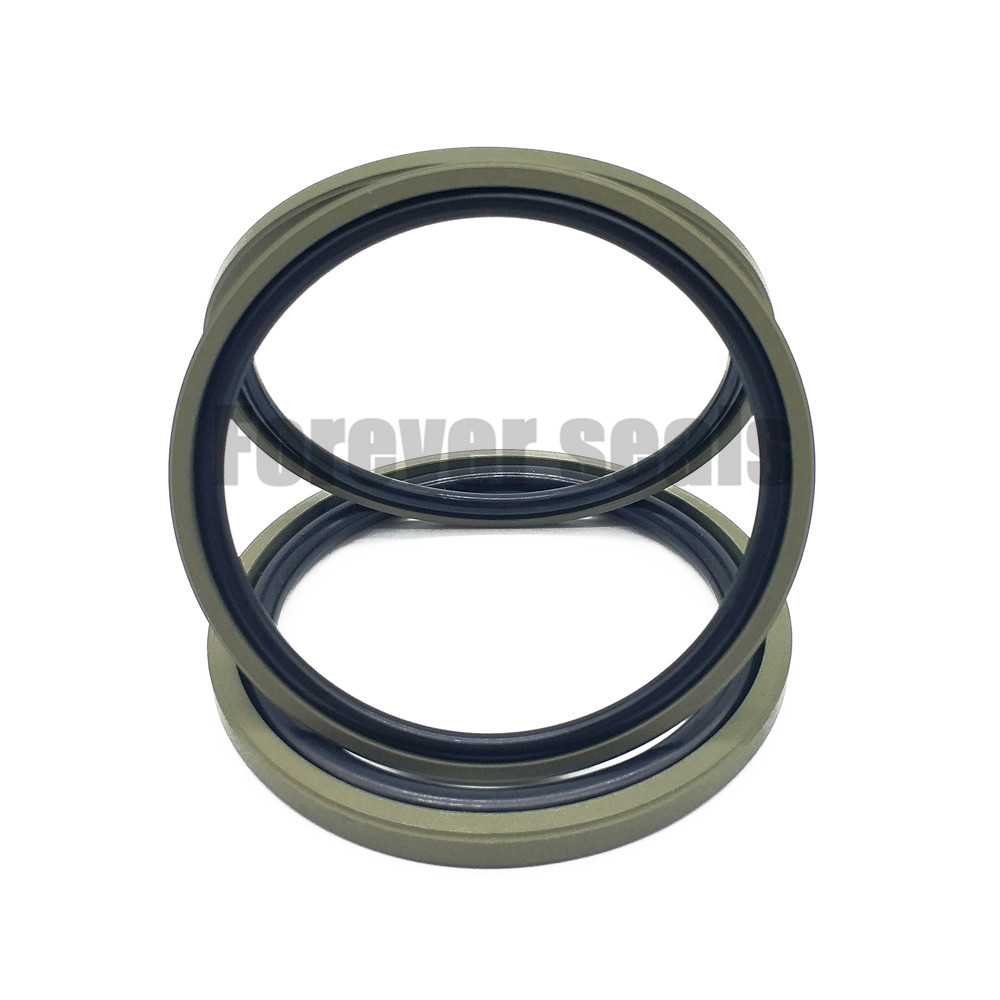

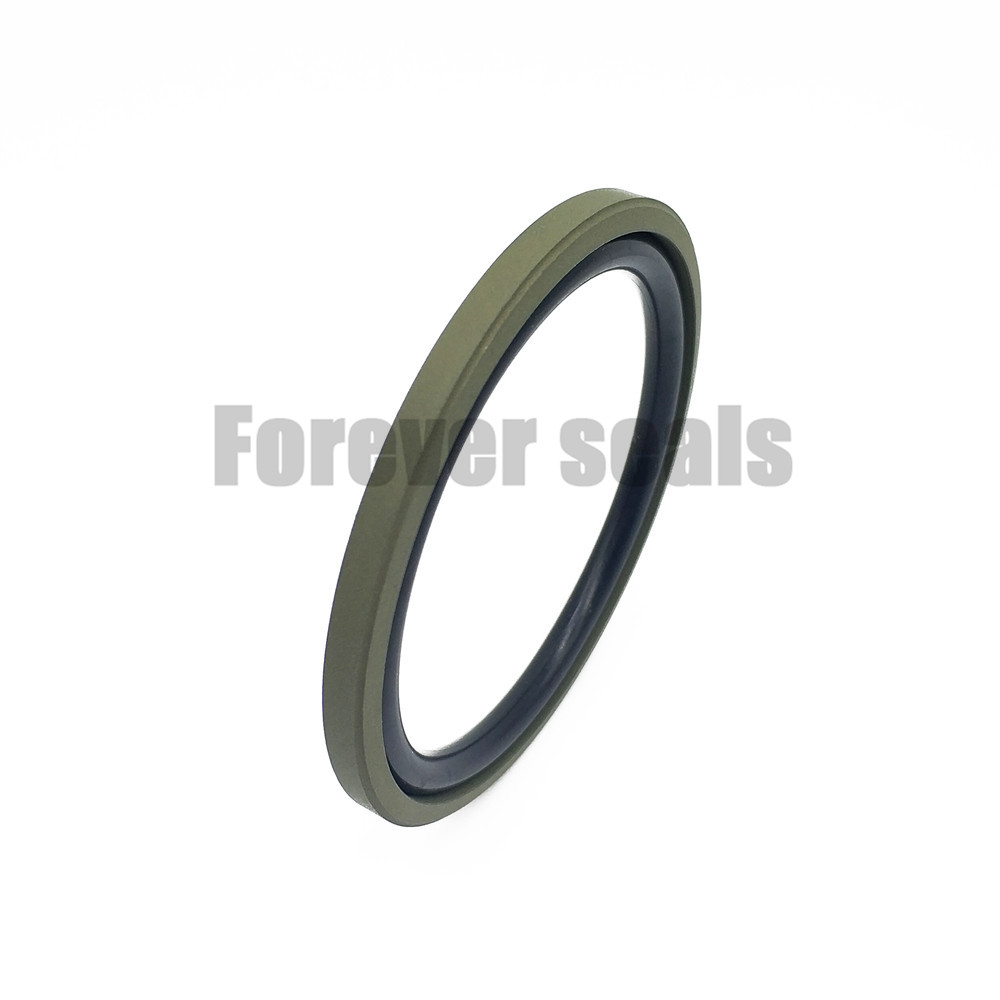

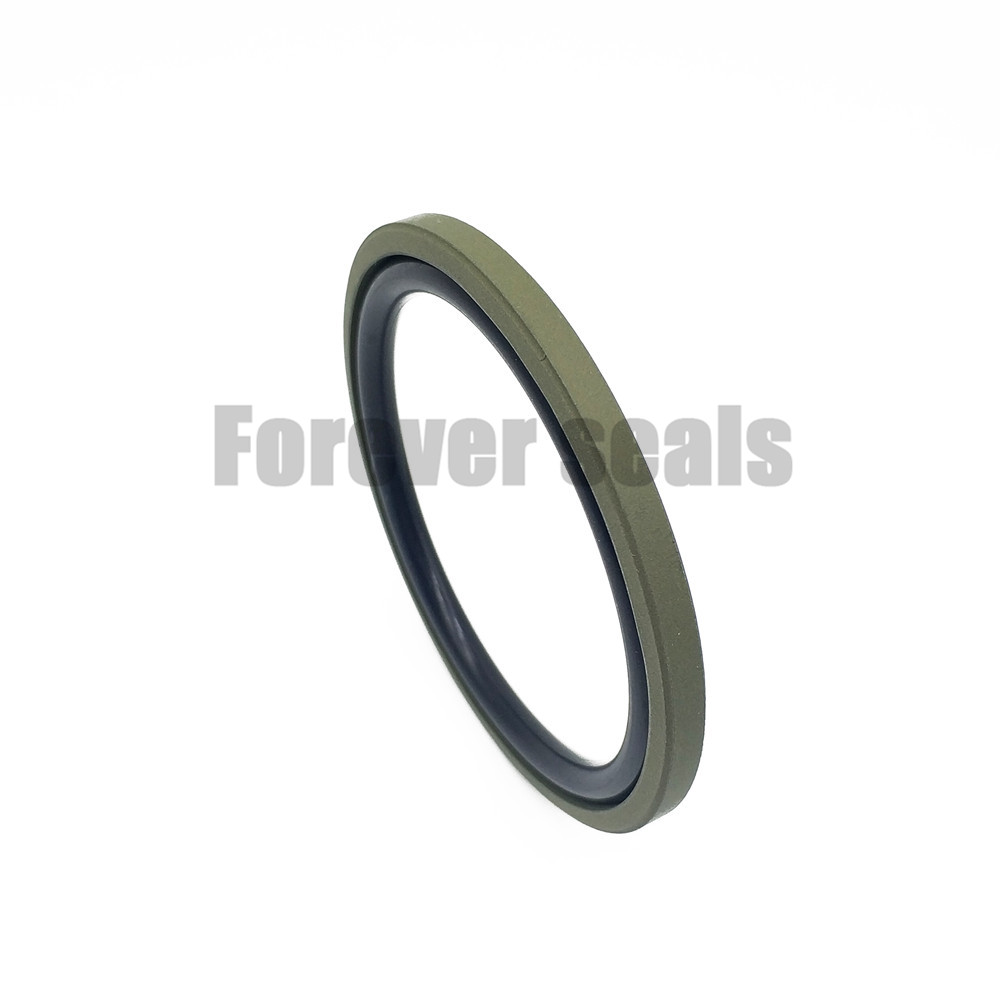

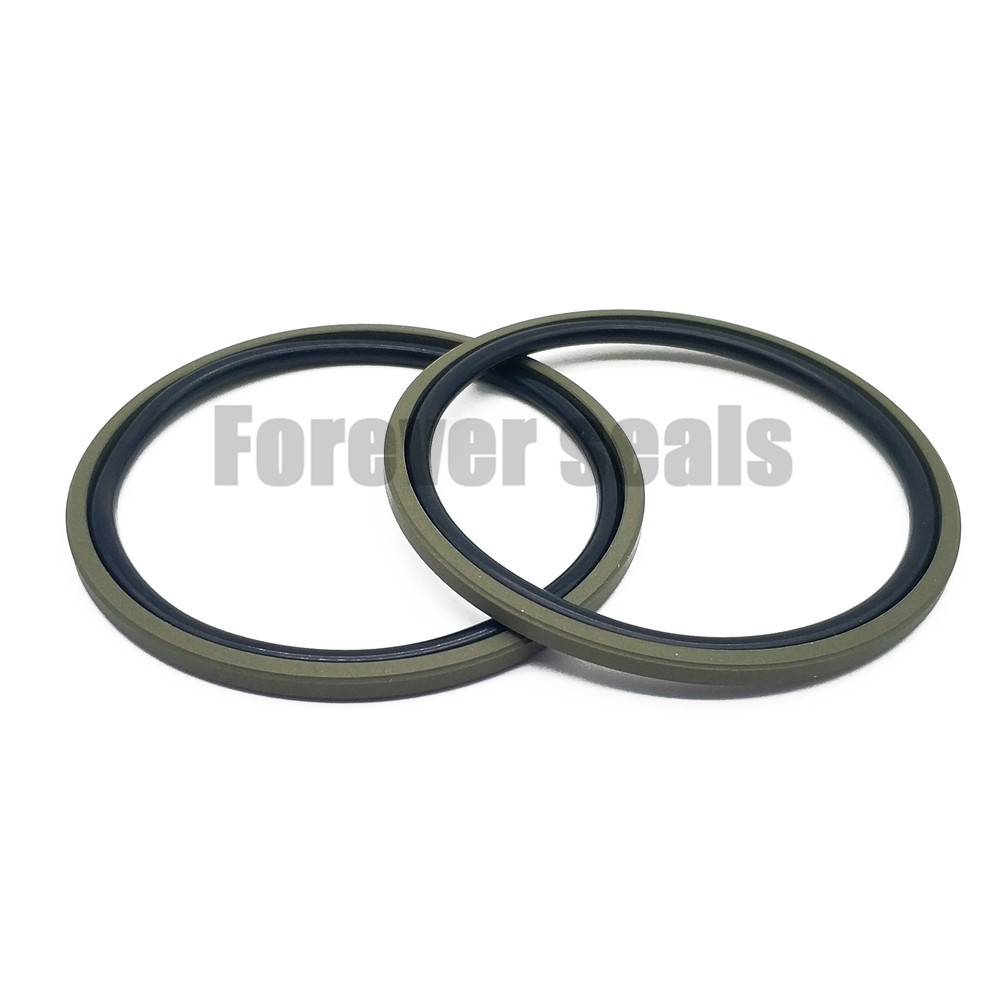

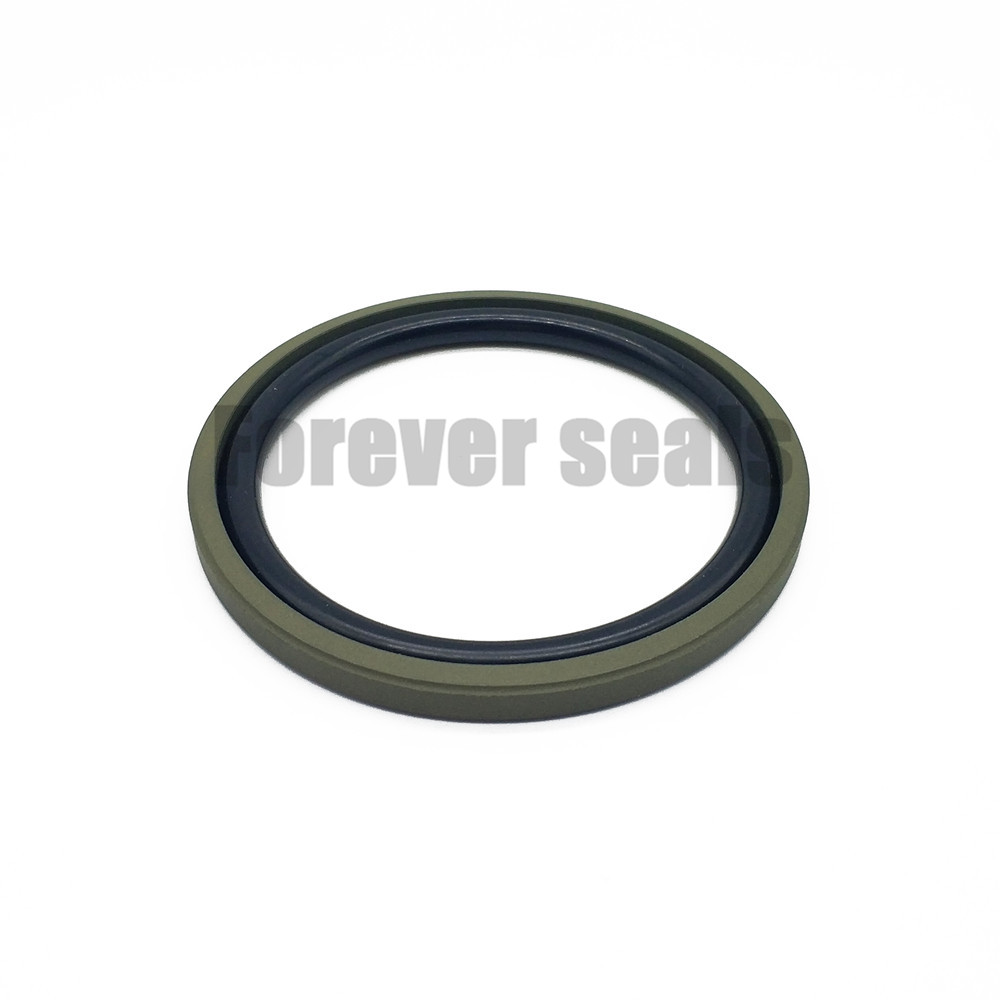

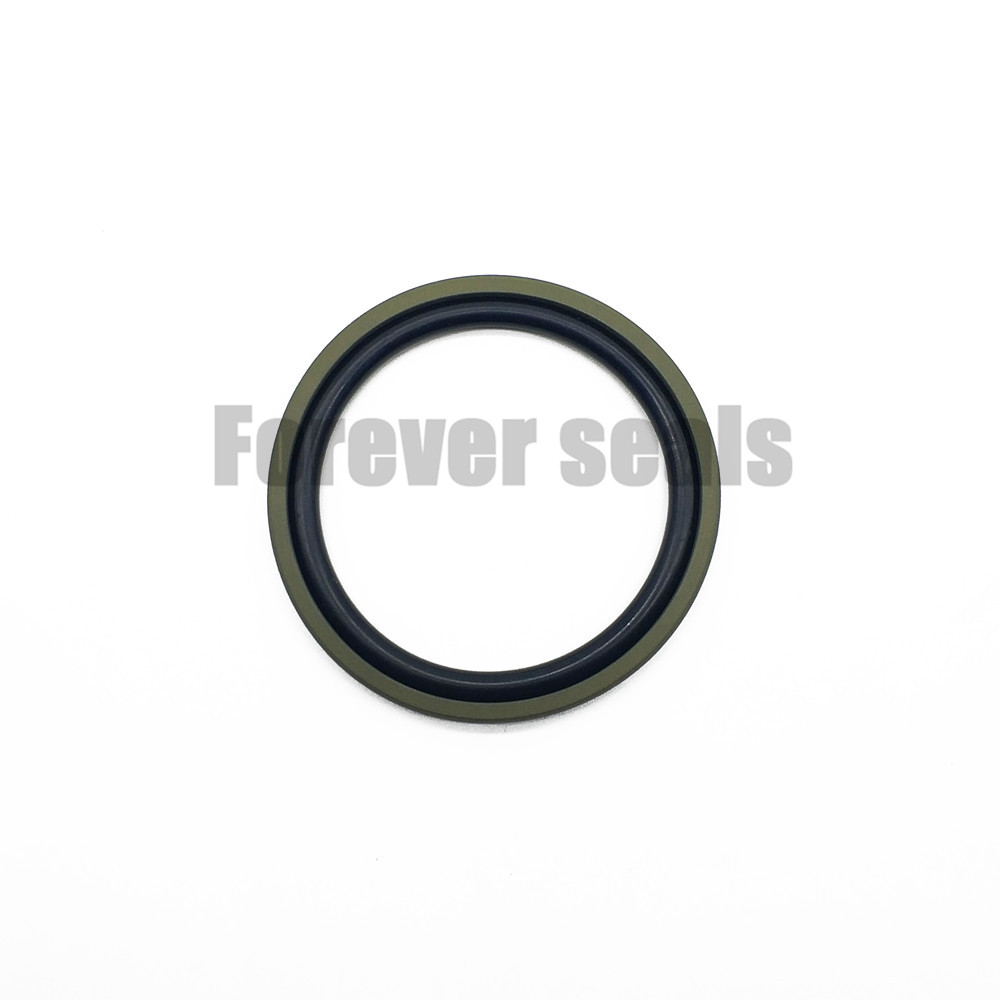

DPT Hydraulic Piston Seal with T-Type Design
Low-Friction, High-Wear Resistance for Piston Applications
DPT is a T-shaped piston seal combining PTFE and NBR, designed for bidirectional sealing in hydraulic cylinders. It withstands pressures up to 60MPa, operates reliably from -45℃ to +200℃, and offers low friction with no creeping, making it ideal for industrial applications like machine tools, construction equipment, and servo systems.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
More Choices
1.Product Advantages
The DPT piston seal sets the standard for reliability and performance. Its PTFE+NBR composite structure offers zero leakage and exceptional wear resistance, ensuring long service life even under 60MPa pressure. With a wide temperature range of -45℃ to +200℃, it excels in extreme environments. The T-shaped design minimizes friction, eliminating stick-slip effects and enabling smooth operation at speeds up to 15m/s.
2.Product Function Diagram
Illustration of DPT seal installed in a hydraulic cylinder: The T-shaped PTFE ring forms a tight seal against the cylinder bore, while the NBR O-ring maintains constant contact pressure during piston reciprocation, preventing fluid leakage in both directions.
3.Product Details
Material: PTFE sealing ring + NBR O-ring for optimal elasticity and chemical resistance.
Structure: Precision-molded T-profile ensures tight contact with cylinder walls.
Installation: Compatible with standard piston grooves, reducing retrofit complexity.
4.Applications：
DPT seals are trusted across industries:
Industrial Machinery: Ideal for machine tools, presses, and injection molding equipment.
Construction & Mining: Reliable in excavators, loaders, and hydraulic breakers.
Automation: Used in servo cylinders for high-precision positioning systems.
Aerospace & Marine: Withstands harsh conditions in aircraft landing gear and ship hydraulic systems.
5.Frequently Asked Questions
Q: What is the maximum working pressure?
A: DPT seals operate safely up to 60MPa.
A: DPT seals operate safely up to 60MPa.
Q: Can it be used with water-based fluids?
A: Yes, it is compatible with hydraulic oil, water-glycol mixtures, and fire-resistant fluids.
A: Yes, it is compatible with hydraulic oil, water-glycol mixtures, and fire-resistant fluids.
Q: How do I install the DPT seal?
A: Refer to our installation guide; ensure the groove dimensions match ISO 7425-1 standards.
A: Refer to our installation guide; ensure the groove dimensions match ISO 7425-1 standards.
6.Our Company Edge
With 20+ years of sealing technology expertise, we guarantee:
Customization: Tailored solutions for unique pressure, temperature, and size requirements.
Quality Assurance: 100% leakage testing and ISO 9001:2015 certification.
Global Support: 24/7 technical assistance and fast delivery across 50+ countries
Invest in DPT seals for unrivaled performance, durability, and peace of mind.
