Product details of the high pressure seals
Quick Overview
The design stage of high pressure seals during the production process also functions importantly. In its production, we attach great importance to reliability and quality. FOREVER SEALS's high pressure seals can be used in different fields. FOREVER SEALS TECHNOLOGY.,LIMITED's motto is 'Excellent service, affordable price, first-rate quality and prompt delivery.'
Product Information
Choose FOREVER SEALS's high pressure seals for the following reasons.
1. Description

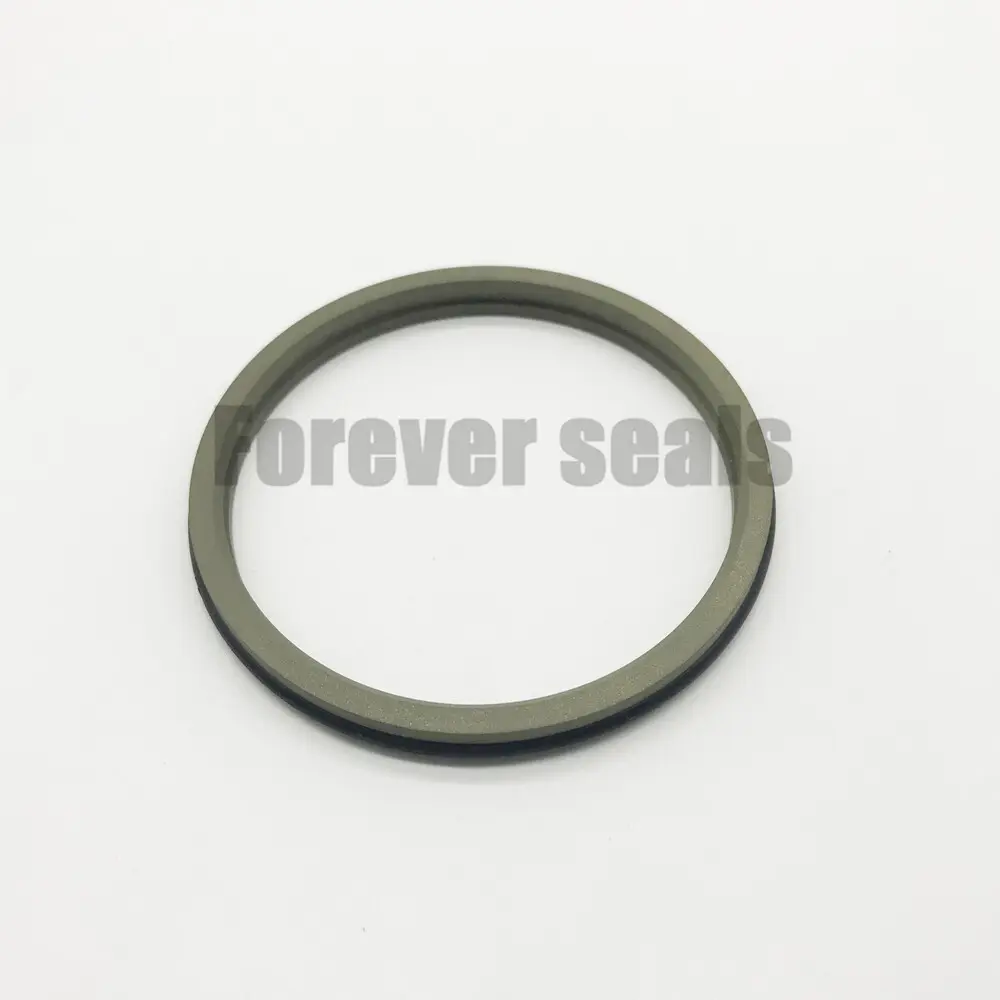

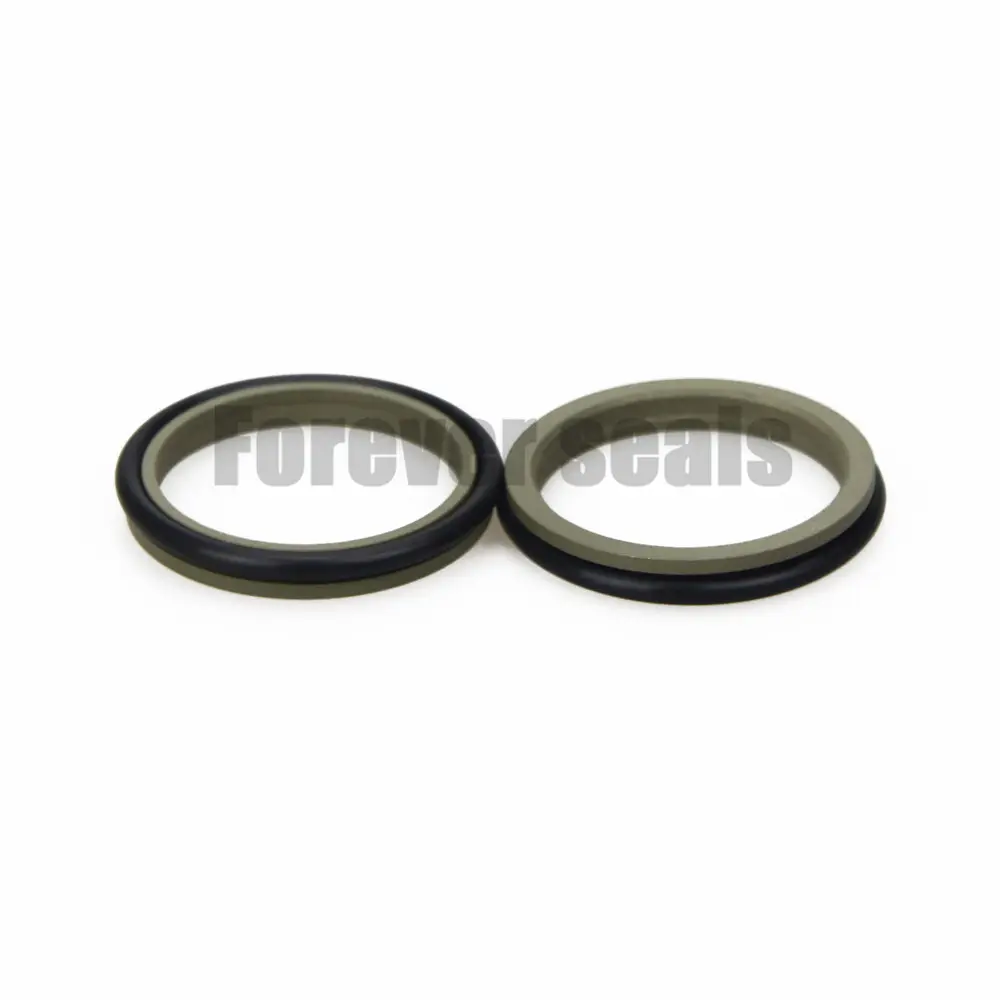

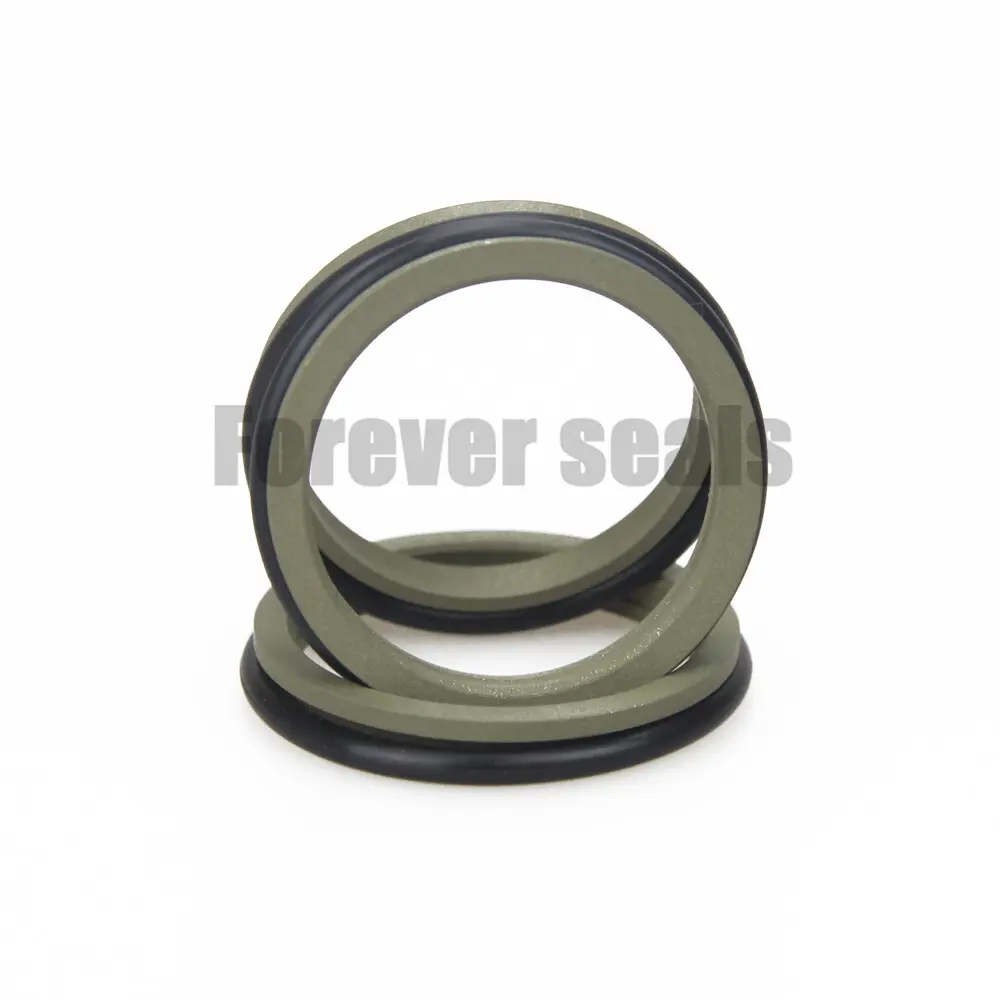

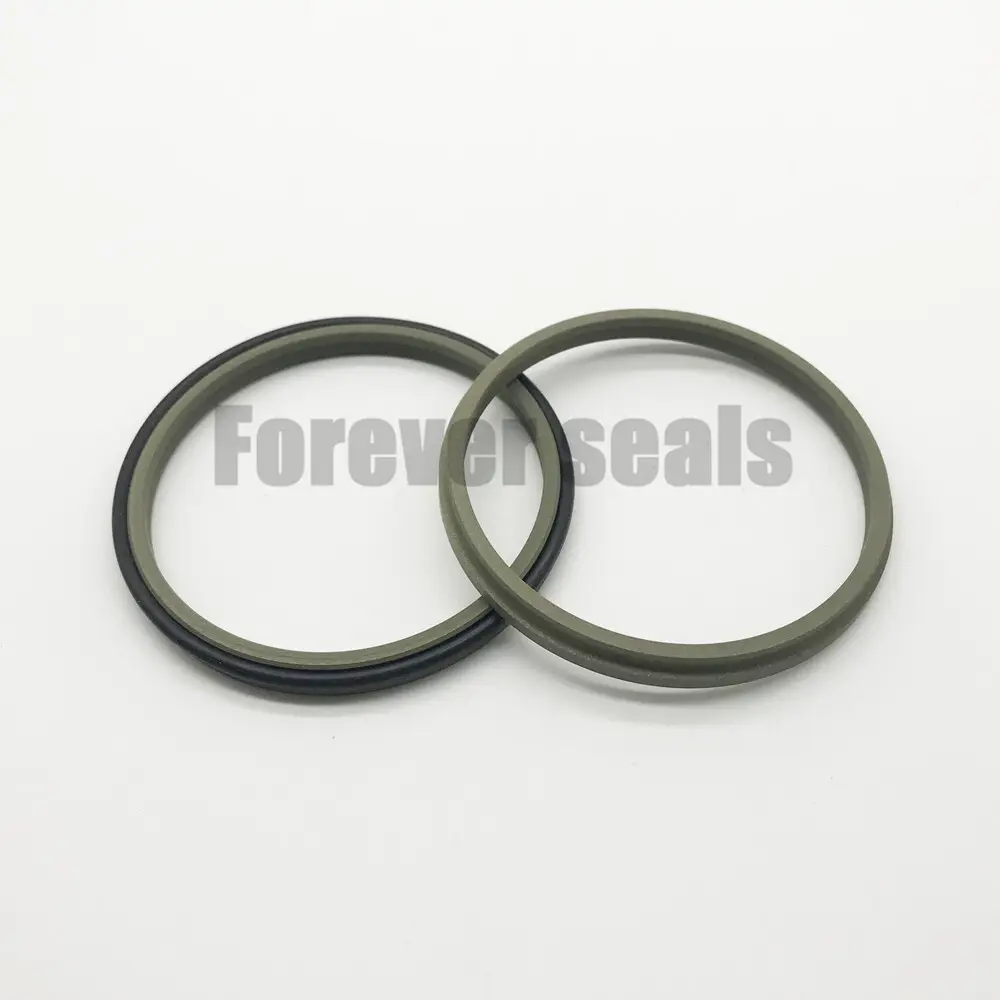

Wiper seal GSZ of Forever Seals is suitable for cold and dusty environments and high frequency reciprocating motion. Mainly used in hydraulic and pneumatic devices, servo systems, chemical and food equipment. Excellent sliding performance, no stick-slip behavior, no viscosity, compensate for the distortion of the piston rod and plunger, compatibility with hydraulic media is very good, the remaining oil film adhered to the surface of the piston rod can be effectively blocked from the inside.

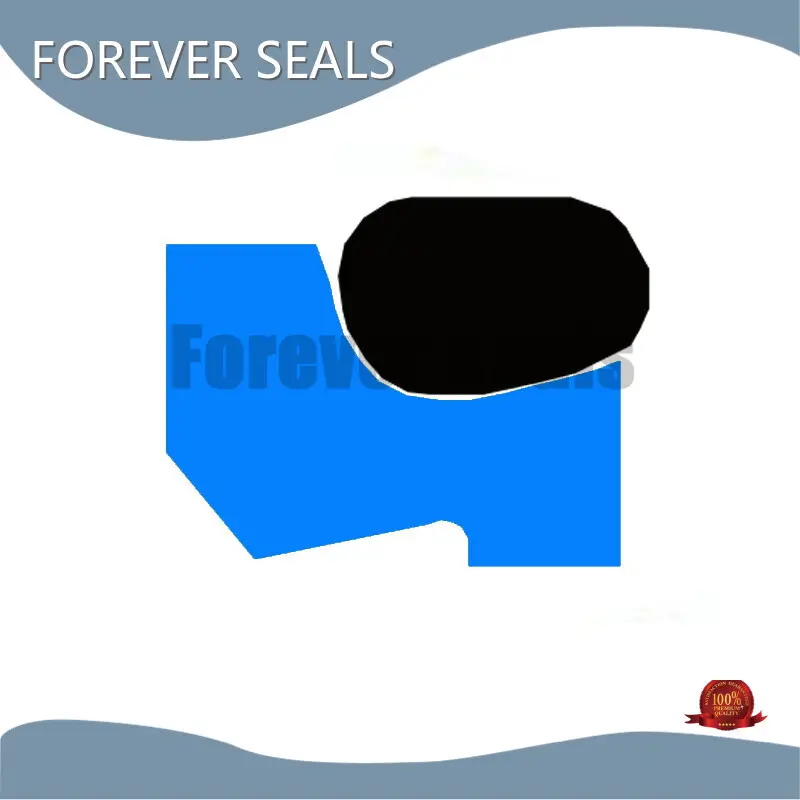

2. Installation Recommendation
3. Installation dimensions - Standard recommendations
|
Rod Diameter |
Groove Diameter |
Groove Width |
Diameter |
Step Width |
O-Ring Cross-Section |
|
dN f8/h9 |
D H9 |
L+0.2 |
D3 H11 |
a min |
d2 |
|
19.0-39.9 |
dN+7.6 |
4.2 |
d+1.5 |
3.0 |
2.62 |
|
40.0-69.9 |
dN+8.8 |
6.3 |
d+1.5 |
3.0 |
2.62 |
|
70.0-139.9 |
dN+12.2 |
8.1 |
d+2.0 |
4.0 |
3.53 |
|
140.0-399.9 |
dN+16.0 |
9.5 |
d+2.5 |
5.0 |
5.33 |
|
400.0-649.9 |
dN+24.0 |
14.0 |
d+2.5 |
8.0 |
7.00 |
|
650.0-999.9 |
dN+27.3 |
16.0 |
d+2.5 |
10.0 |
8.40 |
|
≥1000.0 |
dN+27.3 |
16.0 |
d+2.5 |
10.0 |
8.40 |

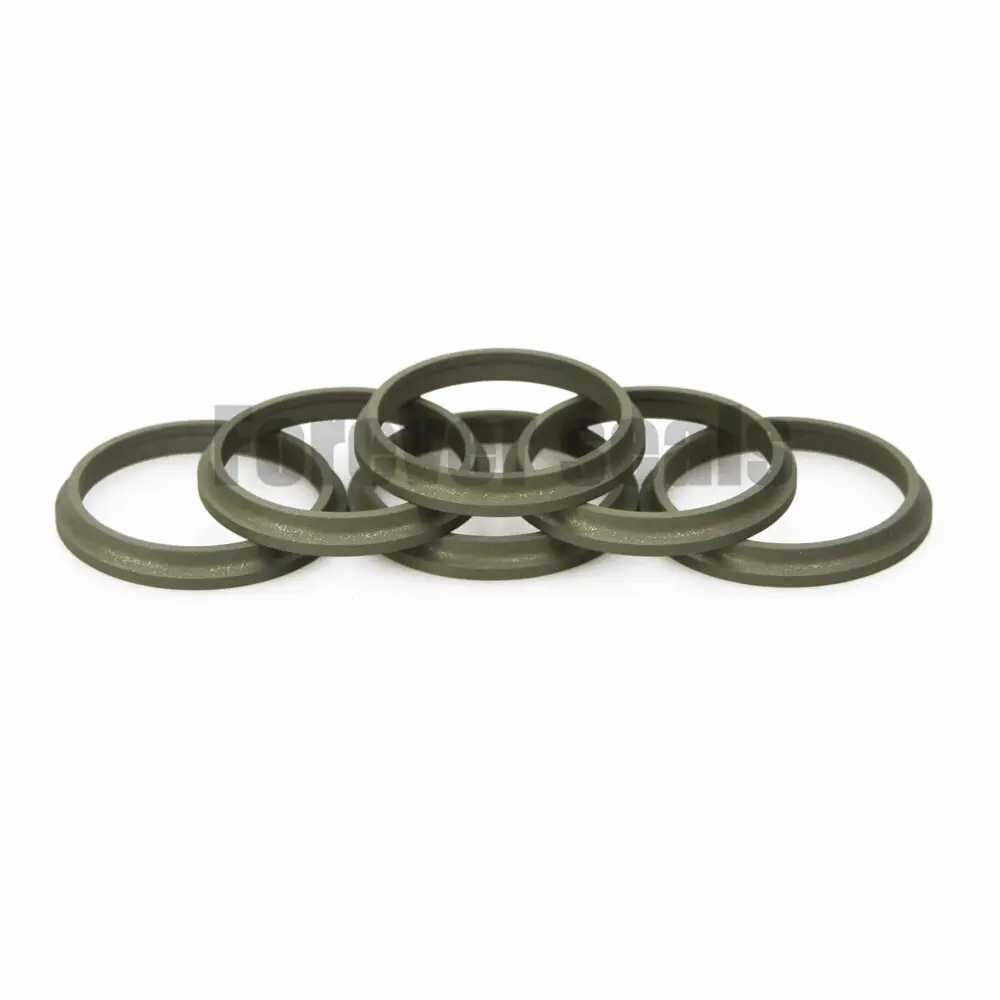

Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3 - 1600mm |
- |
-30℃ +200℃ |
5 m/s |
hydraulic oil, flame retardant liquid, water and others |
