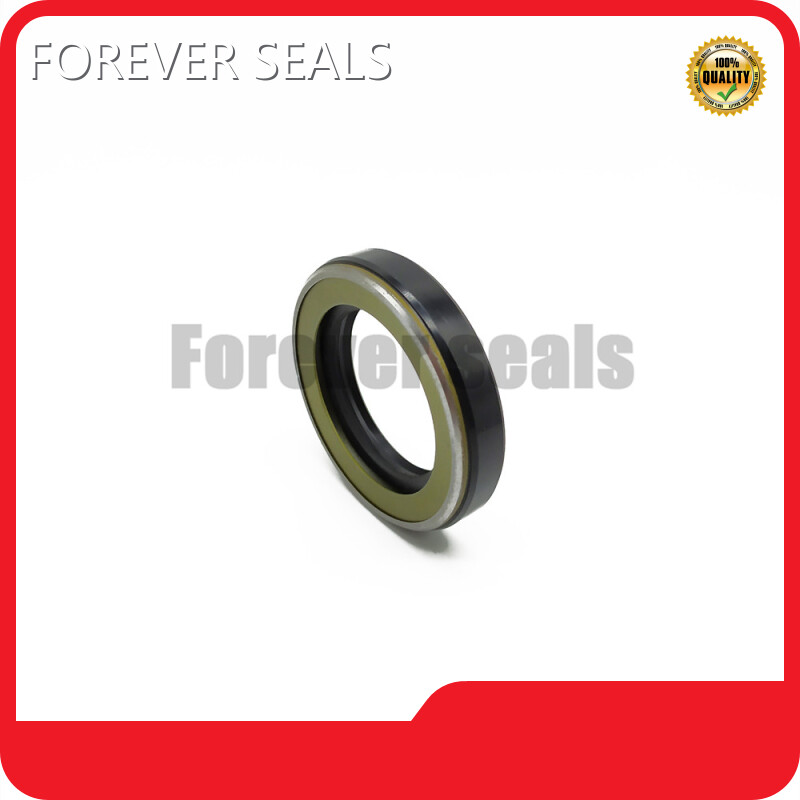

High Pressure Seals by FOREVER SEALS
Company Advantages
· high pressure seals is made by new environmentally-friendly material.
· With reliable quality, this product holds up well over time.
· It is highly sought after by customers with an increased frequency of utilization.
1. Description

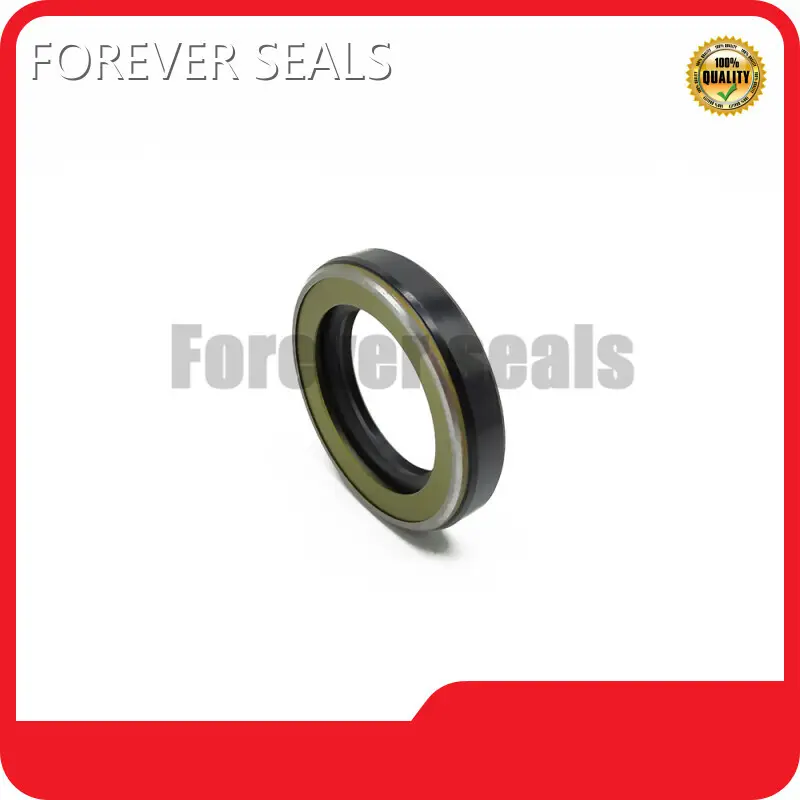

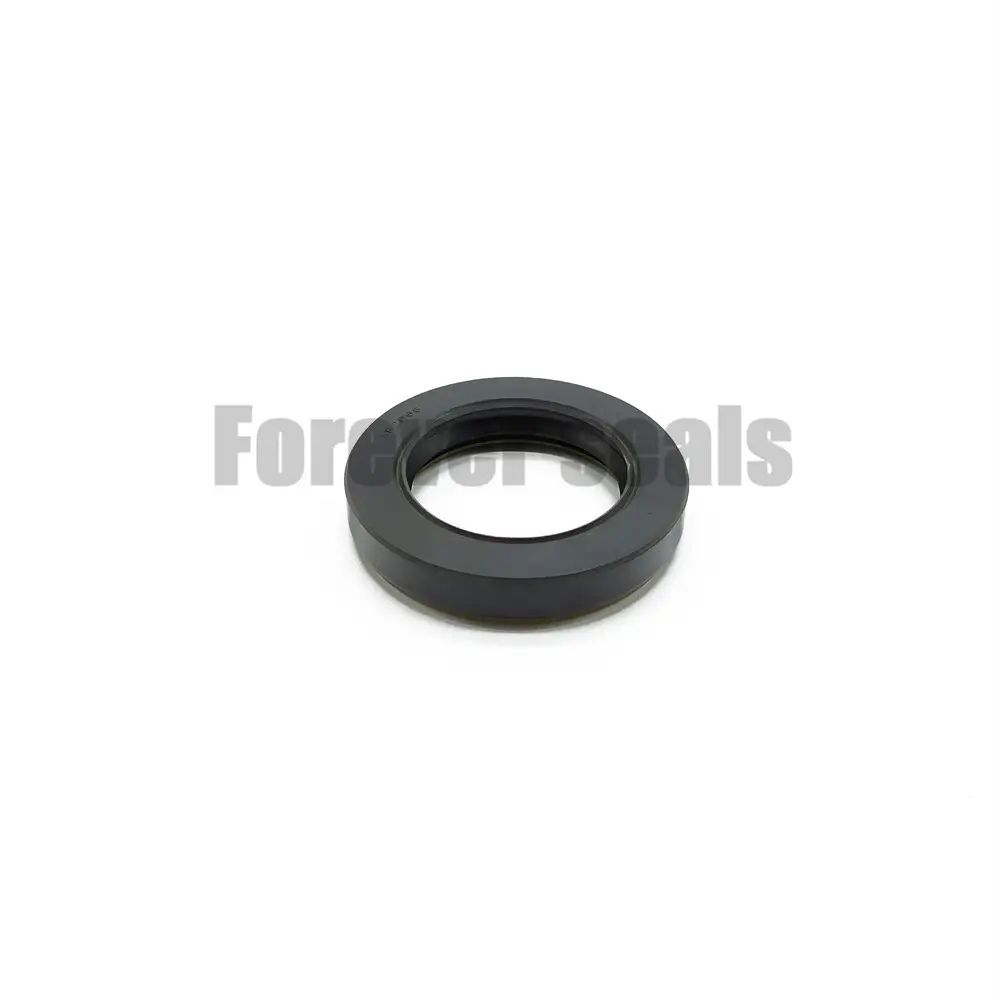

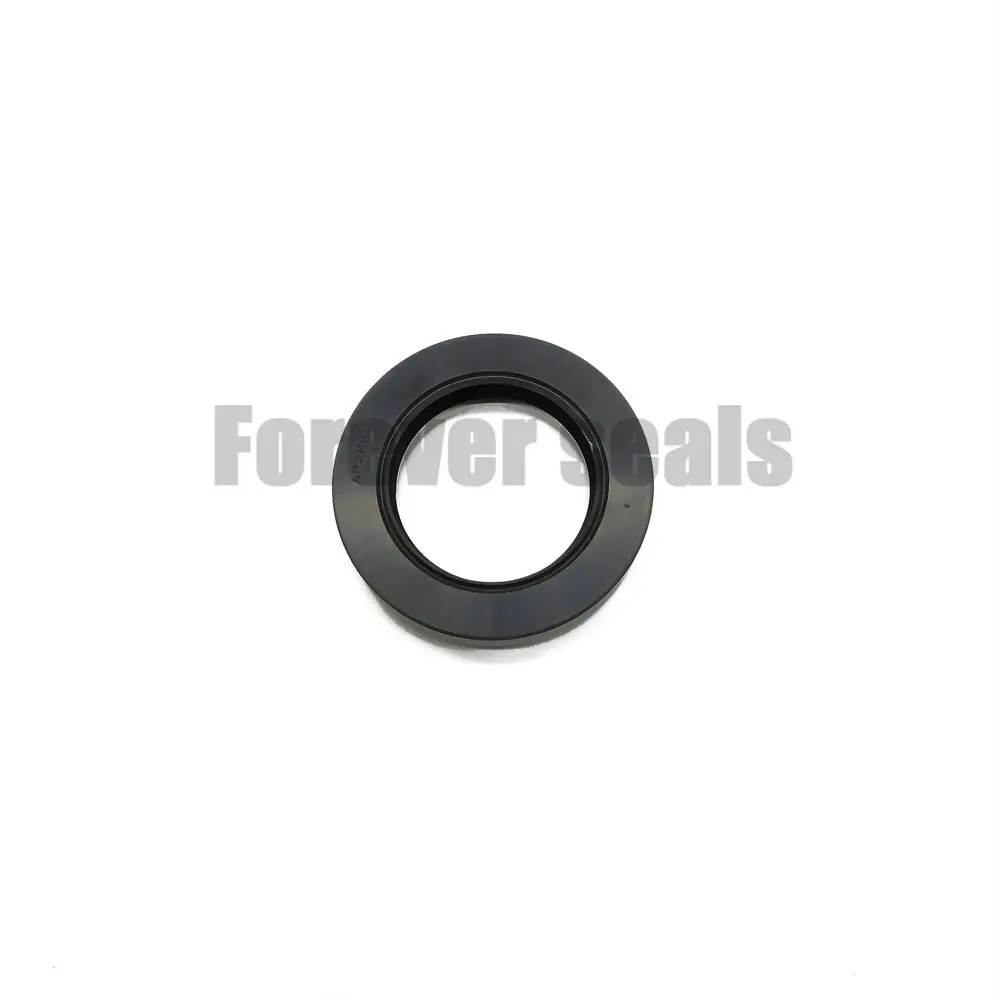

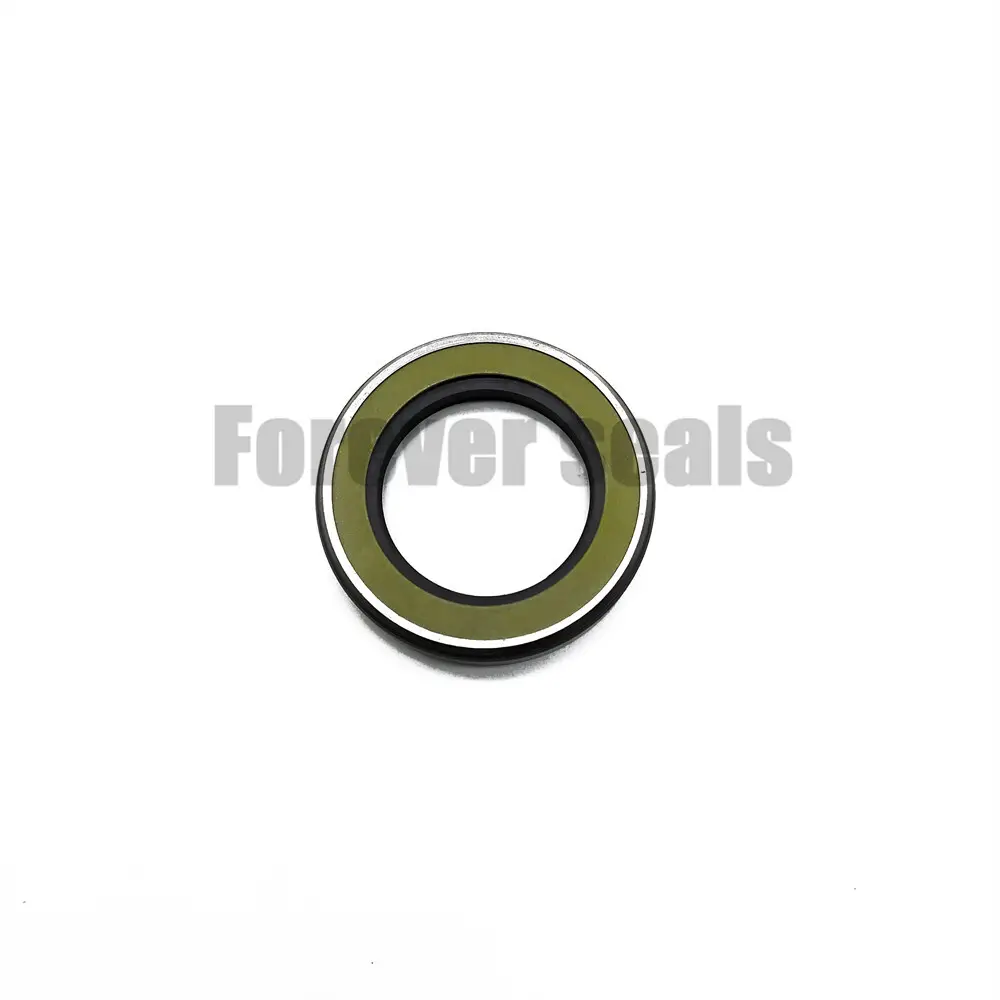

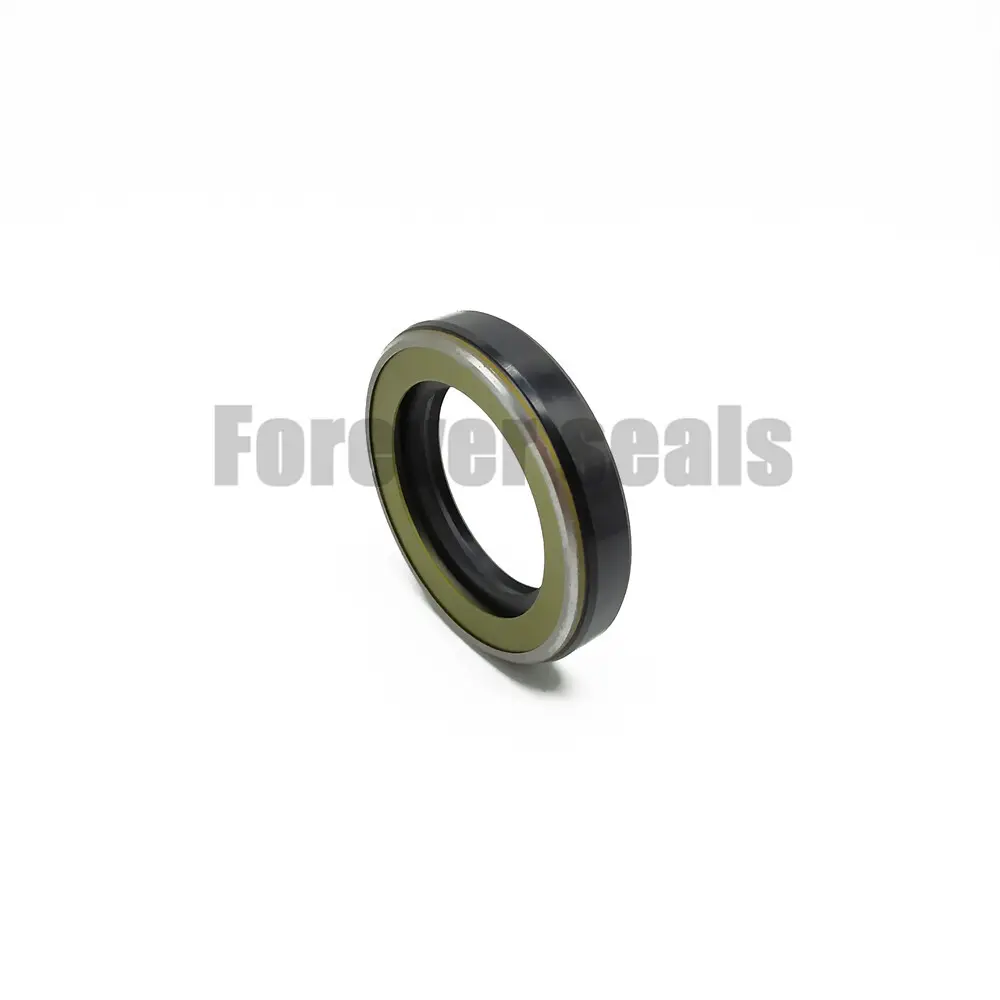

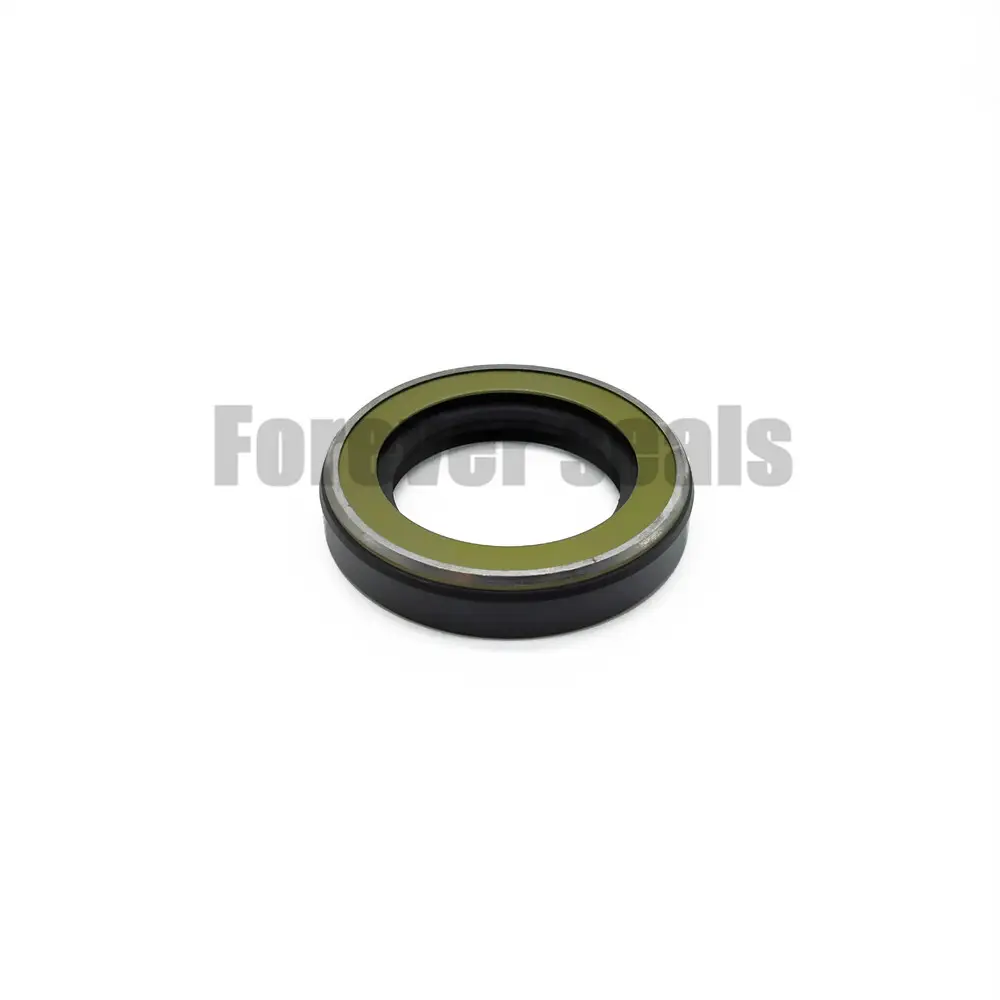

TCN is pressure- resistant oil seal with an auxiliary cage to minimize lip deformation under pressure. Used for high-pressure rotating shafts.
2. Standard materials
NBR, FKM
3. Installation Dimensions
| Inner Diam. | Outer Diam. | Height | Part No. | Order No. |
| 17 | 35 | 8 | AP0760 | TCN17*35*8 |
| 20 | 35 | 8 | AP1013E | TCN20*35*8 |
| 20 | 40 | 11 | AP1033I | TCN20*40*11 |
| 22 | 42 | 10 | AP1147F | TCN22*42*10 |
| 22 | 42 | 11 | AP1148F | TCN22*42*11 |
| 24 | 40 | 8 | AP1260E | TCN24*40*8 |
| 25 | 45 | 11 | AP1338F | TCN25*45*11 |
| 28 | 48 | 11 | AP1563J | TCN28*48*11 |
| 30 | 42 | 7 | AP1665E | TCN30*42*7 |
| 30 | 50 | 11 | AP1709H | TCN30*50*11 |
| 32 | 52 | 11 | AP1904F | TCN32*52*11 |
| 34 | 54 | 11 | AP1978G | TCN34*54*11 |
| 35 | 55 | 11 | AP2085G | TCN35*55*11 |
| 35 | 55 | 11 | AP2085A | TCN35*55*11 |
| 35 | 55 | 12 | AP2086F | TCN35*55*12 |
| 35 | 55 | 9 | AP2083G | TCN35*55*9 |
| 38 | 58 | 11 | AP2240G | TCN38*58*11 |
| 40 | 62 | 11 | AP2388E | TCN40*62*11 |
| 40 | 60 | 12 | AP2379F | TCN40*60*12 |
| 40 | 62 | 12 | AP2390Q | TCN40*62*12 |
| 42 | 65 | 12 | AP2507H | TCN42*65*12 |
| 45 | 65 | 12 | AP2659E | TCN45*65*12 |
| 45 | 68 | 12 | AP2668G | TCN45*68*12 |
| 48 | 62 | 9 | AP2775G | TCN48*62*9 |
| 48 | 70 | 12 | AP2791G | TCN48*70*12 |
| 50 | 72 | 12 | AP2864I | TCN50*72*12 |
| 52 | 75 | 12 | AP2967J | TCN52*75*12 |
| 52 | 75 | 9/3 | AP2965E | TCN52*75*9/3 |
| 55 | 78 | 12 | AP3055F | TCN55*78*12 |
| 58 | 80 | 12 | AP3154H | TCN58*80*12 |
| 60 | 82 | 12 | AP3222B | TCN60*82*12 |
| 62 | 85 | 12 | AP3297G | TCN62*85*12 |
| 65 | 90 | 13 | AP3409F | TCN65*90*13 |
| 68 | 90 | 14 | AP3461E | TCN68*90*14 |
| 70 | 95 | 13 | AP3527B | TCN70*95*13 |
| 75 | 100 | 13 | AP3618G | TCN75*100*13 |
| 80 | 105 | 13 | AP3744K | TCN80*105*13 |
| 85 | 110 | 13 | AP3842H | TCN85*110*13 |
| 90 | 115 | 13 | AP3932B | TCN90*115*13 |
| 95 | 120 | 13 | AP3994B | TCN95*120*13 |
| 100 | 125 | 13 | AP4063B | TCN100*125*13 |
| 105 | 135 | 14 | AP4153H | TCN105*135*14 |
| 110 | 140 | 14 | AP4212B | TCN110*140*14 |
| 115 | 145 | 14 | AP4282G | TCN115*145*14 |
| 120 | 150 | 14 | AP4346B | TCN120*150*14 |
| 125 | 155 | 14 | AP4399E | TCN125*155*14 |
| 130 | 160 | 14 | AP4451G | TCN130*160*14 |
| 135 | 165 | 14 | AP4498E | TCN135*165*14 |
| 140 | 170 | 14 | AP4542F | TCN140*170*14 |
| 145 | 175 | 14 | AP4581G | TCN145*175*14 |
| 150 | 180 | 14 | AP4624G | TCN150*180*14 |
| 160 | 190 | 16 | AP4713G | TCN160*190*16 |
| 170 | 200 | 16 | AP4795F | TCN170*200*16 |
| 35 | 60 | 15 | AP4561E | TCN35*60*15 |
| 44.45 | 63.55 | 9.5 | UP0445E | TCN44.45*63.55*9.5 |
| 34.925 | 57.15 | 8.85 | UP0449E | TCN34.925*57.15*8.85 |
| 33.34 | 72.39 | 9.5 | UP0450E | TCN33.34*72.39*9.5 |
| 38.15 | 57.15 | 9.5 | UP0234E | TCN38.15*57.15*9.5 |
4. Product Catalog
You can download catalog through below link.
http://www.foreverseals.com/download.html
Company Features
· Thanks to rich factory experience, FOREVER SEALS TECHNOLOGY.,LIMITED has become one of the largest manufacturers for high pressure seals.
· We have a group of experienced production technicians. Over the years, they have carried out numerous successful projects for customers. They are keen at finding out the most cost-effective manufacturing ways. We are blessed to have a team of skillful production workers. They have abundant experience in seeking the most cost-effective way, and they always have a strict attitude on product quality. The factory is equipped with numerous cutting-edge manufacturing facilities that require less manual intervention. These facilities improve the overall automation rate, which directly improves production productivity.
· We have a strong sense of service. We place the clients at the core of our company's operation. The product we offer, the logistics, pre-sale and after-sale services are all client-oriented. Contact us!
Application of the Product
The high pressure seals produced by FOREVER SEALS is very popular in the market and is widely used in industry.
We are committed to meeting the need of our customers. We will go deeper into their situation and provide them with most suitable solutions.
