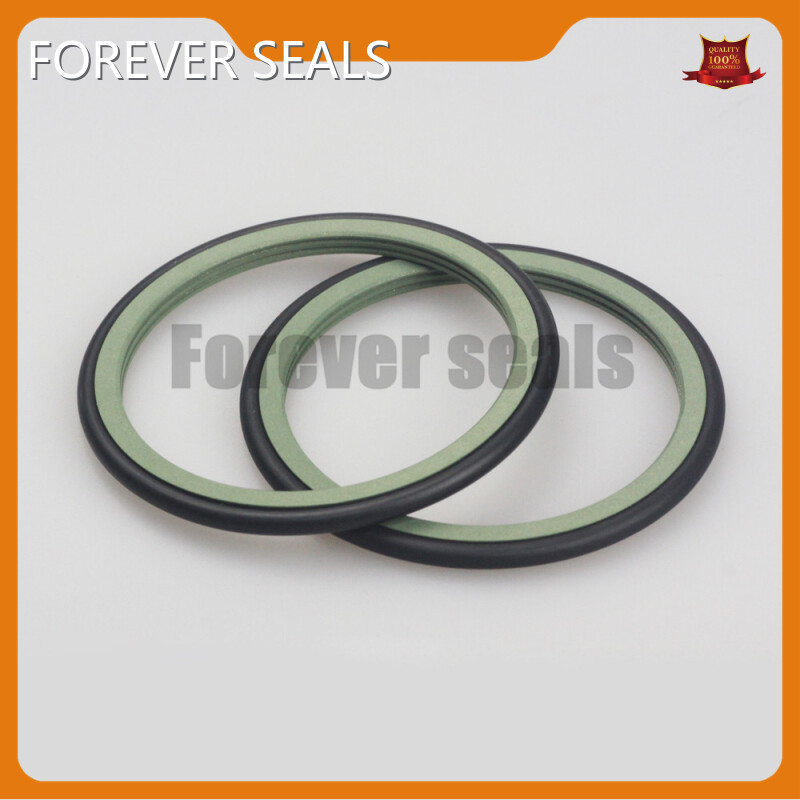

FOREVER SEALS Rotary Oil Seals Price List

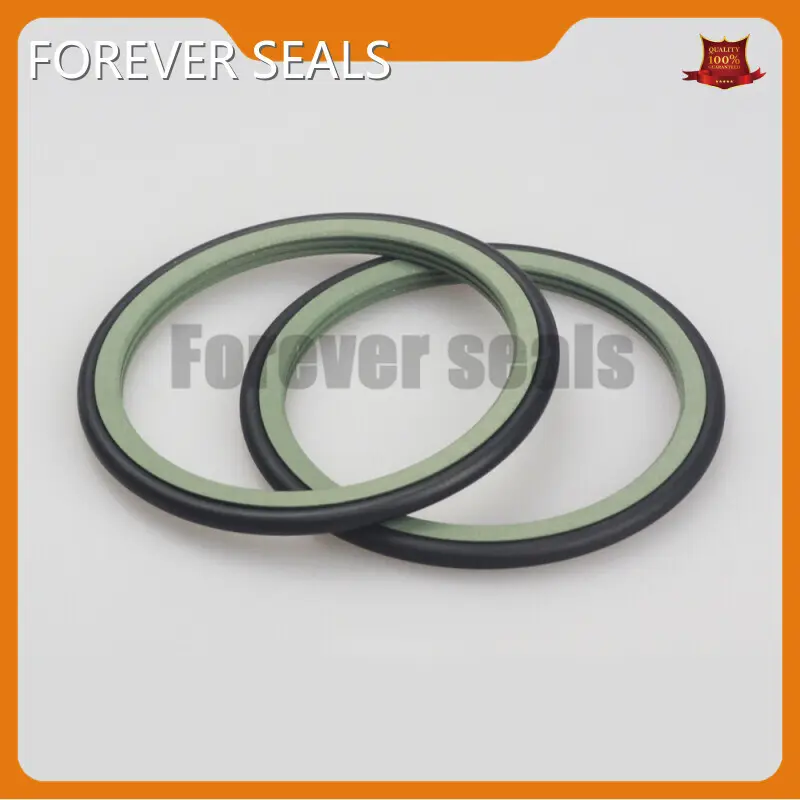

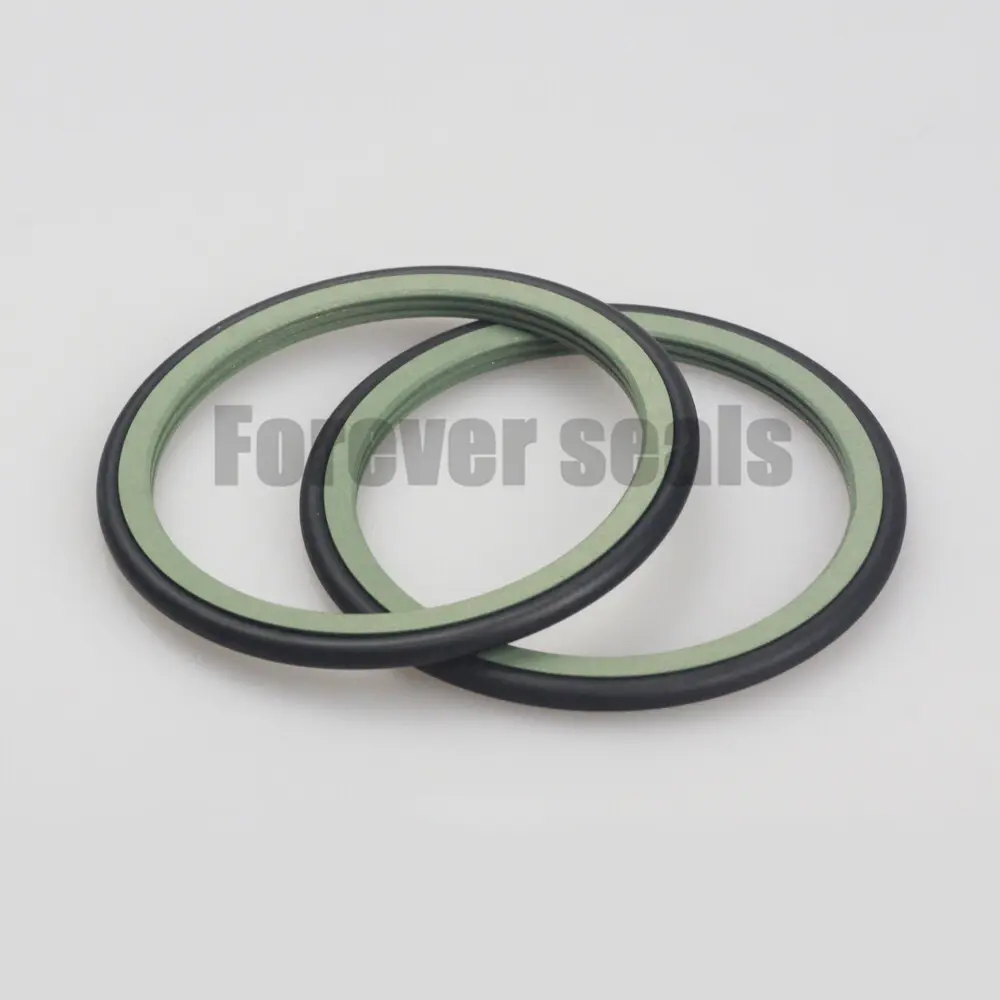

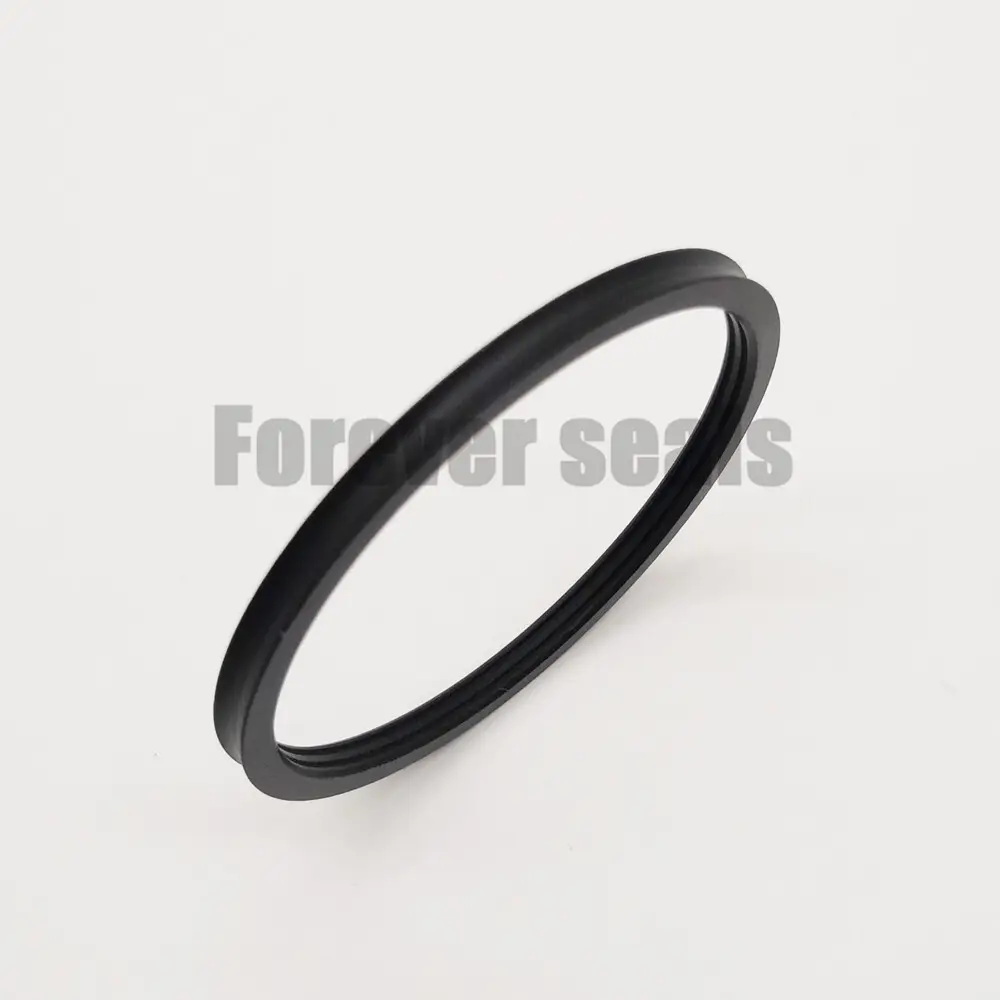

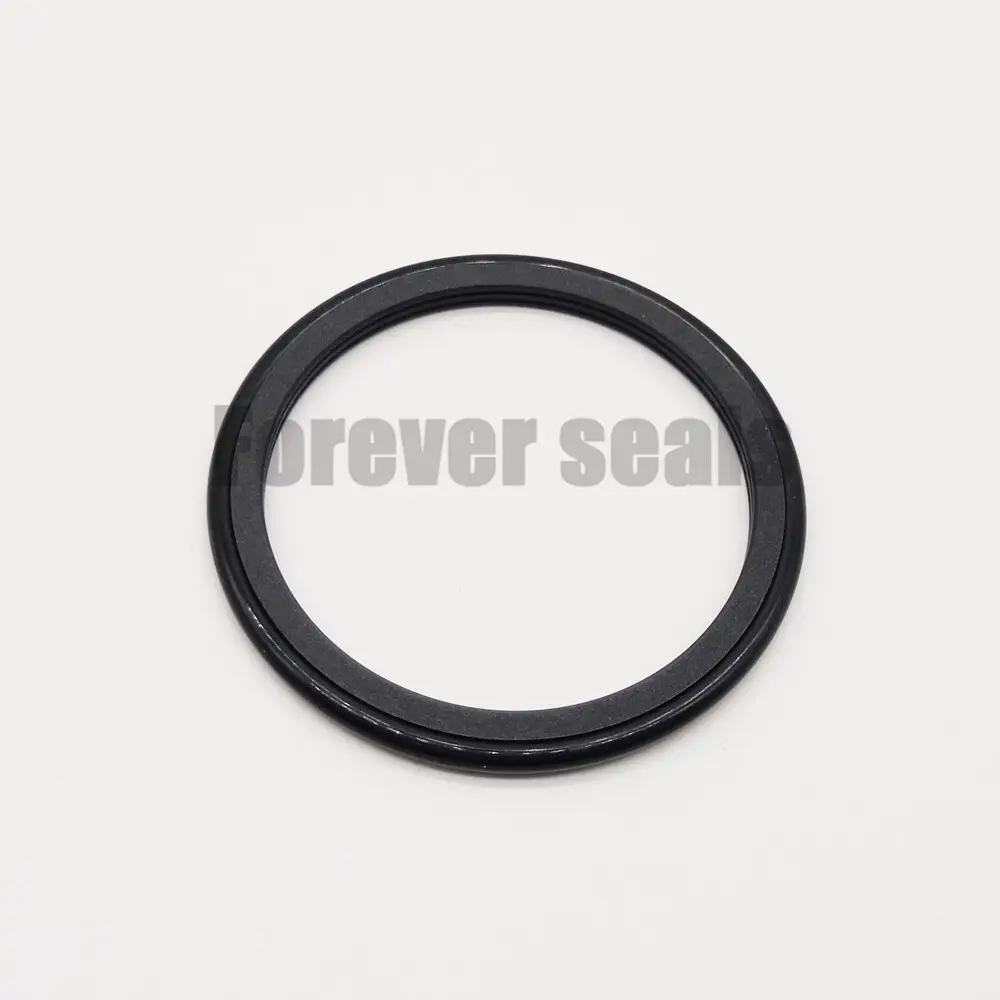

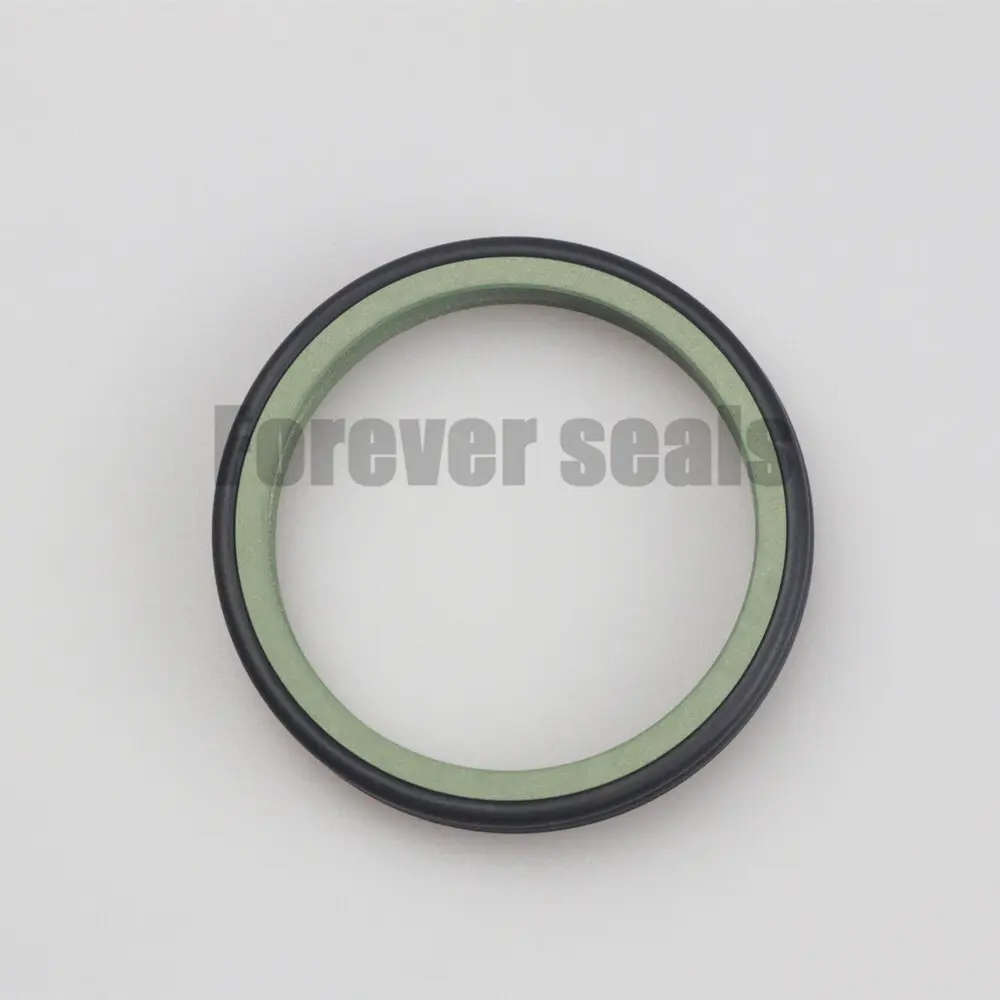

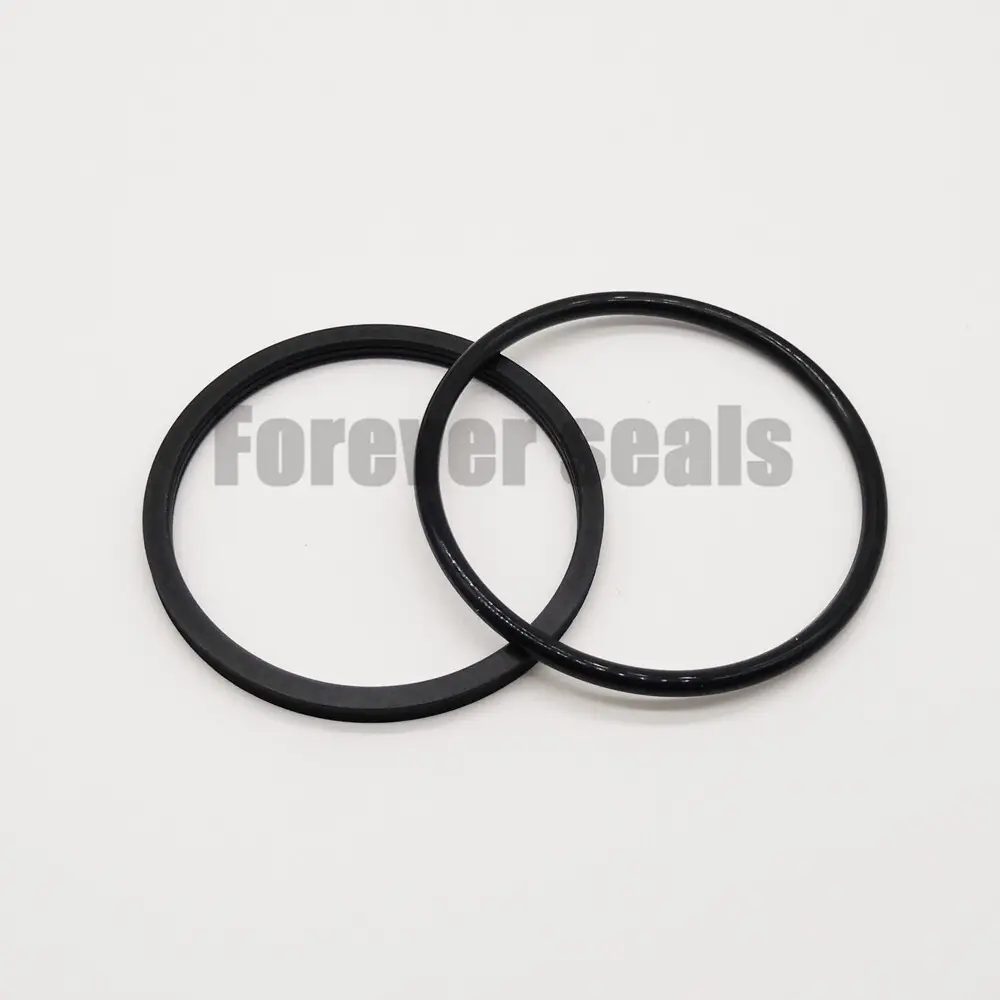

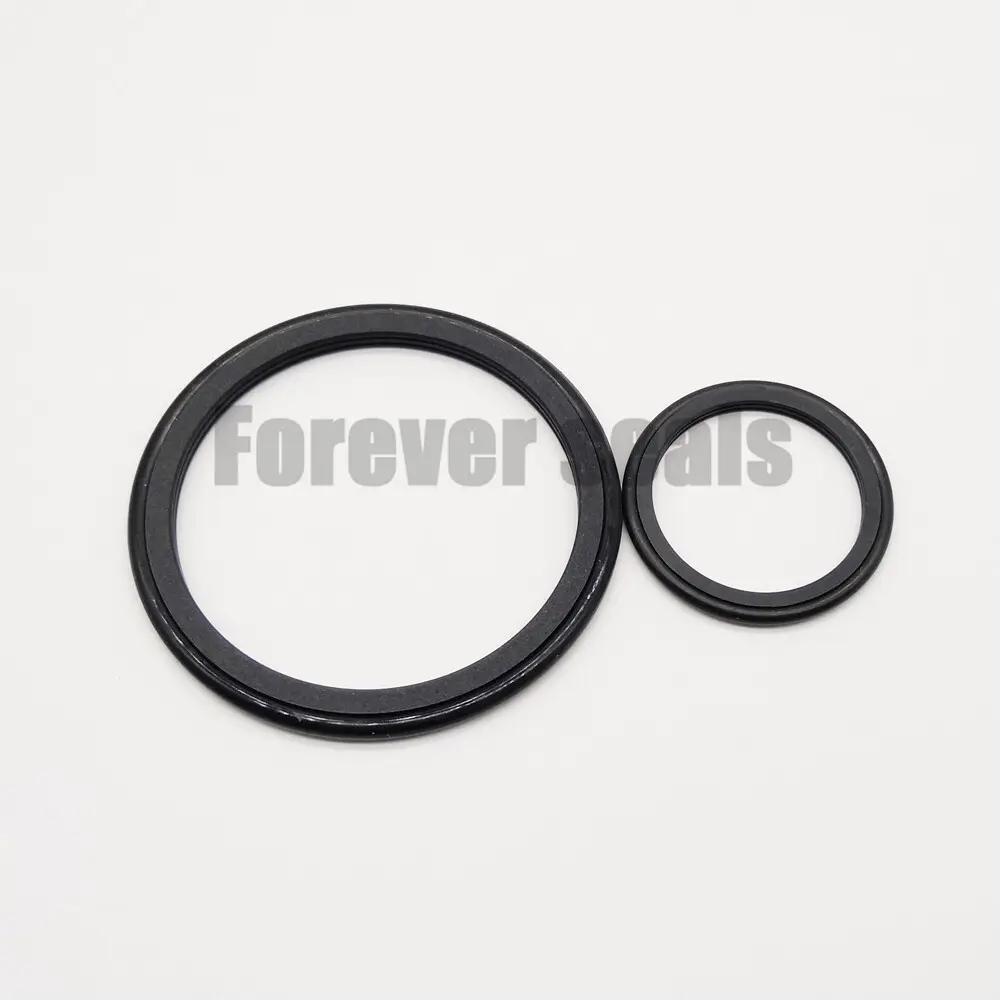

Product details of the rotary oil seals
Product Introduction
As FOREVER SEALS rotary oil seals is made of high materials, it meets the international standards. Our strict inspection ensures the product is manufactured with high quality. According to feedback, the product has achieved high customer satisfaction.
1. Description
Suitable for sealing with rotating or swinging rods, shafts, pins, rotary joints, etc. It is a rotary sealing ring that can withstand both sides pressure or alternating pressure role of the bidirectional effect, used in construction machinery, building machinery and automotive equipment. It can be applied on occasions where piston rod and piston seal are required, low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
2. Installation Recommendation
3. Installation Sizes
|
Rod Diameter DN H9 |
Groove Diameter |
Groove Width |
Radial Clearance S max. |
Radius |
O-Ring Cross-Section |
||
|
Standard Application |
Extended Application |
DN H9 |
L1+0.2 |
32MPa |
50MPa |
R1 |
d2 |
|
6-18.9 |
6-130.0 |
d1+4.9 |
2.20 |
0.15 |
0.10 |
0.40 |
1.78 |
|
19-37.9 |
10-245.0 |
d1+7.5 |
3.20 |
0.20 |
0.15 |
0.60 |
2.62 |
|
38-199.9 |
19-455.0 |
d1+11.0 |
4.20 |
0.25 |
0.20 |
1.00 |
3.53 |
|
200-255.9 |
38-655.0 |
d1+15.5 |
6.30 |
0.30 |
0.25 |
1.30 |
5.33 |
|
256-649.9 |
120-655.0 |
d1+21.0 |
8.10 |
0.30 |
0.25 |
1.80 |
7.00 |
|
650-999.9 |
650-999.9 |
d1+28.0 |
9.50 |
0.45 |
0.30 |
2.50 |
8.40 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3 - 1600mm |
0 - 30MPa |
-30℃ +200℃ |
1 m/s |
hydraulic oil, flame retardant liquid, water and others |
Company Advantage
• The natural resources around FOREVER SEALS are abundant. The geographical condition is excellent which brings developed information and traffic convenience.
• During the development for years, FOREVER SEALS has been developing firmly to lead the trend of industry development. We have now turned into a leader in the industry.
• Our company takes its city as the product sales center, and aims to expand the sales coverage in a global way to increase its market share.
• Our company has a strong customer service team to offer customers pre-sales, on-purchase and after-sales services.
We have many years of experience in production and sales. And if you are interested in our products, feel free to contact us.
