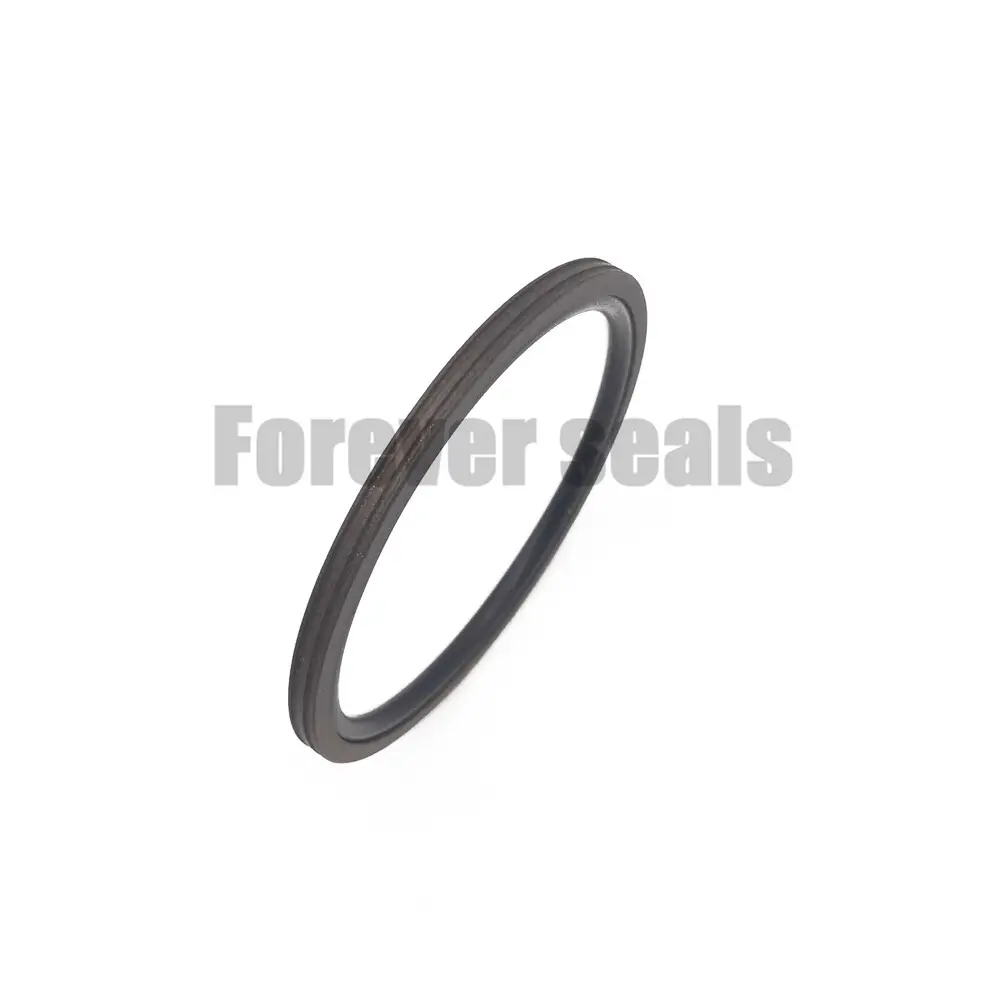

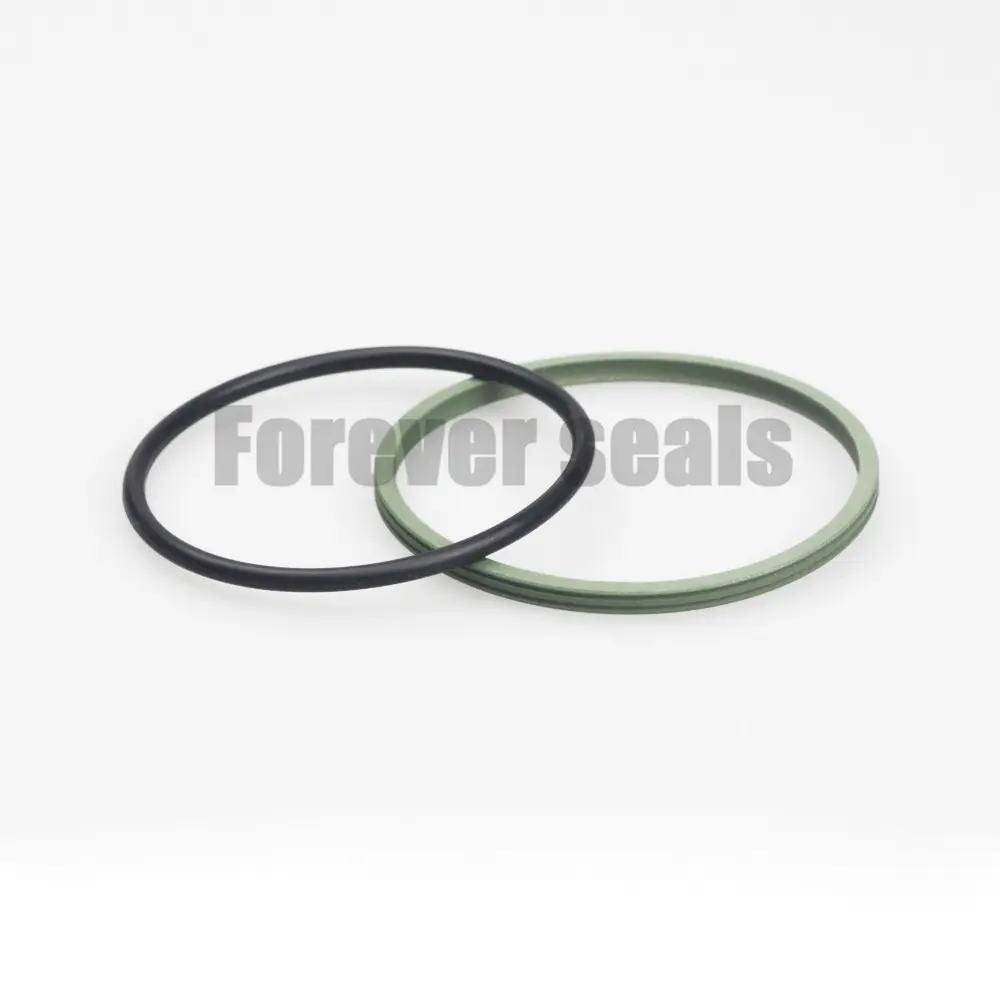

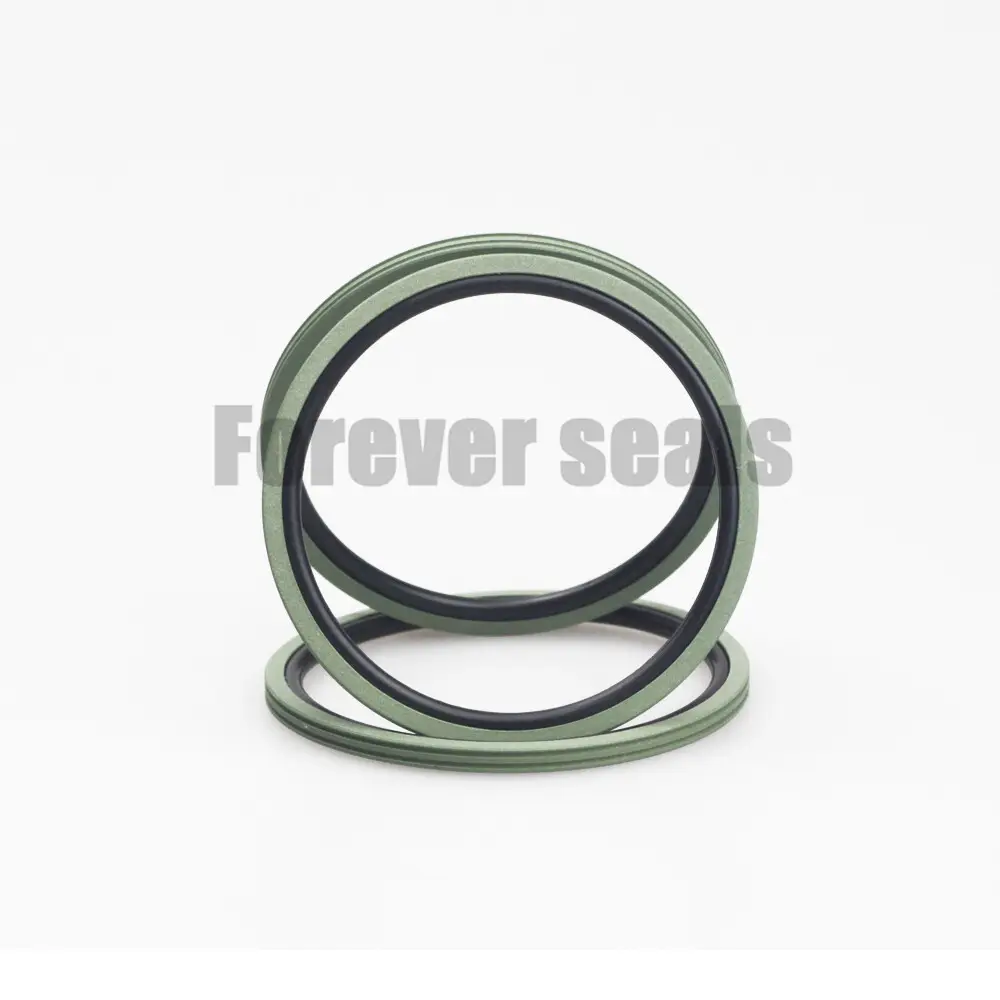

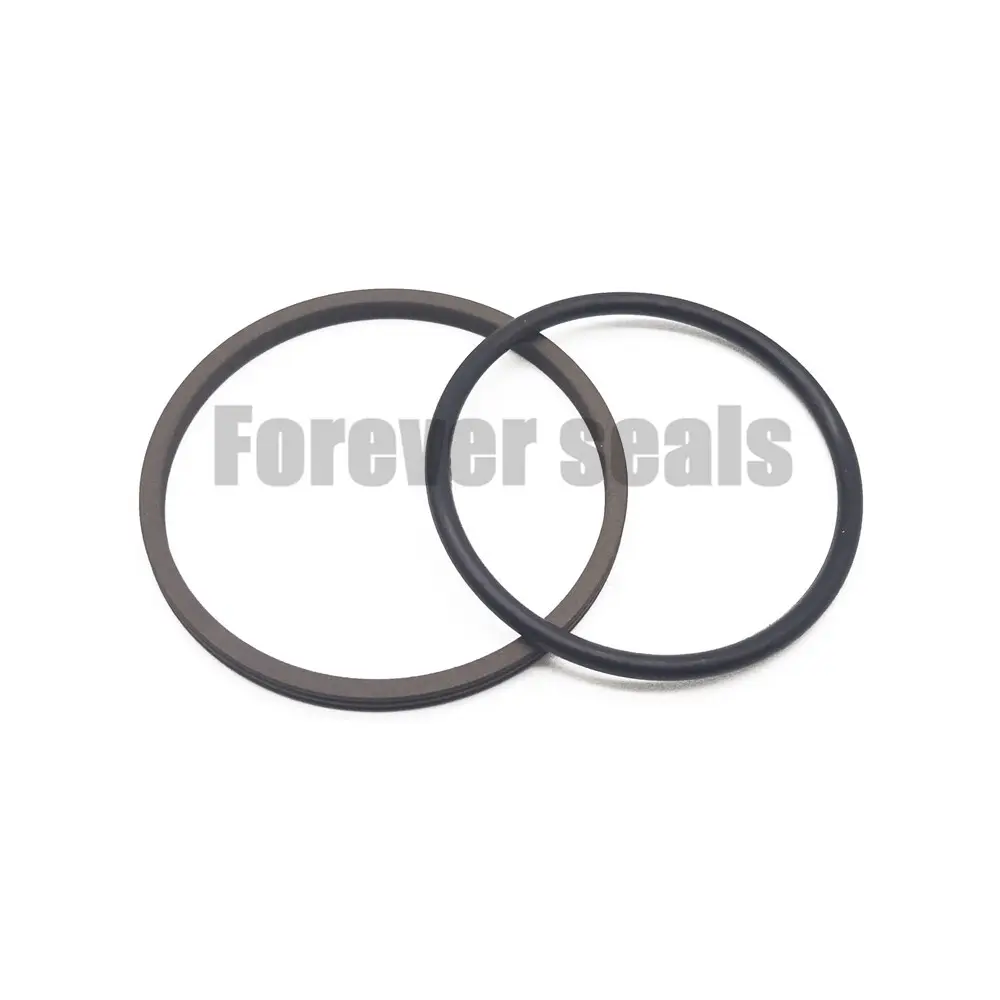

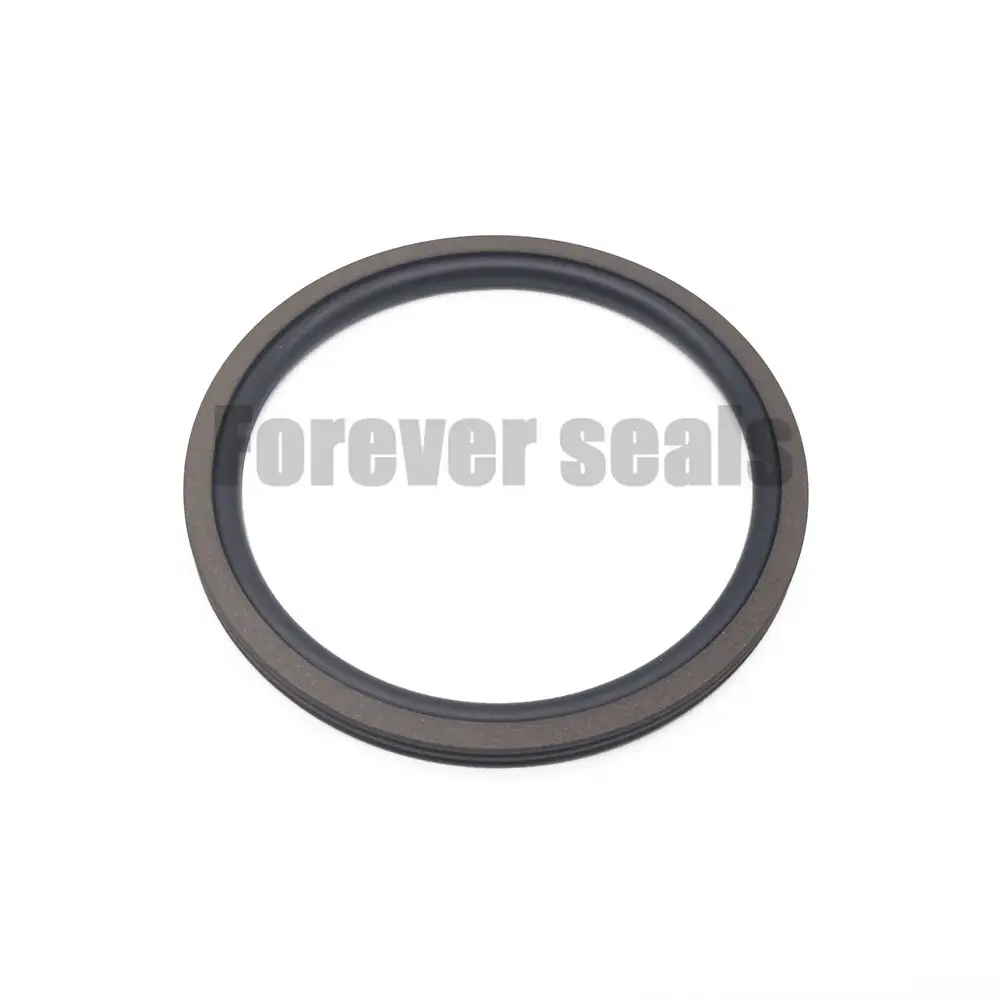

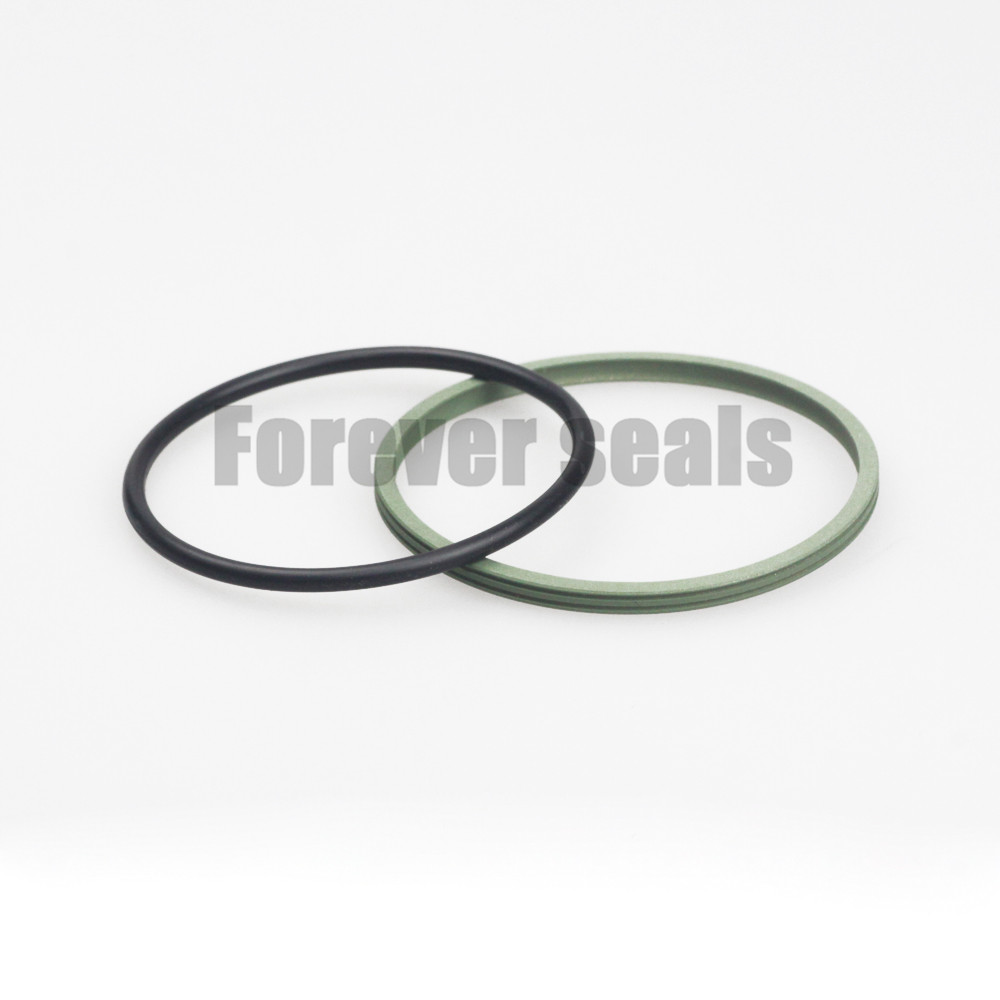

Product details of the rotary lip seal
Quick Overview
FOREVER SEALS rotary lip seal is manufactured using foreign advance technology. Improved production technology is adopted to achieve its consistent quality. The rotary lip seal produced by FOREVER SEALS is very popular in the market and is widely used in industry. The offered product is highly valued in the market for its great effectiveness.
Product Introduction
FOREVER SEALS produces rotary lip seal according to national standards, and the products are of good quality. The specific details are as follows.

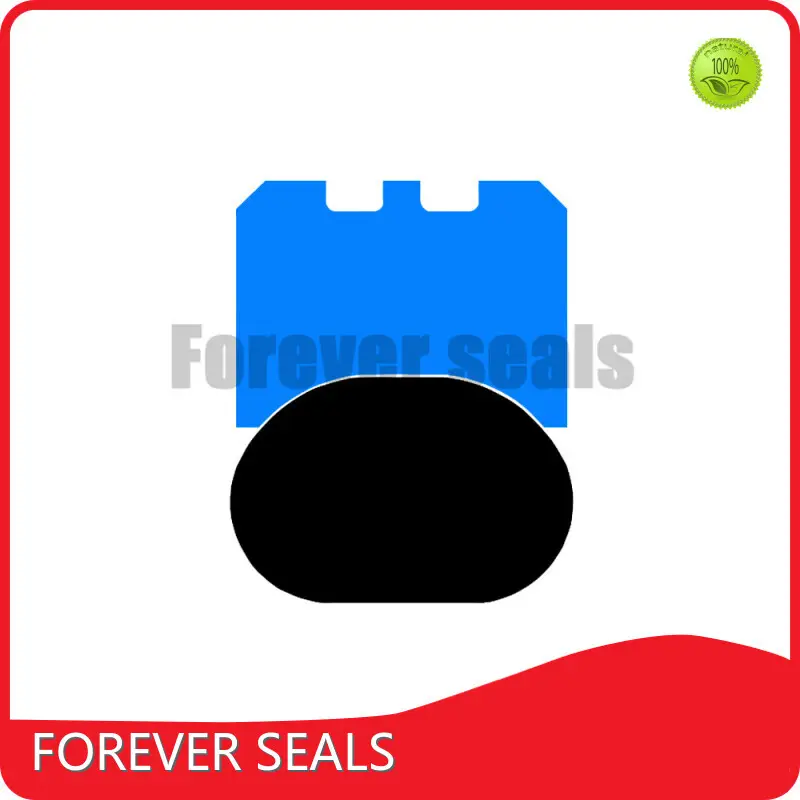

1. Description
Suitable for sealing with rotating or swinging rods, shafts, pins, rotary joints, etc. It is a rotary sealing ring that can withstand both sides pressure or alternating pressure role of the double acting effect, used in construction machinery, building machinery and automotive equipment. It can be applied on occasions where piston rod and piston seal are required, low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
2. Installation Recommendation
3. Installation Sizes
|
Bore Diameter DN H9 |
Groove Diameter |
Groove Width |
Radial Clearance S max. |
Radius |
O-Ring Cross-Section |
||
|
Standard Range |
Available range |
d1 h9 |
L1+0.2 |
32MPa |
50MPa |
R1 |
d2 |
|
8-39.9 |
8-135.0 |
DN-4.9 |
2.2 |
0.15 |
0.10 |
0.40 |
1.78 |
|
40-79.9 |
14-250.0 |
DN-7.5 |
3.2 |
0.20 |
0.15 |
0.60 |
2.62 |
|
80-132.9 |
22-460.0 |
DN-11.0 |
4.2 |
0.25 |
0.20 |
1.00 |
3.53 |
|
133-329.9 |
40-675.0 |
DN-15.5 |
6.3 |
0.30 |
0.25 |
1.30 |
5.33 |
|
330-669.9 |
133-690.0 |
DN-21.0 |
8.1 |
0.30 |
0.25 |
1.80 |
7.00 |
|
670-999.9 |
670-999.9 |
DN-28.0 |
9.5 |
0.45 |
0.30 |
2.50 |
8.40 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3 - 1600mm |
0 - 30MPa |
-30℃ +200℃ |
1 m/s |
hydraulic oil, flame retardant liquid, water and others |
6. Installation Dimensions
|
Bore Dia. |
Groove Dia. |
Groove Width |
Order No. |
|
D H9 |
d1 h9 |
L1+0.2 |
|
|
8 10 12 |
3.1 5.1 7.1 |
2.2 2.2 2.2 |
GNS8*3.1*2.2 GNS10*5.1*2.2 GNS12*7.1*2.2 |
|
14 15 16 |
9.1 10.1 11.1 |
2.2 2.2 2.2 |
GNS14*9.1*2.2 GNS15*10.1*2.2 GNS16*11.1*2.2 |
|
17 18 20 |
12.1 13.1 15.1 |
2.2 2.2 2.2 |
GNS17*12.1*2.2 GNS18*13.1*2.2 GNS20*15.1*2.2 |
|
22 25 28 |
17.1 20.1 23.1 |
2.2 2.2 2.2 |
GNS22*17.1*2.2 GNS25*20.1*2.2 GNS28*23.1*2.2 |
|
30 32 35 |
25.1 27.1 30.1 |
2.2 2.2 2.2 |
GNS30*25.1*2.2 GNS32*27.1*2.2 GNS35*30.1*2.2 |
|
36 38 40 |
31.1 33.1 32.5 |
2.2 2.2 3.2 |
GNS36*31.1*2.2 GNS38*33.1*2.2 GNS40*32.5*3.2 |
http://www.foreverseals.com/download.html
