Custom High Pressure Seals Price List
Product details of the high pressure seals
Quick Detail
FOREVER SEALS become more famous mainly for its independent designs. The product is highly valued by customers for its high quality and superior performance. FOREVER SEALS's high pressure seals can be used in multiple industries and fields. Doing the utmost to increase the customer satisfication is important for FOREVER SEALS.
Product Description
Compared with similar products, FOREVER SEALS's high pressure seals has the following advantages.
1. Description

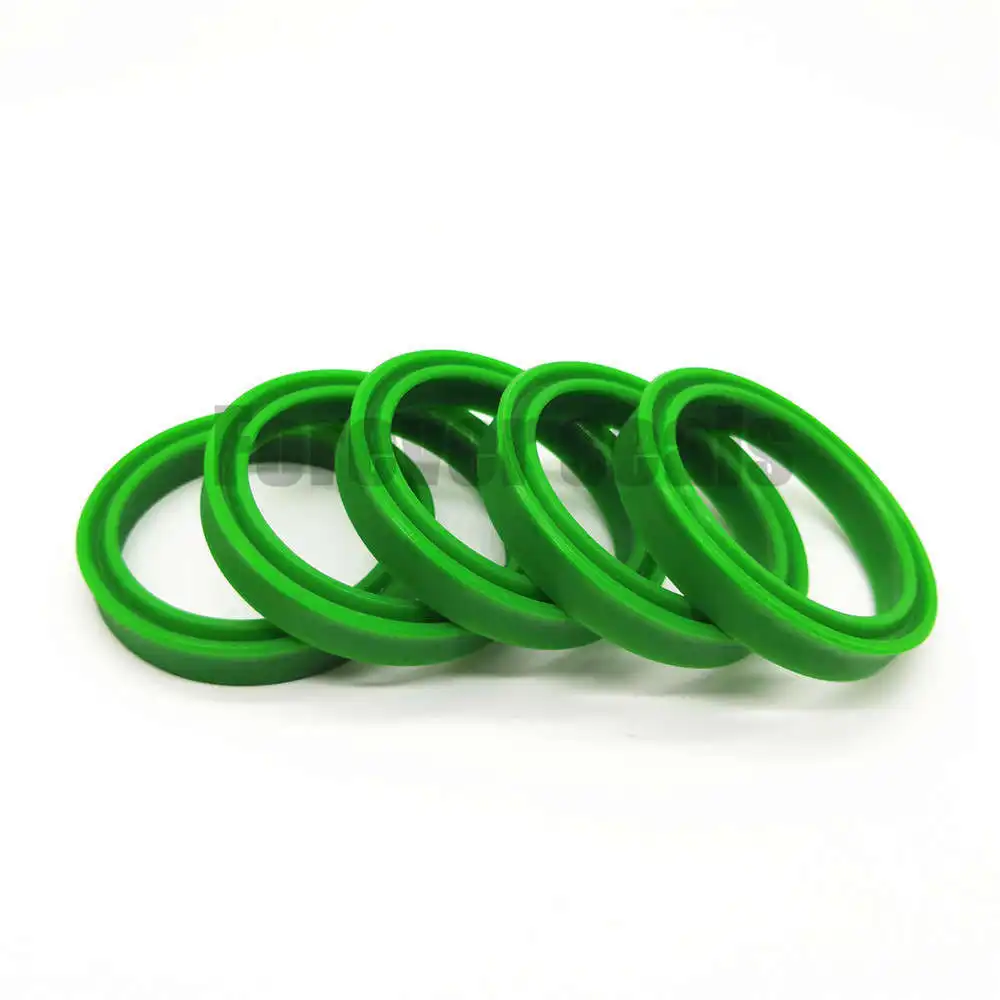

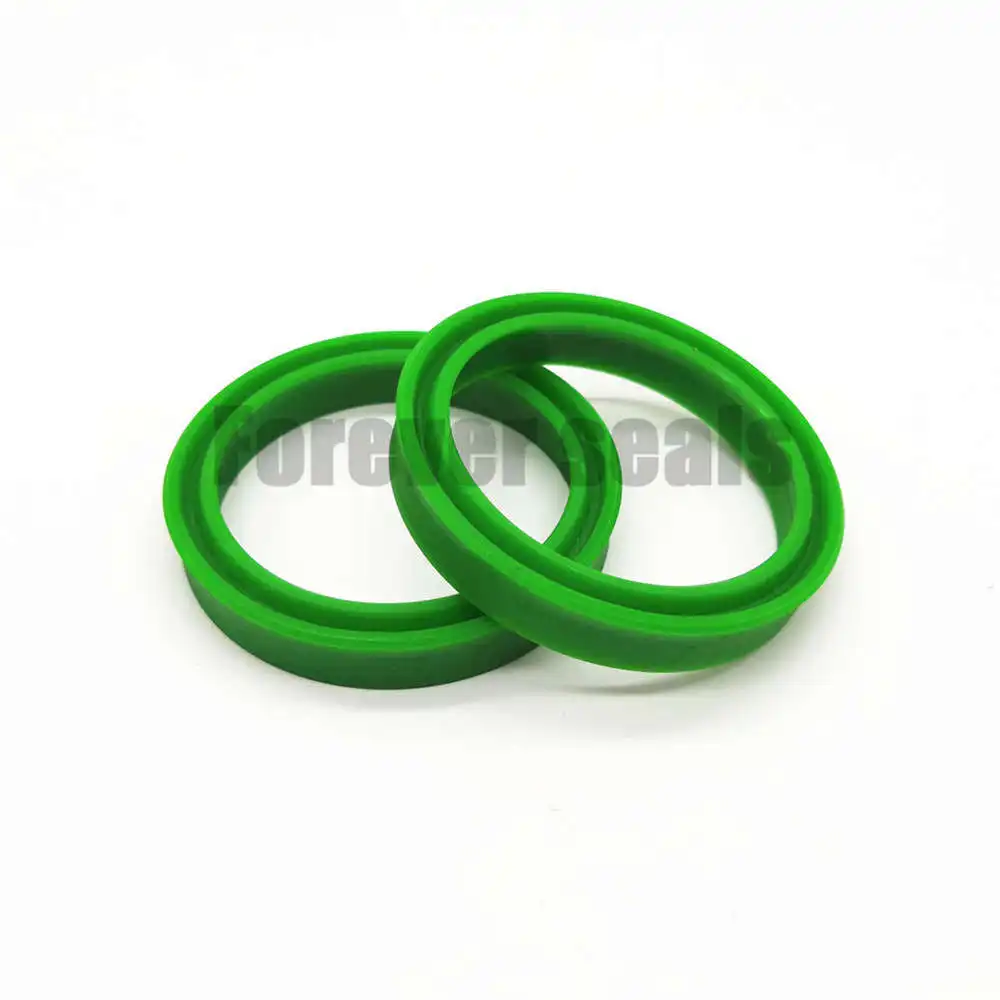

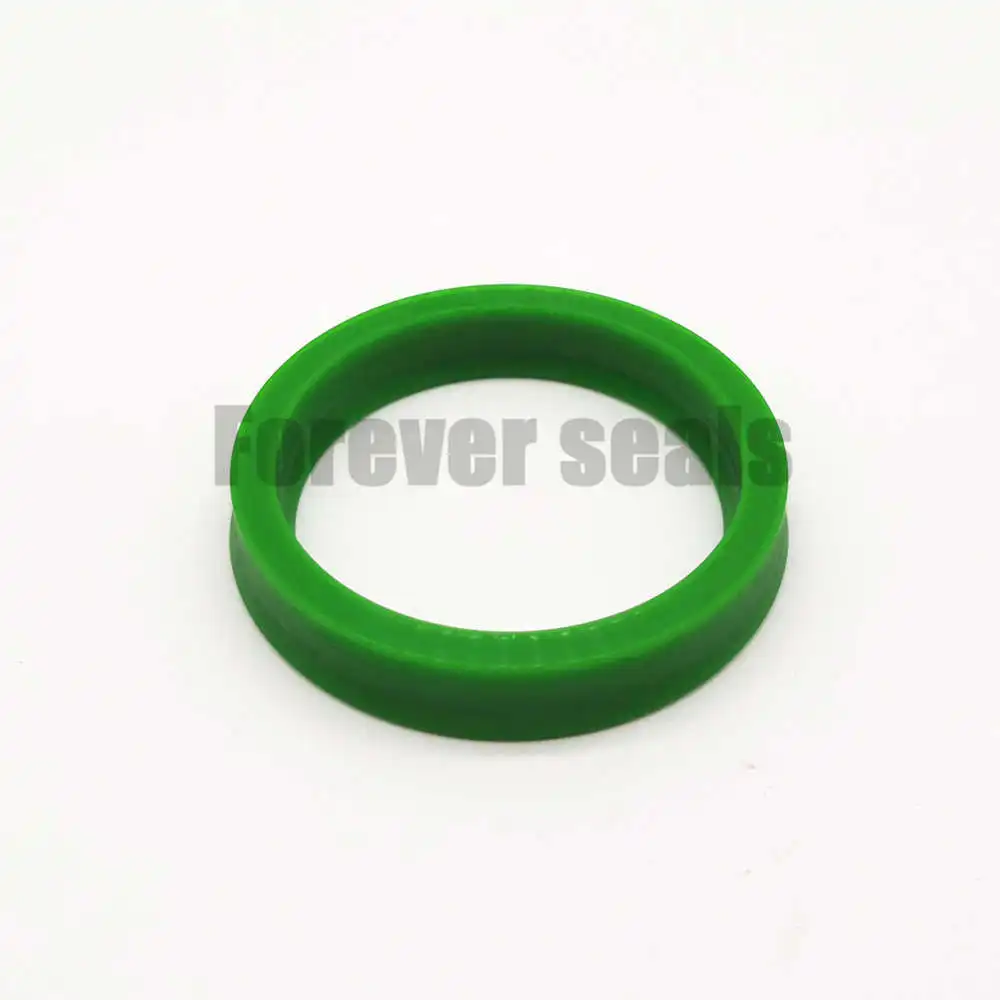

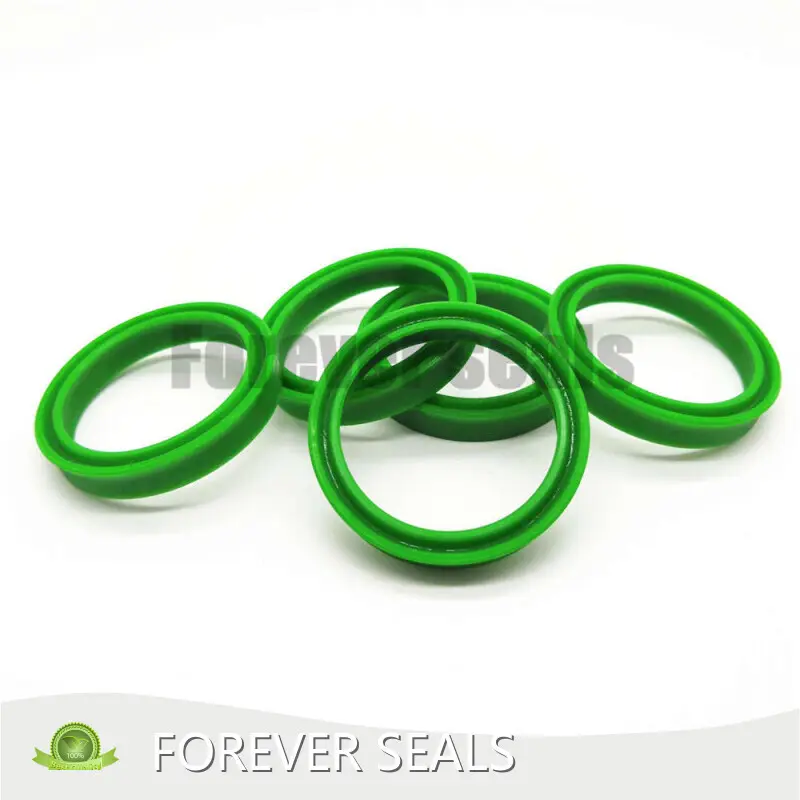

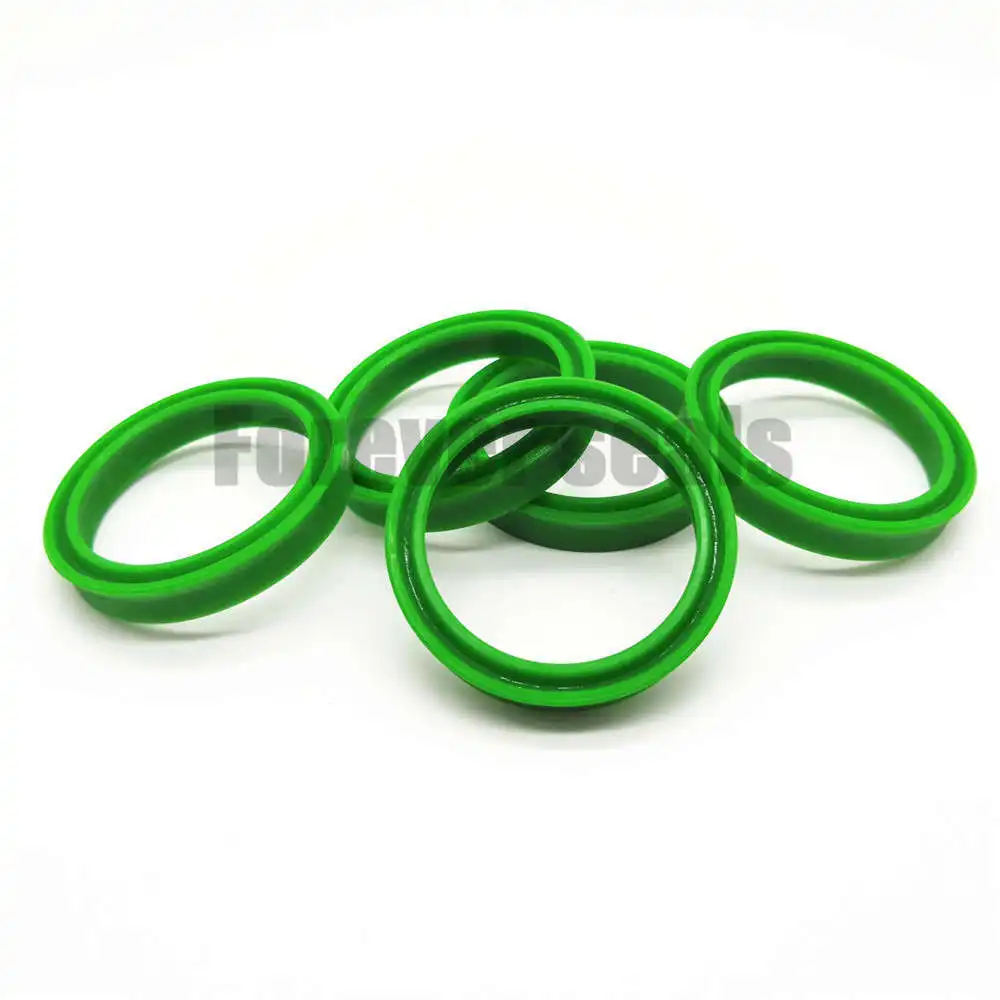

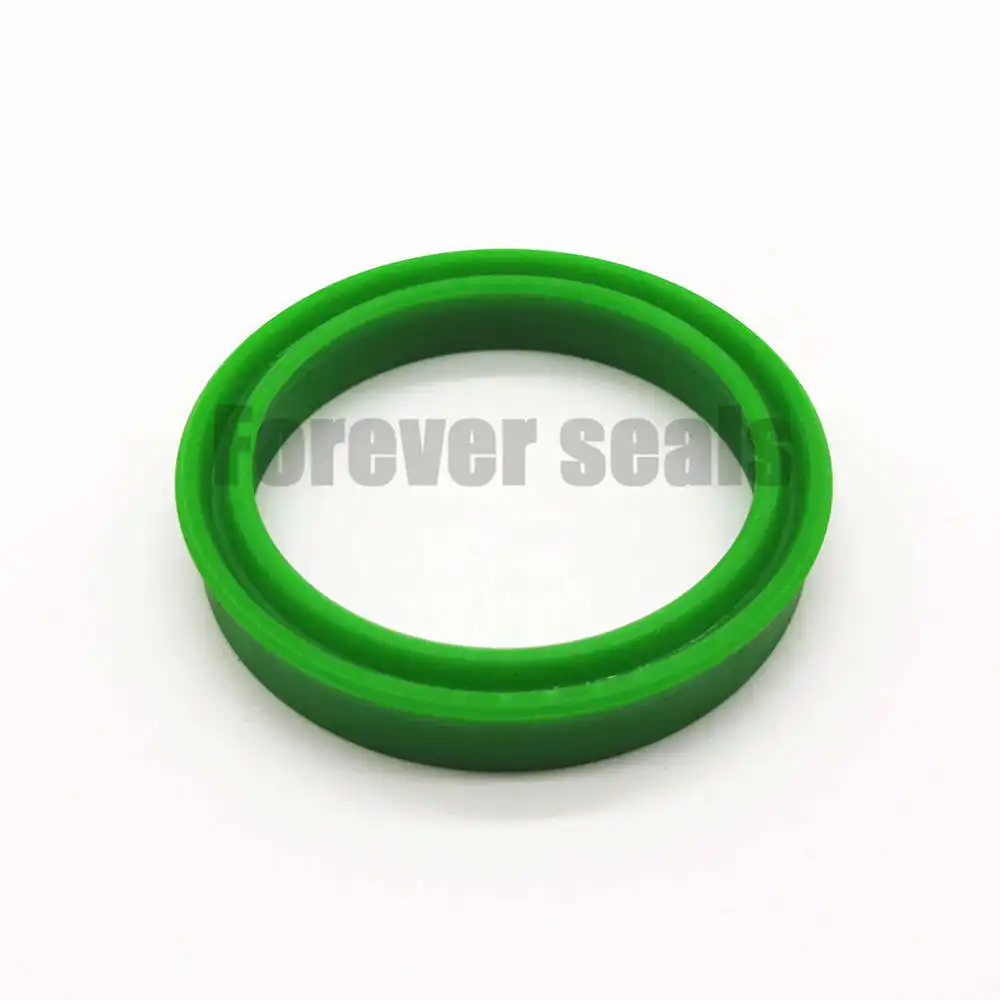

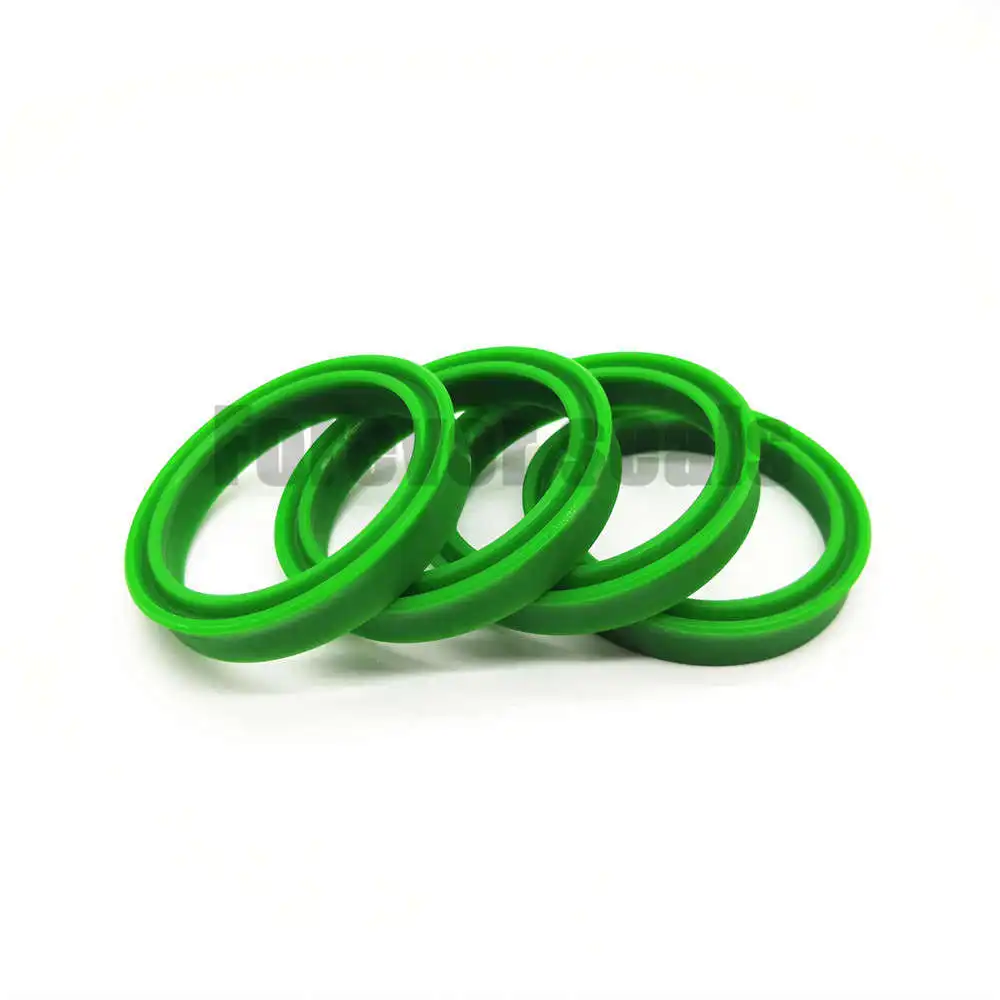

UNS seal can be used for piston and rod application. It it is a typical lip seal which used very widely in hydraulic cylinders. The inside lip and outside lip are same height. It can be installed easily. As the cross section is wide, UNS often used for hydraulic cylinders of low pressure.
2. Installation Recommendation
3. Installation Sizes
Piston
|
P<5MPa |
B=d+0.9 |
D<60 |
C=4 |
h <7 |
L=h+0.5 |
|
P 5-10MPa |
B=d+0.7 |
D 60-180 |
C=6.5 |
h =7-8 |
L=h+0.8 |
|
P 10-20MPa |
B=d+0.4 |
D 180-250 |
C=7.5 |
h >8 |
L=h+1.0 |
|
P 20-30MPa |
B=d+0.2 |
D 250-400 |
C=10 |
h >8 |
L=h+1.0 |
Piston Rod
|
P<5MPa |
B=D-0.9 |
D<60 |
C=4 |
D1=D-1 |
h<7 |
L=h+0.5 |
|
P 5-10MPa |
B=D-0.7 |
D 60-180 |
C=5.5 |
D1=D-1 |
h=7-8 |
L=h+0.8 |
|
P 10-20MPa |
B=D-0.4 |
D 120-180 |
C=6.5 |
D1=D-1 |
h>8 |
L=h+1.0 |
|
P 20-30MPa |
B=D-0.2 |
D 180-250 |
C=7.5 |
D1=D-2 |
h>8 |
L=h+1.0 |
|
P 30-40MPa |
B=D-0.1 |
D 250-400 |
C=10 |
D1=D-2 |
h>8 |
L=h+1.0 |
4. Standard materials
TPU, CPU
5. Working condition
Pressure: CPU≤40MPa TPU≤31.5MPa
Temperature: -35~+100℃
Speed: 0.5m/s
Medium: Hydraulic oils ( mineral oil-based )
Company Advantages
FOREVER SEALS TECHNOLOGY.,LIMITED is a reliable Chinese company. We have years of experience in the design, manufacture, wholesale, and marketing of high pressure seals. FOREVER SEALS TECHNOLOGY.,LIMITED is made in strict compliance with the production. We are committed to realizing our sustainability goals. We work with our customers in a safe, energy-efficient and environmentally conscious manner.
We are willing to go hand in hand with you to create a better future.
