Bulk Custom Rubber Rings Company

Company Advantages

· You can choose to design by yourselves for our custom rubber rings.

· This product is qualified with many international certificates.

· The product is widely praised among users for its good characteristics and has a high market application potential.

1. Product Advantages​

All-in-One Functionality: Integrates sealing and guiding functions in a single unit, eliminating the need for additional components and simplifying assembly.​

Superior Durability: Features a sulfur-bonded double U-seal and metal skeleton, paired with full rubber coating, to resist corrosion and wear—extending service life in harsh pneumatic environments.​

Low-Friction Operation: Optimized seal lip geometry retains a stable lubricating film, reducing friction to ensure smooth movement and minimizing energy loss during operation.​

Rapid Pressure Response: Built-in vent groove structure enables quick adaptation to full pressure loads, avoiding delays in cylinder actuation.​

Wide Compatibility: Works with both oil-lubricated air and initially lubricated oil-free air, meeting diverse application needs without compromising performance.​

2. Working Principle​

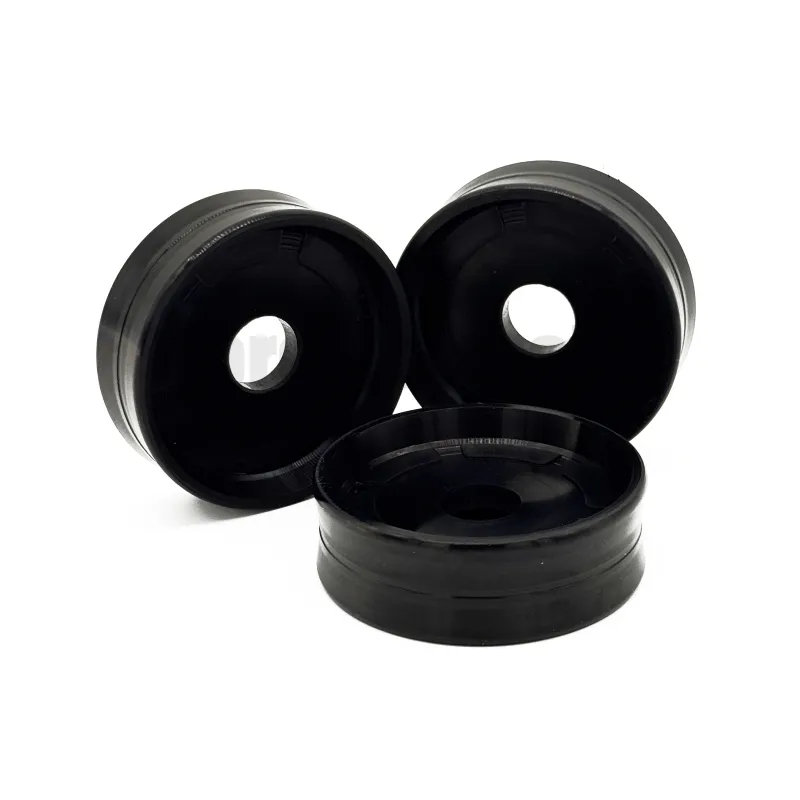

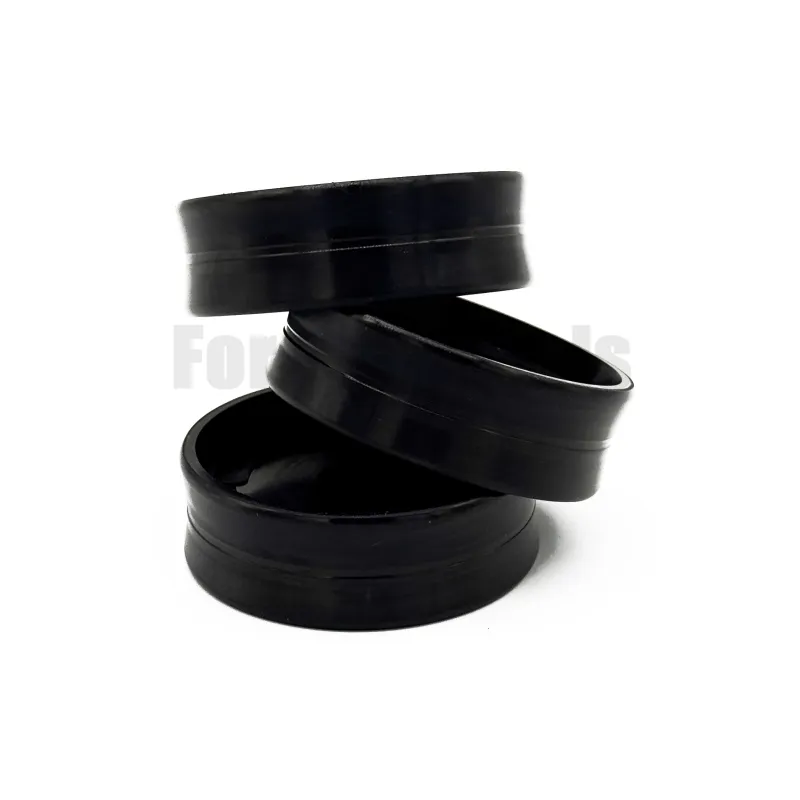

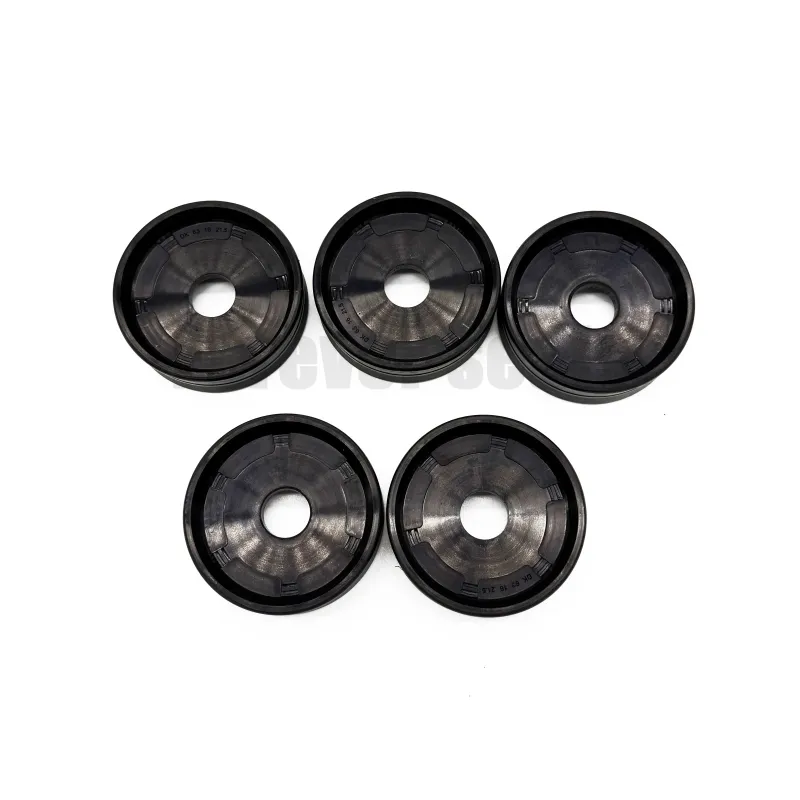

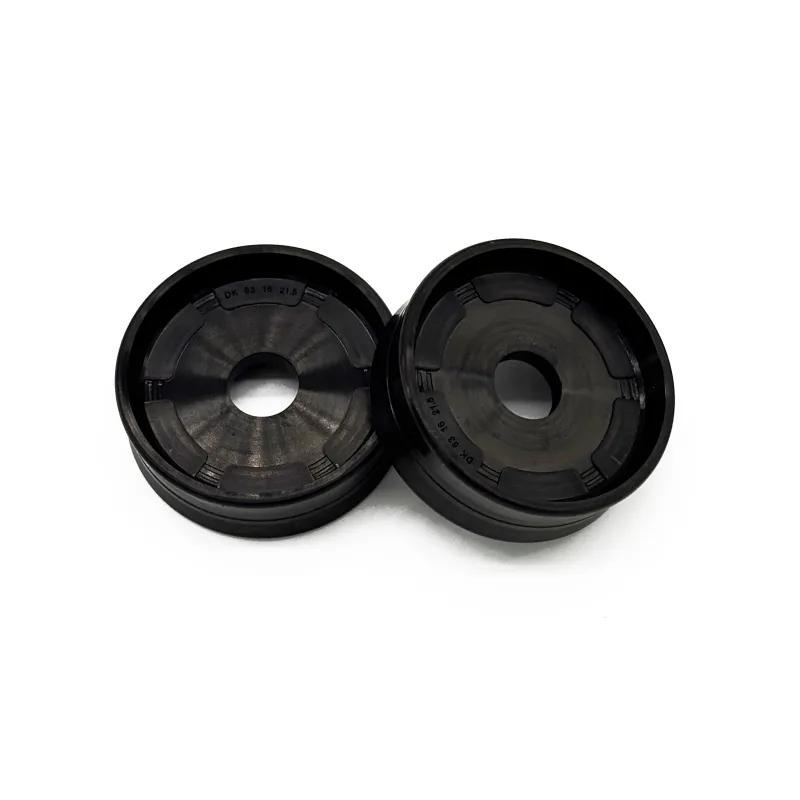

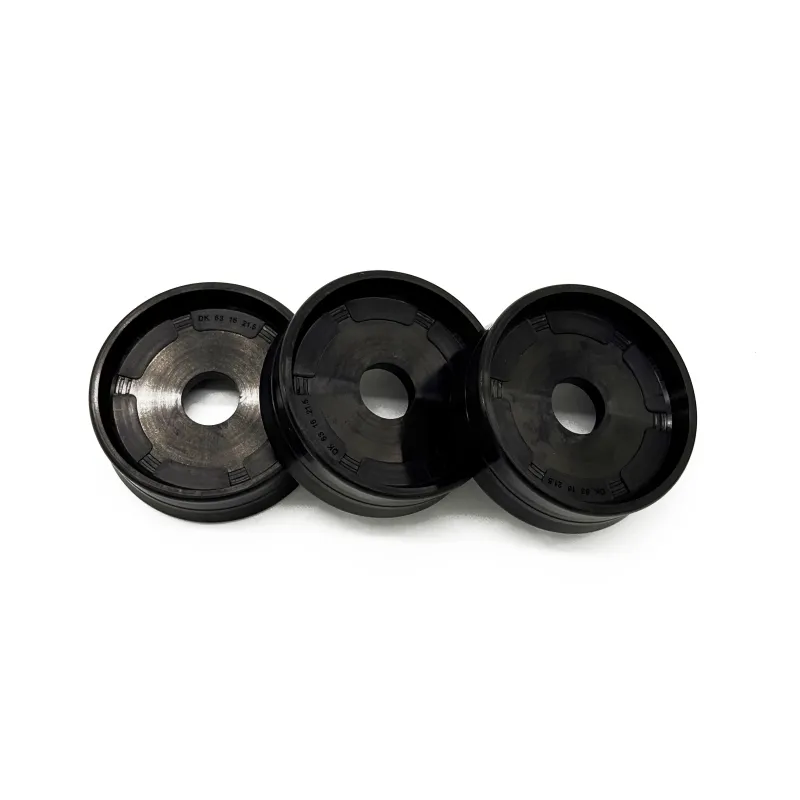

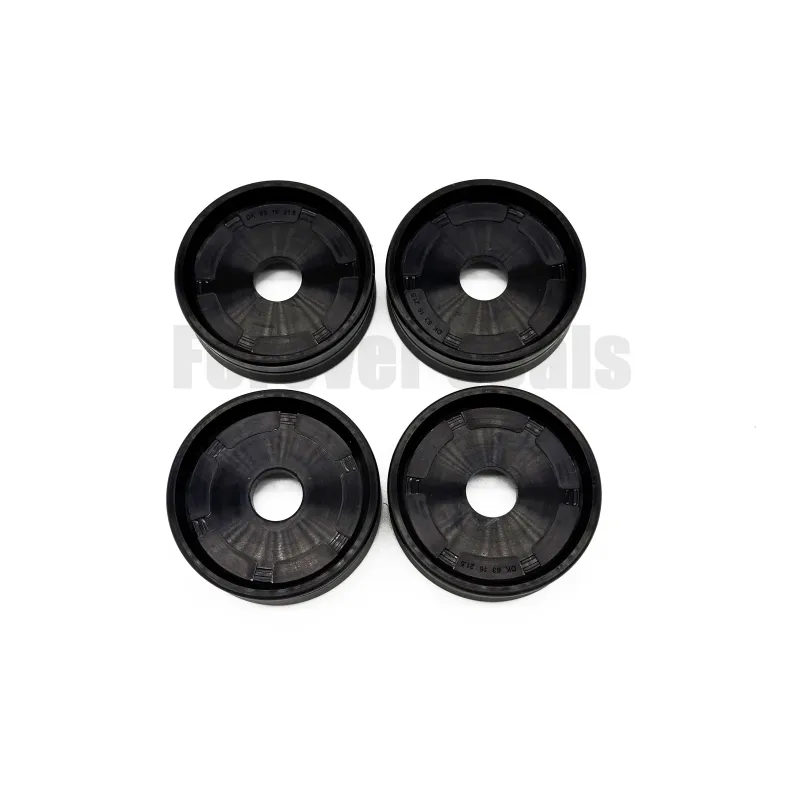

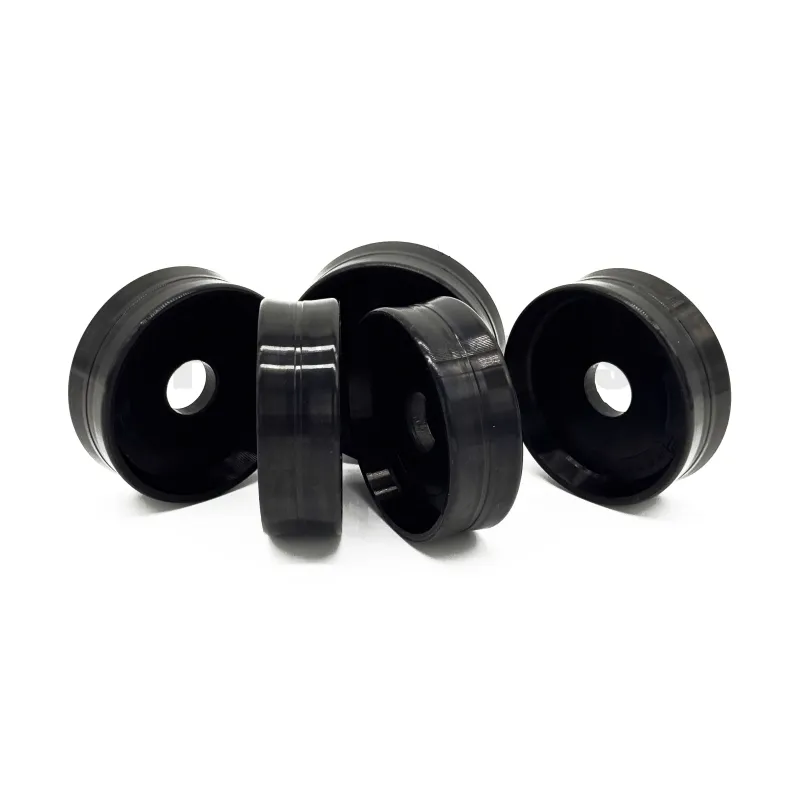

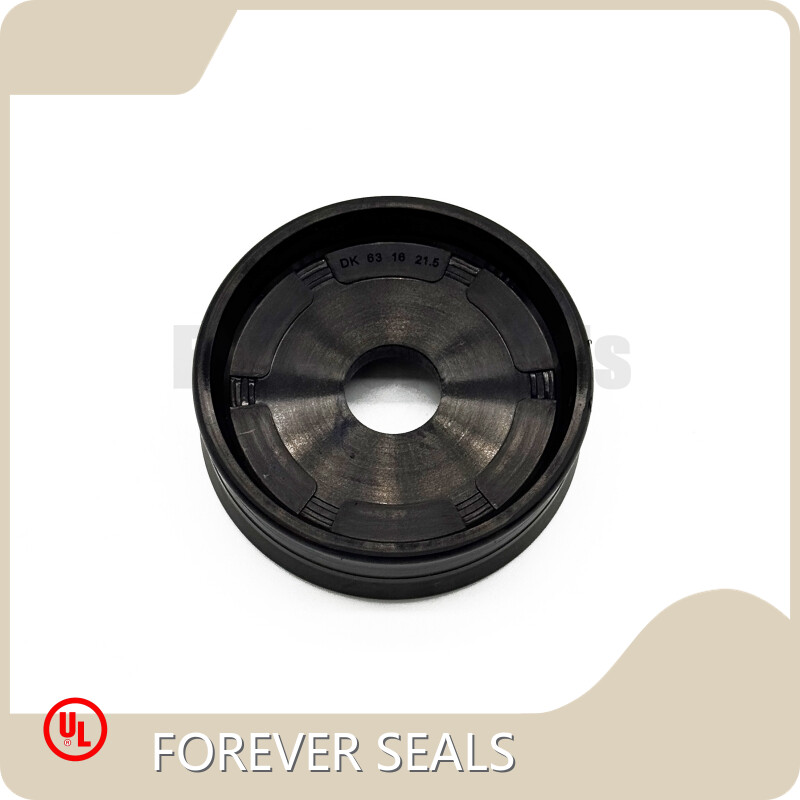

The Pneumatic Sealing DK operates by leveraging its double U-seal design to create an airtight barrier between the piston and cylinder bore, preventing air leakage during pressure cycles. The metal skeleton provides structural support, ensuring the piston maintains alignment (guiding function) as it moves. When air pressure is applied, the vent groove rapidly distributes pressure across the seal, enabling instant piston response. The rubber coating and lubricating film retention further reduce contact resistance, allowing the piston to move smoothly at a maximum surface speed of 1m/s while withstanding up to 16bar of working pressure.​

3. Product Details​

Materials: NBR-based synthetic rubber (standard Shore A71; Shore A78 recommended for cylinder bores >100mm) bonded to a corrosion-resistant metal skeleton via sulfur vulcanization.​

Working Parameters: Max working pressure: 16bar; Operating temperature range: -35℃ to +80℃ (Z5071 material) / -30℃ to +80℃ (Z5051 material); Surface speed: 1m/s.​

Installation: Designed for easy fixing on piston rods—no extra sealing or complex tools required, reducing assembly time.​

Design Features: Rubber-coated exterior for anti-corrosion; optimized seal lip for lubrication retention; vent groove for pressure responsiveness.​

4. Application Range​

Ideal for double-acting pneumatic cylinders (both with and without end buffers) in industries such as:​

Automated manufacturing (conveyor systems, robotic arms)​

Automotive assembly lines (pneumatic actuators for part handling)​

Packaging machinery (cylinder-driven sealing or cutting mechanisms)​

General industrial pneumatic systems (valve controls, linear motion devices)​

Note: Not suitable for long-stroke or curved working conditions where excessive radial loads may occur.​

5. FAQ​

Q1: Can the Pneumatic Sealing DK be used with oil-free air?​

A1: Yes, it is compatible with initially lubricated oil-free air (and oil-lubricated air), making it versatile for systems with limited lubrication.​

Q2: What material options are available for different temperatures?​

A2: Two standard materials: Z5051 (-30℃ to +80℃) and Z5071 (-35℃ to +80℃), covering most industrial temperature needs.​

Q3: Do I need to install additional seals when using this piston?​

A3: No—its integral design includes built-in sealing capabilities, so no extra sealing components are required.​

Q4: Is it suitable for large-bore cylinders?​

A4: Yes, for cylinder bores over 100mm, we recommend the Shore A78 rubber material to ensure optimal sealing performance under increased pressure.​

6. Company Selling Points (Forever Seals)​

Expertise in Sealing Solutions: With years of experience in pneumatic sealing technology, we engineer products that meet strict industrial standards for reliability and performance.​

Customization Capabilities: Beyond standard DK models, we offer tailored solutions (material adjustments, size modifications) to fit unique customer applications.​

Quality Assurance: Every Pneumatic Sealing DK undergoes rigorous testing (pressure resistance, temperature cycling, friction measurement) to ensure consistency.​

Global Support: We provide timely technical assistance, fast delivery, and after-sales service to customers worldwide, ensuring minimal downtime for your operations.

Company Features

· FOREVER SEALS TECHNOLOGY.,LIMITED is considered as an indispensable source of custom rubber rings. We have a wealth of experience in product design and manufacture.

· By overcoming technical difficulties, FOREVER SEALS has made great improvement in the quality of custom rubber rings. In order to cater to the rapid changing of the society, FOREVER SEALS has been focusing on the technical innovation. Utilizing technological innovation will drive FOREVER SEALS to develop more rapidly.

· Our goal is that we aim to improve our products and solutions through innovations and smart thinking – to create more value at a reduced ecological footprint.

Product Details

With a focus on product quality, FOREVER SEALS strives for quality excellence in the production of custom rubber rings.
