Industrial-Grade GSF Glyd Ring (FKM Energized): Filled PTFE + O-Ring Piston Seal
1. Product Advantages
2. Installation Recommendation

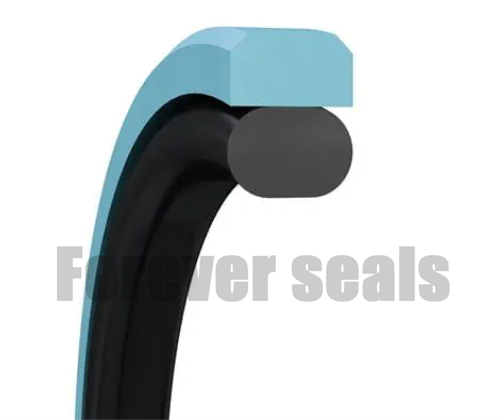

3.Working Principle
4. Product Details
- Type: Double‑acting piston Glyd Ring (FKM energized)

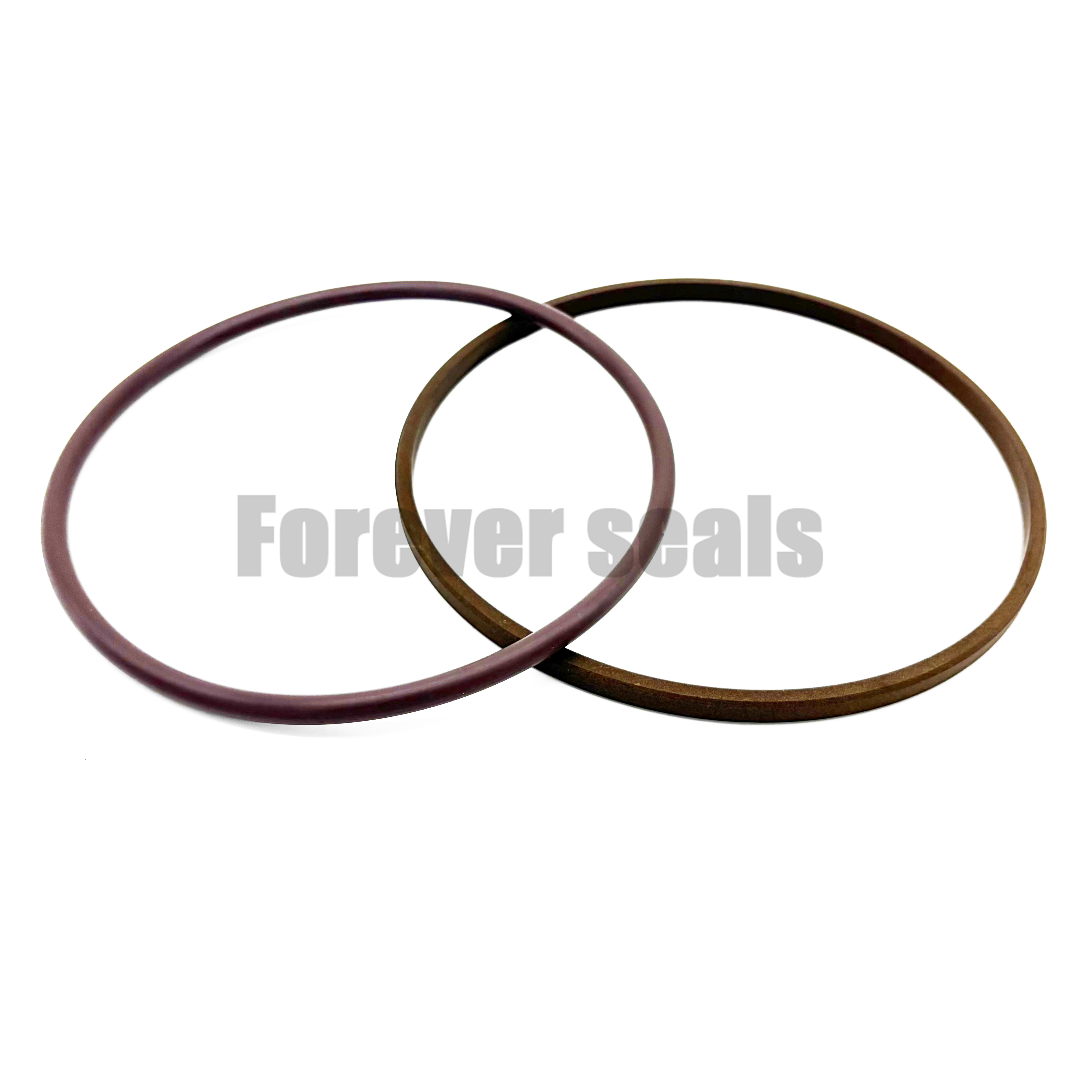

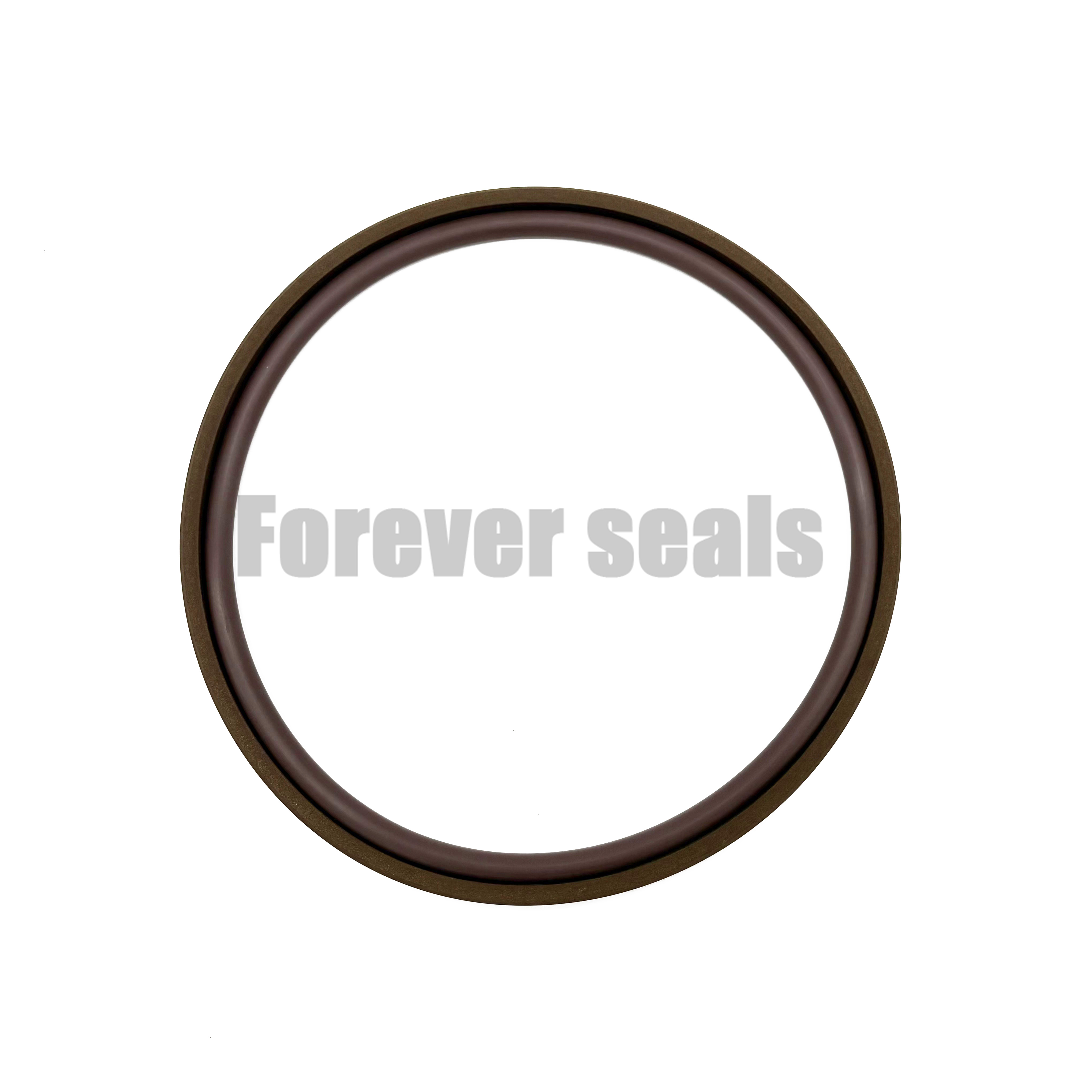

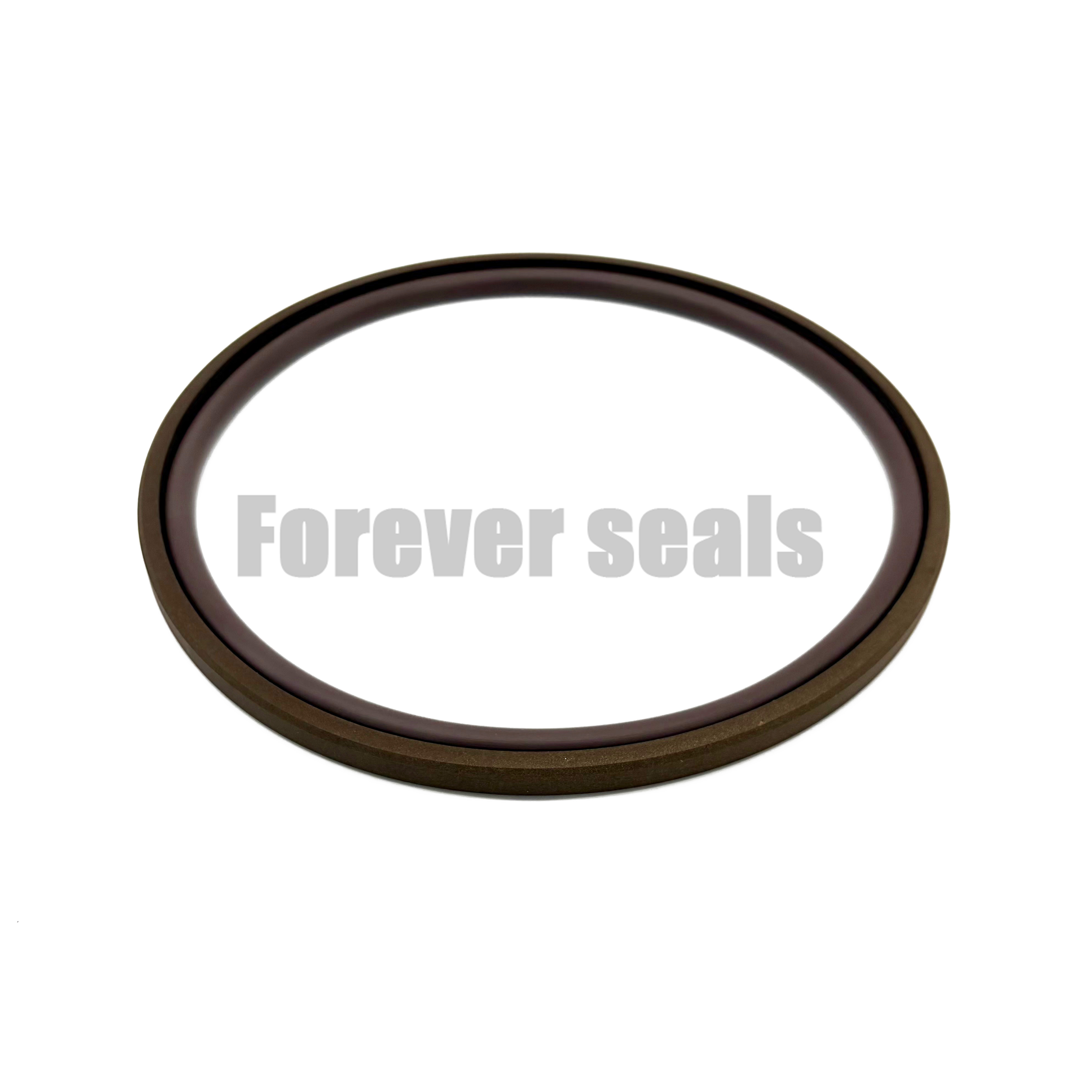

- Model: GLYD RING BROWN 180×159×8.1
- Seal ring: Filled PTFE (brown)
- Energizer: FKM (fluorocarbon rubber)
- Pressure: 0–60 MPa
- Speed: ≤15 m/s
- Temperature: -20°C to +200°C
- Standard: ISO 7425
5. Product Dimensions
|
Bore Dia. |
Groove Dia. |
Groove Width |
Order No. |
O-Ring Dimensions |
|
DN H9 |
d1 h9 |
L1+0.2 |
|
|
|
8 10 12 |
3.1 5.1 7.1 |
2.2 2.2 2.2 |
GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2 |
2.90*1.78 4.80*1.8 6.70*1.8 |
|
14 15 15 |
9.1 10.1 7.5 |
2.2 2.2 3.2 |
GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2 |
8.75*1.8 7.59*2.62 8.75*1.8 |
|
16 16 18 |
11.1 8.5 13.1 |
2.2 3.2 2.2 |
GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2 |
10.82*1.78 7.59*2.62 12.42*1.78 |
|
18 20 20 |
10.5 15.1 12.5 |
3.2 2.2 3.2 |
GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2 |
9.19*2.62 14.00*1.78 12.37*2.62 |
|
24 24 25 |
19.1 16.5 17.5 |
2.2 3.2 3.2 |
GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2 |
18.77*1.78 15.54*2.62 17.12*2.62 |
|
25 28 28 |
14 20.5 17 |
4.2 3.2 4.2 |
GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2 |
13.87*3.53 20.29*2.62 15.47*3.53 |
|
30 30 32 |
22.5 19 24.5 |
3.2 4.2 3.2 |
GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2 |
21.89*2.62 26.70*1.78 23.47*2.62 |
|
32 35 35 |
21 27.5 24 |
4.2 3.2 4.2 |
GSF32*21*4.2 GSF35*27.5*3.2 GSF35*24*4.2 |
20.22*3.53 26.64*2.62 23.40*3.53 |
|
36 36 38 |
28.5 25 30.5 |
3.2 4.2 3.2 |
GSF36*28.5*3.2 GSF36*25*4.2 GSF38*30.5*3.2 |
28.24*2.62 23.39*3.53 29.82*2.62 |
|
38 40 40 |
27 32.5 29 |
4.2 3.2 4.2 |
GSF38*27*4.2 GSF40*32.5*3.2 GSF40*29*4.2 |
25.86*3.53 31.42*2.62 28.17*3.53 |
|
45 45 48 |
37.5 34 40.5 |
3.2 4.2 3.2 |
GSF45*37.5*3.2 GSF45*34*4.2 GSF48*40.5*3.2 |
36.5*2.62 32.92*3.53 36.09*3.53 |
|
48 50 50 |
37 39 34.5 |
4.2 4.2 6.3 |
GSF48*37*4.2 GSF50*39*4.2 GSF50*34.5*6.3 |
36.09*3.53 37.70*3.53 32.69*5.33 |
|
52 52 55 |
41 36.5 44 |
4.2 6.3 4.2 |
GSF52*41*4.2 GSF52*36.5*6.3 GSF55*44*4.2 |
40.87*3.53 35*5.33 44.04*3.53 |
|
55 56 56 |
39.5 45 40.5 |
6.3 4.2 6.3 |
GSF55*39.5*6.3 GSF56*45*4.2 GSF56*40.5*6.3 |
38*5.33 44.04*3.53 39*5.33 |
|
60 60 63 |
49 44.5 52 |
4.2 6.3 4.2 |
GSF60*49*4.2 GSF60*44.5*6.3 GSF63*52*4.2 |
47.22*3.53 42.5*5.33 50.39*3.53 |
|
63 64 64 |
47.5 53 48.5 |
6.3 4.2 6.3 |
GSF63*47.5*6.3 GSF64*53*4.2 GSF64*48.5*6.3 |
46*5.33 51.5*3.53 46.99*5.33 |
|
65 65 70 |
54 49.5 59 |
4.2 6.3 4.2 |
GSF65*54*4.2 GSF65*49.5*6.3 GSF70*59*4.2 |
53.57*3.53 48*5.33 56.74*3.53 |
|
70 75 75 |
54.5 64 59.5 |
6.3 4.2 6.3 |
GSF70*54.5*6.3 GSF75*64*4.2 GSF75*59.5*6.3 |
53.34*5.33 63.09*3.53 56.52*5.33 |
|
80 80 85 |
69 64.5 74 |
4.2 6.3 4.2 |
GSF80*69*4.2 GSF80*64.5*6.3 GSF85*74*4.2 |
66.27*3.53 62.87*5.33 72.62*3.53 |
|
85 90 90 |
69.5 79 74.5 |
6.3 4.2 6.3 |
GSF85*69.5*6.3 GSF90*79*4.2 GSF90*74.5*6.3 |
69.22*5.33 78.97*3.53 72.39*5.33 |
|
95 95 100 |
84 79.5 89 |
4.2 6.3 4.2 |
GSF95*84*4.2 GSF95*79.5*6.3 GSF100*89*4.2 |
82.14*3.53 78.74*5.33 88.49*3.53 |
|
100 105 105 |
84.5 94 89.5 |
6.3 4.2 6.3 |
GSF100*84.5*6.3 GSF105*94*4.2 GSF105*89.5*6.3 |
81.92*5.33 91.67*3.53 88.27*5.33 |
|
110 110 115 |
99 94.5 99.5 |
4.2 6.3 6.3 |
GSF110*99*4.2 GSF110*94.5*6.3 GSF115*99.5*6.3 |
98.02*3.53 91.44*5.33 97.79*5.33 |
