Hydraulic cylinder bronze PTFE piston seal glyd ring GSF

  • Category: Piston seals
  • Temperature: -40 - +200℃
  • Material: filled PTFE
  • Color: green, brown
  • Medium: Hydraulic oils

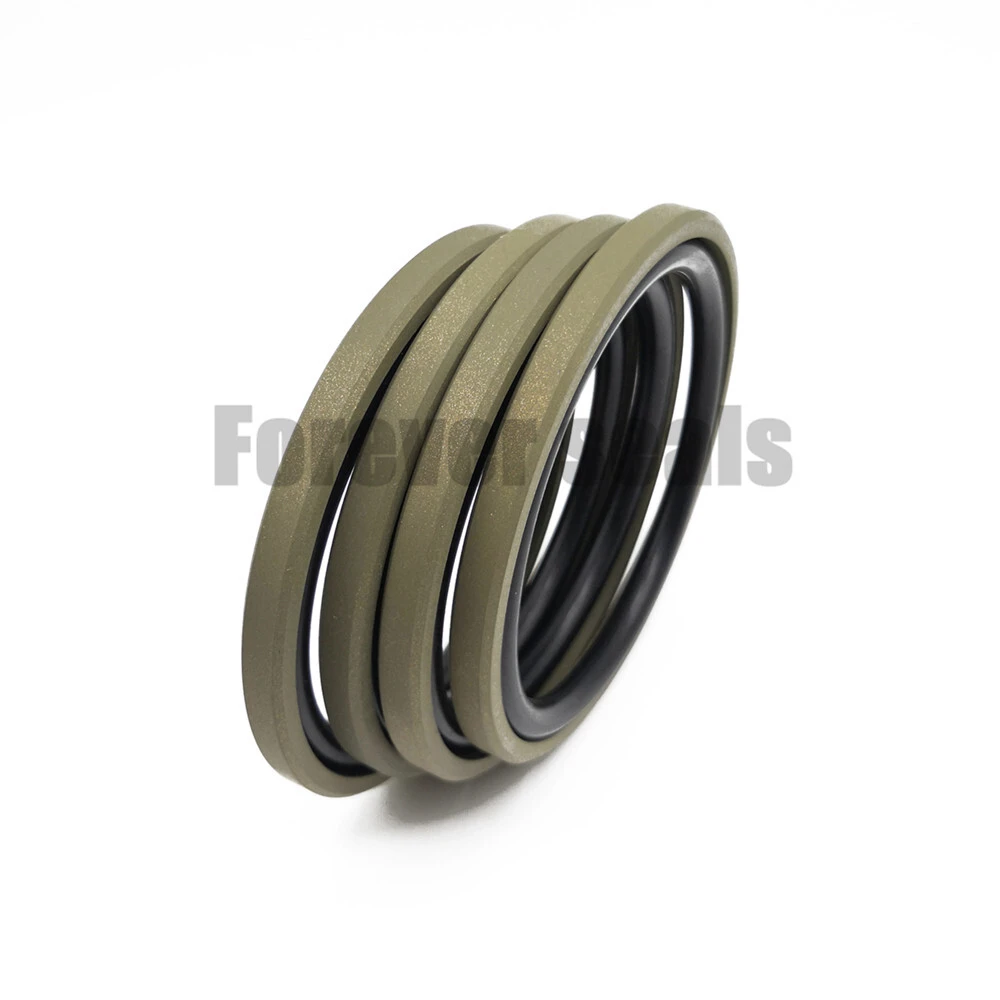

  • Product description:Hydraulic cylinder bronze PTFE piston seal glyd ring GSF

    oops...!

    no product data.

    Go to homepage

    More Choices

    no data

    1. Description

    Glyd Ring is a double-acting O-Ring energized piston seal for dynamic applications. Glyd Ring provides low friction with no stick-slip, minimal break out force and high wear resistance. Main application is actuator cylinders. Installed in grooves to ISO 7425.

    2. Installation Recommendation

    Hydraulic cylinder bronze PTFE piston seal glyd ring GSF 8

    3. Installation dimensions - Standard recommendations

    Bore Diameter                         DN H9

    Groove Diameter

    Groove Width

    Radius

    Radial Clearance                S max.

    O-Ring Cross-Section

    Standard Application

    Light Application

    Heavy Duty Application

    d1 h9

    L1+0.2

    R1

    10MPa

    20MPa

    40MPa

    d2

    8-14.9

    15-39.9

    -

    DN-4.9

    2.2

    0.4

    0.3

    0.20

    0.15

    1.78

    15-39.9

    40-79.9

    -

    DN-7.5

    3.2

    0.6

    0.4

    0.25

    0.15

    2.62

    40-79.9

    80-132.9

    15-39.9

    DN-11.0

    4.2

    1.0

    0.4

    0.25

    0.20

    3.53

    80-132.9

    133-329.9

    40-79.9

    DN-15.5

    6.3

    1.3

    0.5

    0.30

    0.20

    5.33

    133-329.9

    330-699.9

    80-132.9

    DN-21.0

    8.1

    1.8

    0.6

    0.35

    0.25

    7.00

    330-669.9

    670-99.9

    133-329.9

    DN-24.5

    8.1

    1.8

    0.6

    0.35

    0.25

    7.00

    670-999.9

    ≥1000

    330-669.9

    DN-28.0

    9.5

    2.5

    0.7

    0.50

    0.30

    8.40

    ≥1000

    ≥1000

    ≥1000

    DN-38.0

    13.8

    3.0

    1.0

    0.70

    0.60

    12.00

    4. Standard materials

    Sealing ring: filled PTFE

    O-Ring: NBR / FKM

    5. Working Conditions

    Diameter Range

    Pressure Range

    Temperature Range

    Speed

    Medium

    8 - 1600mm

    0 - 60MPa

    -45℃ +200℃

    15 m/s

    hydraulic oil, flame retardant liquid, water and others

    6. Installation Dimensions

    Bore Dia.

    Groove Dia.

    Groove Width

    Order No.

    O-Ring Dimensions

    8

    10

    12

    3.1

    5.1

    7.1

    2.2

    2.2

    2.2

    GSF8*3.1*2.2

    GSF10*5.1*2.2

    GSF12*7.1*2.2

    2.90*1.78

    4.80*1.8

    6.70*1.8

    14

    15

    15

    9.1

    10.1

    7.5

    2.2

    2.2

    3.2

    GSF14*9.1*2.2

    GSF15*10.1*2.2

    GSF15*7.5*3.2

    8.75*1.8

    7.59*2.62

    8.75*1.8

    16

    16

    18

    11.1

    8.5

    13.1

    2.2

    3.2

    2.2

    GSF16*11.1*2.2

    GSF16*8.5*3.2

    GSF18*13.1*2.2

    10.82*1.78

    7.59*2.62

    12.42*1.78

    18

    20

    20

    10.5

    15.1

    12.5

    3.2

    2.2

    3.2

    GSF18*10.5*3.2

    GSF20*15.1*2.2

    GSF20*12.5*3.2

    9.19*2.62

    14.00*1.78

    12.37*2.62

    About more dimensions, you can download it through below link.
