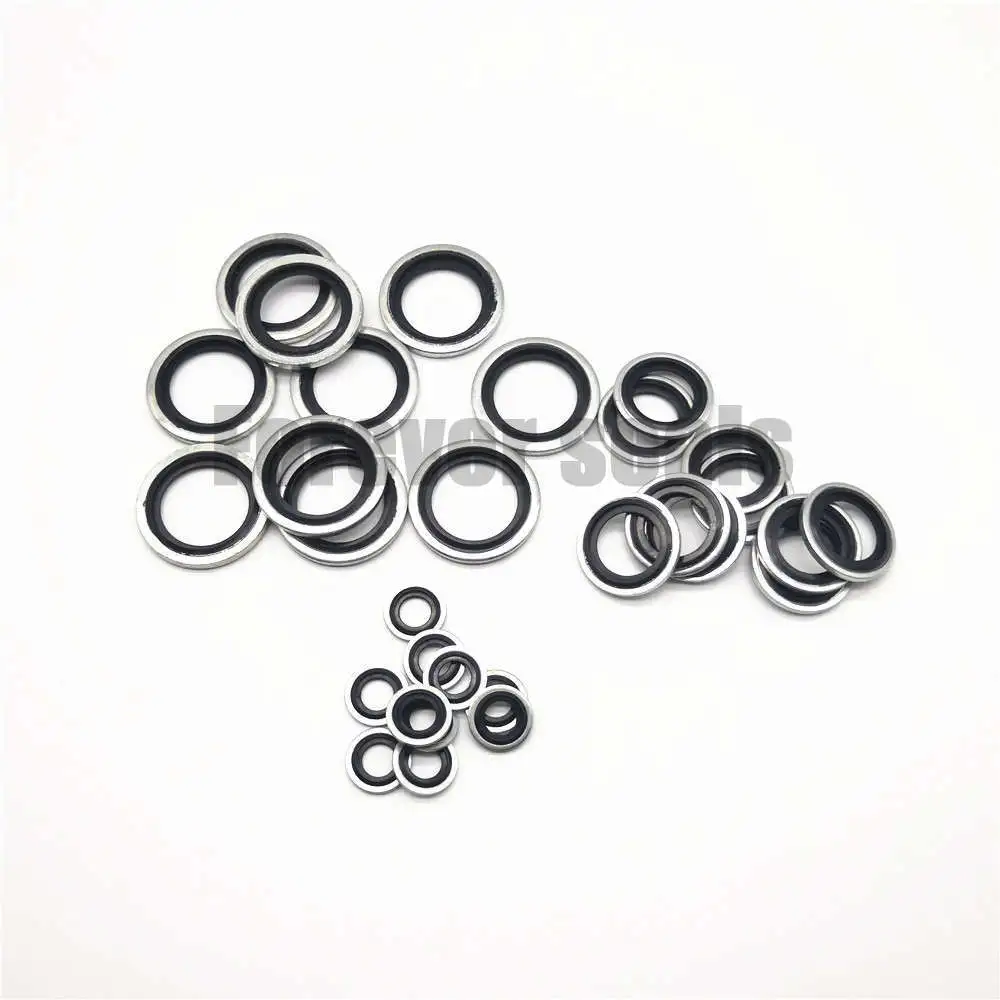

Dowty bonded seal

  • Category: Others
  • Temperature: -40 - +100℃
  • Material: NBR
  • Color: Black
  • Application: flange joints
  • Product description:Dowty bonded seals are sealing discs that seal threads and flange joints. The discs consist of a metallic ring and a rubber sealing pad bonded together. Available in metric and inch dimensions.

    oops...!

    no product data.

    Go to homepage

    More Choices

    no data

    1. Description

    Dowty bonded seals are sealing discs that seal threads and flange joints. The discs consist of a metallic ring and a rubber sealing pad bonded together. Available in metric and inch dimensions.

    2. Figure GM500 Self-centering

    Dowty bonded seal 8

    3. GM500 Self-centering range metric dimensions

    Metric Thread
    size

    Inside Diameter

    Outside
    Diameter

    Metal thick
    ness

    Metal washer
    ID

    ID between
    self centering

    C

    A

    E

    B

    F

    PPM6

    6,50

    10,00

    1,00

    8,00

    5,60

    PPM8

    8,5

    14,00

    1,00

    10,40

    6,40

    PPM10

    10,50

    16,00

    2,00

    12,40

    8,05

    PPM12

    12,50

    18,00

    1,50

    14,10

    9,73

    PPM14

    14,5

    20,00

    2,00

    16,40

    11,38

    PPM16

    16,5

    22,00

    2,00

    18,40

    13,41

    PPM18

    18,5

    25,00

    2,00

    20,40

    14,76

    PPM20

    20,5

    28,00

    2,00

    22,50

    16,76

    PPM22

    22,5

    30,00

    2,00

    24,40

    18,74

    PPM24

    24,5

    32,00

    2,00

    26,40

    20,11

    PPM27

    27,2

    35,00

    2,00

    29,40

    23,30

    PPM30

    30,7

    38,00

    2,00

    32,40

    25,70

    PPM33

    33,5

    42,00

    2,00

    35,40

    28,70

    PPM36

    36.7

    46,00

    2,00

    38,70

    31.1

    About more dimensions, you can download our catalog through below link.
