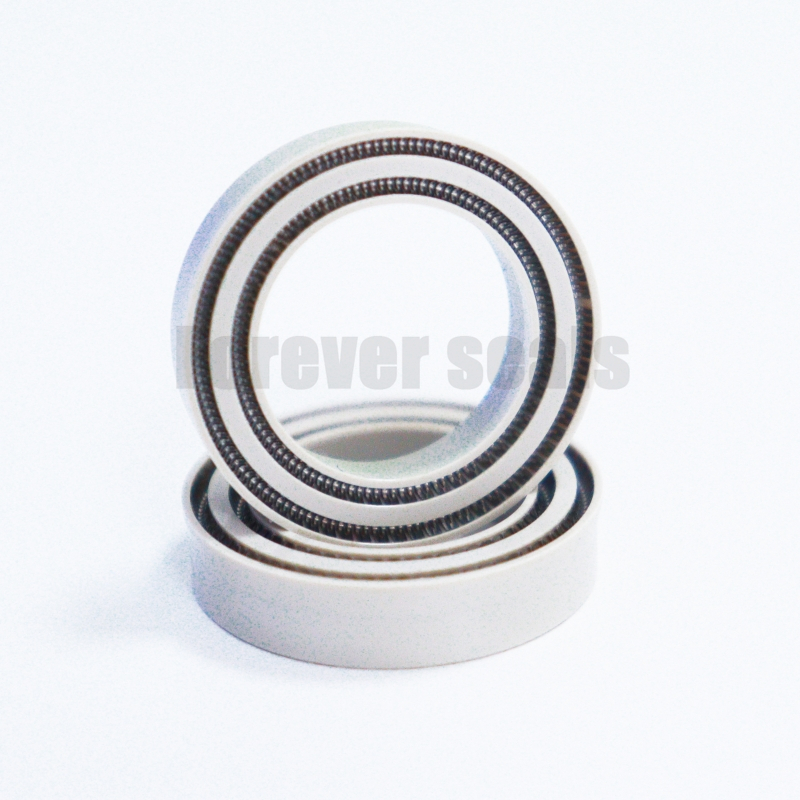

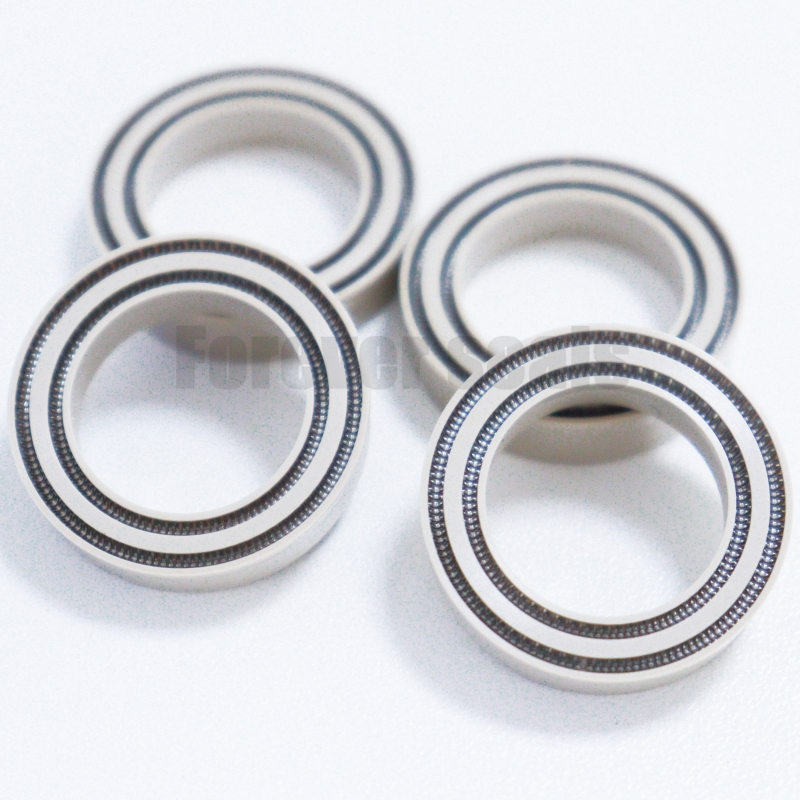

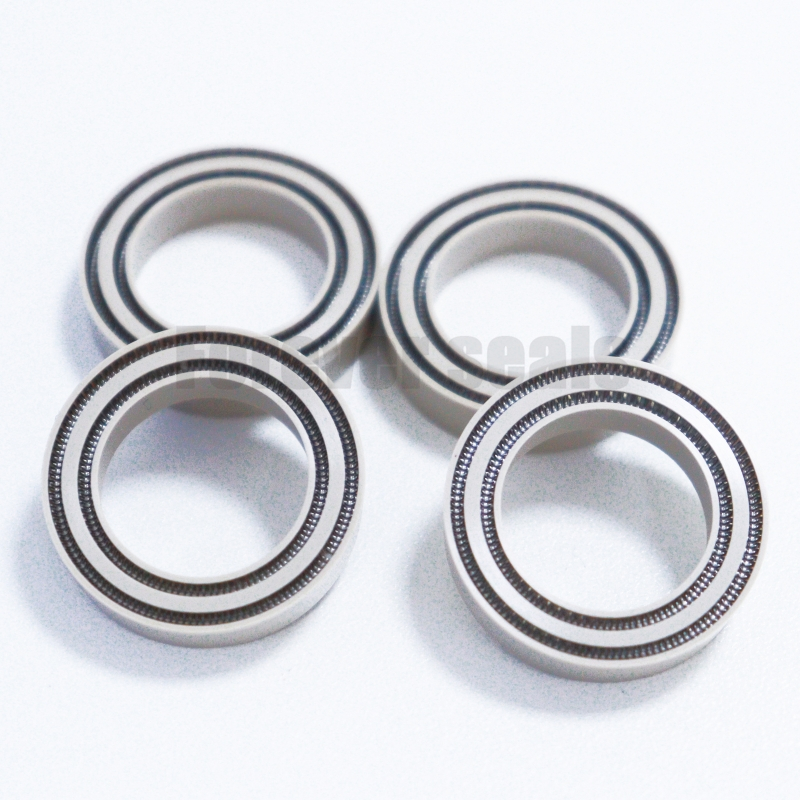

Virgin PTFE Double Spring Energized Seal
High-Performance Seal for Corrosion, Low Friction & Wide Temp
This dual-spring energized seal uses premium virgin PTFE, boasting superior chemical resistance to withstand harsh media and a low friction coefficient that reduces surface wear. Its double helical spring design delivers steady, long-lasting sealing pressure, ensuring reliability even with fluctuating pressure or temperatures.
Suitable for hydraulic/pneumatic systems, chemical equipment, and precision machinery, it merges virgin PTFE’s durability with the spring’s adaptability to solve leakage and premature failure issues in critical industrial applications.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Product Advantages
Superior Material Performance: Crafted from 100% virgin PTFE, the seal exhibits exceptional chemical resistance—resisting corrosive media (acids, alkalis, solvents) without degradation. It also features an ultra-low friction coefficient (<0.05) to minimize wear on mating surfaces, extending the seal’s service life by 30% compared to standard PTFE seals.
Reliable Sealing Force: The dual helical spring design provides consistent, adaptive energizing force. Even under fluctuating pressure (0-50 MPa) or temperature (-200°C to +260°C), the spring maintains tight contact between the seal and sealing surface, eliminating leakage risks.
Long-Term Durability: Virgin PTFE’s high tensile strength and creep resistance prevent permanent deformation, while the spring’s stainless steel core (optional 316L) resists rust and fatigue—ensuring stable performance in continuous-operation scenarios.
2. Working Principle
This seal operates on a “spring energization + PTFE lip sealing” dual mechanism:
Spring Energization: The pre-compressed double helical spring exerts constant radial/axial force on the PTFE sealing lip, forcing it to tightly fit the mating surface (e.g., cylinder bore, piston rod) and form an initial seal.
Pressure-Assisted Sealing: As system pressure increases, the pressure pushes the PTFE lip further against the sealing surface, enhancing the seal’s tightness—adapting to dynamic pressure changes without manual adjustment.
3. Product Details
| Specification | Parameter |
|---|---|
| Material | Virgin PTFE (sealing lip); Stainless steel 304/316L (spring core) |
| Temperature Range | -200°C to +260°C (-328°F to +500°F) |
| Pressure Range | 0-50 MPa (0-7250 psi) |
| Friction Coefficient | ≤0.05 (dry running); ≤0.02 (with lubrication) |
| Standard Sizes | ID 5mm - 500mm (custom sizes available for non-standard applications) |
| Surface Finish | Polished PTFE lip (Ra ≤0.2μm) for reduced friction |
4. Application Range
Ideal for industries and scenarios requiring high sealing reliability and chemical resistance:
Hydraulic/Pneumatic Systems: Sealing for cylinders, valves, and actuators in construction machinery, aerospace, and automotive equipment.
Chemical Processing: Sealing for pumps, reactors, and pipelines handling acids (H₂SO₄), alkalis (NaOH), and organic solvents.
Semiconductor & Food Pharma: Complies with FDA standards (21 CFR Part 177.1550) and ultra-clean requirements, suitable for semiconductor wafer processing and food/beverage transfer equipment.
Extreme Environments: Low-temperature cryogenic equipment (LNG tanks) and high-temperature industrial ovens.
5. FAQ
Q1: What’s the difference between “virgin PTFE” and “filled PTFE” for this seal?
A1: Virgin PTFE offers pure chemical resistance and low friction, making it ideal for corrosive or ultra-clean applications. Filled PTFE (e.g., with glass fiber) adds rigidity but may compromise chemical resistance—Forever Seals recommends virgin PTFE for most critical sealing needs.
A1: Virgin PTFE offers pure chemical resistance and low friction, making it ideal for corrosive or ultra-clean applications. Filled PTFE (e.g., with glass fiber) adds rigidity but may compromise chemical resistance—Forever Seals recommends virgin PTFE for most critical sealing needs.
Q2: Can this seal be customized for non-standard sizes?
A2: Yes. Forever Seals provides custom machining based on your equipment’s drawings (e.g., special IDs, widths, or spring materials like Inconel for high-temperature use) with a lead time of 5-7 business days.
A2: Yes. Forever Seals provides custom machining based on your equipment’s drawings (e.g., special IDs, widths, or spring materials like Inconel for high-temperature use) with a lead time of 5-7 business days.
Q3: How to maintain the seal to extend its service life?
A3: Avoid sharp scratches on the sealing lip during installation; use compatible lubricants (e.g., silicone grease for low-temperature use); and replace the seal if leakage, abnormal friction noise, or pressure drops are detected.
A3: Avoid sharp scratches on the sealing lip during installation; use compatible lubricants (e.g., silicone grease for low-temperature use); and replace the seal if leakage, abnormal friction noise, or pressure drops are detected.
6. Enterprise Selling Points (Forever Seals)
15+ Years of Expertise: Specialized in high-performance sealing solutions, with a R&D team that holds 8 patents for spring-energized seal designs.
Quality Assurance: All virgin PTFE materials are sourced from FDA-approved suppliers; each seal undergoes 100% pressure testing (0.8 MPa air tightness test) before delivery.
Global Support: Offers 24/7 technical consultation (via email/phone) and on-site installation guidance for major clients; maintains warehouses in Europe, the US, and Asia for fast delivery (3-5 days for standard models).
Sustainability Commitment: Uses recyclable packaging and energy-efficient production processes, aligning with global environmental standards (ISO 14001 certified).
