TVM - Rotary spring energized seals

1. Description

Rotary spring energized seal is excellent in rotary, reciprocating and static applications, when there is a need to lock the seal in the groove.

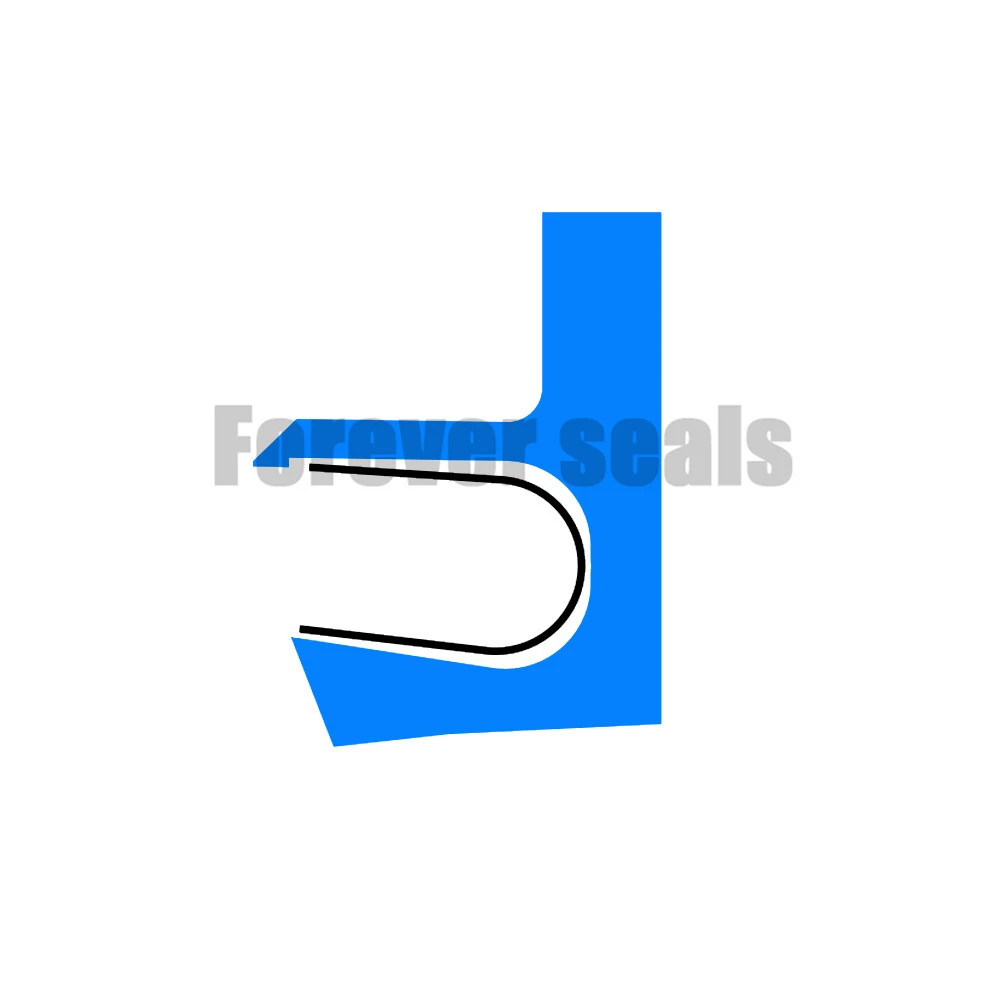

The standard spring energized seal for rotary applications, rotary spring energized seal is a single acting seal consisting of a U-shaped jacket and a V-shaped corrosion resistant spring.
rotary spring energized seal has a flanged heel, which prevents the seal from rotating in the groove and a short heavy dynamic lip that reduces friction. This gives a long service life and good
scraping ability, even in media of high viscosity.

2. Installation Recommendations

3. Technical Data

Operating Pressure:
Maximum dynamic load: 20 MPa / 2,900 psi
Maximum static load: 25 MPa / 3,626 psi
Speed: Reciprocating up to 10 m/s / 1,980 fpm,
Rotating up to 2 m/s / 390 fpm
Temperature: -70 °C to +300 °C / -94 °F to +572 °F
Media compatibility: Virtually all fluids, chemicals and gases
4. Areas of Application

- Rotary shafts on general hydraulic applications
- Plastic injection molding machines
- Rotating and pivoting arms
- Gearbox shafts
