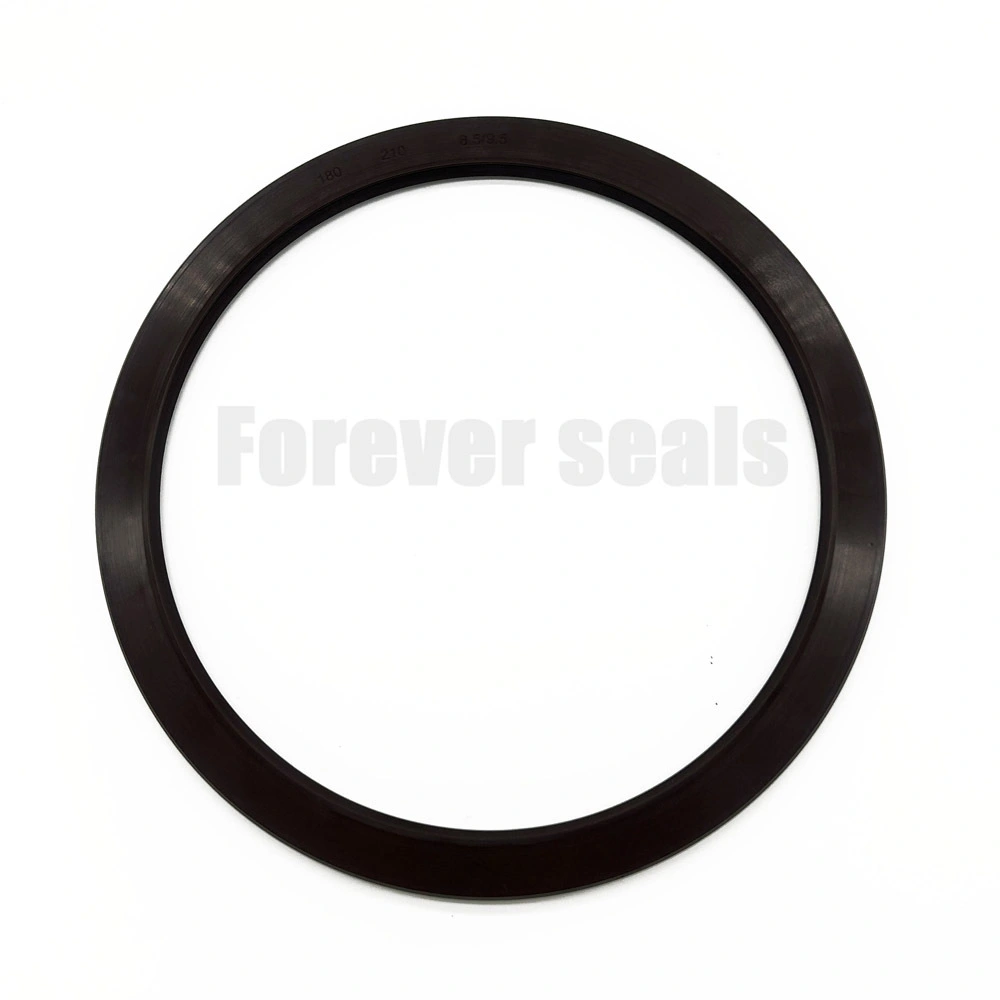

TCV Type Pressure Resistant Skeleton Oil Seal NBR FKM 180x210x8.5/9.5
- Category：TCV Type Pressure-Resistant Skeleton Oil Seal
- Temperature: NBR: -30℃~+120℃；FKM: -20℃ ~+200℃
- Material: Main Structure: Carbon steel metal skeleton + rubber elastomer + tension spring (partial models)
Rubber Elastomer Options: NBR (Nitrile Rubber) / FKM (Fluoro Rubber)
- Color: Black
- Hardness: 70±5 Shore A
- Product description:
TCV type pressure-resistant skeleton oil seal is specially designed for medium and low pressure, rotating and oil-lubricated working conditions. It adopts a short and thick sealing lip structure, which has high rigidity, minimal deformation under pressure and excellent pressure resistance, making it ideal for small-diameter shaft applications.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Product Introduction
TCV type pressure-resistant skeleton oil seal is specially designed for medium and low pressure, rotating and oil-lubricated working conditions. It features a short and thick sealing lip, minimal deformation under pressure, excellent pressure resistance, and is ideal for small-diameter shaft applications. Widely used in hydraulic pumps, motors, reducers and other rotary equipment sealing scenarios, with stable performance and long service life.
2. Structure Feature
-
Composition: Carbon steel metal skeleton + rubber elastomer (NBR/FKM) + tension spring (partial models).
-
Double lip design: Main sealing lip for effective oil sealing, auxiliary dust lip for preventing dust and impurities from entering, protecting the sealing surface.
-
Short & thick lip structure: High rigidity, stable pressure resistance, not easy to deform under medium pressure, better performance than ordinary TC type oil seal.
-
Inner encapsulated skeleton design: Interference fit to install into the cavity, tightly hold the shaft surface, easy to install and stable in sealing.
3. Technical Parameters
|
Item
|
NBR Material
|
FKM Material
|
|---|---|---|
|
Pressure Resistance
|
≤ 0.3 MPa
|
≤ 0.5 MPa
|
|
Temperature Range
|
-30℃ ~ +100℃
|
-40℃ ~ +200℃
|
|
Max Shaft Speed
|
≤ 12 m/s
|
≤ 12 m/s
|
|
Applicable Media
|
Mineral oil, hydraulic oil
|
Mineral oil, synthetic oil, high-temperature oil
|
4. Material Option
-
NBR (Nitrile Rubber): Cost-effective, excellent oil resistance and wear resistance, suitable for conventional working conditions below 100℃, common color: blue/black.
-
FKM (Fluoro Rubber): High temperature resistant, chemical corrosion resistant, suitable for high temperature and medium pressure harsh working conditions, common color: brown/black, preferred for pressure above 0.3 MPa.
5. Application Range
-
Hydraulic parts: Gear pump, plunger pump, hydraulic motor, steering pump.
-
Construction machinery: Excavator, loader, forklift hydraulic system.
-
Automobile industry: Gearbox, differential, transmission shaft, engine accessories.
-
General machinery: Reducer, bearing housing, small and medium-sized rotary equipment oil chamber sealing.
6. Model Specification
Standard marking: TCV Inner Diameter × Outer Diameter × Height (mm)
Common sizes: TCV17×30×6, TCV50×70×10, custom sizes available according to customer requirements.
7. Product Advantage
-
Superior medium-low pressure resistance, more stable than ordinary TC type oil seal.
-
Suitable for small-diameter shaft, medium pressure and medium speed working conditions, widely used in hydraulic equipment.
-
Double lip design, good dustproof and sealing effect, effectively extend the service life of equipment.
-
Multiple material options to meet different temperature, pressure and medium requirements.
-
Standard size, easy installation, cost-effective, suitable for batch procurement and long-term use.
