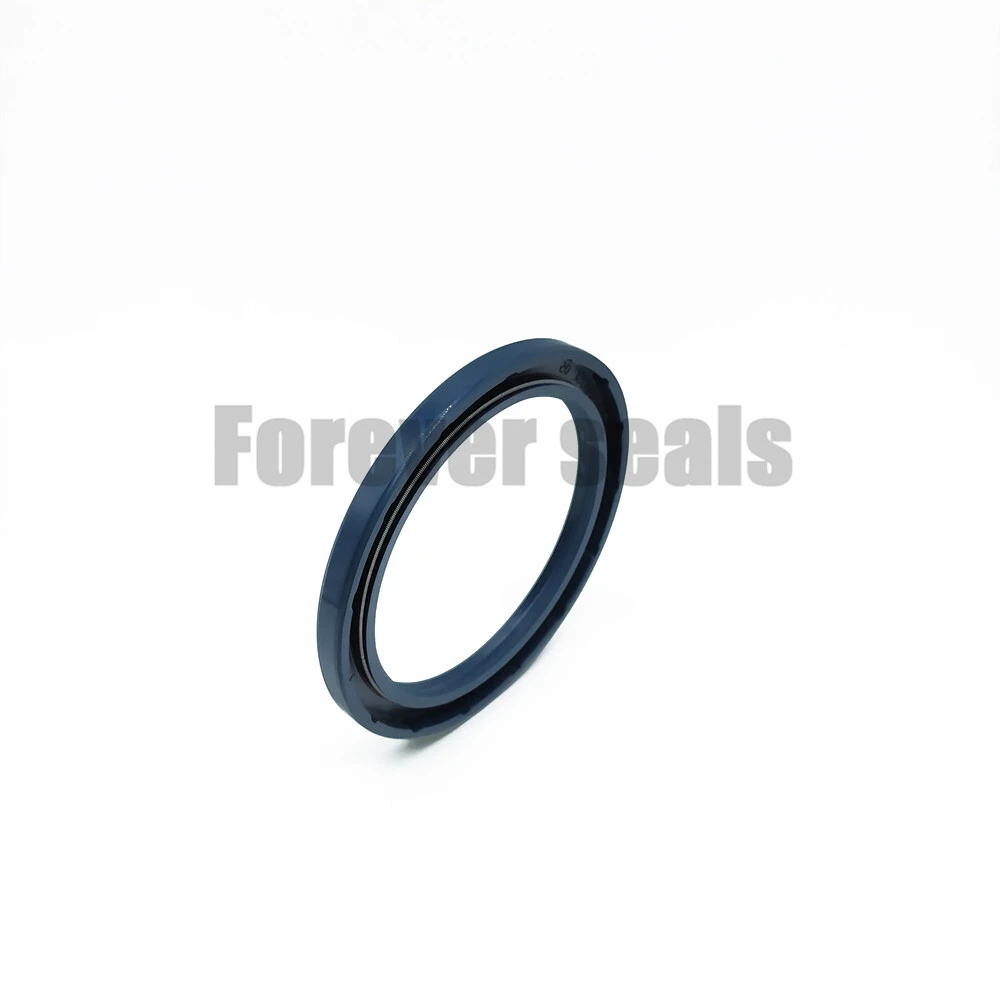

NBR TCV pressure resistant oil seal
- Category： Oil seals
- Temperature: -30 - +100℃
- Material: NBR, FKM
- Color: blue
- Pressure: 0.3MPa
- Product description：NBR TCV pressure resistant oil seal
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
More Choices
1. Description
TCV is the standard oil seal which used for rotation axis. It is linked together with metal skeleton and rubber elastic layer. Mainly used for the working conditions of low pressure and high speed rotation.
2. Standard materials
FKM, NBR
3. Installation Dimensions
| Inner Diam. | Outer Diam. | Height | Order No. |
| 17 | 30 | 6 | TCV17*30*6 |
| 17.46 | 28.58 | 5.7/6.3 | TCV17.46*28.58*5.7/6.3 |
| 18 | 30 | 6 | TCV18*30*6 |
| 18 | 35 | 9 | TCV18*35*9 |
| 19 | 30 | 6 | TCV19*30*6 |
| 19 | 35 | 6 | TCV19*35*6 |
| 20 | 47 | 6 | TCV20*47*6 |
| 22 | 35 | 6 | TCV22*35*6 |
| 24 | 38 | 8 | TCV24*38*8 |
| 25 | 35 | 6 | TCV25*35*6 |
| 25 | 35 | 7 | TCV25*35*7 |
| 28 | 40 | 6 | TCV28*40*6 |
| 28.56 | 42 | 5.5 | TCV28.56*42*5.5 |
| 28.575 | 50.8 | 6.35 | TCV28.575*50.8*6.35 |
| 30 | 42 | 7 | TCV30*42*7 |
| 30 | 48 | 6 | TCV30*48*6 |
| 30 | 52 | 7 | TCV30*52*7 |
| 34.92 | 52 | 6 | TCV34.92*52*6 |
| 34.93 | 50.8 | 7.95 | TCV34.93*50.8*7.95 |
| 35 | 47 | 6 | TCV35*47*6 |
| 35 | 52 | 7 | TCV35*52*7 |
| 35 | 54 | 6/5.5 | TCV35*54*6/5.5 |
| 35 | 55 | 7 | TCV35*55*7 |
| 35 | 57 | 8 | TCV35*57*8 |
| 37 | 57 | 9 | TCV37*57*9 |
| 38.1 | 57.15 | 7.95 | TCV38.1*57.15*7.95 |
| 40 | 52 | 7 | TCV40*52*7 |
| 40 | 55 | 7 | TCV40*55*7 |
| 40 | 60 | 12 | TCV40*60*12 |
| 40 | 62 | 7 | TCV40*62*7 |
| 40 | 67 | 7 | TCV40*67*7 |
| 40 | 80 | 7 | TCV40*80*7 |
| 42 | 62 | 7 | TCV42*62*7 |
| 42 | 72 | 6.5 | TCV42*72*6.5 |
| 43.5 | 63.5 | 7 | TCV43.5*63.5*7 |
| 44.45 | 57.15 | 7.9 | TCV44.45*57.15*7.9 |
| 44.45 | 60 | 7 | TCV44.45*60*7 |
| 45 | 62 | 7 | TCV45*62*7 |
| 45 | 63 | 8 | TCV45*63*8 |
| 45 | 65 | 6 | TCV45*65*6 |
| 45 | 65 | 7 | TCV45*65*7 |
| 45 | 80 | 7 | TCV45*80*7 |
| 47 | 62 | 8 | TCV47*62*8 |
| 49.23 | 63.55 | 7.95 | TCV49.23*63.55*7.95 |
| 50 | 65 | 7 | TCV50*65*7 |
| 50 | 68 | 7 | TCV50*68*7 |
| 50 | 70 | 7 | TCV50*70*7 |
| 50 | 72 | 7 | TCV50*72*7 |
| 50 | 75 | 8 | TCV50*75*8 |
| 50 | 80 | 7 | TCV50*80*7 |
| 52 | 72 | 7/8 | TCV52*72*7/8 |
| 55 | 70 | 7 | TCV55*70*7 |
| 55 | 72 | 8 | TCV55*72*8 |
| 55 | 78 | 8 | TCV55*78*8 |
| 55 | 90 | 7 | TCV55*90*7 |
| 58 | 80 | 8 | TCV58*80*8 |
| 60 | 80 | 7 | TCV60*80*7 |
| 62 | 85 | 7 | TCV62*85*7 |
| 65 | 97 | 7.5 | TCV65*97*7.5 |
| 70 | 95 | 7 | TCV70*95*7 |
| 73 | 90 | 7/8 | TCV73*90*7/8 |
| 80 | 100 | 7 | TCV80*100*7 |
| 60 | 106 | 7 | TCV60*106*7 |
| 85 | 110 | 8 | TCV85*110*8 |
| 90 | 110 | 7 | TCV90*110*7 |
| 75 | 120 | 7 | TCV75*120*7 |
| 100 | 120 | 8 | TCV100*120*8 |
4. Product Catalog
You can download catalog through below link.
http://www.foreverseals.com/download.html
