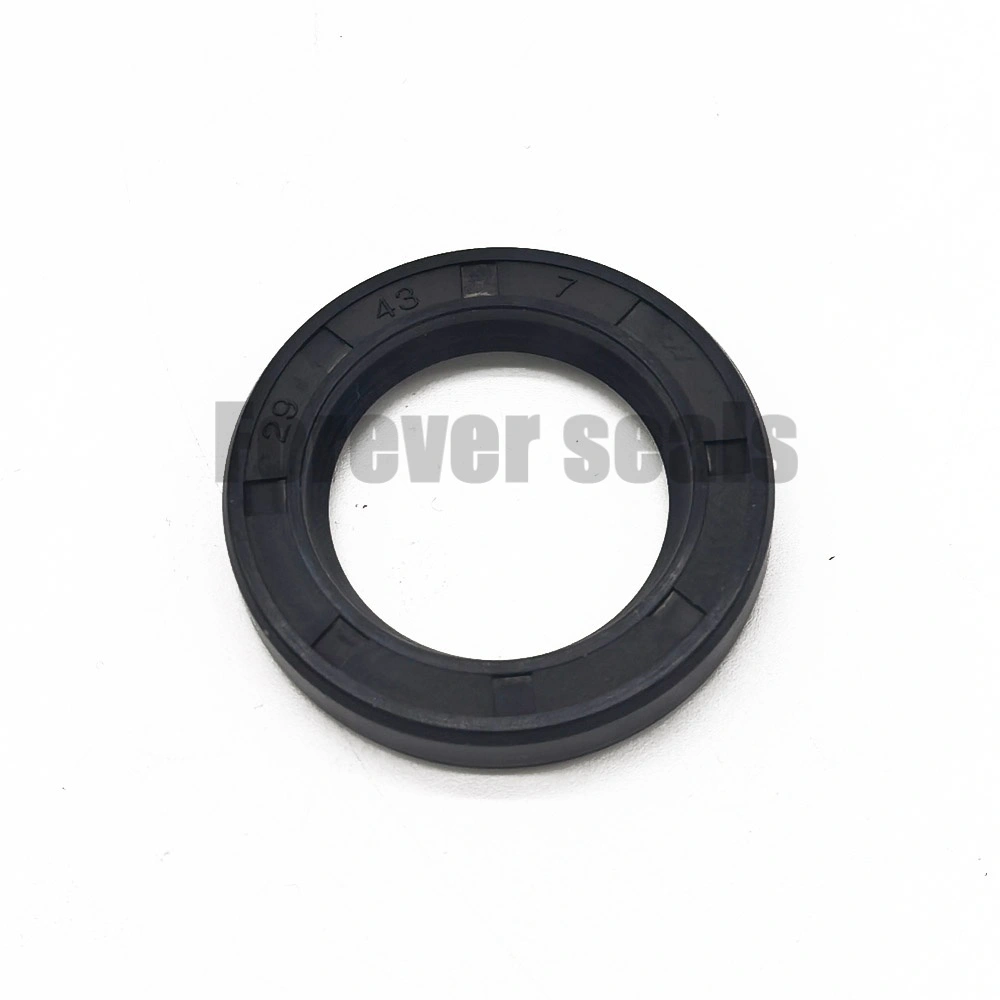

TC4P Oil Seal/ Double Lip Power Steering Automotive Oil Seal NBR / HNBR / FKM/Double Lip Oil Seal with Spring

2. Working Principle

The TC4P oil seal is a metal skeleton double-lip oil seal with a garter spring. Its working principle is to rely on the preload of the garter spring to make the main lip closely fit the surface of the moving part (such as steering rack, piston rod), forming a tight sealing interface to prevent the leakage of hydraulic oil.

The spiral oil return groove on the lip plays a key role during the reciprocating movement of the moving part: when the moving part moves, the groove can guide the small amount of oil that seeps into the lip back to the working cavity, reducing friction between the lip and the moving part, while further improving the sealing reliability. The dustproof lip on the outer side can effectively block external dust, impurities and other pollutants from entering the system, protecting the internal components from wear and extending the service life of the whole equipment.

5. FAQ

• Q: What is the difference between TC4P oil seal and ordinary TC/TC4 oil seal?
  A: TC is a common double-lip oil seal, pressure resistance ≤3MPa, suitable for low-pressure rotation; TC4 is an enhanced type, pressure resistance ≤8MPa, suitable for medium and high-pressure rotation; TC4P is specially designed for high-pressure linear reciprocating motion, pressure resistance ≤20MPa, with spiral oil return groove, more suitable for power steering racks and other parts.

• Q: How to choose the right material for TC4P oil seal?
  A: Choose NBR for ordinary hydraulic oil and normal temperature environment; choose HNBR for high temperature, long service life and frequent reciprocating motion; choose FKM for extreme temperature, strong chemical corrosion and high-pressure harsh conditions.

• Q: Why does the TC4P oil seal leak during use?
  A: The common reasons include: incorrect size selection (mismatch of inner diameter, outer diameter and height), damage to the lip during installation, excessive wear of the moving part surface, inappropriate material selection for the working environment, or excessive system pressure exceeding the bearing capacity of the oil seal.

• Q: Can TC4P oil seal be customized according to non-standard sizes?
  A: Yes, we can provide non-standard customization services according to the customer's drawings, samples or size parameters, to meet the special needs of different equipment.

• Q: What is the service life of TC4P oil seal?
  A: The service life depends on the material, working environment and working conditions. Under normal working conditions (appropriate temperature, pressure and oil quality), NBR oil seal can be used for 1-2 years, HNBR for 2-3 years, and FKM for 3-5 years.
