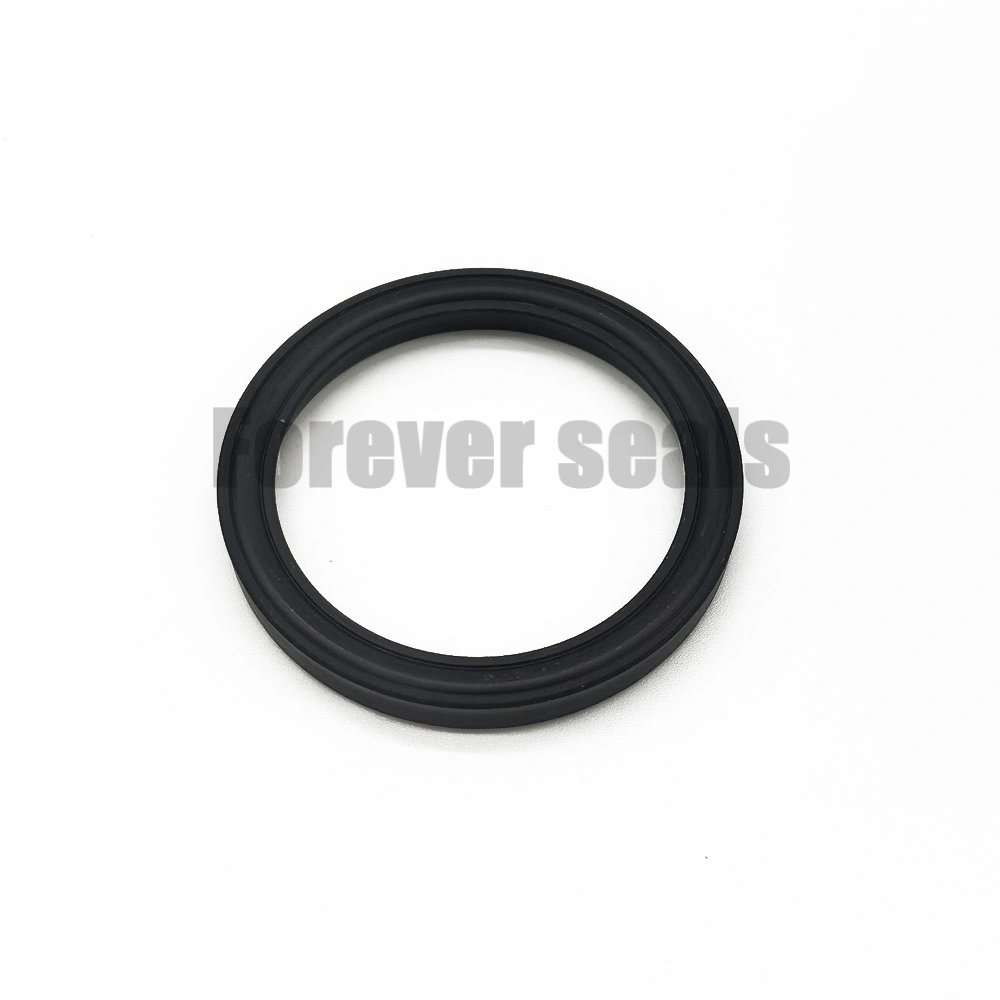

S8 Compact Seal NBR Fabric Reinforced Hydraulic Seal
Suitable for hydraulic cylinder, machine tool, construction and agricultural machinery
- Category：Hydraulic Seal / Compact Combined Seal
- Temperature：-30℃ ~ +100℃
- Material：NBR Rubber + Fabric Reinforced
- Color：Rubber part blue, Fabric part black
- Hardness：70 Shore A
- Product description： S8 compact seal is one-piece fabric reinforced hydraulic seal, universal for shaft & rod, can be used as rod seal and piston seal. Fits ISO 5597 standard groove, features anti-extrusion, low friction, stable operation and easy installation. Suitable for medium-low pressure hydraulic cylinders, machine tools, construction machinery and agricultural machinery.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Basic Product Information
Product Name: S8 Compact Combined Seal
Brand: Freudenberg Merkel
Product Type: One-way compact main seal for hydraulic piston rod & piston
Application Position: Hydraulic cylinder main sealing, widely used for standard medium-low pressure cylinder replacement and aftermarket spare parts.
Brand: Freudenberg Merkel
Product Type: One-way compact main seal for hydraulic piston rod & piston
Application Position: Hydraulic cylinder main sealing, widely used for standard medium-low pressure cylinder replacement and aftermarket spare parts.
2.Structural Features
- Integrated one-piece composite structure.
- Sealing lip: NBR rubber for primary sealing.
- Backing layer: Fabric reinforced design for anti-extrusion, rigid support and low friction.
- Symmetrical cross-section, unidirectional pressure resistance.
- Fits ISO 5597 standard groove.
- asy installation, suitable for closed groove assembly without special tools.
3.Standard Material & Hardness
- Sealing compound: NBR
- Hardness: 70 Shore A
- Reinforcement layer: High-performance synthetic/cotton fabric
4.Working Parameters
- Max Working Pressure: 25 MPa (250 bar)
- Working Temperature: -30℃ ~ +100℃
- Reciprocating Speed: ≤ 0.5 m/s
- Suitable Media: Mineral hydraulic oil HL / HLP, clean water, HFA / HFB / HFC fire-resistant hydraulic fluid, glycol-based media.
5.Core Advantages
- Excellent anti-extrusion performance with fabric backing.
- Superior low-pressure sealing performance, low leakage.
- Low friction coefficient, stable operation without crawling.
- Standard universal groove, high interchangeability for replacement.
- Dual usage: applicable for piston rod seal and piston seal.
6.Application Fields
- Standard hydraulic cylinders, telescopic cylinders
- Machine tool hydraulic systems & hydraulic fixtures
- Construction machinery, agricultural machinery
- General mechanical equipment & hydraulic station maintenance
- Injection molding machines and light industrial hydraulic units
7.Size Specification
- Size marking: Inner diameter d × Outer diameter D × Height H
- Standard size range: 10mm ~ 200mm
- Common standard sizes: 18×25×6, 30×38×6.3, 56×66×7.5, 100×110×7.5
- Custom non-standard large sizes available.
8.Installation Instructions
- Follow ISO 5597 standard groove design.
- Install with rubber lip facing the pressure side.
- Recommended rod surface roughness: Ra ≤ 0.4μm.
- Groove must be burr-free to avoid lip damage.
- Suitable for medium-low pressure static and reciprocating dynamic sealing.
9.Application Limitations
- Not suitable for continuous temperature over 100℃.
- Not applicable for working pressure over 25MPa.
- Not recommended for strong acid, alkali and highly corrosive media.
