Product details of the hydraulic seal
Product Overview
hydraulic seal is designed by renowned designers in the field. The product passes through the extremely harsh quality control and inspection process. Our hydraulic seal is widely used in industry. Producing, selling and serving hydraulic seal with the finest quality are what FOREVER SEALS has been sticking to.
Product Information
Compared with similar products, our hydraulic seal's outstanding advantages are as follows.
1. Description

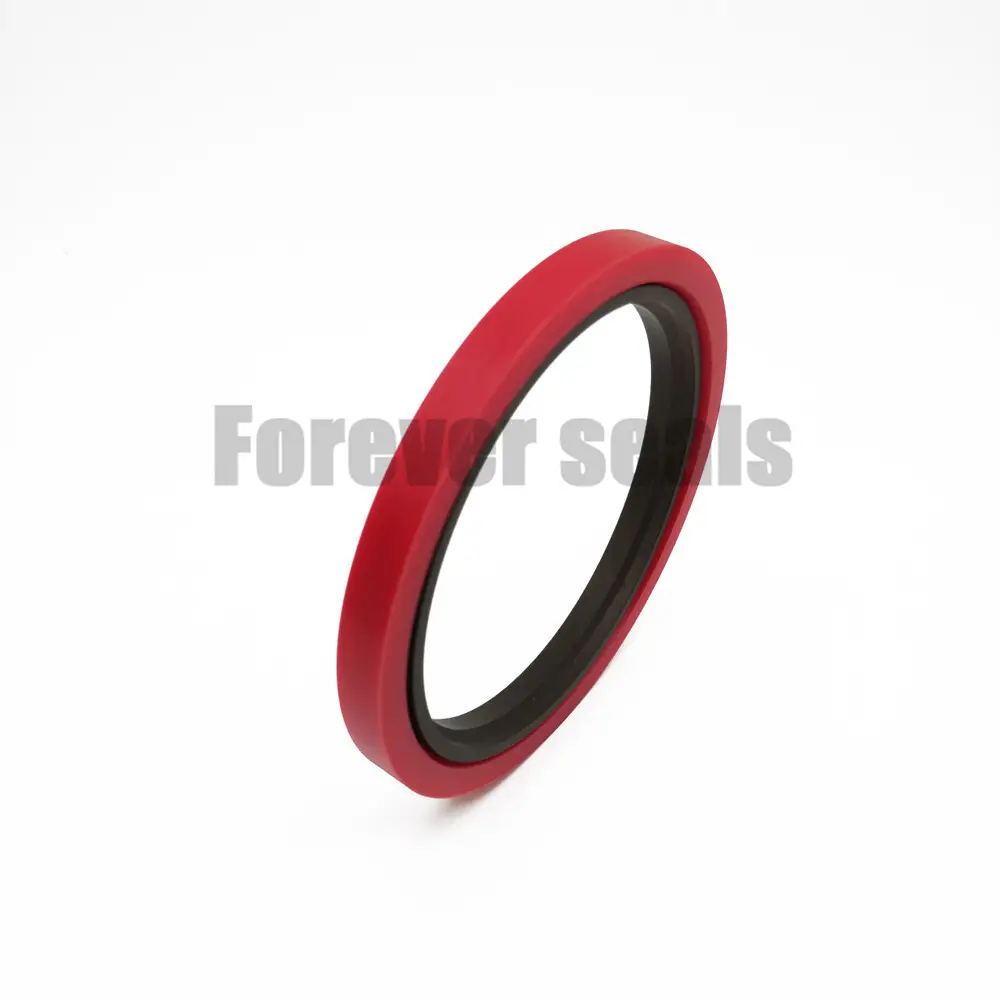

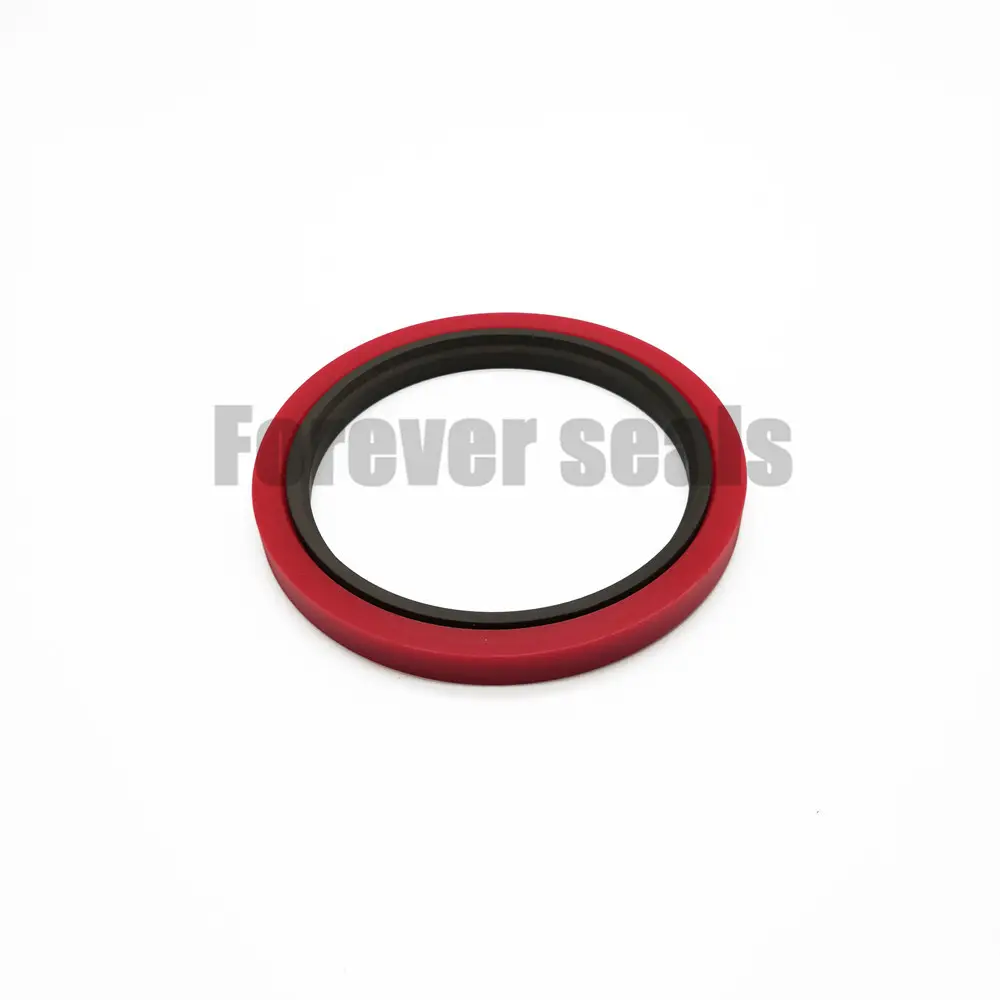

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.
2. Installation Recommendation
3. Installation Sizes
|
Rod Diameter |
Outer Diameter |
Groove Width |
Install Chamfer |
Radius |
Radial Clearance S max. |
||
|
d f8 |
D H8 |
L+0.2 |
L1 |
R1 |
10MPa |
20MPa |
40MPa |
|
50-69.9 |
d+15.0 |
7.5 |
5.0 |
0.4 |
0.5 |
0.4 |
0.3 |
|
70-149.9 |
d+20.0 |
10.1 |
6.0 |
0.4 |
0.7 |
0.5 |
0.4 |
|
200-244.9 |
d+25.0 |
12.5 |
8.5 |
0.4 |
0.8 |
0.6 |
0.5 |
|
245-519.9 |
d+30.0 |
15.0 |
10.0 |
0.8 |
0.9 |
0.7 |
0.6 |
|
520-769.9 |
d+35.0 |
17.5 |
13.0 |
1.2 |
1.0 |
0.8 |
0.7 |
|
770-1500 |
d+40.0 |
20.0 |
15.0 |
1.2 |
1.0 |
0.8 |
0.7 |

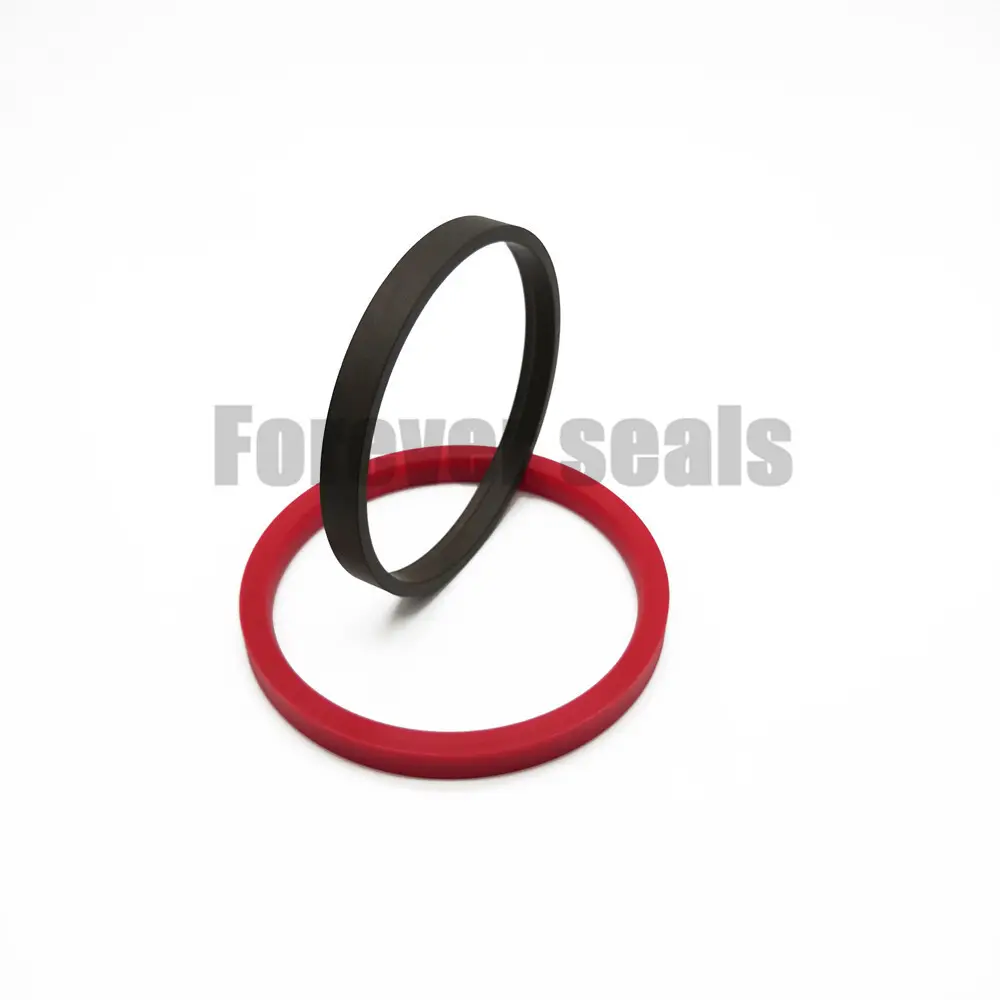

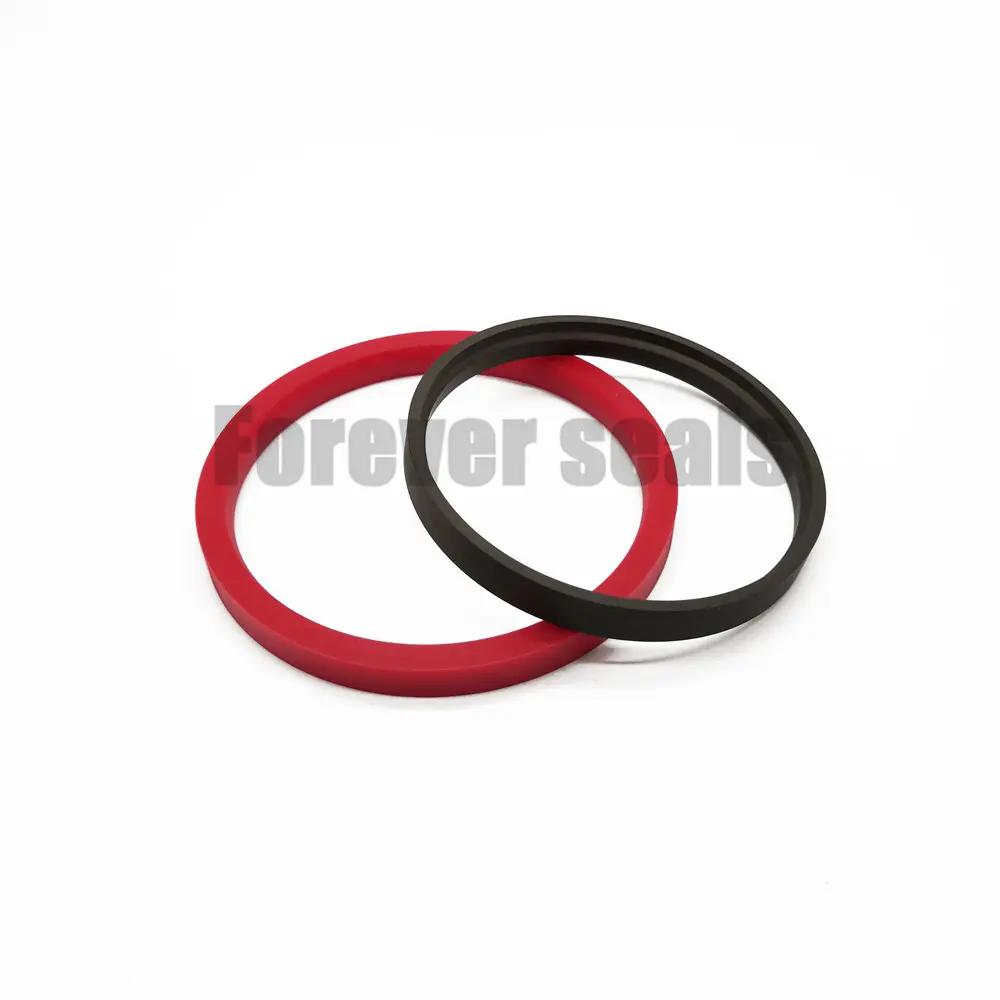

Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
50 - 1600mm |
0 - 60MPa |
-30℃ +100℃ |
5 m/s |
hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
|
Rod Dia. |
Outer Dia. |
Groove Width |
Order No. |
|
d f8 |
D H8 |
L+0.2 |
|
|
50 60 70 |
65 75 85 |
7.5 7.5 7.5 |
GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5 |
|
75 80 100 |
95 100 120 |
10 10 10 |
GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10 |
|
110 115 120 |
130 135 140 |
10 10 10 |
GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10 |
|
130 140 145 |
150 160 165 |
10 10 10 |
GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10 |
|
150 160 170 |
170 180 190 |
10 10 10 |
GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10 |
|
175 180 200 |
195 200 220 |
10 10 10 |
GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10 |
