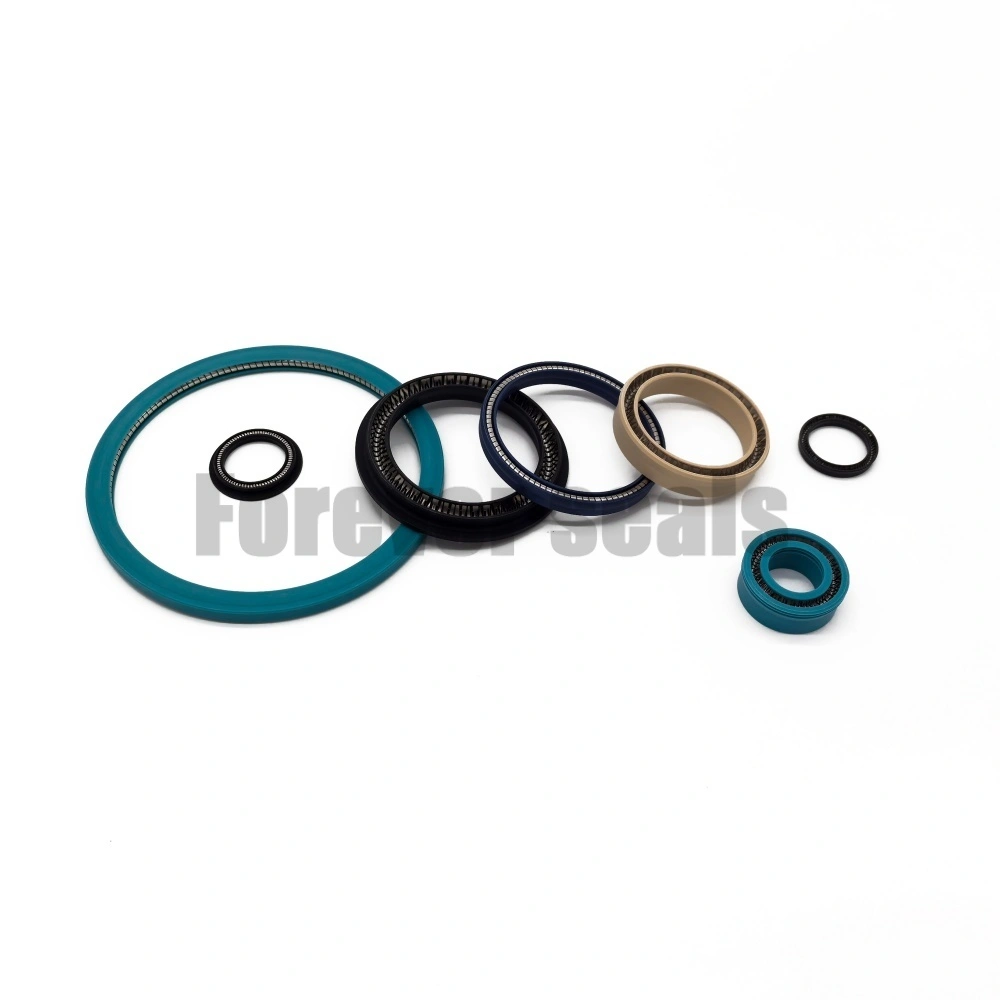

Multi-Type Spring Energized PTFE Seal
Universal High Pressure Wear Resistant Spring Loaded Sealing Solution
This multi-type spring energized seal is engineered for demanding static and dynamic sealing conditions where standard seals cannot perform well. It integrates the excellent corrosion resistance of PTFE and the constant compensation performance of spring energization. It keeps stable sealing effect even after long-term operation, pressure fluctuation and temperature change. With versatile structural design and precise dimensional accuracy, it can be widely matched with various hydraulic, pneumatic and process equipment, becoming a universal high-reliability sealing option for industrial harsh conditions.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1.Product Advantages
It adopts spring elastic compensation structure, automatically adapting to clearance changes and wear without leakage. Low friction PTFE material ensures no crawling, no sticking and stable operation in high-speed reciprocating and rotating scenarios. Excellent chemical corrosion resistance tolerates most oils, solvents and corrosive media without aging or swelling. Wide temperature and high-pressure resistance maintain stable performance in extreme working conditions.
2.Working Principle
The seal relies on the pre-tightening force of the internal metal spring to push the PTFE sealing lip closely against the mating surface. Under system pressure, the medium pressure further enhances the sealing contact force to achieve reliable static and dynamic sealing. The spring can continuously compensate for wear, gap deviation and thermal deformation, while PTFE material provides self-lubrication and chemical isolation, keeping long-term leak-proof performance in complex motion and variable pressure environments.
3.Product Details
Material: High-purity PTFE plus stainless steel energized spring. Available in multiple structure types for different groove sizes. All products are manufactured to industrial standard dimensions, with strict sampling inspection on physical property, compression resilience and corrosion resistance. Compliant with relevant industry environmental standards, packed with independent moisture-proof packaging and carton outer box.
4.Application Range
Suitable for hydraulic systems, pneumatic equipment, oil and chemical machinery, automation cylinders, fluid process equipment and high-pressure industrial devices. Ideal for reciprocating, rotating, high-pressure and strong corrosive medium sealing occasions.
5.FAQ
Q1: What are the core advantages of spring energized seals?
A1: It features automatic wear compensation, strong high-pressure resistance, ultra-low friction and excellent chemical corrosion resistance, stable for long-term operation in harsh working conditions.
A1: It features automatic wear compensation, strong high-pressure resistance, ultra-low friction and excellent chemical corrosion resistance, stable for long-term operation in harsh working conditions.
Q2: What motion types is it suitable for?
A2: It fits reciprocating, rotating and static sealing scenarios, widely applicable to most hydraulic and pneumatic fluid equipment.
A2: It fits reciprocating, rotating and static sealing scenarios, widely applicable to most hydraulic and pneumatic fluid equipment.
Q3: What media can it resist?
A3: It is compatible with hydraulic oil, lubricating oil, organic solvents, water and most corrosive chemical media without swelling or aging.
A3: It is compatible with hydraulic oil, lubricating oil, organic solvents, water and most corrosive chemical media without swelling or aging.
Q4: Does it work well under pressure fluctuation?
A4: Yes, the built-in spring can continuously compensate clearance and deformation, keeping stable sealing even with frequent pressure changes.
A4: Yes, the built-in spring can continuously compensate clearance and deformation, keeping stable sealing even with frequent pressure changes.
Q5: Can you customize special sizes and structures?
A5: We support custom-made cross-section sizes, spring types, material formulas and special structural styles according to customer actual groove and working conditions.
A5: We support custom-made cross-section sizes, spring types, material formulas and special structural styles according to customer actual groove and working conditions.
6.Forever Seals’ Selling Points
As a professional seal manufacturer with 17 years of industry experience, Forever Seals has independent R&D capability and complete production quality control system. We strictly control raw materials and implement multi-process testing to ensure stable batch quality. We support fast customized development and mass production with sufficient inventory for standard models. Our professional technical team provides working condition selection, structural matching and full after-sales service, solving various high-pressure and complex sealing problems for global customers.
