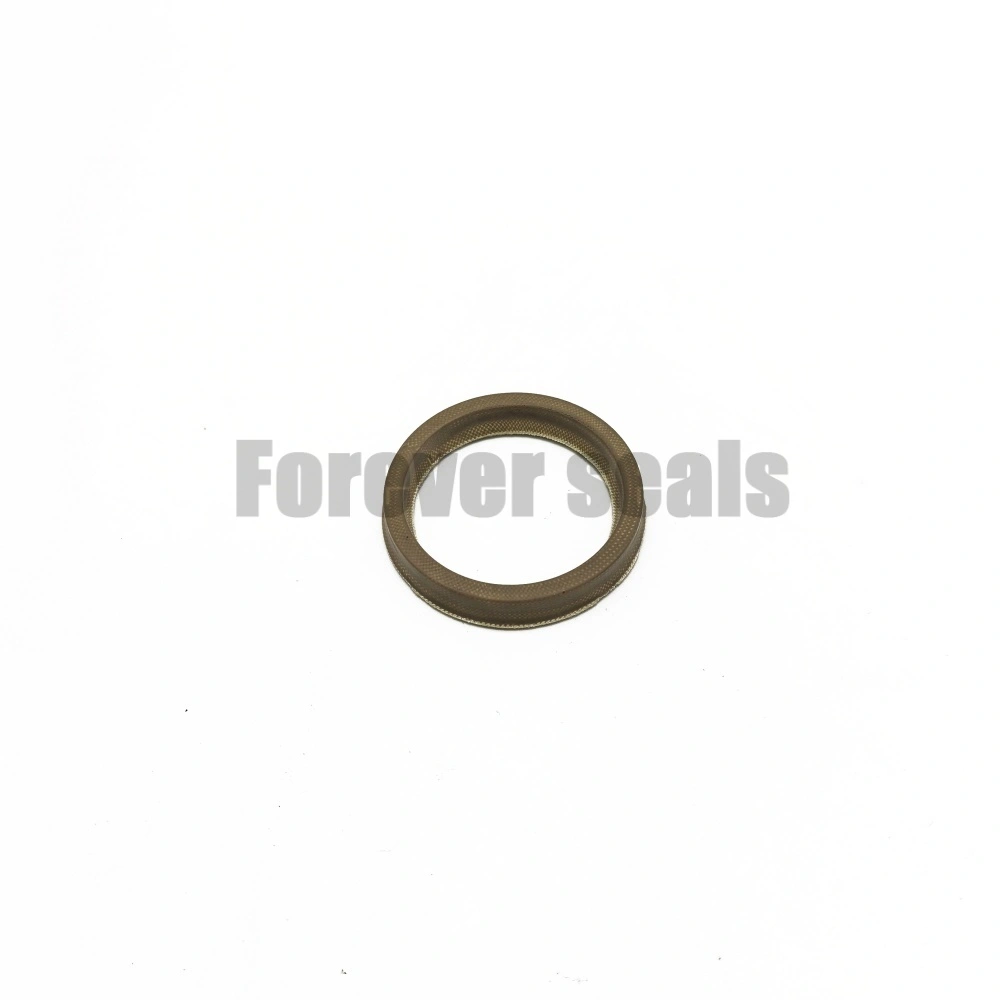

Kevlar Reinforced U-Ring Seal
High Strength Abrasion-Resistant Kevlar Composite U-Ring Hydraulic Seal
Engineered specifically for demanding high-pressure hydraulic applications, this Kevlar U-ring addresses the common limitations of standard rubber U-rings, such as easy deformation under load, poor wear resistance and short service life in harsh conditions. The Kevlar reinforcement significantly boosts structural rigidity and resistance to wear, allowing the seal to operate reliably under extreme pressures and frequent reciprocating cycles. It is a durable, cost-effective solution for heavy machinery, mining equipment and high-performance hydraulic cylinders.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1.Product Advantages
Kevlar fiber reinforcement drastically improves tear strength and anti-extrusion properties, preventing seal damage under high pressure and lateral loads. Excellent wear resistance reduces surface degradation, extending service life even in fluids with fine contaminants or abrasive particles. The U-shaped profile provides inherent pressure energization, automatically increasing contact force with mating surfaces as system pressure rises. Balanced elasticity and structural stability ensure consistent sealing performance under dynamic loads and temperature fluctuations. Good chemical compatibility resists common hydraulic oils and industrial fluids without swelling or performance degradation.
2.Working Principle
When installed in the hydraulic cylinder groove, the U-ring creates initial contact pressure with the mating surface through its inherent rubber elasticity. As system pressure builds, fluid pressure enters the U-shaped cavity, pushing the seal lips outward and enhancing contact force with the cylinder wall to form a tight sealing barrier. The embedded Kevlar layer restricts excessive expansion and prevents the seal from being extruded into the clearance gap, preserving its shape and sealing function throughout operation.
3.Product Details
This U-ring is manufactured by bonding high-strength Kevlar fabric with premium-grade rubber through precision molding and vulcanization processes. Each seal undergoes rigorous quality checks for dimensional accuracy, fabric-to-rubber adhesion strength and surface finish. Seals are individually packaged in protective, contamination-resistant bags and boxed in sturdy cartons to avoid damage during storage and transit.
4.Application Range
Suited for heavy-duty hydraulic cylinders, mining machinery, construction equipment and high-pressure hydraulic systems. Also applicable to reciprocating pumps, hydraulic presses and industrial machinery operating under high-load, abrasive or pressure-intensive conditions.
5.FAQ
Q1: What is the main benefit of adding Kevlar to the U-ring?
A1: Kevlar reinforcement dramatically improves tear strength and anti-extrusion performance, preventing seal failure under high pressure and heavy loads. Q2: Is this seal suitable for high-pressure hydraulic applications?
A2: Yes, the composite structure allows it to withstand significantly higher pressures than standard rubber U-rings, making it ideal for heavy-duty hydraulic systems. Q3: How does it perform in fluids with abrasive contaminants?
A3: The Kevlar layer greatly enhances wear resistance, reducing surface degradation and extending service life in fluids with fine particles or contaminants. Q4: Can it handle frequent reciprocating motion?
A4: The combination of rubber elasticity and Kevlar structural strength ensures stable performance even after millions of reciprocating cycles. Q5: What makes it different from ordinary rubber U-rings?
A5: Higher pressure resistance, superior wear and tear resistance, reduced risk of extrusion damage and longer service life in harsh operating conditions.
A1: Kevlar reinforcement dramatically improves tear strength and anti-extrusion performance, preventing seal failure under high pressure and heavy loads. Q2: Is this seal suitable for high-pressure hydraulic applications?
A2: Yes, the composite structure allows it to withstand significantly higher pressures than standard rubber U-rings, making it ideal for heavy-duty hydraulic systems. Q3: How does it perform in fluids with abrasive contaminants?
A3: The Kevlar layer greatly enhances wear resistance, reducing surface degradation and extending service life in fluids with fine particles or contaminants. Q4: Can it handle frequent reciprocating motion?
A4: The combination of rubber elasticity and Kevlar structural strength ensures stable performance even after millions of reciprocating cycles. Q5: What makes it different from ordinary rubber U-rings?
A5: Higher pressure resistance, superior wear and tear resistance, reduced risk of extrusion damage and longer service life in harsh operating conditions.
6.Forever Seals’ Selling Points
We bring years of specialized experience in composite reinforced seal manufacturing, mastering the key technology of bonding Kevlar fabric with rubber compounds. Every production stage, from material selection to final inspection, is subject to strict quality control to ensure consistent performance and durability. Standard sizes are kept in stock for fast delivery, and we also support custom dimensions and specialized formulations to meet unique application requirements. Our technical team provides professional guidance on seal selection, installation and working condition matching to help customers optimize their hydraulic system performance.
