Hydraulic cylidner bronze PTFE guide strips wear rings

  • Category: Guide seals
  • Temperature: -40 - +200℃
  • Material: filled PTFE
  • Color: brown, green
  • Application: hydraulic cylidner

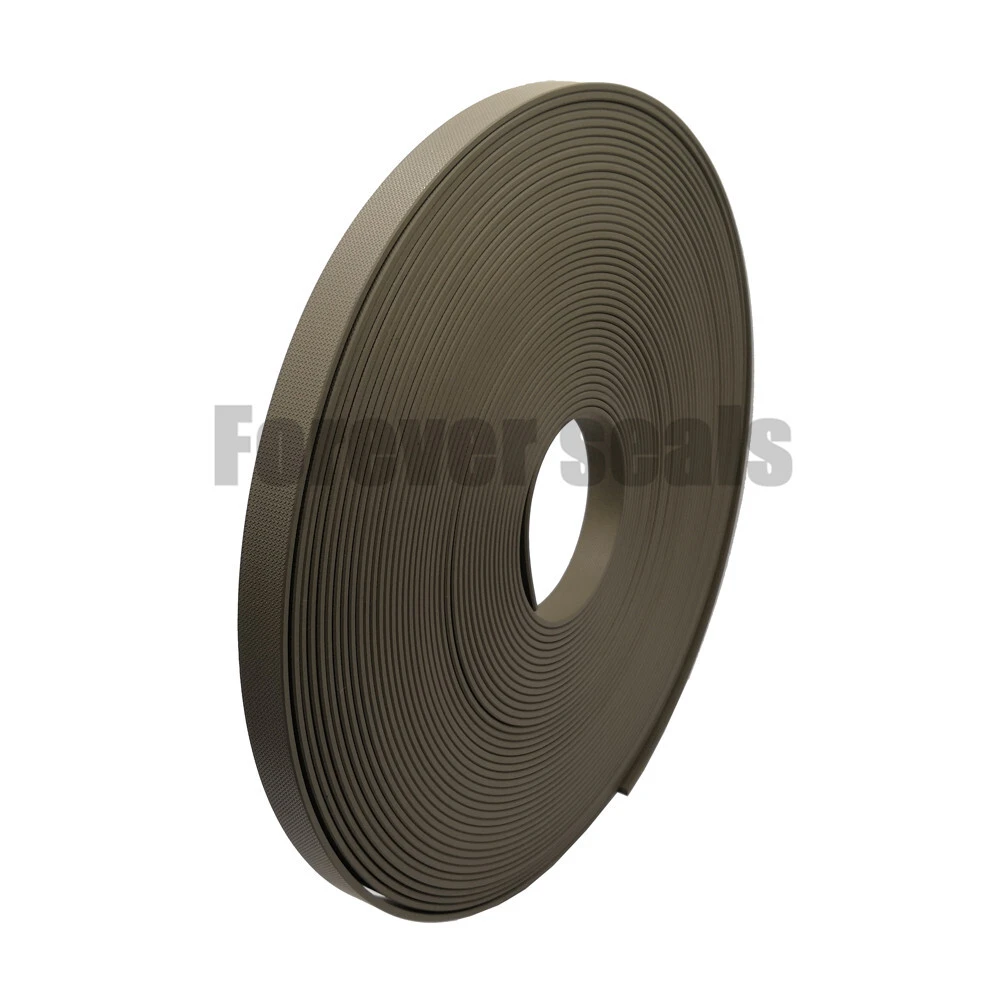

  • Product description:Hydraulic cylidner bronze PTFE guide strips wear rings

    oops...!

    no product data.

    Go to homepage

    More Choices

    no data

    1. Description

    Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

    2. Installation Recommendation

    Hydraulic cylidner bronze PTFE guide strips wear rings 8

    3. Standard materials

    Filled PTFE

    4. Working Conditions

    Working  Conditions

    Diameter Range

    Pressure Range

    Temperature Range

    Speed

    Medium

    Custom as Required

    -55℃ +225℃

    15 m/s

    hydraulic oil, emulsion, and water

    Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

    Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

    5. Length of whole roll

    Thickness

    1

    1.5

    2

    2.5

    3

    4

    5

    6

    Length of whole roll ( m )

    55

    35

    27

    22

    18

    13

    10

    8

    Above data only for reference, it shall follow the actual products.

    Standard groove width

    Groove width L2

    2.5

    3.2

    4

    4.2

    5.6

    6

    6.3

    8.1

    9.7

    10

    12

    15

    18

    20

    25

    30

    40

    50

    The products of various width could be provided.

    Standard thickness of product

    Thickness W

    1

    1.5

    1.55

    2

    2.5

    3

    4

    5

    6

    The products of various thickness could be provided.
